Head Bolt E12 Torx Socket With Extension (3/8 Drive)

Mfg Part #
83300490856

83-30-0-490-856

83 30 0 490 856
Turner Part #
T#11461
Brand
Price:
Qty
51.77
Ships in 3 days
Free Shipping Eligible Free Shipping
on orders $99 and up
Does this fit my vehicle?
For accurate results, specify your model below.

Product Details

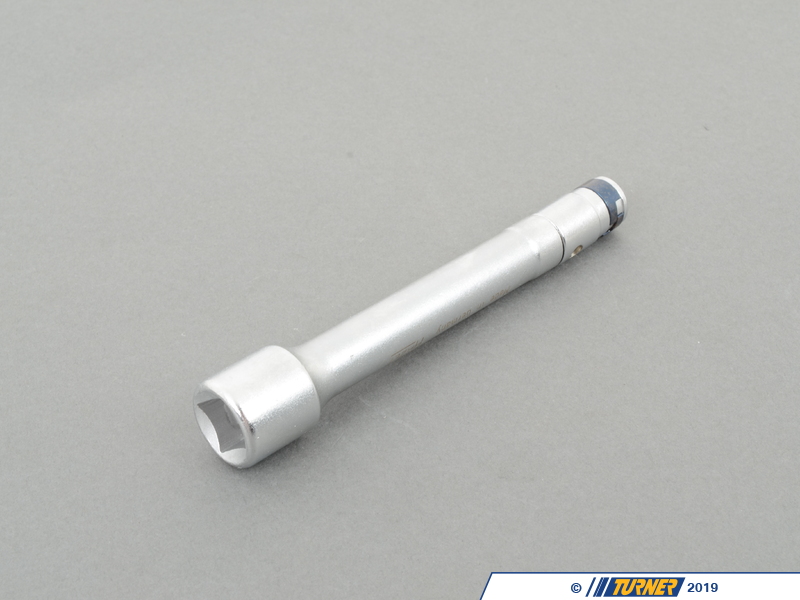

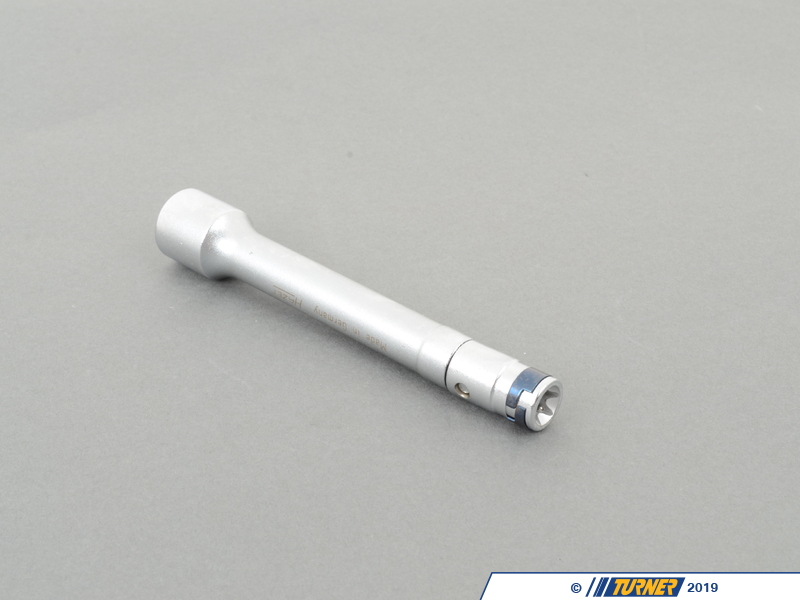

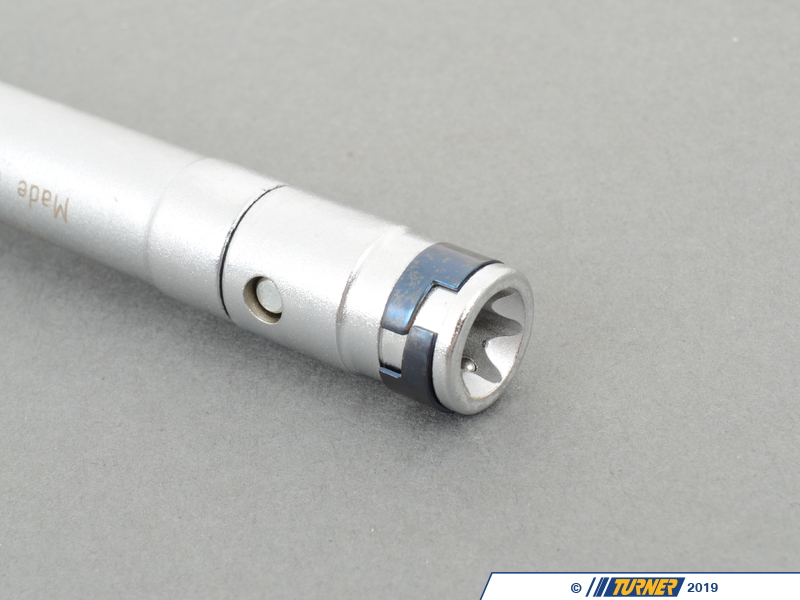

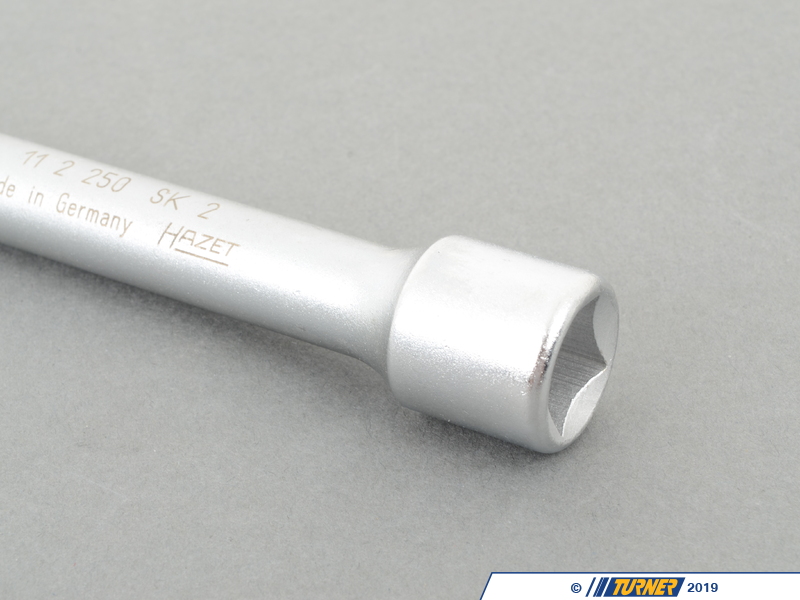

The head bolts on some BMW engines are buried under cam trays, oil lines, and other pieces within the head. A normal Torx socket bit will not clear which can leave you in a bind. That's why BMW developed this tool. It's the standard E12 female Torx at the end but has a thin wall design and the shaft stays narrow all the way to the 3/8 drive fitting. Fits any BMW engine that uses the E12 Torx head bolts, but especially M50, S50US, M52, S52, M52TU, and M54 engines where the head bolts are inaccessible.

Note: removing the cam trays allows access to the valvetrain to inspect for wear. Things like the keepers, valve spring retainers, and the camshafts themselves all suffer from wear and should be inspected when access allows.
Previous Revisions
  • 88886112250

This Part Fits the Following BMWs

Make Model Submodel Engine
BMW All All M42 1.8L
BMW All All M44 1.9L
BMW All All M50 2.5L
BMW All All M52 2.5L
BMW All All M52 2.8L
BMW All All S50 3.0L
BMW All All S52 3.2L
*The above product applications have been written by Turner Motorsport. All warranties, product application, fitment, and performance are the responsibility of Turner Motorsport. For additional information see the terms of use.
