Head Gasket Installation Set - E39 528i, E46 323/328, Z3 2.3/2.8

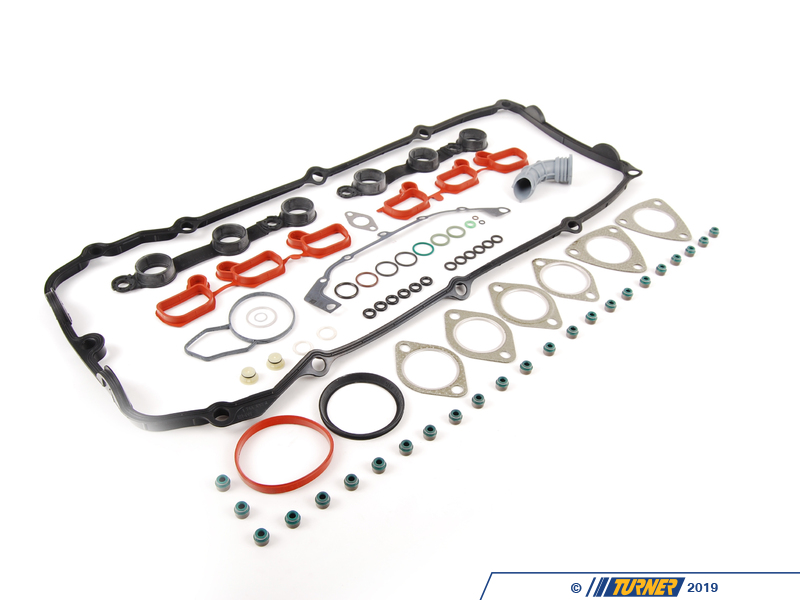

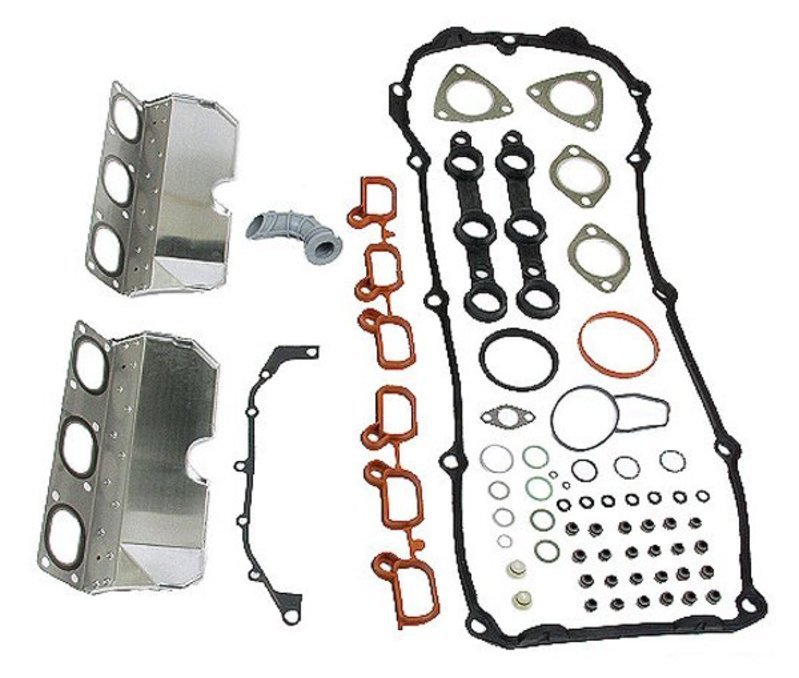

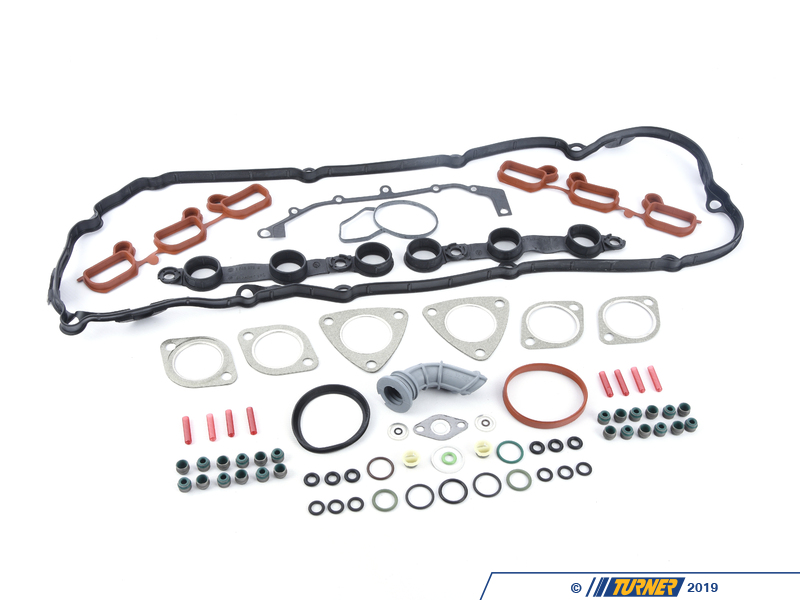

This is a set of gaskets and seals that are commonly replaced when the cylinder head is off the M52TU engine.

This set of gaskets is a both a time and money saver. It includes all of the commonly replaced gaskets, seals, and o-rings when performing this overhaul. Having these on hand instead of chasing them down at the last minute will save you time, money, and frustration. With this area of the engine apart you're going to want or need to replace these items anyway to ensure it's free of fluid and vacuum leaks. This is especially important because some states have very strict emissions regulations and vacuum and oil leaks can lead to failed inspections tests. On newer cars this can also create issues in the on-board diagnostics system. Even if you're not pulling the head this set includes so many valuable parts you'll want to keep this on hand to use for spares.

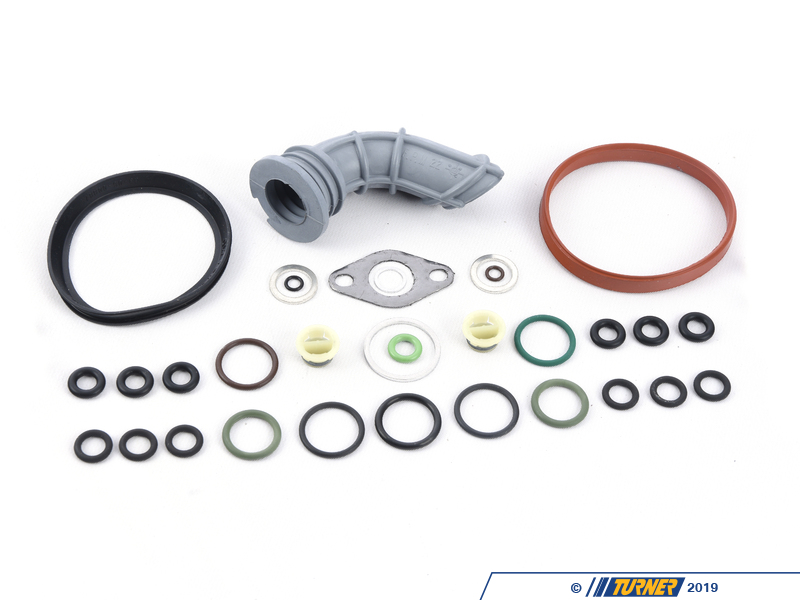

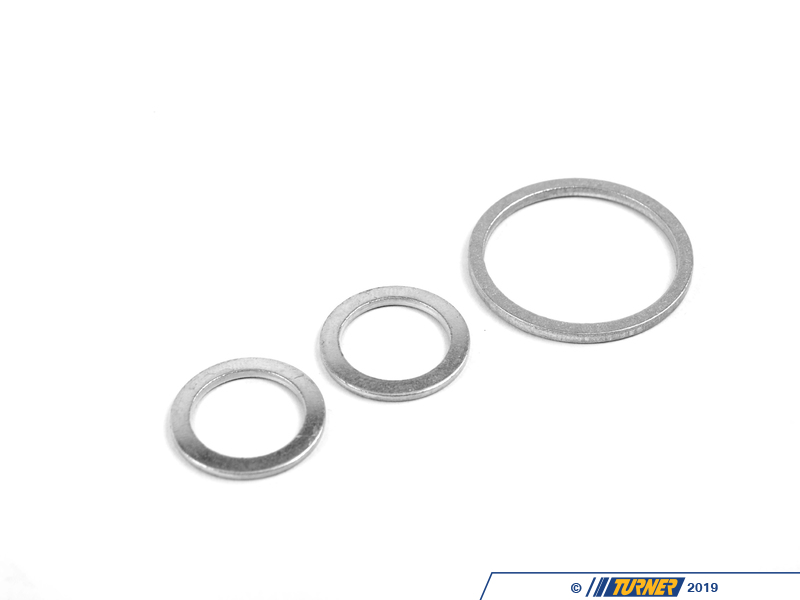

Complete Parts List(click to expand) BMW p/n Qty Description 07119963073 1 gasket ring, back of cylinder head07119963418 1 gasket ring, timing chain tensioner11127526447 1 oil cap gasket ring
(under BMW logo cover)

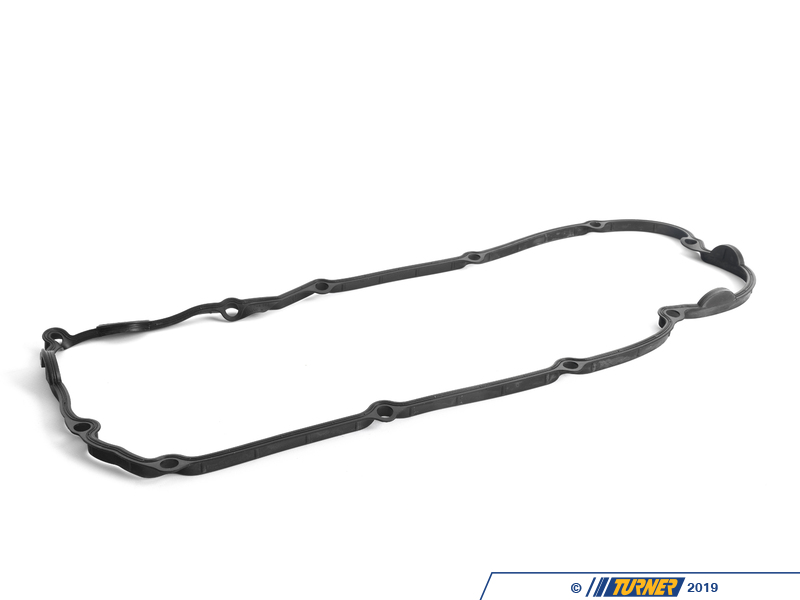

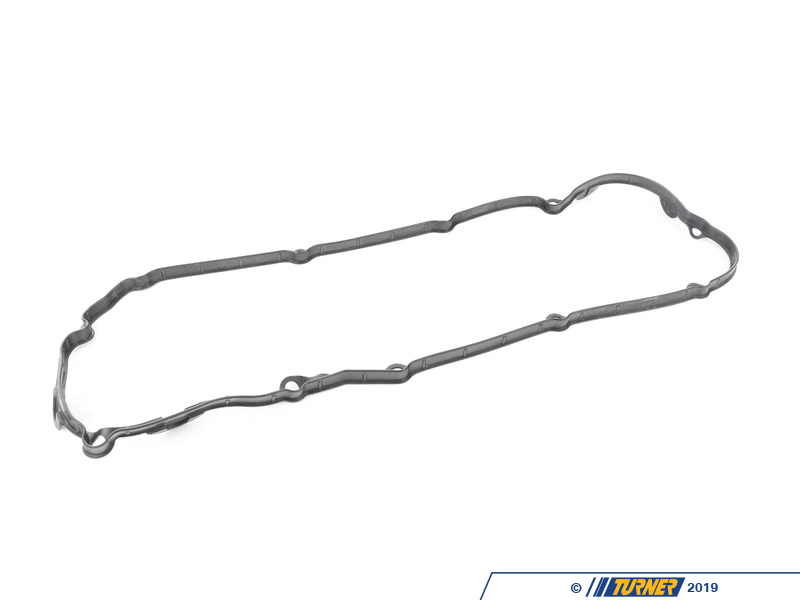

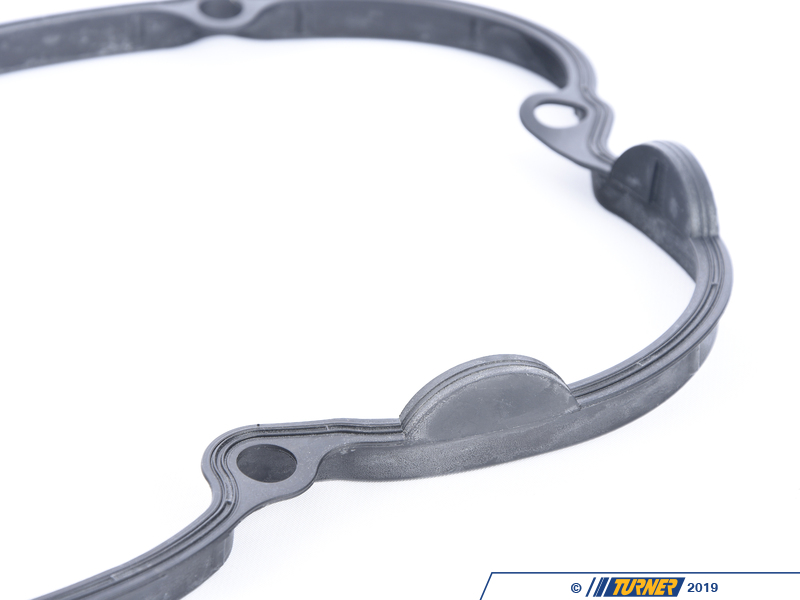

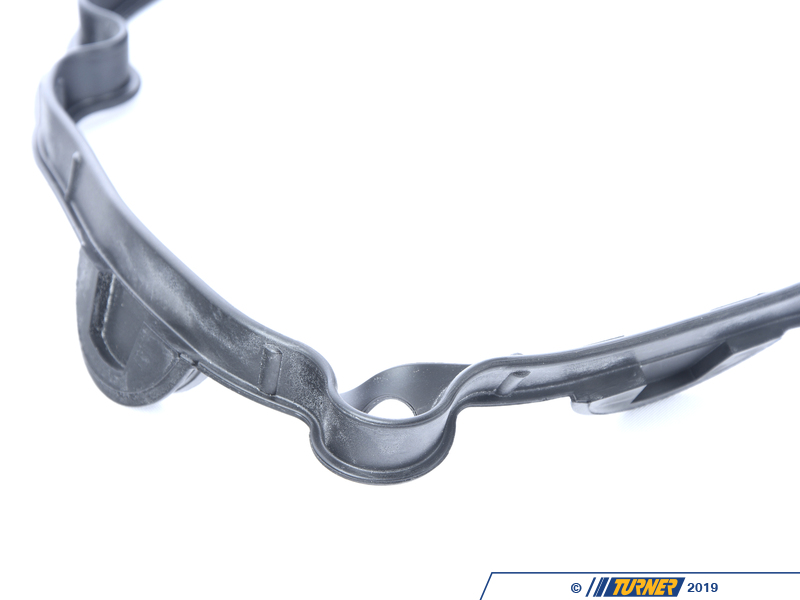

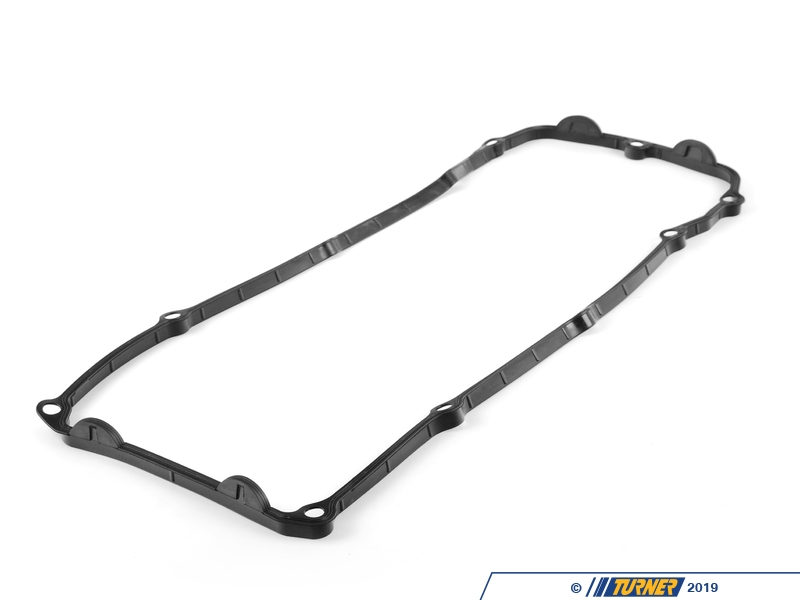

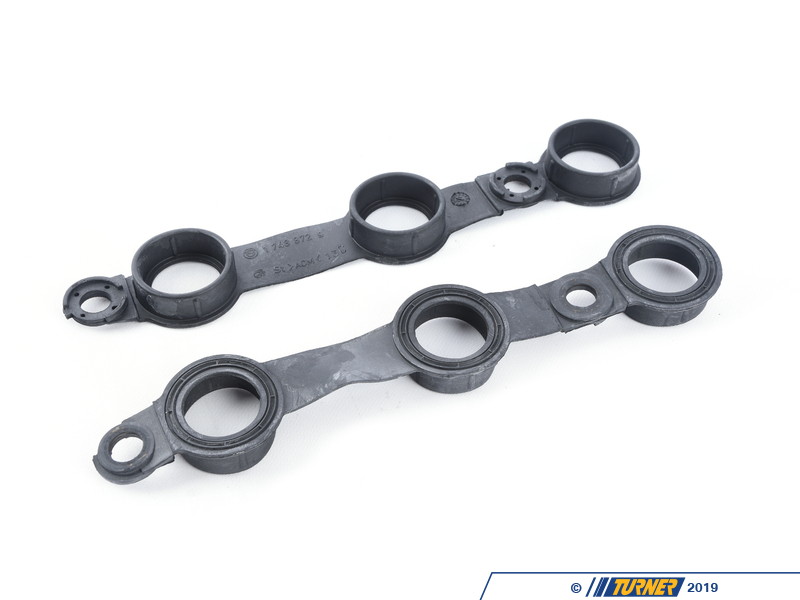

11129070990 1 valve cover gaskets
(main valve cover, spark plug holes)

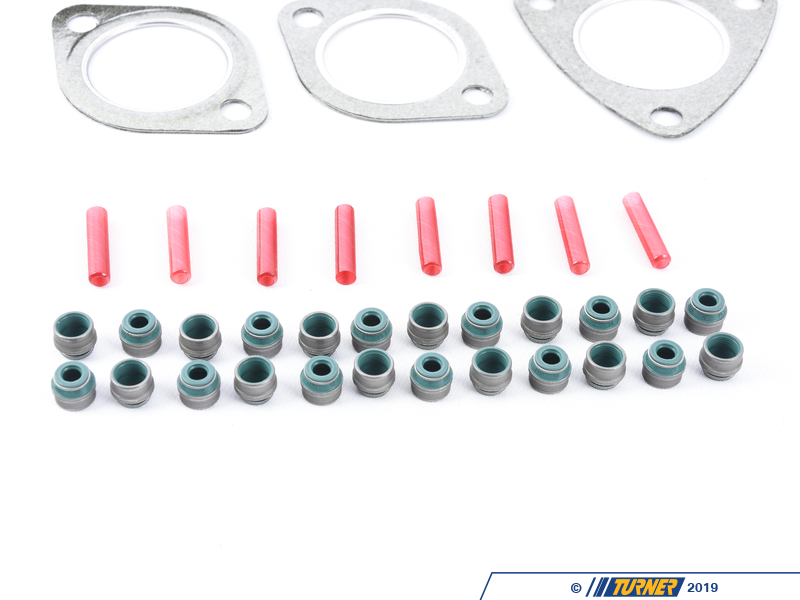

11349064457 2 valve stem seals
(2 packs = 24 total)

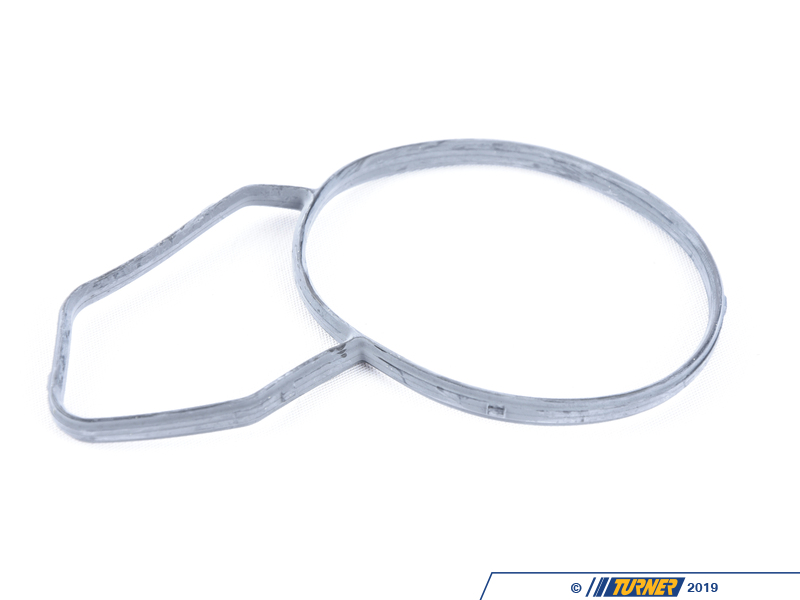

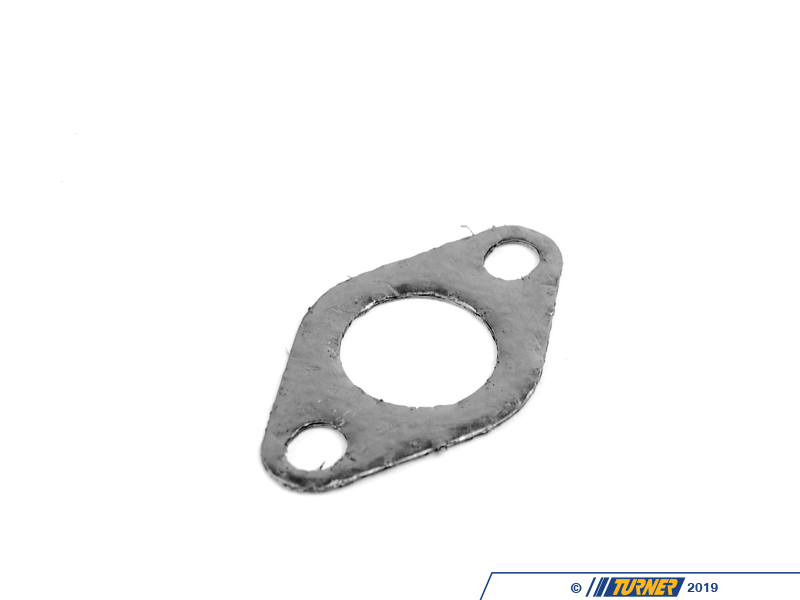

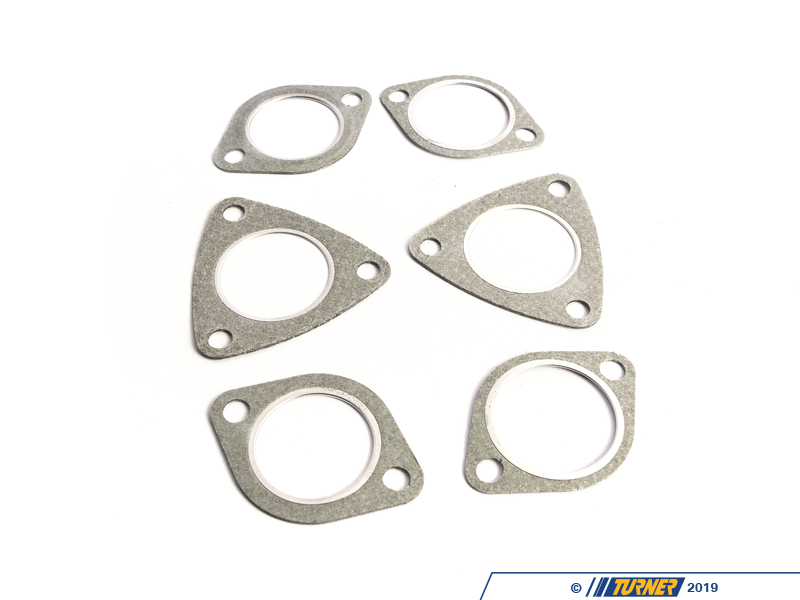

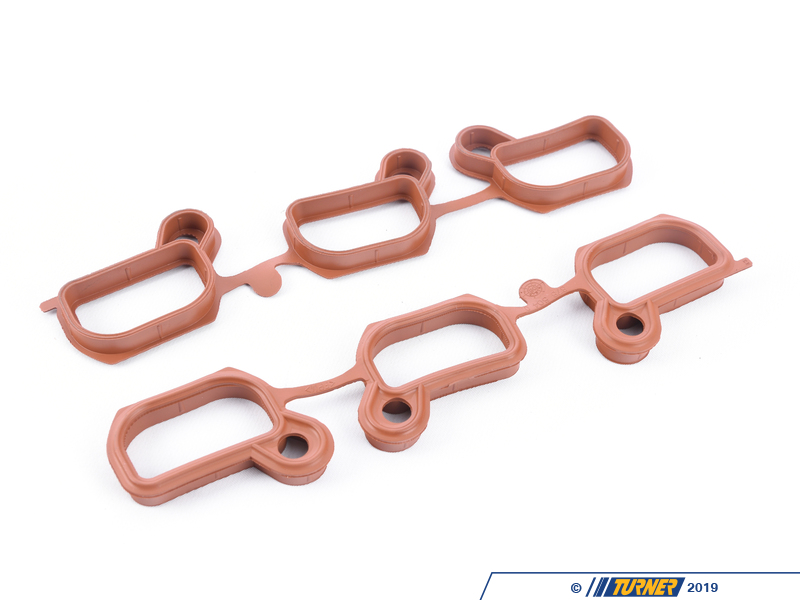

11361433513 2 blind plug in VAN0S unit11361433817 1 VAN0S unit profile gasket11361703713 2 VAN0S solenoid o-ring11531435808 1 o-ring for cylinder head cooling hoses11537509357 1 thermostat housing profile gasket11611436637 1 intake manifold gaskets11611437453 1 sealing o-ring on idle control valve11611716174 1 throttle body profile gasket11727505259 1 air pump valve gasket12141748398 2 camshaft sensor o-ring13531438145 1 o-ring13531438146 1 o-ring13531720251 1 o-ring13531720252 1 o-ring13621743299 1 intake manifold temp sensor o-ring13641437486 6 fuel injector o-ring13641437487 6 fuel injector o-ring18301436334 2 exhaust manifold-to-exhaust seal ring18301440183 2 exhaust manifold-to-exhaust seal ring18301716888 2 exhaust gasket32411093596 2 VAN0S oil line o-ring

This item fits the following BMWs:
1999-2000 E46 BMW 323i 323ci 328i 328ci
1999-2000 E39 BMW 528i
1999-2000 Z3 BMW Z3 2.3 Z3 2.8
T#: 12216 | Part#: 11121436822
Part#: 11-12-1-436-822
Part#: 11 12 1 436 822
18% off MSRP $559.59
459.14 $459.14
Qty
Free Shipping
Usually Ships in 2-5 Days
