OEM Victor Reinz Head Gasket Set - E36 328i/323is, E39 528i, Z3 2.8 (M52 Engine)

Mfg Part #
Turner Part #
Direct Ship
Does this fit my vehicle?
For accurate results, specify your model below.

Product Details

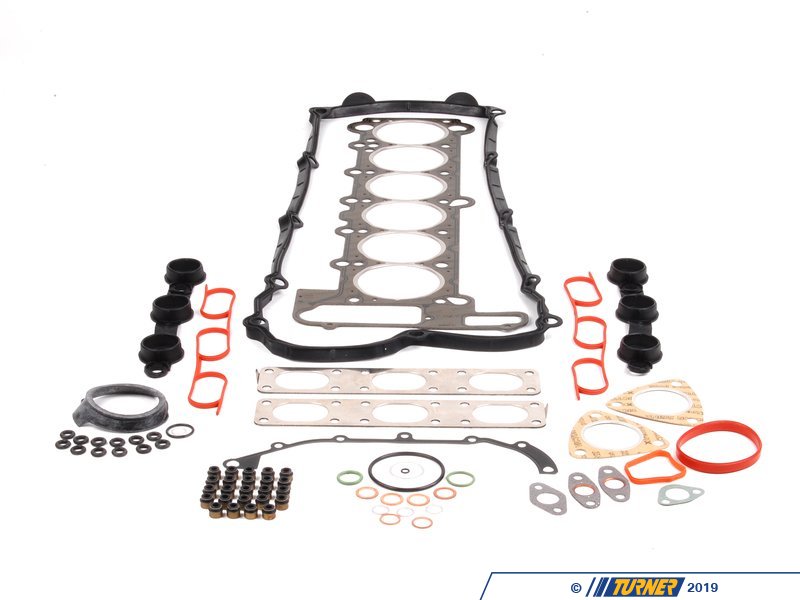

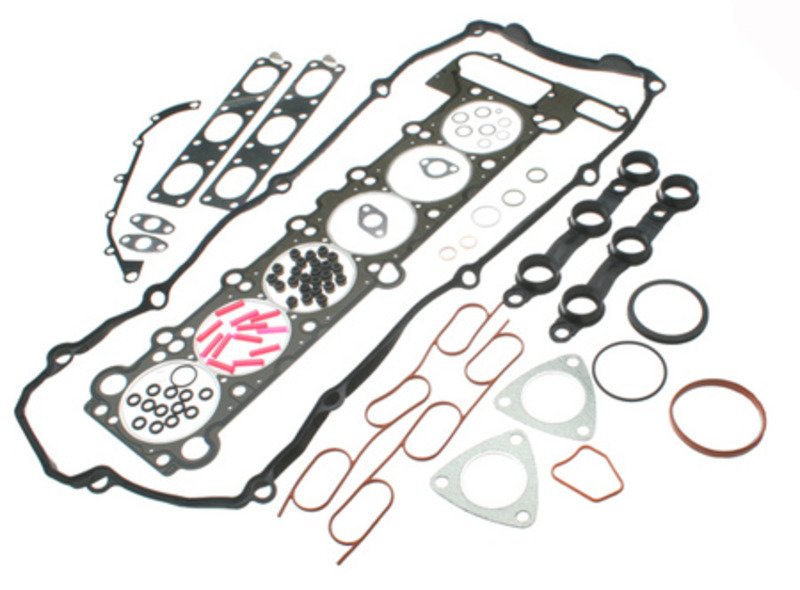

Top end / cylinder head gasket set for the M52 engine in the E36 328i, E39 528i, and Z3 2.8. This gasket set covers all of the gaskets, seals, and o-rings you find around the cylinder head.

This set of gaskets is a both a time and money saver. It includes all of the commonly replaced gaskets, seals, and o-rings when performing this overhaul. Having these on hand instead of chasing them down at the last minute will save you time, money, and frustration. With this area of the engine apart you're going to want or need to replace these items anyway to ensure it's free of fluid and vacuum leaks. This is especially important because some states have very strict emissions regulations and vacuum and oil leaks can lead to failed inspections tests. On newer cars this can also create issues in the on-board diagnostics system. Even if you're not pulling the head this set includes so many valuable parts you'll want to keep this on hand to use for spares.

Complete Parts List
(click to expand)
BMW p/nQtyDescription

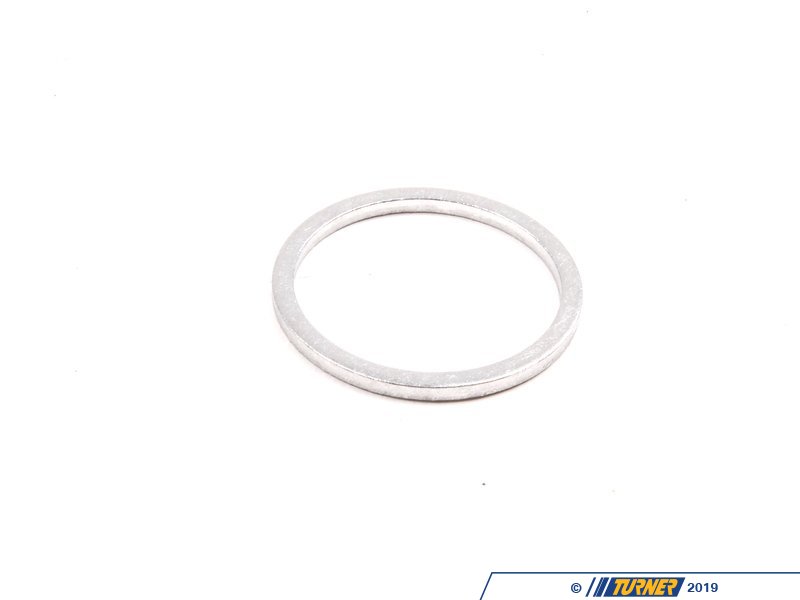

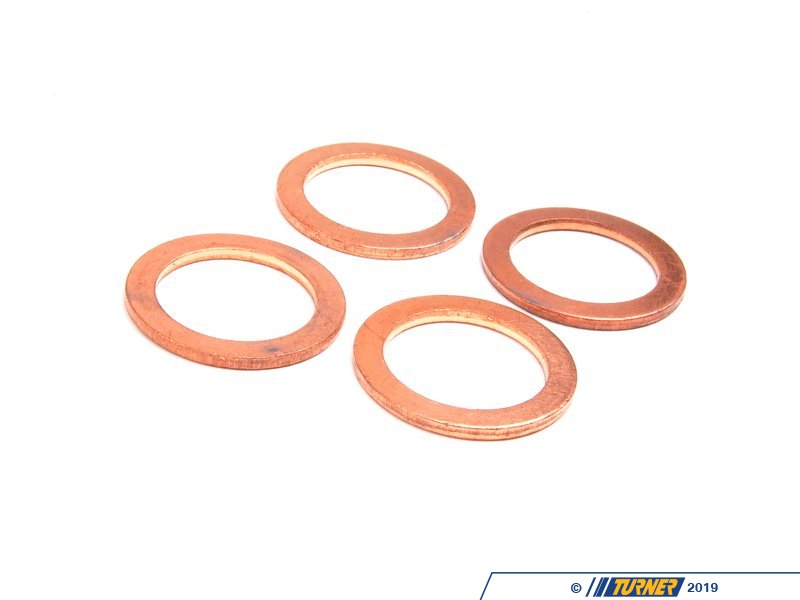

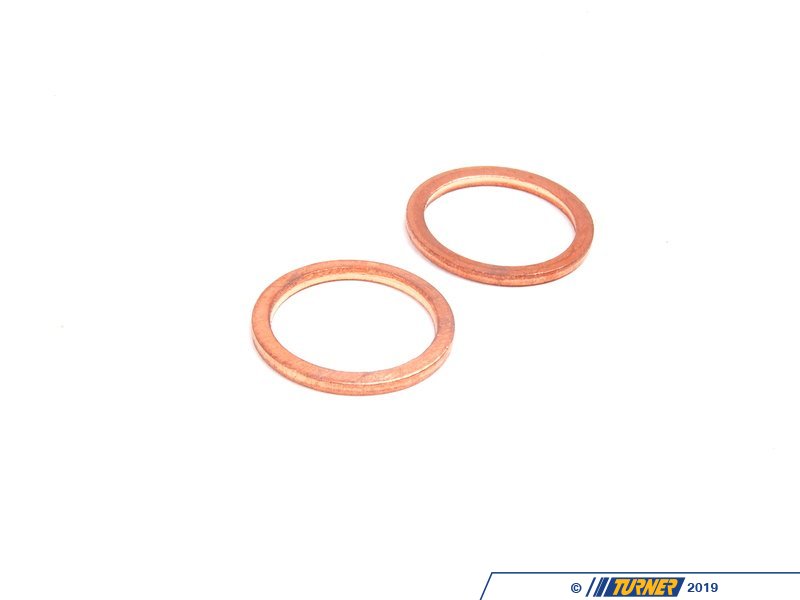

071199002441screw plug seal ring
071199631303temp sensor seal ring
071199632012exhaust manifold plug seal ring
071199634181timing chain tensioner o-ring

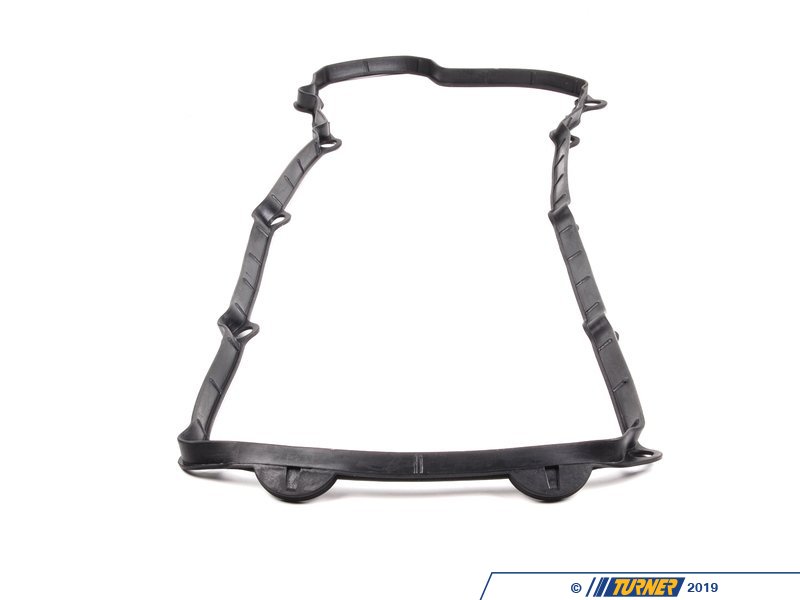

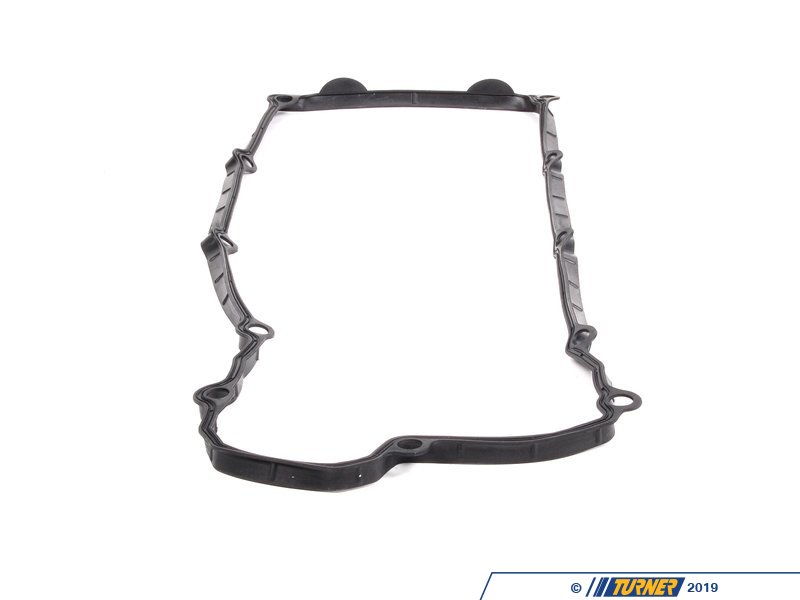

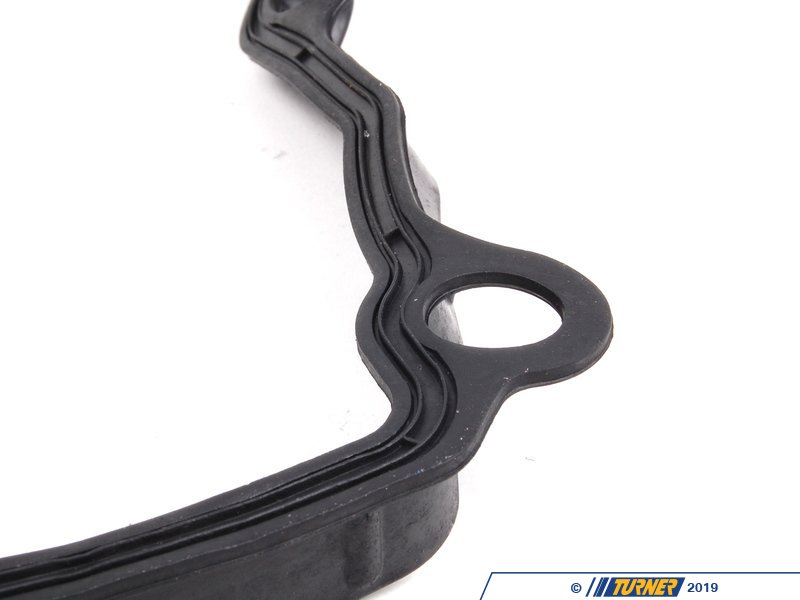

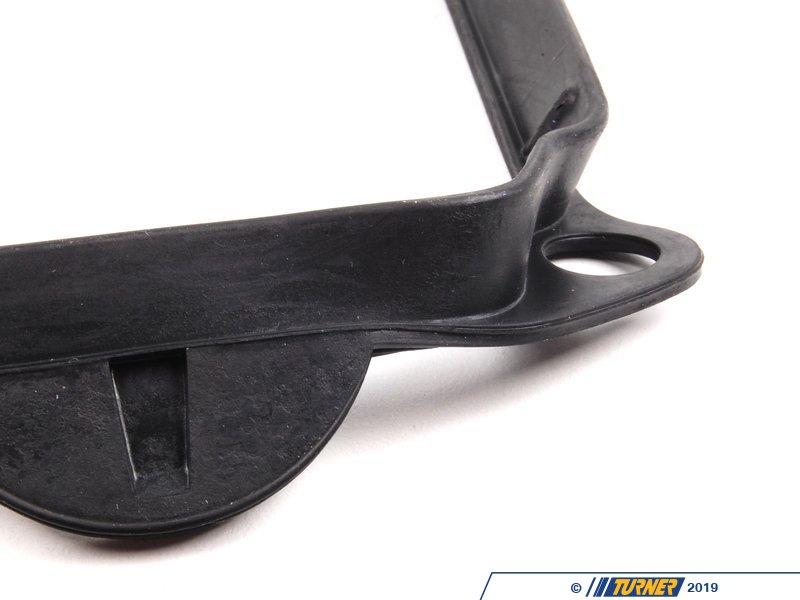

111217033421valve cover gasket

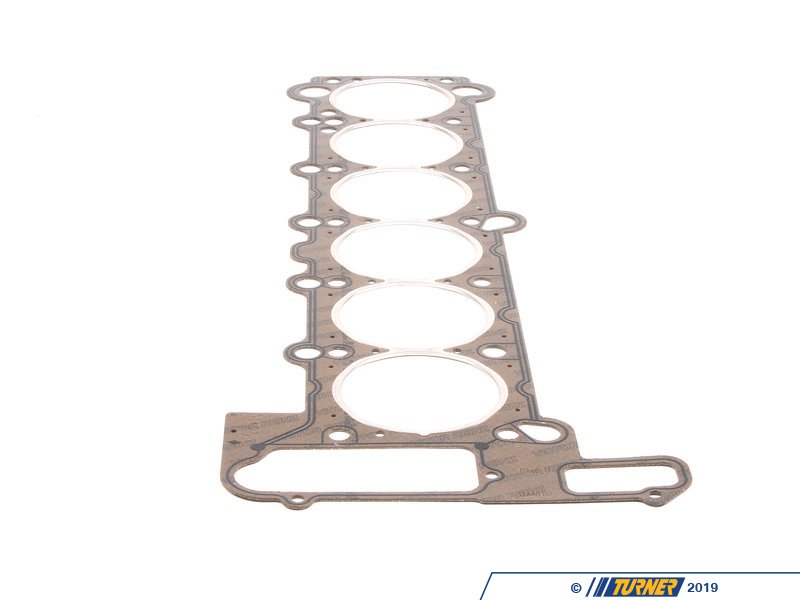

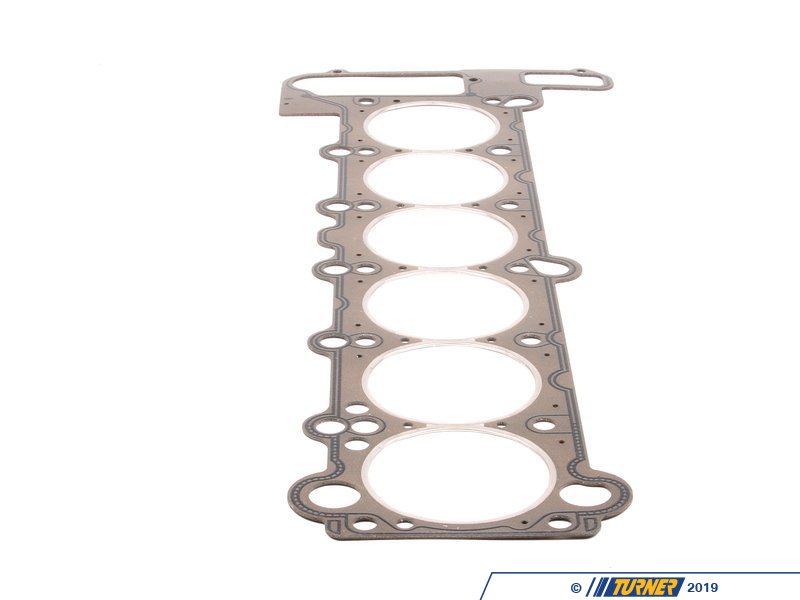

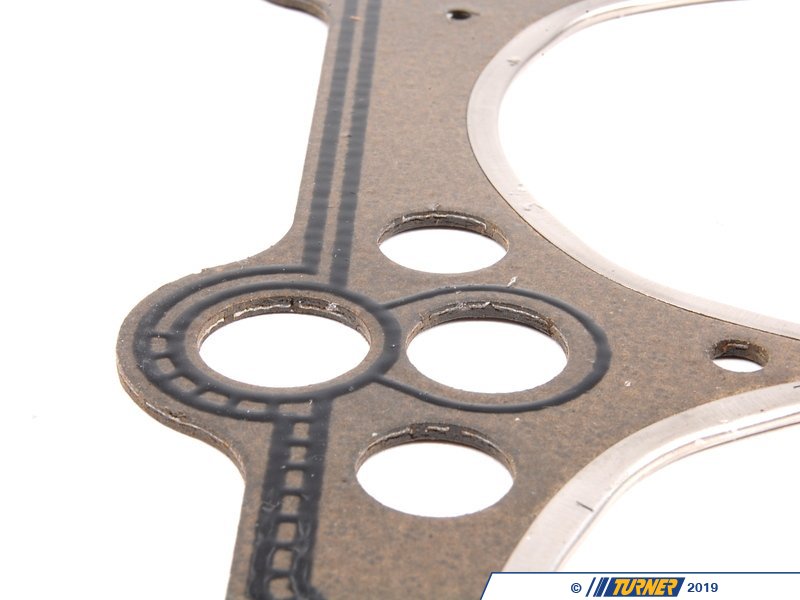

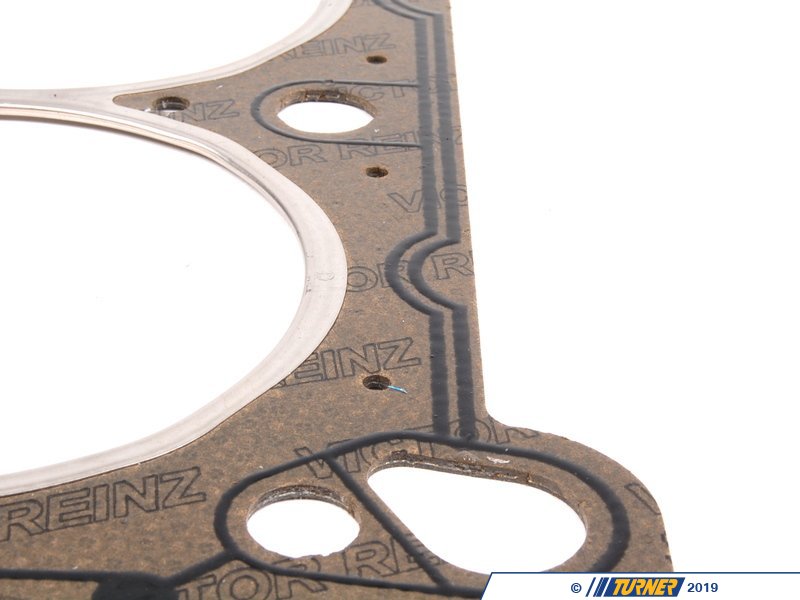

111217266171head gasket

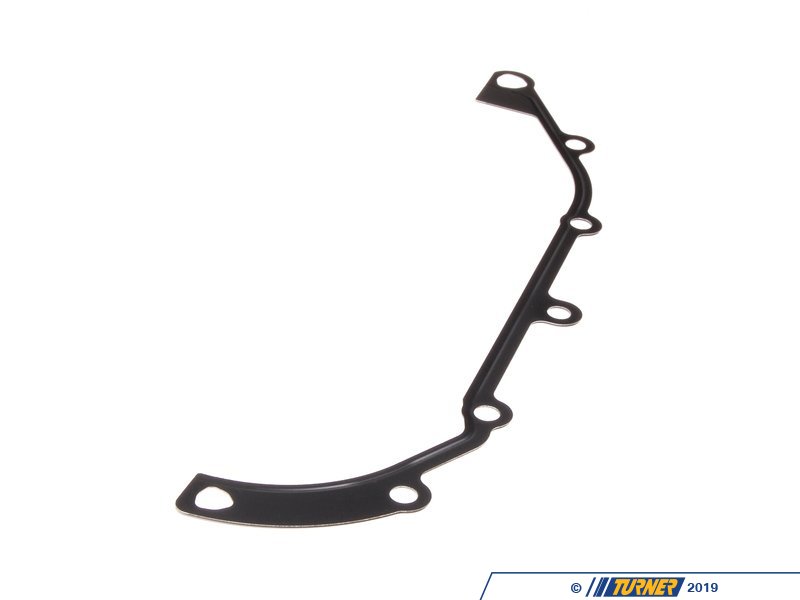

111217389631rear coolant pipe flange gasket

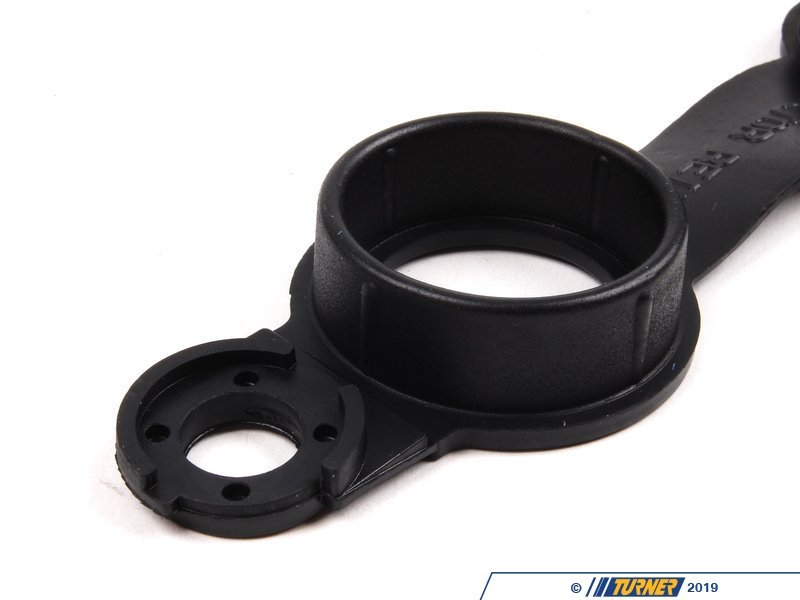

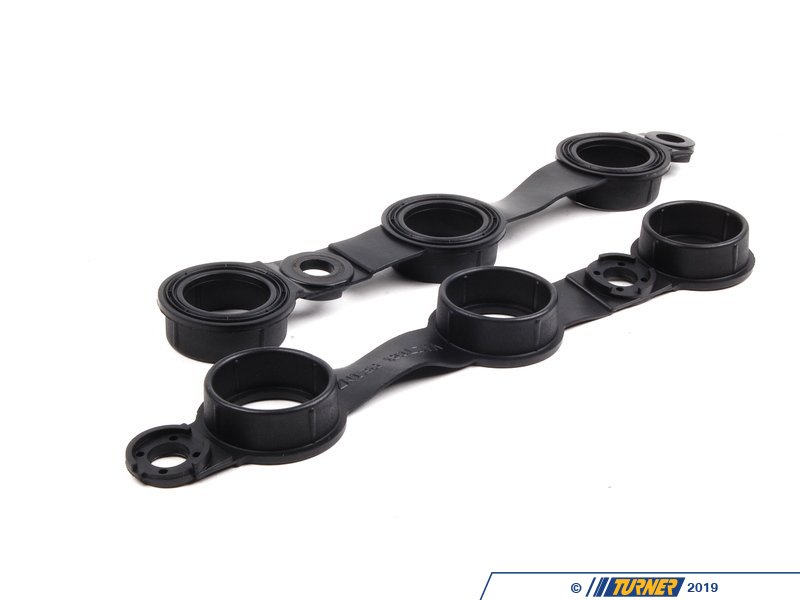

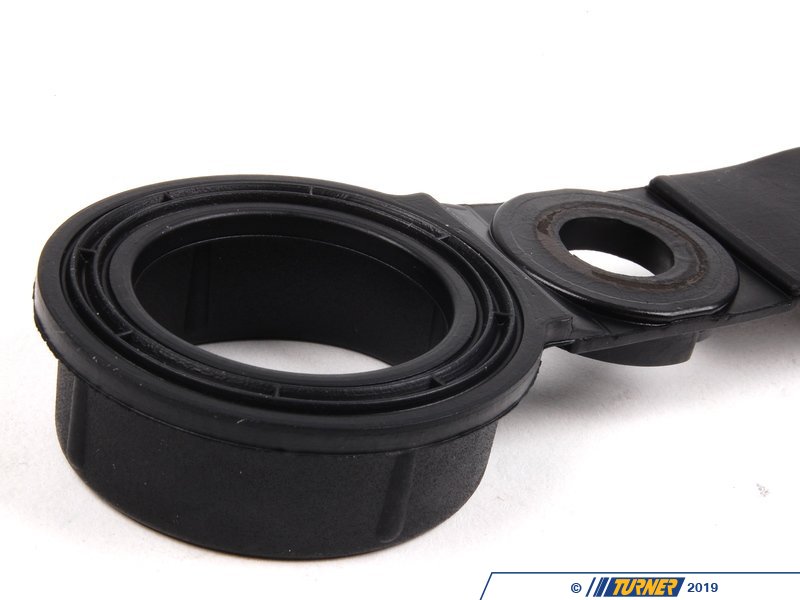

111217488722spark plug hole gasket

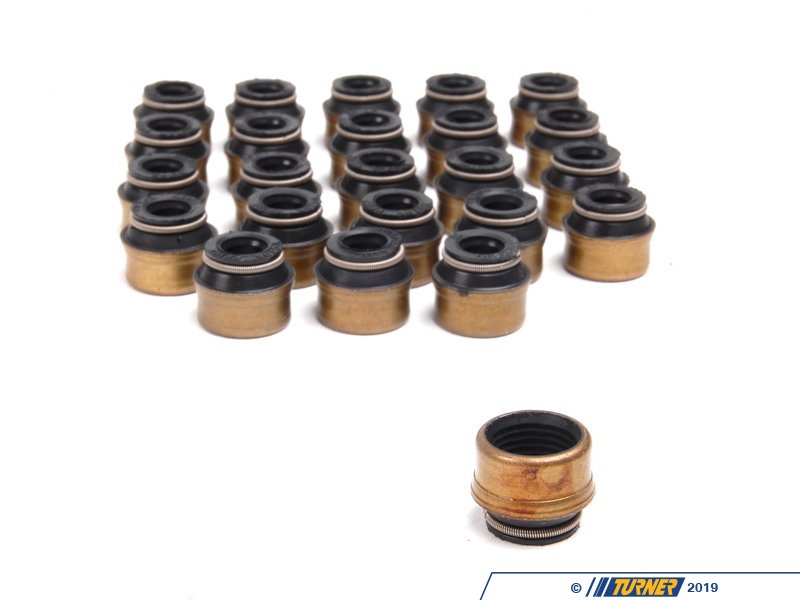

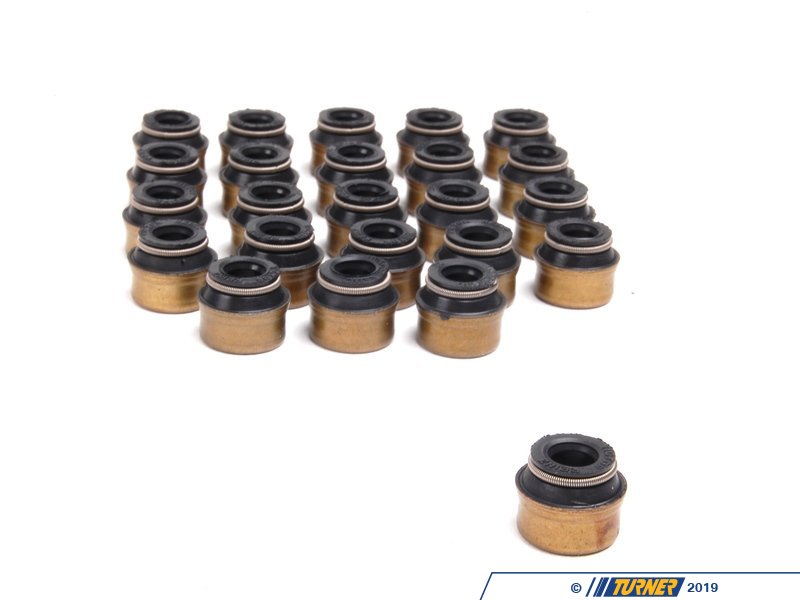

113490644572valve stem seal,
2 sets = 24 valves
113617037131VAN0S solenoid o-ring
115312650841thermostat o-ring
115317404371thermostat housing profile gasket

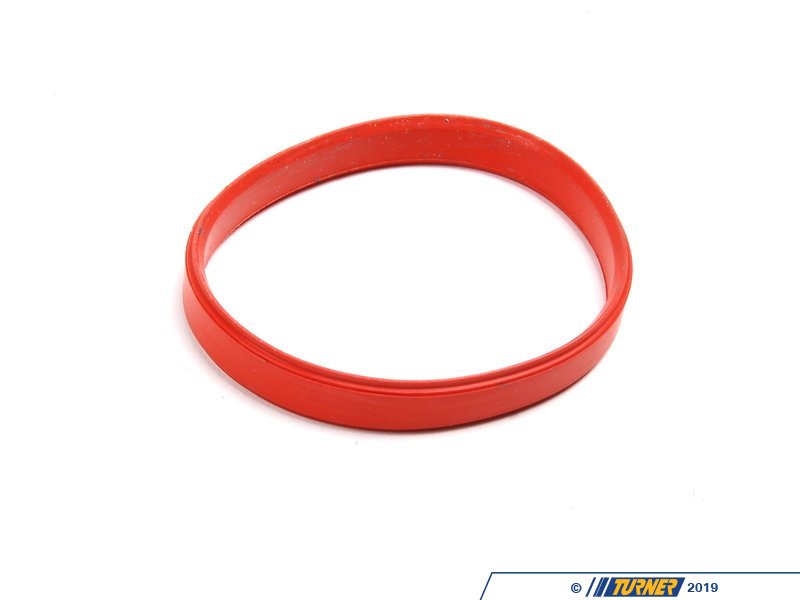

116117161741throttle body o-ring profile gasket

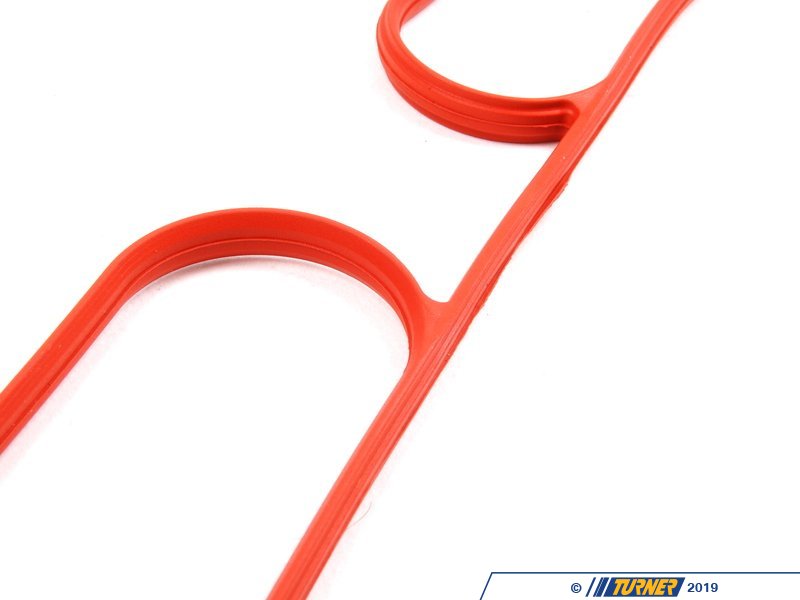

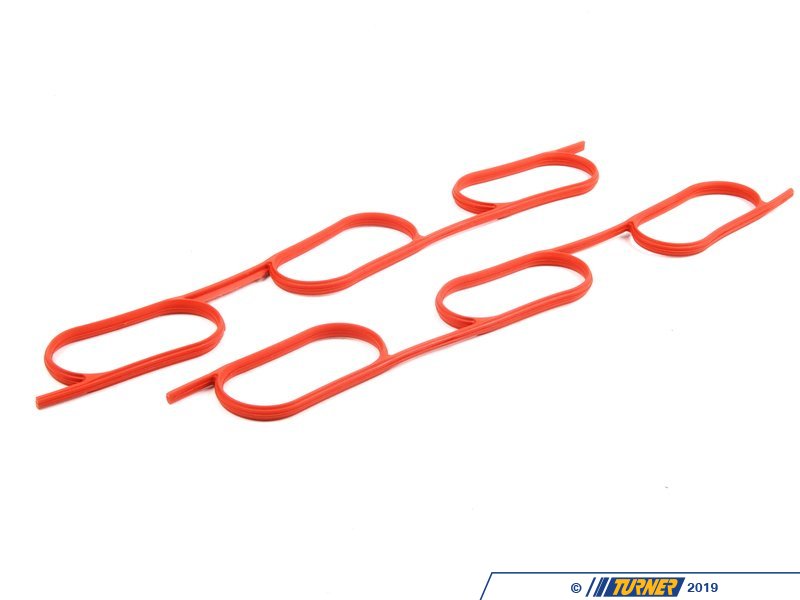

116117400692intake manifold runner profile gasket

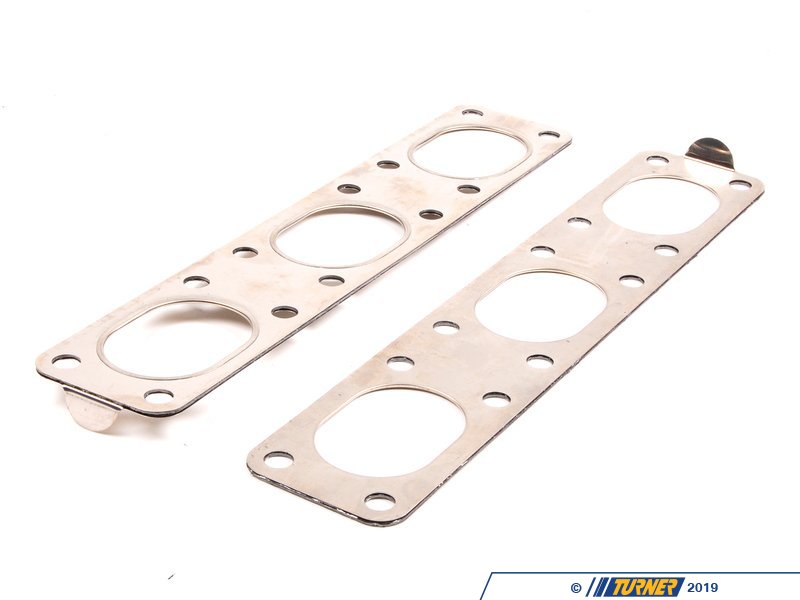

116217442522exhaust manifold gasket plate
117275052591air pump valve gasket
121417483981camshaft position sensor o-ring
135317202511fuel pressure regulator o-ring, large
135317202521fuel pressure regulator o-ring, small
136217432991intake air temp sensor o-ring

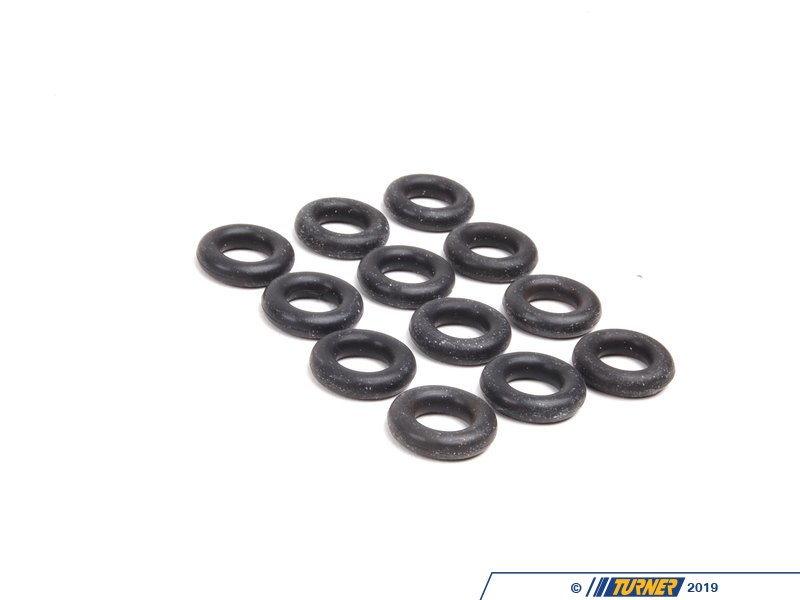

1364128670812fuel injector o-ring

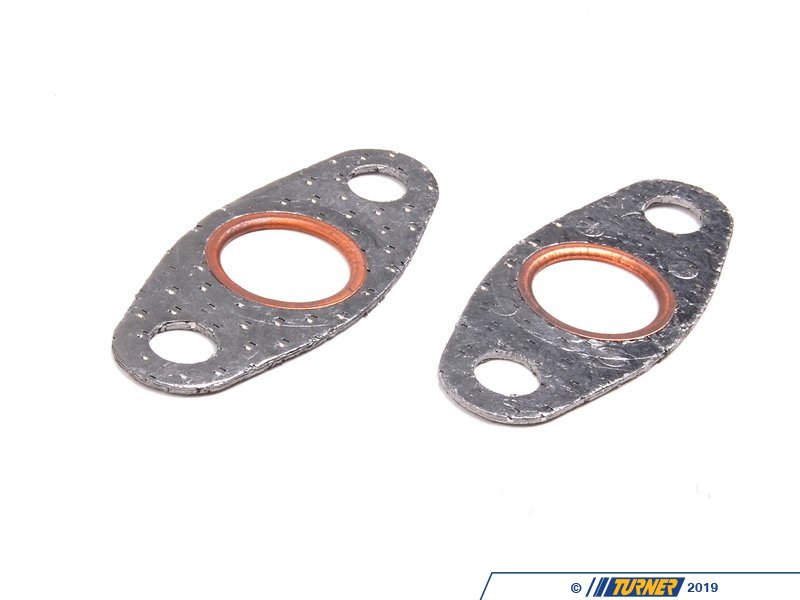

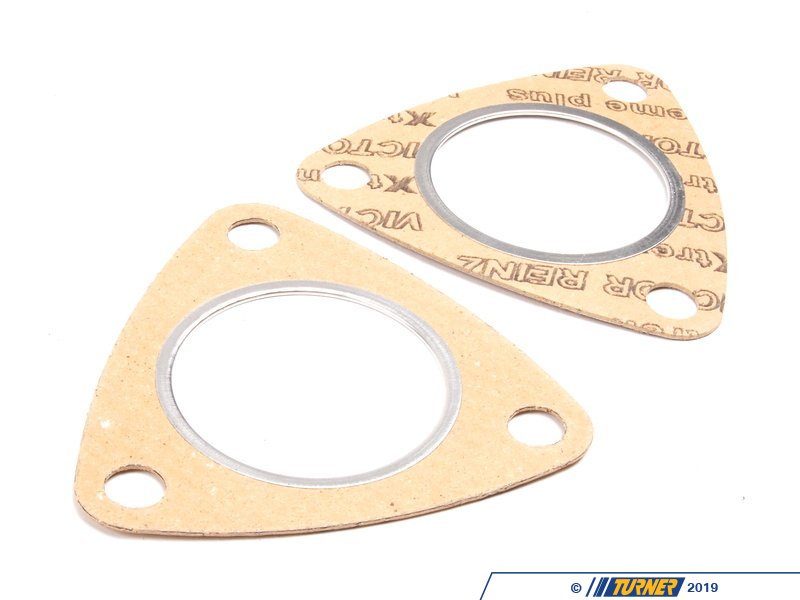

183017168882exhaust flange gasket
324110935964VAN0S oil line o-ring

This item fits the following BMWs:
1992-1998 E36 BMW 323is 323ic 328i 328is 328ic
1997-1998 E39 BMW 528i
1997-1998 Z3 BMW Z3 2.8

This Part Fits the Following BMWs

Make Model Submodel Engine
BMW E36 323ic M52 2.5L
BMW E36 323is M52 2.5L
BMW E36 328i M52 2.8L
BMW E36 328ic M52 2.8L
BMW E36 328is M52 2.8L
BMW E39 528i M52 2.8L
BMW Z3 2.8 M52 2.8L
