Head Gasket Set - E24 M6, E28 M5

Mfg Part #
Turner Part #
Ships in 2 Days
Free Shipping Free Shipping
Does this fit my vehicle?
For accurate results, specify your model below.

Product Details

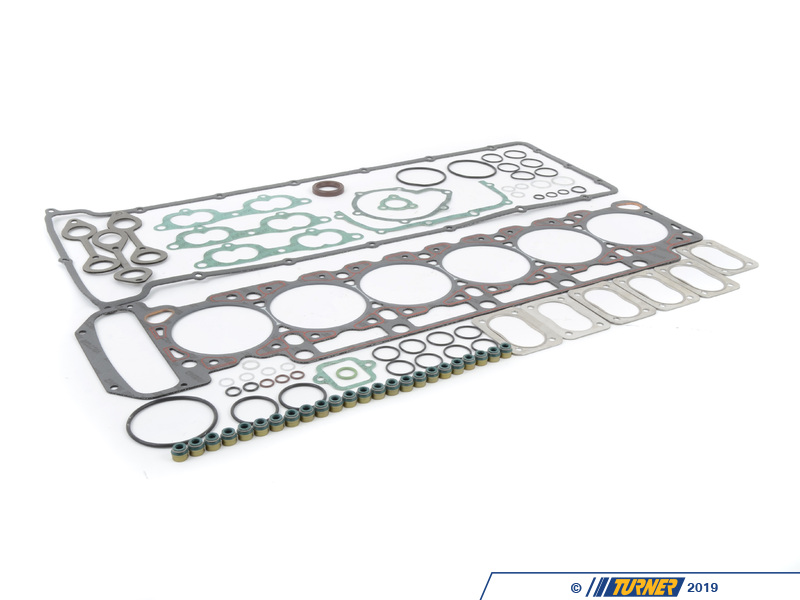

Cylinder head gasket set that covers all of the small and large gaskets and seals commonly replaced when overhauling the cylinder head on the S38/M88 engine.

This set of top-end gaskets is a both a time and money saver. It includes all of the commonly replaced gaskets, seals, and o-rings when pulling the cylinder head for overhaul. Having these on hand instead of chasing them down at the last minute will save you time, money, and frustration. With the head off the car you're going to want or need to replace these items anyway to ensure it's free of fluid and vacuum leaks. This is especially important because some states have very strict emissions controls and vacuum and oil leaks can lead to failed inspections tests. On newer cars this can also create issues in the on-board diagnostics system. Even if you're not pulling the head this set includes so many valuable parts you'll want to keep this on hand to use for spares.

Complete Parts List
(click to expand)

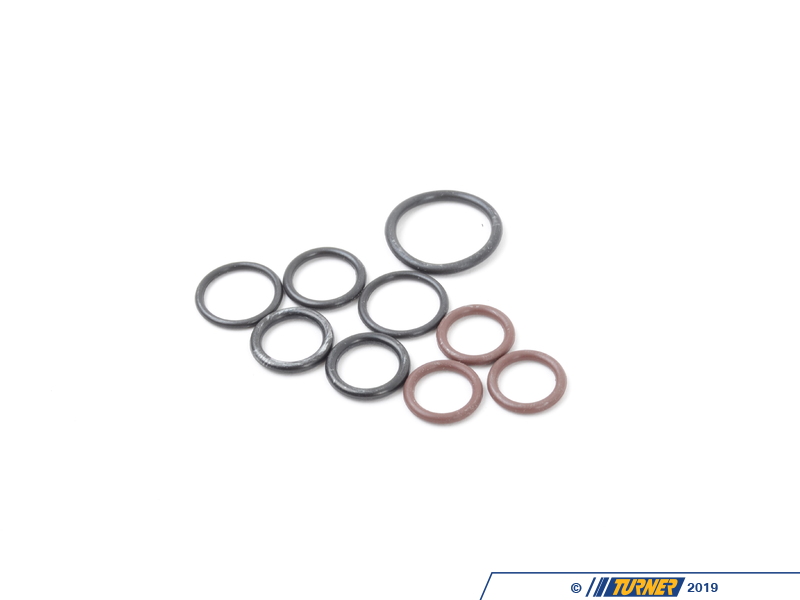

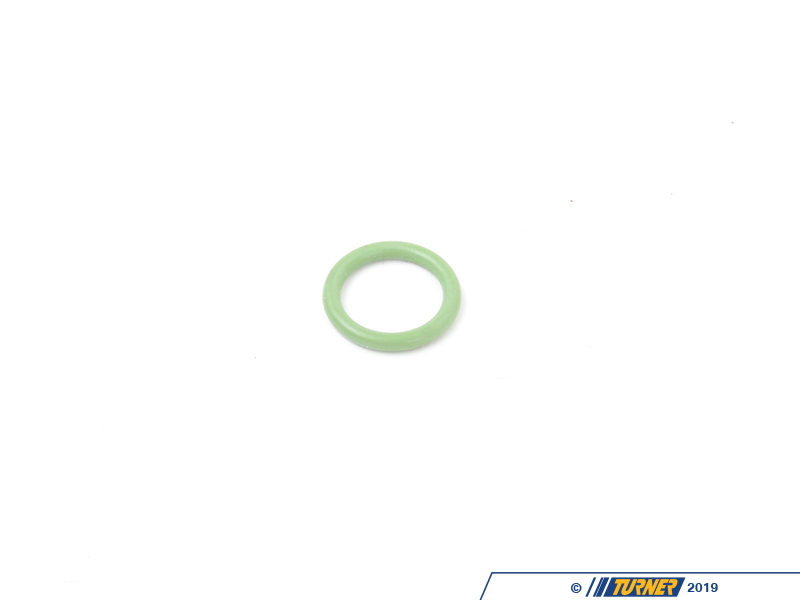

BMW p/nQtyDescription

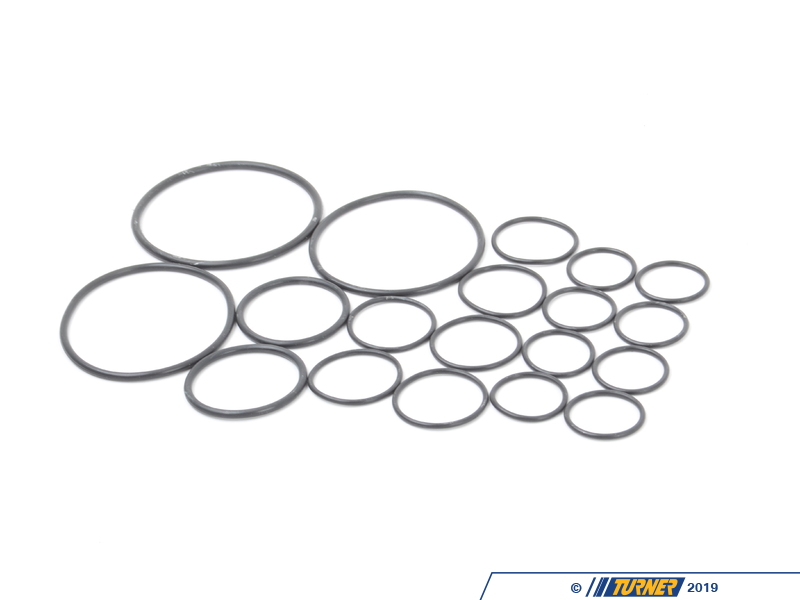

071199063221thermostat o-ring
071199063282large tensioner rail lower o-ring

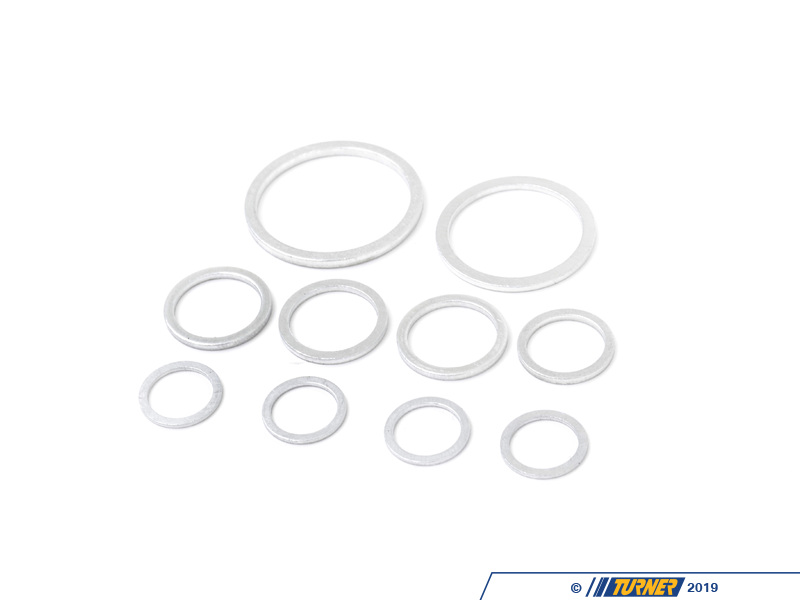

071199630734cylinder head screw plug seal ring
and thermostat housing connector seal ring
071199631301water pipe gasket ring
071199632003front screw plug seal ring
071199633552side screw plug seal ring
071199634181timing chain tensioner seal ring
1112130441732cam tray-to-cylinder head o-ring
111213041746cam tray-to-cylinder head o-ring
(spark plug holes)
111213067291rear cam tray profile gasket

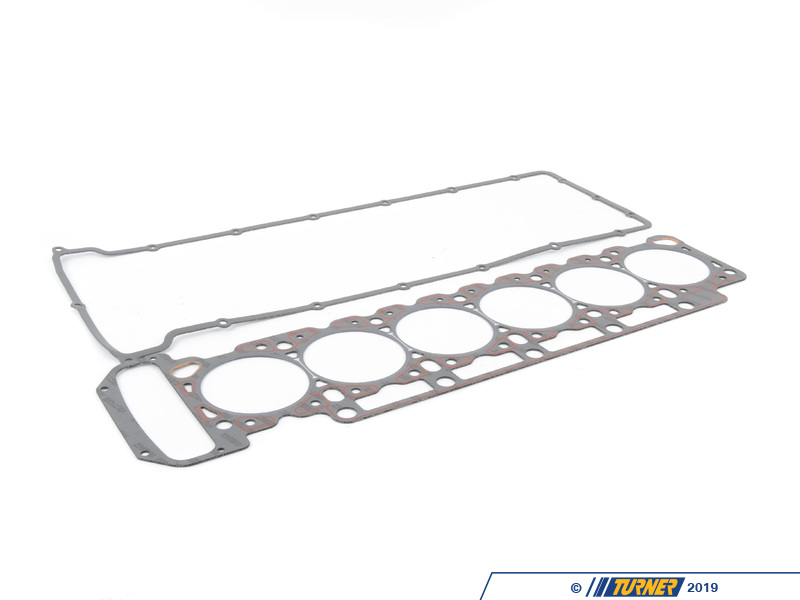

111213121721valve cover gasket
111213121733spark plug hole gaskets
111213167051head gasket

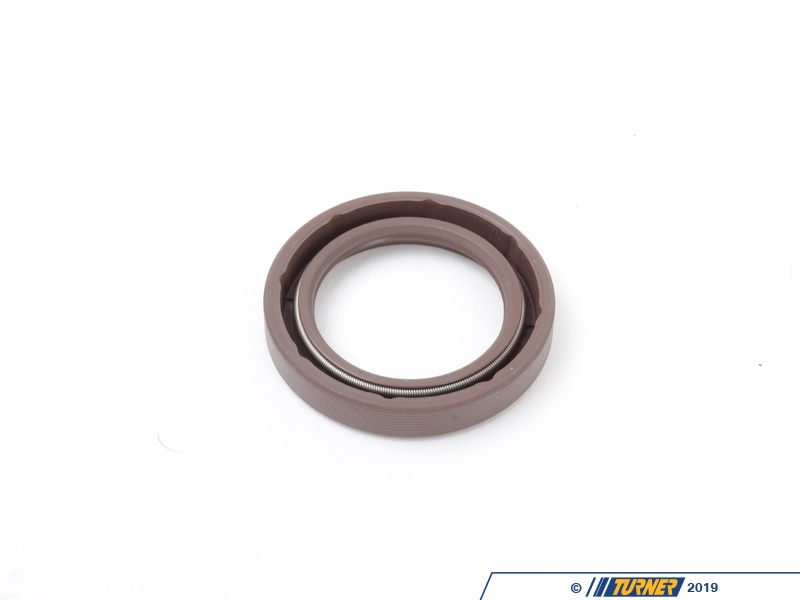

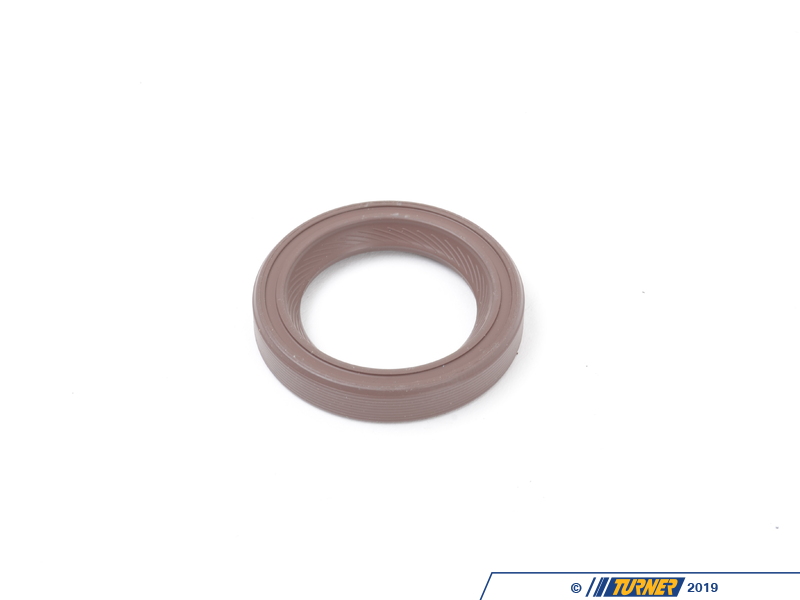

111412714151exhaust cam cover shaft seal, 28x40x7

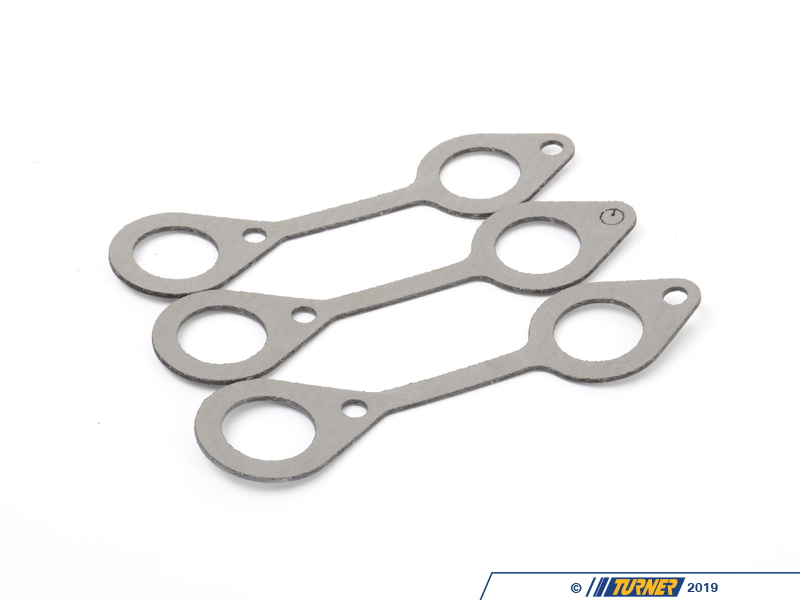

111513121761rear water pipe profile gasket
113113042571timing chain axle o-ring
113113074081small timing rail axle o-ring

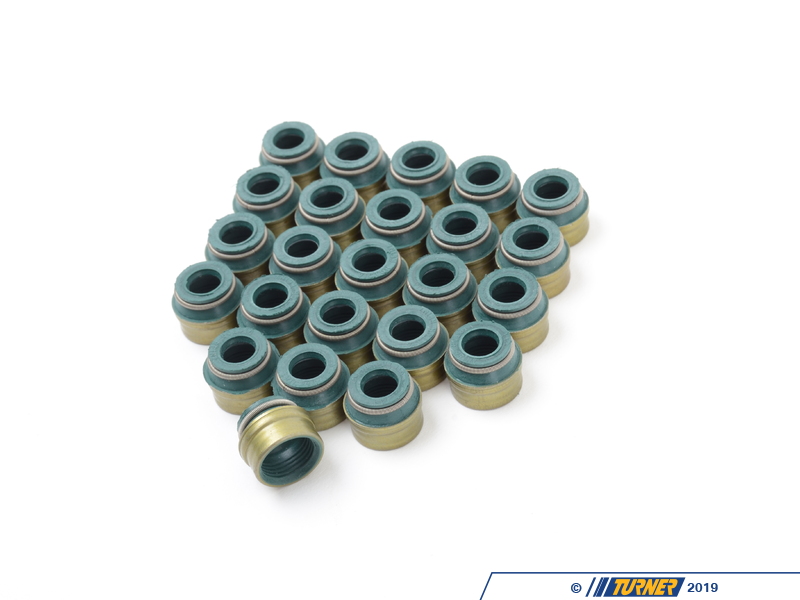

1134905917224valve stem seals (24 total seals)
114113041787crankcase vent pipe o-ring
coolant pipe-to-cylinder head o-ring
115112656541water pump profile gasket
115313041762water pipe o-ring

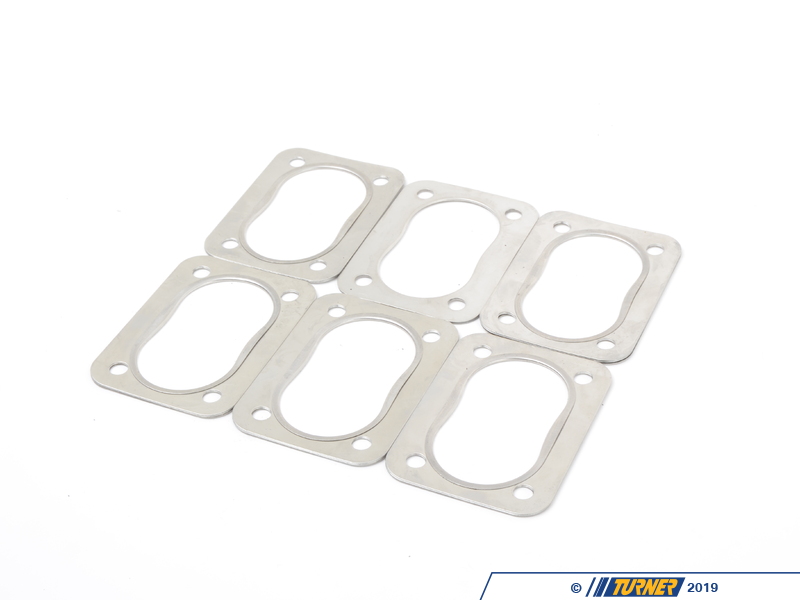

116213129616exhaust manifold-to-cylinder head gasket plate
116312713461throttle screw o-ring
(on throttle bodies)
121112522572cam tray cover o-ring
135412611973throttle screw o-ring
(may only be used on Euro models)

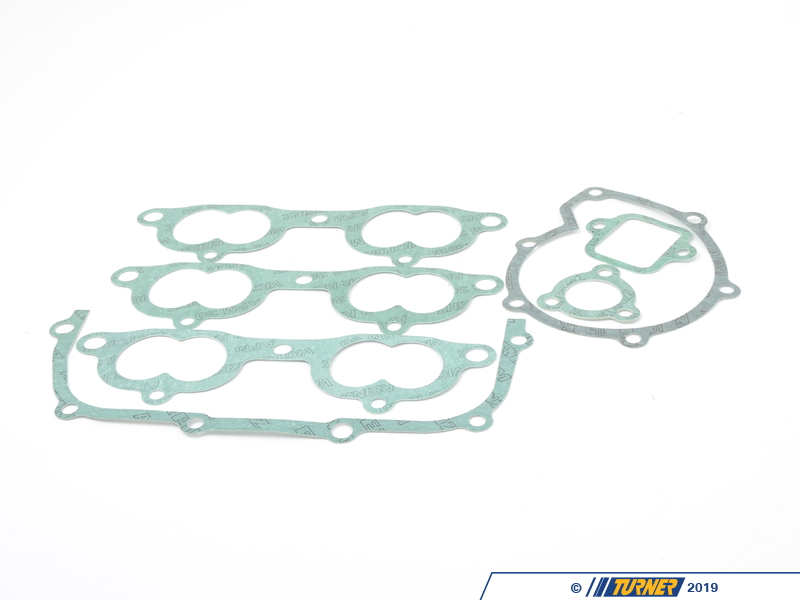

135413124591throttle body profile gasket
135413150813throttle body profile gasket

This item fits the following BMWs:
1985-1988 E28 BMW M5
1985-1989 E24 BMW M635CSi M6

This Part Fits the Following BMWs

Make Model Submodel Engine
BMW E24 M6 S38 3.5L
BMW E28 M5 S38 3.5L
