Macht Schnell TPMS/RDC Emulation Module - BMW E90 E92 E93 E82 E88 2007+

Mfg Part #
TMS2232
Turner Part #
T#2232
Brand
Price:
Qty
249.00
Ships in 2 Days
Free Shipping Free Shipping
Does this fit my vehicle?
For accurate results, specify your model below.

Product Details

Tire Pressure Monitoring System (TPMS) is an electronic system designed to monitor the air pressure inside all the pneumatic tires on all BMWs manufactured since 2006. Within a predetermined pressure level, a RF signal (433mHz) is sent to each of the receivers located in the wheel wells. These systems report an error message to the driver when pressure is low.

Battery-powered Radio Frequency based TPMS have several disadvantages. Batteries eventually become exhausted and represent a maintenance cost to the consumer. Batteries are chemical systems with lifetimes that unfortunately perform very poorly in extreme temperature environments typical of North America and European climates and in aerospace applications. In order to conserve battery life and to conform to various country's communications authority standards for short range radio communications, the power levels of battery powered TPMS are kept very low. As a consequence of these very low power levels, the construction of certain steel belted radial replacement tires and vehicle metallic geometries can block the low power signal transmission paths.

The so-called total cost of ownership for direct systems is much higher than for indirect systems due to battery and wheel changes and broken/damaged parts. Replacement TPMS sensors from your local dealer can be in excess of $300USD/set with the lithium batteries mounted in the sensors with a 5-6 year shelf life. Aftermarket sensors are not generally reliable. For those that have multiple tire sets for the track, this is simply not practical.

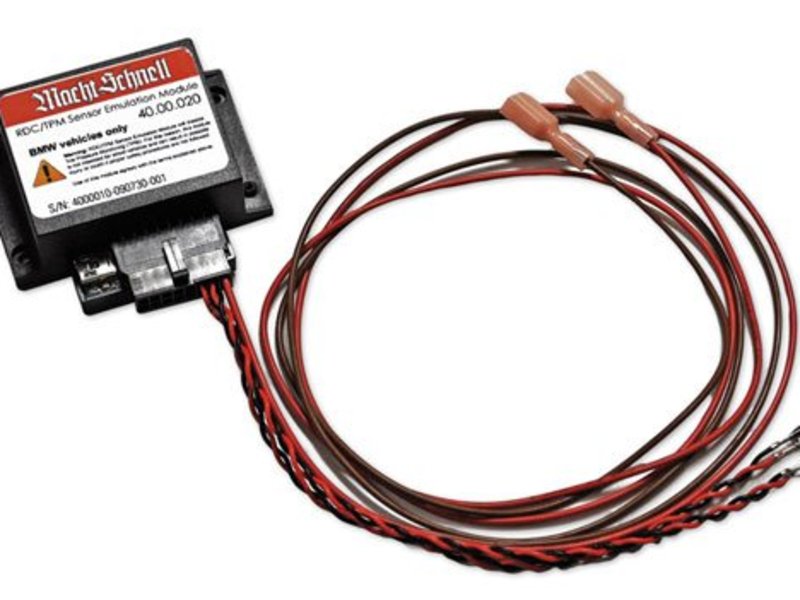

This TPMS/RDC Emulation Module installs in less than 15 minutes and will fully emulate a full-pressure TPMS signal. The module can be activated/deactivated by lifting up on the driver’s side window switch for +5 seconds with the key off.

Macht Schnell Macht Schnell TPMS/RDC Emulation Module features:
- The ability to run racing tires/wheels or other environments in which TPMS sensors are not compatible
- Compatible with iDrive and non-iDrive systems
- Easy 15-minute installation process with no wire cutting
- Proper emulation of the TPMS/RDC monitoring system
- No dealer visits or coding required after installation
- Completely removable at any time


Note: The Macht Schnell TPMS/RDC Emulation Module will disable the TPMS/RDC monitoring system which complies with the Transportation Recall Enhancement, Accountability and Documentation (TREAD) Act. For this reason, this module is not intended for street vehicles and can result in possible injury or death if proper conditions are not followed. Not compatible with Euro models.

This item fits the following BMWs:
2008+ E82 1 Series BMW 128i 135i coupe 1M Coupe
2008+ E88 1 Series BMW 128i 135i convertible
2007+ E90 3 Series BMW 328i 328xi 335d 335i & 335xi M3
2007+ E92 3 Series BMW 328i 328xi 335i & 335xi M3
3/2006-2010 E60 BMW 525i 525xi 530i 530xi 528i 528xi 528i xDrive 535i 535xi 535i xDrive 545i 550i M5
3/2006-2011 E63 BMW 645ci 650i M6
2007-2013 E70 BMW X5 3.0si X5 4.8i X5 xDrive30i X5 xDrive35d X5 xDrive35i X5 xDrive48i X5M
2007+ R56 MINI MINI Cooper, MINI Cooper S
2008+ R55 MINI MINI Cooper Clubman, MINI Cooper S Clubman
2008+ R57 MINI MINI Cooper Convertible, MINI Cooper S Convertible,

This Part Fits the Following BMWs

Make Model Submodel Engine
BMW E60 525i N52 3.0L
BMW E60 525xi N52 3.0L
BMW E60 528i N52 3.0L
BMW E60 528xi N52 3.0L
BMW E60 530i N52 3.0L
BMW E60 530xi N52 3.0L
BMW E60 535i N54 3.0L
BMW E60 535xi N54 3.0L
BMW E60 545i N62 4.4L
BMW E60 550i N62 4.8L
BMW E60 M5 S85 5.0L
BMW E61 530xi N52 3.0L
BMW E61 535xi N54 3.0L
BMW E63 645Ci N62 4.4L
BMW E63 650i N62 4.8L
BMW E63 M6 S85 5.0L
BMW E64 645Ci N62 4.4L
BMW E64 650i N62 4.8L
BMW E64 M6 S85 5.0L
BMW E82 1 M Coupe N54 3.0L
BMW E82 128i N52 3.0L
BMW E82 135i N54 3.0L
BMW E82 135i N55 3.0L
BMW E88 128i N52 3.0L
BMW E88 135i N54 3.0L
BMW E88 135i N55 3.0L
BMW E90 328i N52 3.0L
BMW E90 328xi N52 3.0L
BMW E90 335i N54 3.0L
BMW E90 335i N55 3.0L
BMW E90 335xi N54 3.0L
BMW E90 335xi N55 3.0L
BMW E90 M3 S65 4.0L
BMW E91 328i N52 3.0L
BMW E91 328xi N52 3.0L
BMW E92 328i N52 3.0L
BMW E92 328xi N52 3.0L
BMW E92 335i N54 3.0L
BMW E92 335i N55 3.0L
BMW E92 335is N54 3.0L
BMW E92 335xi N54 3.0L
BMW E92 335xi N55 3.0L
BMW E92 M3 S65 4.0L
BMW E93 328i N52 3.0L
BMW E93 335i N54 3.0L
BMW E93 335i N55 3.0L
BMW E93 335is N54 3.0L
BMW E93 M3 S65 4.0L
*The above product applications have been written by Turner Motorsport. All warranties, product application, fitment, and performance are the responsibility of Turner Motorsport. For additional information see the terms of use.
