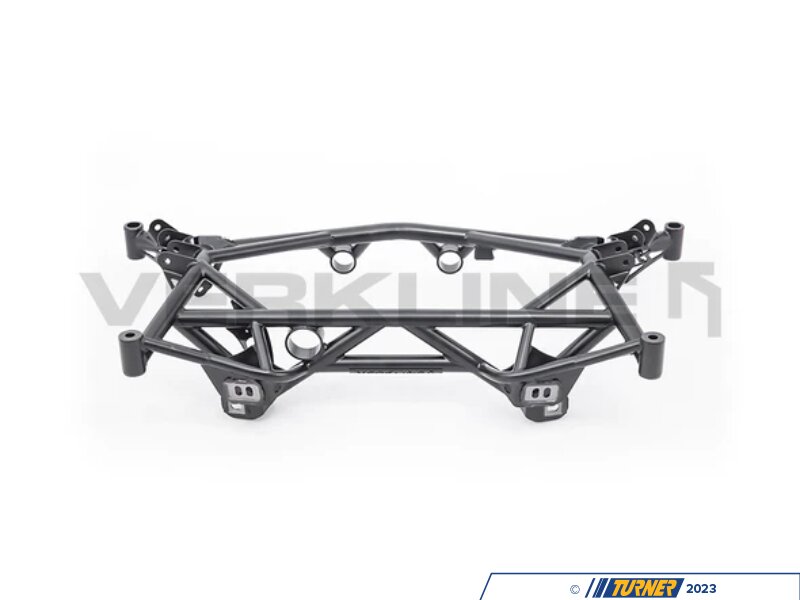

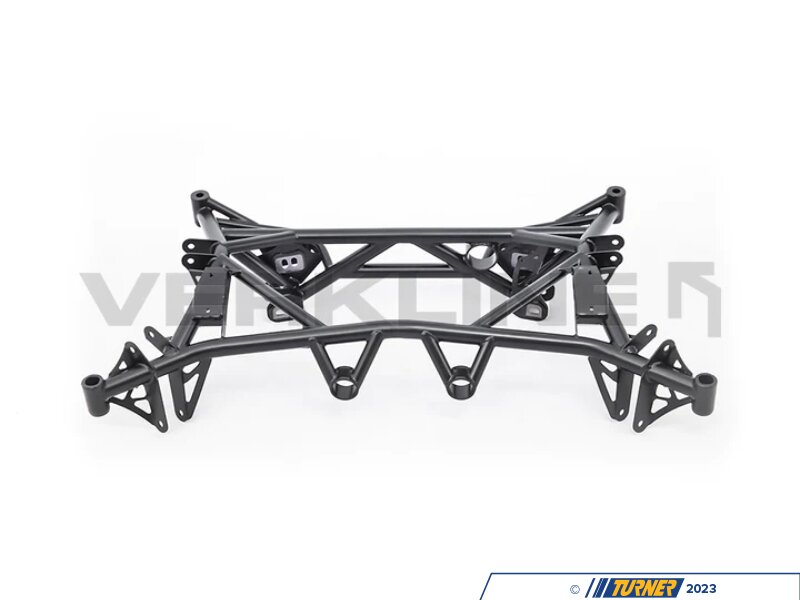

Rear Lightweight Tubular Subframe

Following extensive development and testing, Verkline is thrilled to introduce this cutting-edge rear subframe to the global automotive community. Crafted with precision and performance in mind, this subframe is the result of a comprehensive process that includes 3D laser scanning, CAD development, Finite Element Analysis (FEA) testing, and rigorous road trials. Key Benefits: Significant Weight Reduction: This lightweight subframe is 6.5 kg lighter than the OEM rear subframe, resulting in a remarkable 33% reduction in weight on the rear axle, delivering enhanced vehicle performance. Optimized Rear Final Drive Position: The rear final drive has been strategically repositioned 10 mm upward to alleviate stress on the C.V. joints. This adjustment safeguards against premature joint wear, especially when lowering the vehicle. Robust Mounting: The subframe has eliminated rubber mounts in favor of a single, bolted mounting position. This design choice prevents rear subframe shifts during high-load situations. Bump Steer Adjustment: The subframe is equipped with additional bump steer adjustment capabilities, enabling users to fine-tune the bump steer by adjusting the rear toe link pickup point up and down. Polyurethane Mounts: Factory rubber mounts have been replaced with race car-grade black polyurethane mounts, substantially reducing movement during torque transfer and improving drivetrain performance. Key Features: Ample Underbody Access: The subframe provides more space for underbody access, facilitating easier maintenance and upgrades. Enhanced Chassis Rigidity: Constructed with a tubular frame design using T45 tubing and S355 metal sheets, this subframe bolsters chassis rigidity for superior handling. OEM Compatibility: Verkline has retained the OEM mounting points for wishbones, sway bars, brake lines, exhaust systems, and headlight range sensors, ensuring a seamless plug-and-play installation. Quality Assurance: Designed, fabricated, validated, and tested in Poland, each piece undergoes rigorous inspection by trained staff. Weldings are rigorously checked for cracks, and the entire product is meticulously examined before shipping. Aesthetically Pleasing: In addition to exceptional performance, the subframe boasts a visually appealing design that complements the vehicle's overall aesthetics. Included Components: Pre-assembled rear subframe powder coated in black (other color options available for an additional cost). Set of steel lockout wishbone positioning shims (24 pcs.) for precise Toe Link positioning and bump steer adjustment. Bolt and nut kit for easy installation of Toe Links (Zinc plated, grade 10.9). Set of steel lockout wishbone positioning shims (8 pcs.) for precise Camber wishbones positioning. Race polyurethane mounts for the rear differential. Mounting bolt for the exhaust system (Zinc plated, grade 10.9). Comprehensive printed installation instructions for a trouble-free setup. Elevate your vehicle's performance with Verkline's New Lightweight Tubular Adjustable Rear Subframe, which offers substantial weight reduction, improved handling, and enhanced rigidity. This innovative subframe ensures a precise, responsive, and high-performance driving experience. OEM Replacements for: – 33316794865 – 33316795830 – 51206WAA04 – 51206WAA05 Compatible with the following vehicles: Toyota Supra A90 Toyota Supra A91 BMW Z4 G29 Key Benefits: Significant Weight Reduction: This lightweight subframe is 6.5 kg lighter than the OEM rear subframe, resulting in a remarkable 33% reduction in weight on the rear axle, delivering enhanced vehicle performance. Optimized Rear Final Drive Position: The rear final drive has been strategically repositioned 10 mm upward to alleviate stress on the C.V. joints. This adjustment safeguards against premature joint wear, especially when lowering the vehicle. Robust Mounting: The subframe has eliminated rubber mounts in favor of a single, bolted mounting position. This design choice prevents rear subframe shifts during high-load situations. Bump Steer Adjustment: The subframe is equipped with additional bump steer adjustment capabilities, enabling users to fine-tune the bump steer by adjusting the rear toe link pickup point up and down. Polyurethane Mounts: Factory rubber mounts have been replaced with race car-grade black polyurethane mounts, substantially reducing movement during torque transfer and improving drivetrain performance. Key Features: Ample Underbody Access: The subframe provides more space for underbody access, facilitating easier maintenance and upgrades. Enhanced Chassis Rigidity: Constructed with a tubular frame design using T45 tubing and S355 metal sheets, this subframe bolsters chassis rigidity for superior handling. OEM Compatibility: Verkline has retained the OEM mounting points for wishbones, sway bars, brake lines, exhaust systems, and headlight range sensors, ensuring a seamless plug-and-play installation. Quality Assurance: Designed, fabricated, validated, and tested in Poland, each piece undergoes rigorous inspection by trained staff. Weldings are rigorously checked for cracks, and the entire product is meticulously examined before shipping. Aesthetically Pleasing: In addition to exceptional performance, the subframe boasts a visually appealing design that complements the vehicle's overall aesthetics. Included Components: Pre-assembled rear subframe powder coated in black (other color options available for an additional cost). Set of steel lockout wishbone positioning shims (24 pcs.) for precise Toe Link positioning and bump steer adjustment. Bolt and nut kit for easy installation of Toe Links (Zinc plated, grade 10.9). Set of steel lockout wishbone positioning shims (8 pcs.) for precise Camber wishbones positioning. Race polyurethane mounts for the rear differential. Mounting bolt for the exhaust system (Zinc plated, grade 10.9). Comprehensive printed installation instructions for a trouble-free setup. Elevate your vehicle's performance with Verkline's New Lightweight Tubular Adjustable Rear Subframe, which offers substantial weight reduction, improved handling, and enhanced rigidity. This innovative subframe ensures a precise, responsive, and high-performance driving experience. Compatible with the following vehicles: Toyota Supra A90 Toyota Supra A91 BMW Z4 G29
