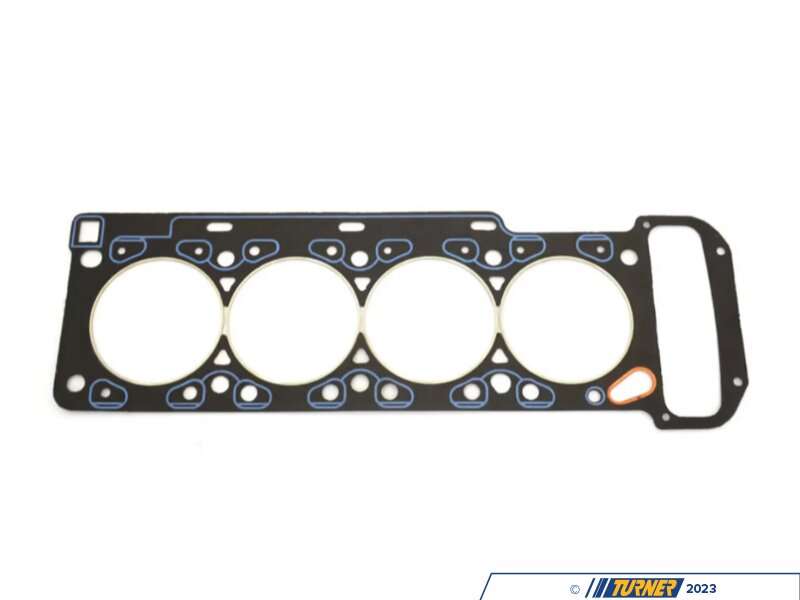

ATH-HG-CR-S14-95 - Athena Cut Ring Head Gasket S14
Athena Cut Ring Head Gasket S14
This Athena Cut Ring Head Gasket is specifically engineered to replace BMW part 11121316714 for the S14B20, S14B23, S14B25, S14B27 engines found in the E30 M3.
Factory OEM & MLS head gaskets are only engineered to handle a limited amount of cylinder pressures before they start to leak, causing a range of issues, including engine overheating, loss of power, misfires, and in severe cases, catastrophic engine failure.
Athena-SCE Cut Ring Head Gaskets are uniquely designed to handle increased cylinder pressure caused by power modifications, making them the recommended choice for applications making 16+ psi.
Design:
Athena-SCE's gasket body is composed of Motorgasket, a reinforced material developed by Athena's R&D department. This consists of a steel core covered with two layers of asbestos-free aramid fibre and offers excellent thermal and mechanical resistance without compromising its ability to adapt to mating surfaces.
To ensure maximum sealing under all conditions, a silicone bead is also applied to critical sealing areas, such as oil and coolant passages.
The AISI 304 stainless steel cooper rings bite into the aluminum head, providing maximum sealing around the cylinder bore and optimizing engine performance, even on engines with nitrous and/or turbo applications that exceed 2 bar boost.
This Athena Cut Ring Head Gasket is specifically engineered to replace BMW part 11121316714 for the S14B20, S14B23, S14B25, S14B27 engines found in the E30 M3.
Factory OEM & MLS head gaskets are only engineered to handle a limited amount of cylinder pressures before they start to leak, causing a range of issues, including engine overheating, loss of power, misfires, and in severe cases, catastrophic engine failure.
Athena-SCE Cut Ring Head Gaskets are uniquely designed to handle increased cylinder pressure caused by power modifications, making them the recommended choice for applications making 16+ psi.
Design:
Athena-SCE's gasket body is composed of Motorgasket, a reinforced material developed by Athena's R&D department. This consists of a steel core covered with two layers of asbestos-free aramid fibre and offers excellent thermal and mechanical resistance without compromising its ability to adapt to mating surfaces.
To ensure maximum sealing under all conditions, a silicone bead is also applied to critical sealing areas, such as oil and coolant passages.Â
The AISI 304 stainless steel cooper rings bite into the aluminum head, providing maximum sealing around the cylinder bore and optimizing engine performance, even on engines with nitrous and/or turbo applications that exceed 2 bar boost.
Prop 65 Warning
Cross Reference
11121316714
Product Q&A
Lifetime Replacement
This Product Is Covered By Our Lifetime Replacement Program
Products protected by our Lifetime Replacement Program are covered for as long as you own the product, no need to worry about an expiration date. Purchase your products and enjoy some worry-free motoring, knowing we've got you covered.
If you have any questions, would like to learn more or are ready to place a replacement claim, click here!
Fits These Cars
MAKE
MODEL
SUBMODEL
ENGINE
Special Fitment Notes
BMW
E30
M3
S14 2.3L
Use vehicle selector to confirm fitment
*The above product applications have been written by Turner Motorsport. All
warranties, product application, fitment, and performance are the responsibility of Turner Motorsport.
For additional information see the terms of use.
