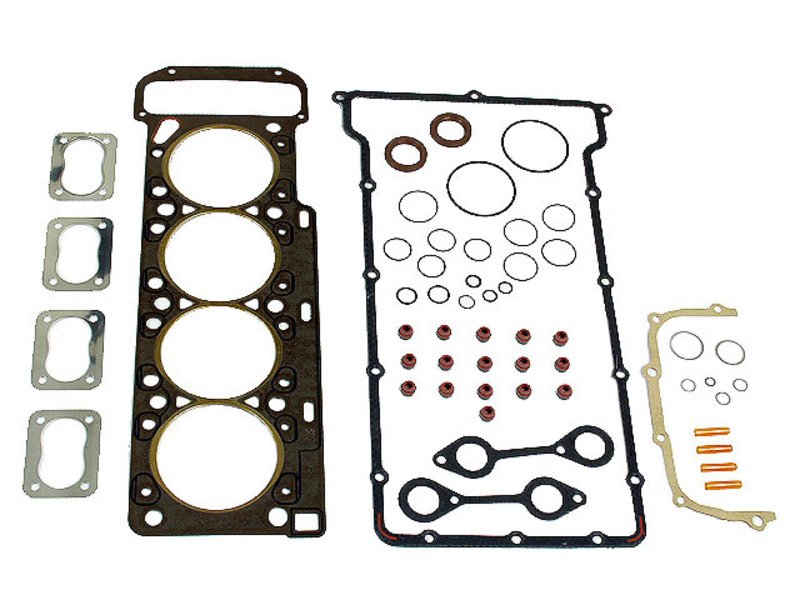

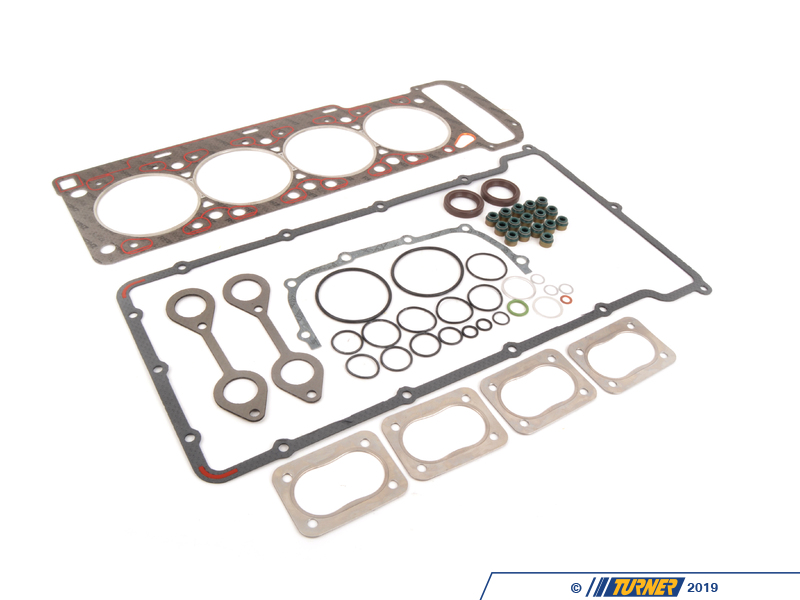

Head Gasket Set - E30 M3 2.3L

E30 M3 2.3 Head Gasket Set. Includes all the gaskets and seals needed when rebuilding the S14 cylinder head, along with the head gasket.

This set of gaskets is a both a time and money saver. It includes all of the commonly replaced gaskets, seals, and o-rings when performing this overhaul. Having these on hand instead of chasing them down at the last minute will save you time, money, and frustration. With this area of the engine apart you're going to want or need to replace these items anyway to ensure it's free of fluid and vacuum leaks. This is especially important because some states have very strict emissions regulations and vacuum and oil leaks can lead to failed inspections tests. On newer cars this can also create issues in the on-board diagnostics system. Even if you're not pulling the head this set includes so many valuable parts you'll want to keep this on hand to use for spares.

If you drive a European vehicle, chances are high your vehicle came equipped with one or more Victor Reinz gaskets. Choose OE quality VR gaskets and seals and do the job right the first time.

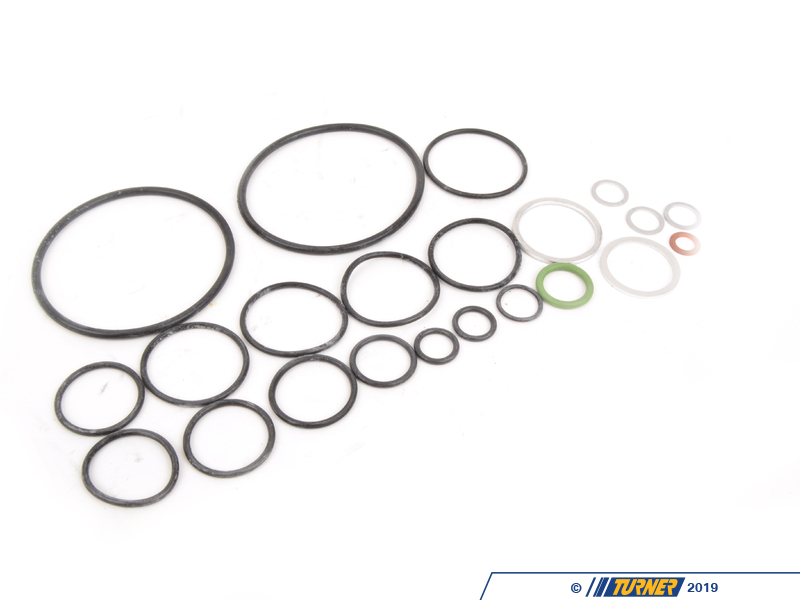

Complete Parts List

(click to expand)

BMW p/nQtyDescription

071199063282large tensioner rail o-ring

071199630301gasket ring

071199630731coolant connector o-ring

071199633551coolant plug seal ring

071199634181timing tensioner o-ring

111212773501rear coolant connector o-ring

111213041731cam tray-to-cylinder head o-ring

111213041744cam tray-to-cylinder head o-ring,
spark plug holes

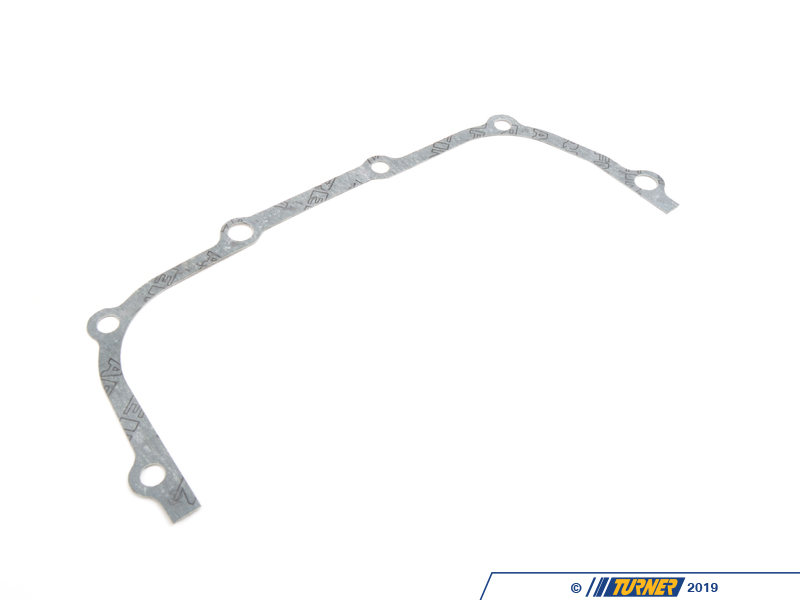

111213067291rear timing cover profile gasket

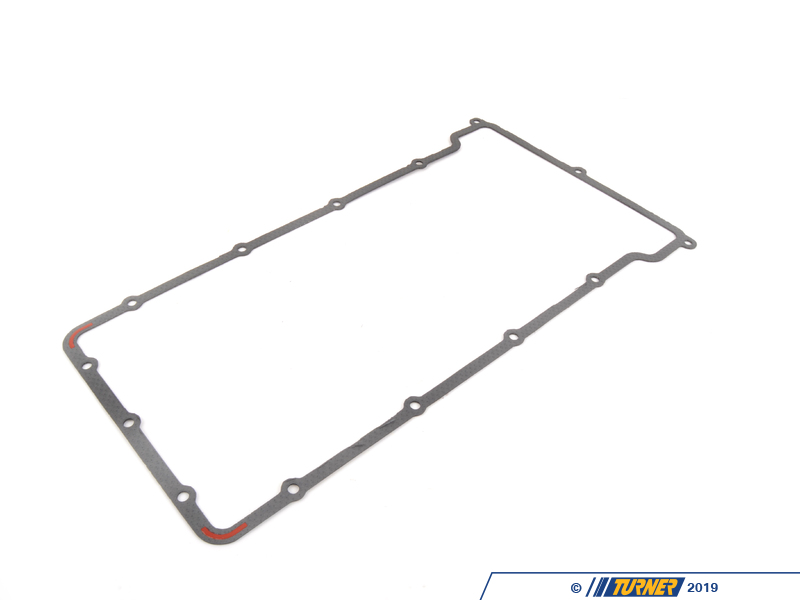

111213127171valve cover gasket

111213121732valve cover gasket,
spark plug holes

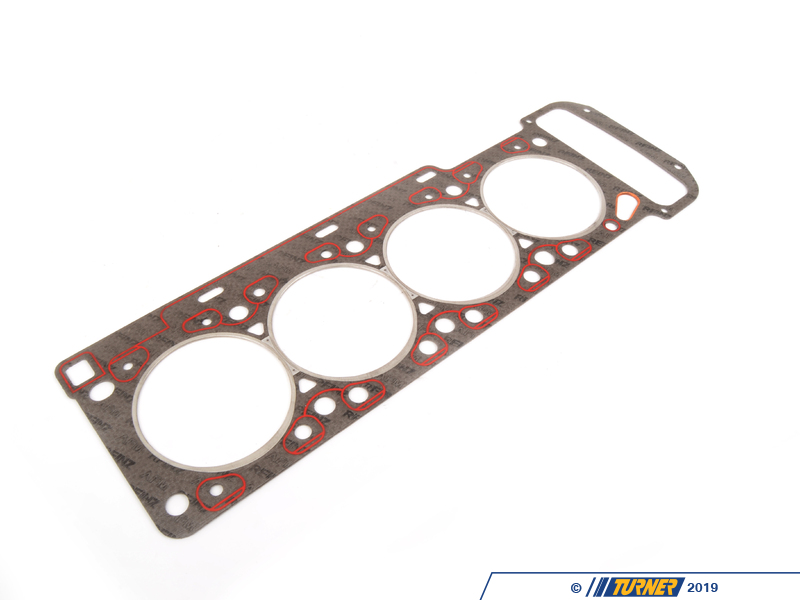

111213167141head gasket

111412714152camshaft cover plate seal

113113042571timing chain axle o-ring

113113074081small tensioner rail o-ring

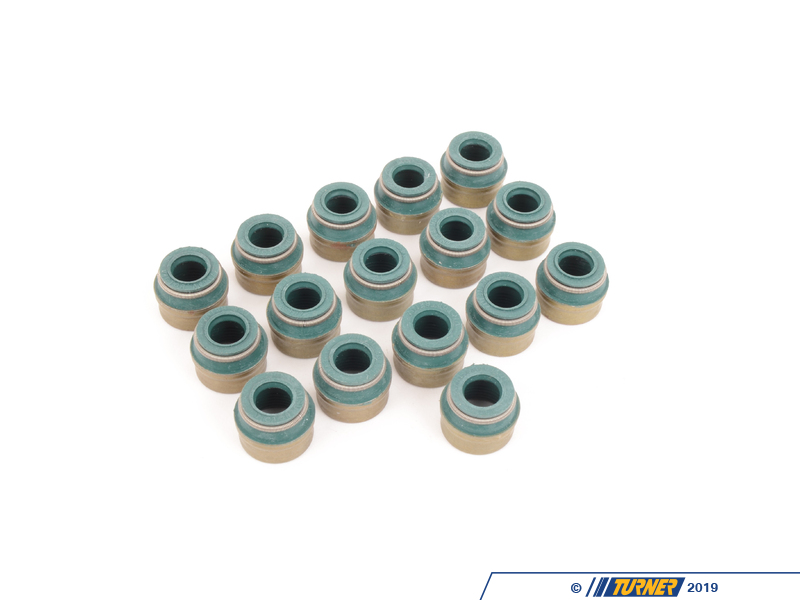

113490591712valve stem seal,
2 packs of 8 (16 total)

114113041784coolant pipe o-ring

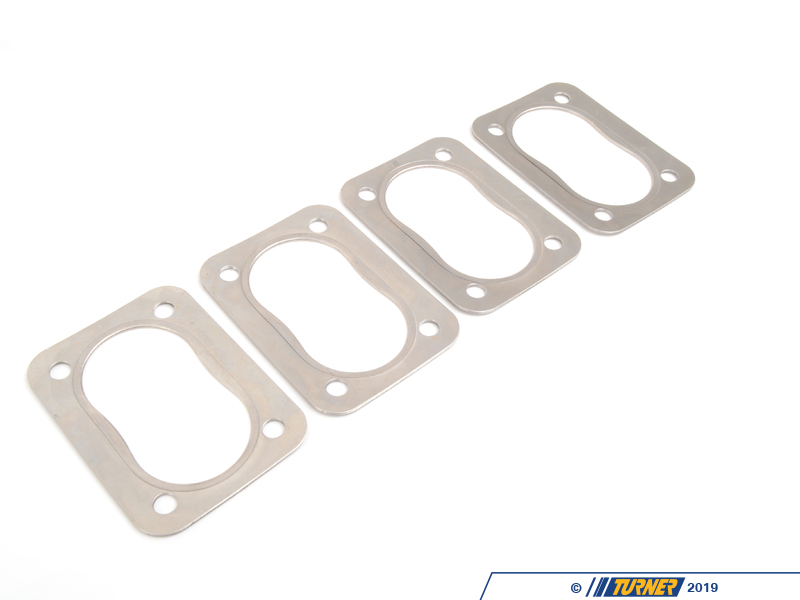

116213129614exhaust manifold-to-cylinder head gasket

121112522572camshaft cover o-ring

135413073802idle distribution block o-ring


This item fits the following BMWs:
1987-1991 E30 BMW M3


T#: 288 | Part#: 11121316992
152.32 $152.32
Free Shipping
In Stock
