ICM-430-G - Do88 - MERA Charge Air Cooler Intake Manifold - BMW G-Chassis B58TU (B58 Gen2) / Toyota GR Supra A90

Do88 - MERA Charge Air Cooler Intake Manifold - BMW G-Chassis B58TU (B58 Gen2) / Toyota GR Supra A90

DO88

T#: 33846566 | Part#: ICM-430-G

1 of

2 of

3 of

4 of

5 of

6 of

7 of

8 of

9 of

10 of

11 of

12 of

13 of

14 of

15 of

16 of

17 of

18 of

19 of

20 of

21 of

Checking Vehicle Fitment...

$3500.00

Availability:

In Stock

Est. Ship Date:

Today

Qty

Add to Wish List

Product Details

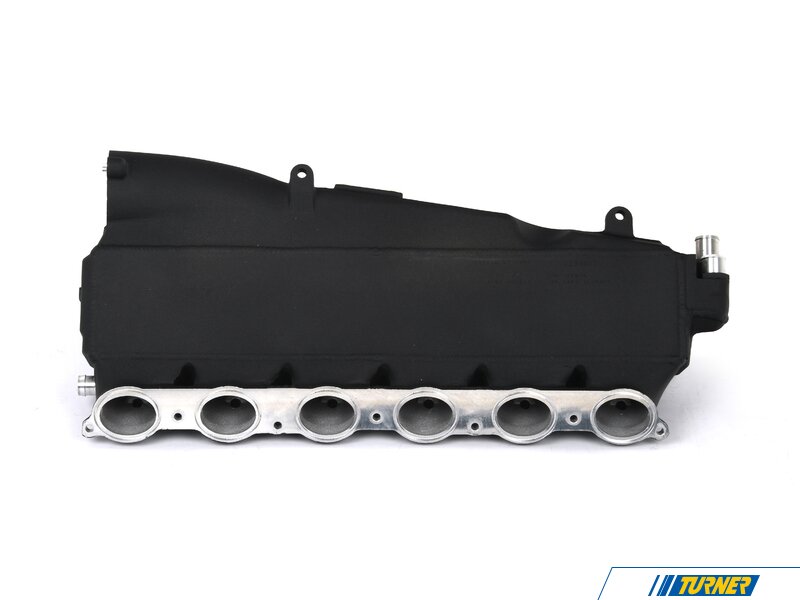

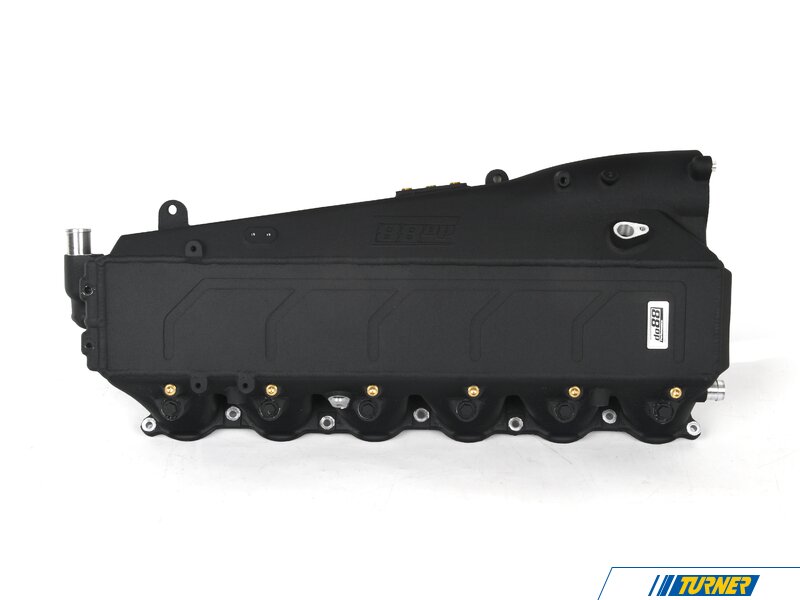

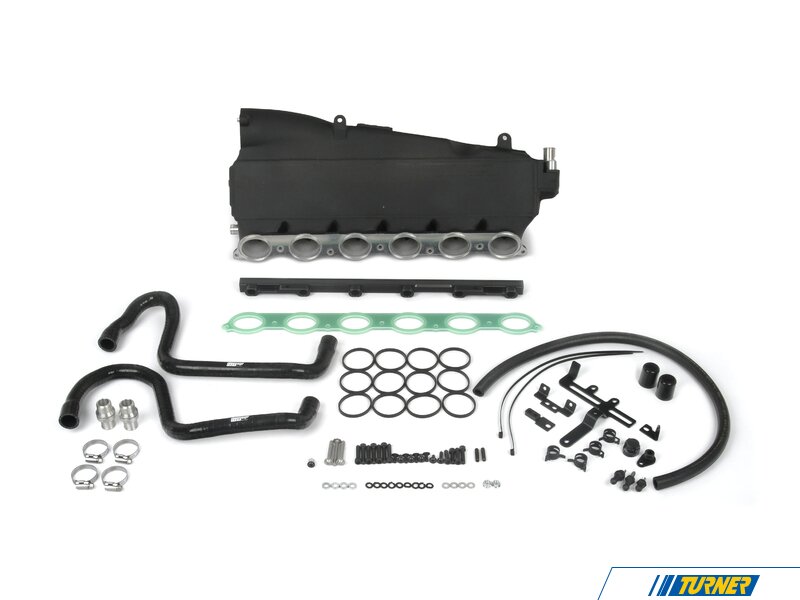

The do88 MERA Charge Air Cooler Intake Manifold replaces the factory plastic intake manifold to maximize charge air cooling and airflow on BMW B58 and Toyota Supra A90 engines. Factory B58 manifolds suffer from rapid heat soak and physical cracking under high boost pressures. The do88 aluminum manifold utilizes a Garrett Motorsport bar-and-plate core and cast end tanks to drop intake air temperatures from 41°C to 23°C while increasing airflow by 47 percent..

Technical Specifications

Replaces BMW # 11618647977
Core Construction: 102mm (4-inch) thick Garrett Motorsport bar-and-plate air-to-water intercooler core.
Cooling Density: 11 water cooling rows compared to the factory 6 rows.
Thermodynamic Efficiency: Decreases intake air temperatures to 23°C from the 41°C factory baseline under identical operating conditions.
Airflow Capacity: Flows 874 CFM at a 0.1 bar (1.45 psi) pressure drop, yielding a 47 percent volume increase over the factory 595 CFM manifold.
Performance Metrics: Delivers peak power gains of 5 horsepower, midrange gains of 18 horsepower, and peak torque gains of 28 Nm

Features and Benefits

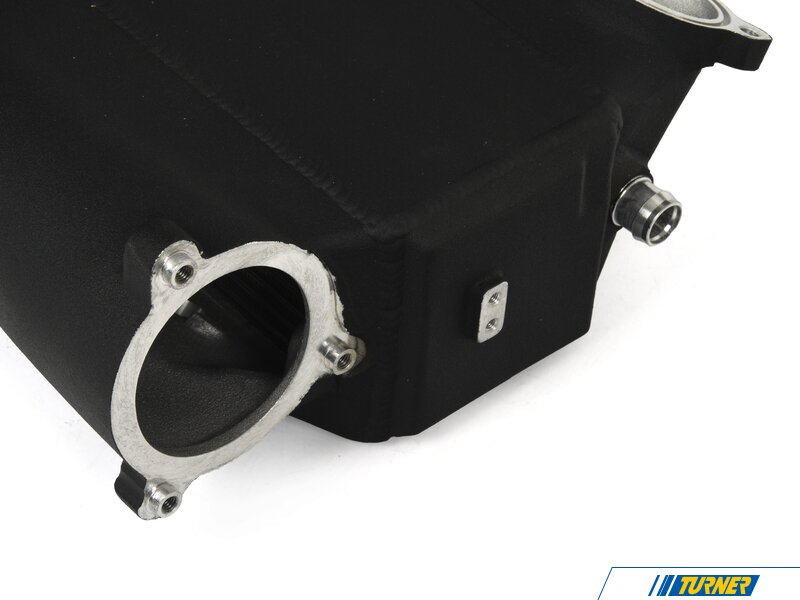

Cast Aluminum Construction: Replaces the factory plastic manifold to eliminate structural cracking failures under high boost pressures.

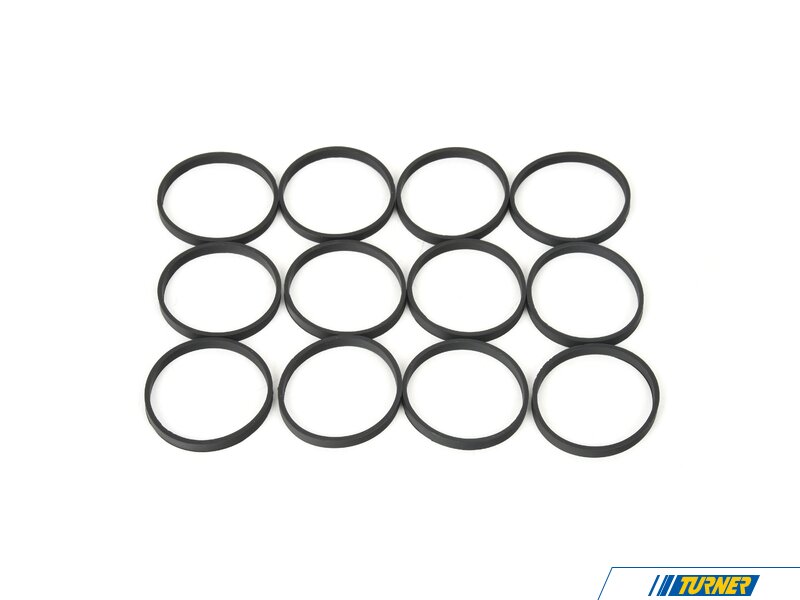

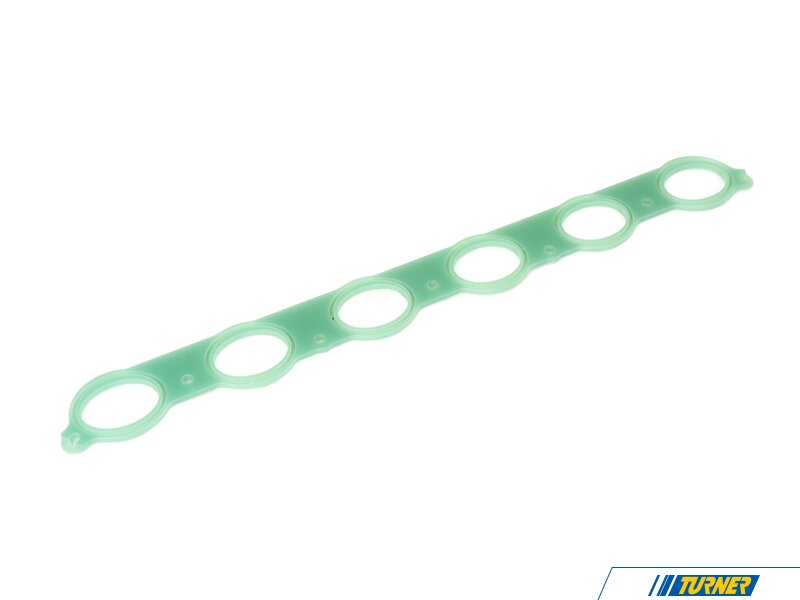

Thermal Isolation: Utilizes a specialized thermal barrier spacer equipped with 12 custom FKM-silicone O-rings to prevent conductive heat transfer from the cylinder head to the aluminum manifold body.

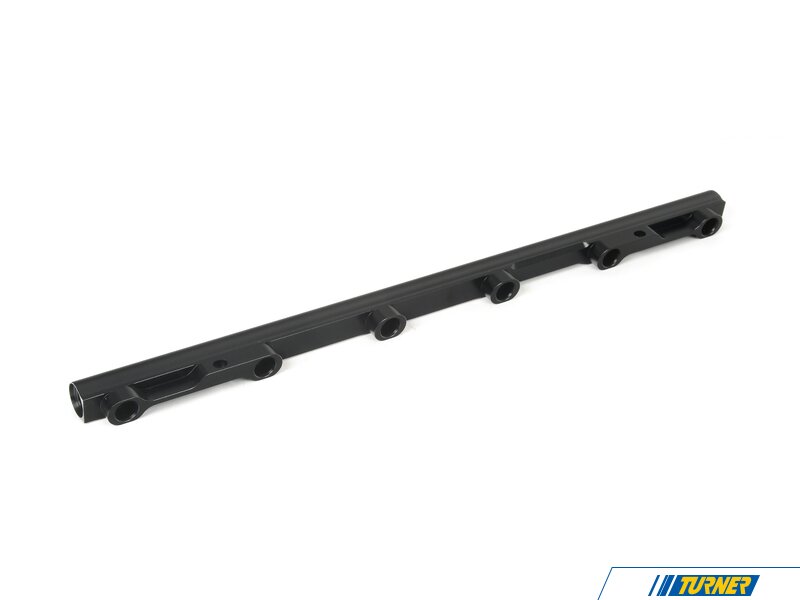

Auxiliary Fueling Integration: Pre-configured with a custom AN-8 female threaded fuel rail for port injection with Injector Dynamics ID1050x-34-14 or Bosch EV14XK (short) fuel injectors. This corrects the improper spray angles and fuel puddling caused by traditional injector spacer plates.
Direct Port Injection Support: Cast with individual 1/8-inch NPT ports on top of each cylinder runner to accommodate direct port injection of methanol or nitrous.
Auxiliary Measurement Access: Incorporates an integrated 3-port pad on the inlet tank casting featuring three 1/8-inch NPT ports for additional sensor parameters or vacuum sources.
Efficient Coolant Purging: Integrates two 1/8-inch BSPT ports on the rear water tank to facilitate complete air bleeding from the water circuit and enable precise coolant temperature monitoring.
Factory Serviceability: Engineered to maintain unobstructed clearance for the factory spin-off oil filter, allowing routine fluid services without manifold removal.

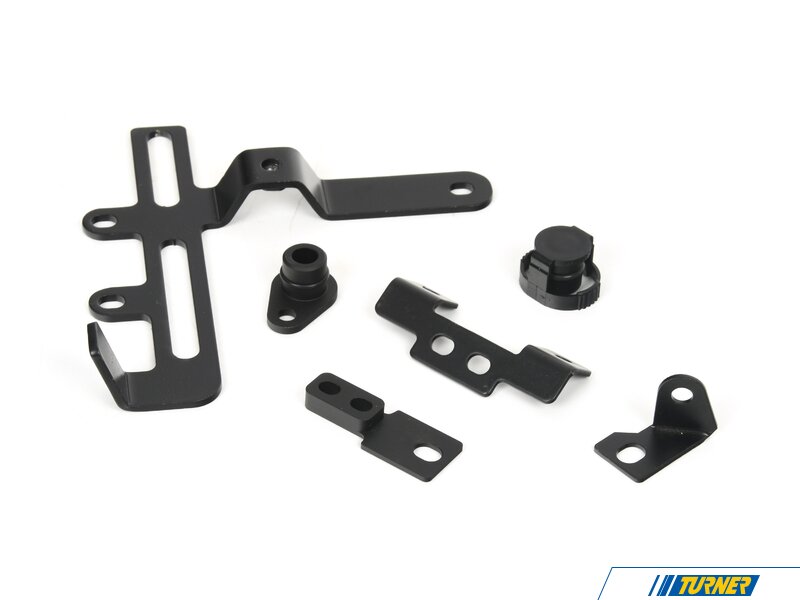

Engine Bay Integration: Designed to fit underneath the factory engine cover using included brackets to retain OEM aesthetics, accommodating the auxiliary fuel rail with minor cover modification.

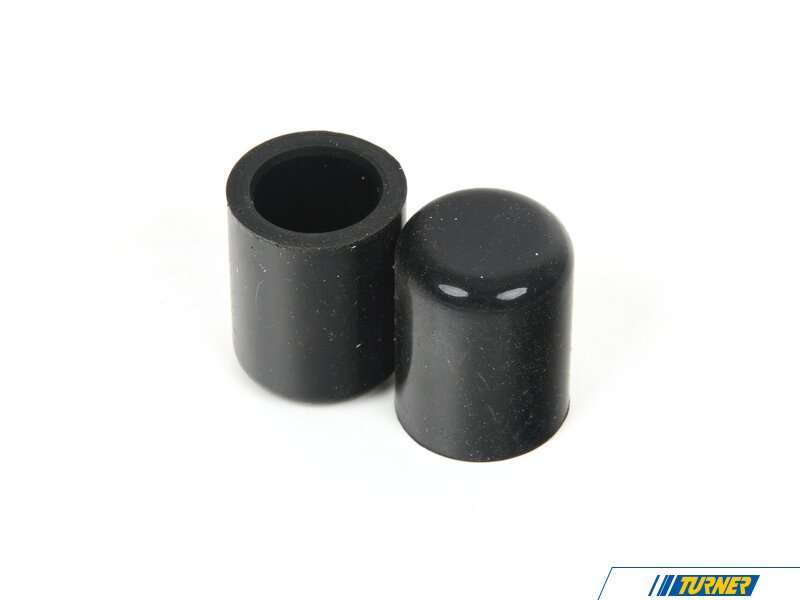

Crankcase Sealing: Includes designated hardware to permanently cap the crankcase vacuum connection and fuel tank breather line for high-horsepower engine configurations.

* For vehicles equipped with a Mild Hybrid engine, the alternator requires modification. Refer to Step 11 in the installation instructions for details.

Not for sale or use in the state of California on any pollution-controlled vehicle as per the California Air Resources Board.

Prop 65 Warning

Cross Reference

11618647977

Product Q&A

Lifetime Replacement

This product is not eligible for Lifetime Replacement

Fits These Cars

MAKE	MODEL	SUBMODEL	ENGINE	Special Fitment Notes
BMW	A90 MKV	Supra	B58 3.0L	Use vehicle selector to confirm fitment
BMW	G01	X3 M40i	B58 3.0L	Use vehicle selector to confirm fitment
BMW	G02	X4 M40i	B58 3.0L	Use vehicle selector to confirm fitment
BMW	G05	X5 sDrive40i	B58 3.0L	Use vehicle selector to confirm fitment
BMW	G05	X5 xDrive40i	B58 3.0L	Use vehicle selector to confirm fitment
BMW	G05	X5 xDrive45e	B58 3.0L	Use vehicle selector to confirm fitment
BMW	G06	X6 sDrive40i	B58 3.0L	Use vehicle selector to confirm fitment
BMW	G06	X6 xDrive40i	B58 3.0L	Use vehicle selector to confirm fitment
BMW	G07	X7 xDrive40i	B58 3.0L	Use vehicle selector to confirm fitment
BMW	G20	M340i	B58 3.0L	Use vehicle selector to confirm fitment
BMW	G20	M340i xDrive	B58 3.0L	Use vehicle selector to confirm fitment
BMW	G22	M440i	B58 3.0L	Use vehicle selector to confirm fitment
BMW	G22	M440i xDrive	B58 3.0L	Use vehicle selector to confirm fitment
BMW	G23	M440i	B58 3.0L	Use vehicle selector to confirm fitment
BMW	G23	M440i xDrive Convertible	B58 3.0L	Use vehicle selector to confirm fitment
BMW	G26	M440i	B58 3.0L	Use vehicle selector to confirm fitment
BMW	G26	M440i xDrive	B58 3.0L	Use vehicle selector to confirm fitment
BMW	G29	Z4 sDrive M40i	B58 3.0L	Use vehicle selector to confirm fitment
BMW	G30	540i	B58 3.0L	Use vehicle selector to confirm fitment
BMW	G30	540i xDrive	B58 3.0L	Use vehicle selector to confirm fitment
BMW	G32	640i xDrive	B58 3.0L	Use vehicle selector to confirm fitment
BMW	G42	M240i	B58 3.0L	Use vehicle selector to confirm fitment
BMW	G42	M240i xDrive	B58 3.0L	Use vehicle selector to confirm fitment

*The above product applications have been written by Turner Motorsport. All warranties, product application, fitment, and performance are the responsibility of Turner Motorsport. For additional information see the terms of use.
