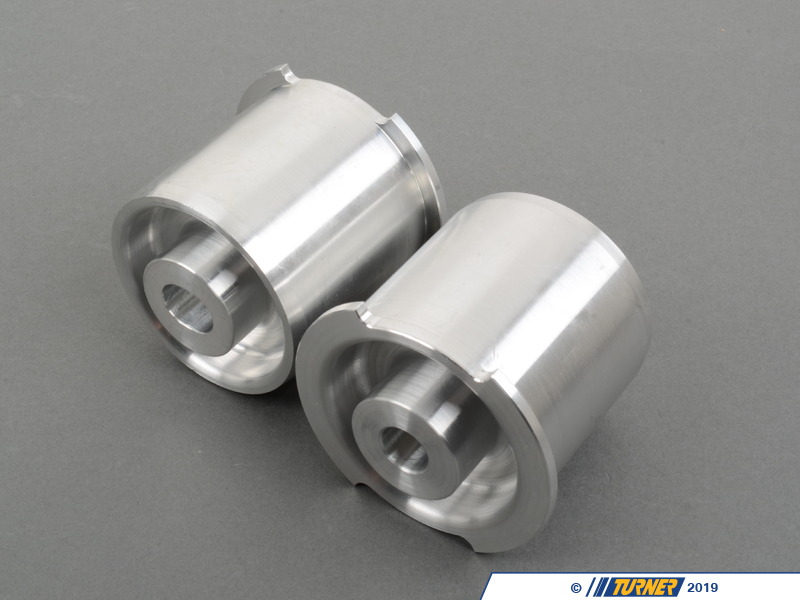

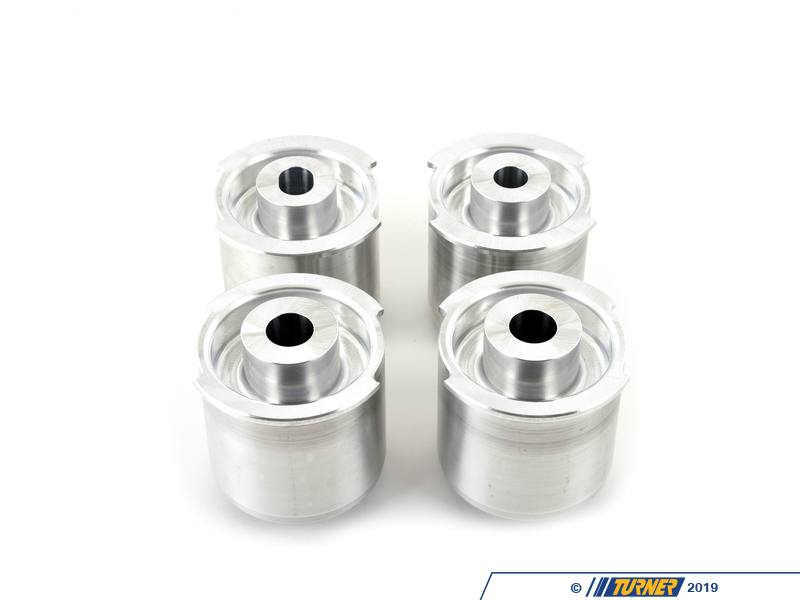

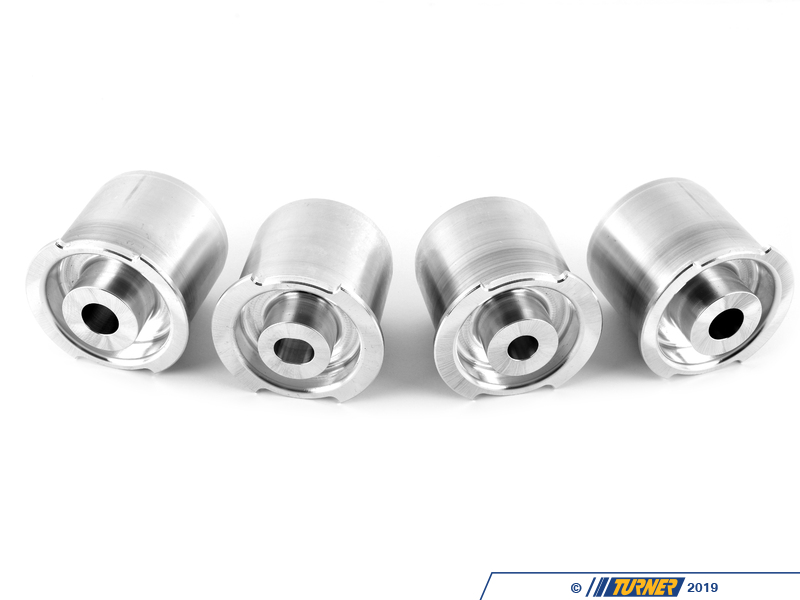

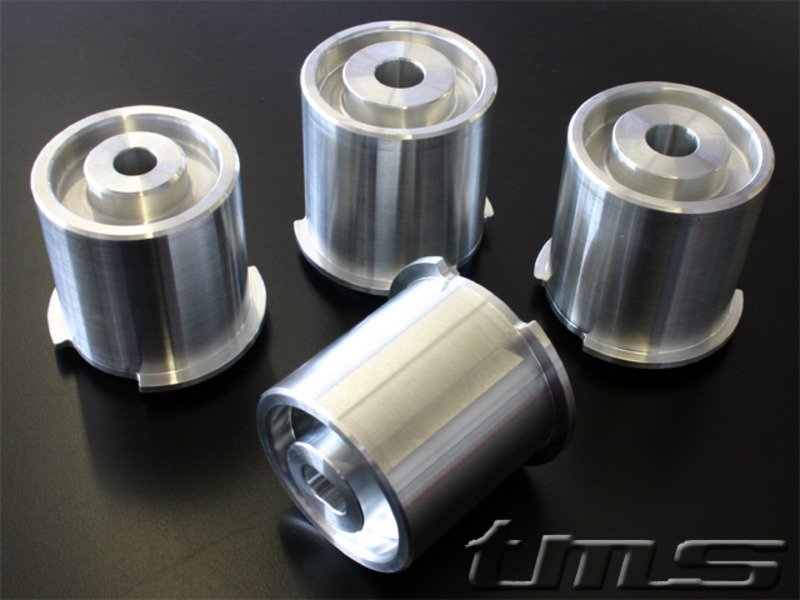

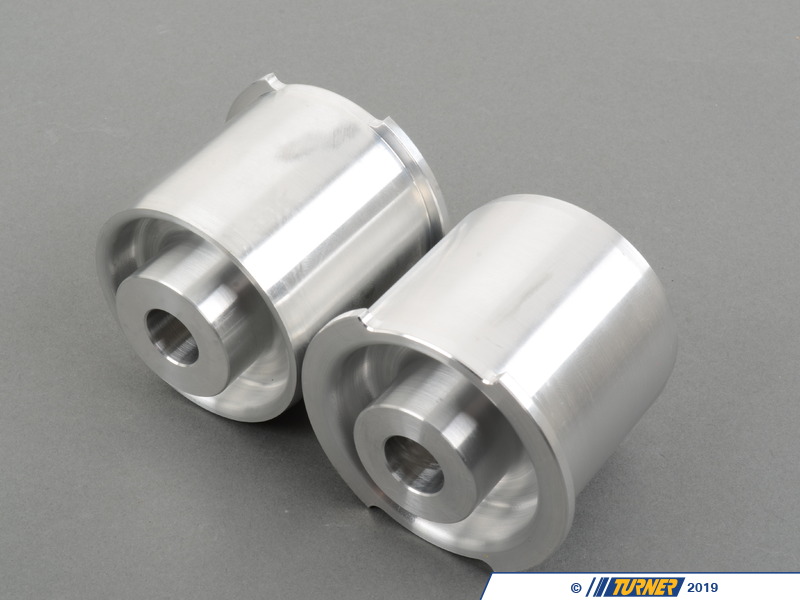

Rear Subframe Bushings/Mount Set - Turner Solid Race - E36, E36 M3

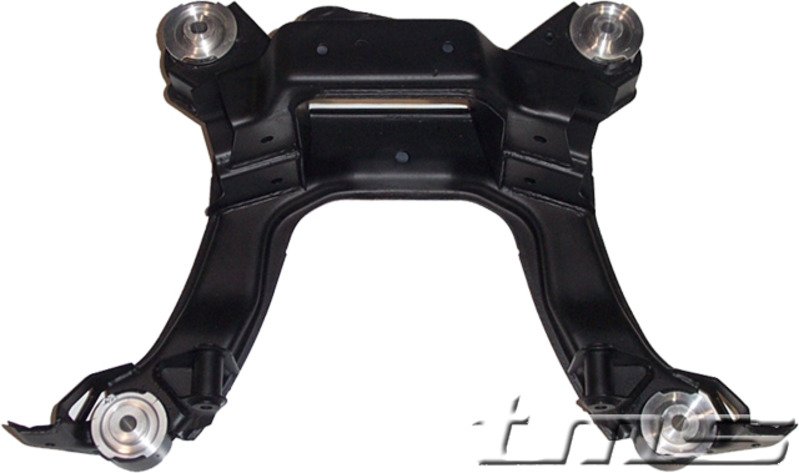

TMS E36 solid sub-frame bushings are designed for track and racecars to remove twisting and flexing of the subframe where it mounts to the rear floor. This twisting is one of the causes of rear subframe/floor failure in E36 cars. We originally developed these for our SCCA SPEED World Challenge cars. A BMW's subframe is the heart of the suspension. Because the subframe is mounted with rubber isolators, when the subframe moves, so does the rest of the suspension mounting points. As the rubber wears and becomes more pliable, the alignment and suspension settings move even more. Replace the stock rubber bushings to limit drivetrain and suspension movement and keep your car set up the way it's supposed to be.
Our mounts are designed using a CAD program with further attention paid to making the mount as light as possible. We also notched the flanges to allow the use of the BMW factory removal tools. One front bushing is slotted to allow for compliance between manufacturing standards as BMW specifies. These bushings are CNC machined out of high grade billet aluminum.
Please ensure your correct model is selected
Does NOT fit your Change Vehicle
Fits your Change Vehicle
This product was last offered at the strikethrough price on
05-03-2026
Lifetime Replacement Program! Read more here
Product Details
TMS E36 solid sub-frame bushings are designed for track and racecars to remove twisting and flexing of the subframe where it mounts to the rear floor. This twisting is one of the causes of rear subframe/floor failure in E36 cars. We originally developed these for our SCCA SPEED World Challenge cars. A BMW's subframe is the heart of the suspension. Because the subframe is mounted with rubber isolators, when the subframe moves, so does the rest of the suspension mounting points. As the rubber wears and becomes more pliable, the alignment and suspension settings move even more. Replace the stock rubber bushings to limit drivetrain and suspension movement and keep your car set up the way it's supposed to be.
Our mounts are designed using a CAD program with further attention paid to making the mount as light as possible. We also notched the flanges to allow the use of the BMW factory removal tools. One front bushing is slotted to allow for compliance between manufacturing standards as BMW specifies. These bushings are CNC machined out of high grade billet aluminum.
Click for installation instructions. (PDF)
