KMAC Stage 2 Street/Track Front Adjustable Camber/Caster Plates - F22 F30 F32
- Mfg Part #
- 192616-2N
- Turner Part #
- T#389642
- Brand
-
Does this fit my vehicle?
For accurate results, specify your model below.
Product Details
Location: Front
Type: Street/Track, Stage 2
Upper spring perch: OEM-size, 60mm, and 2.5" included
Bearings: urethane OEM-type center bushing; lubricated radial thrust bearing on spring perch

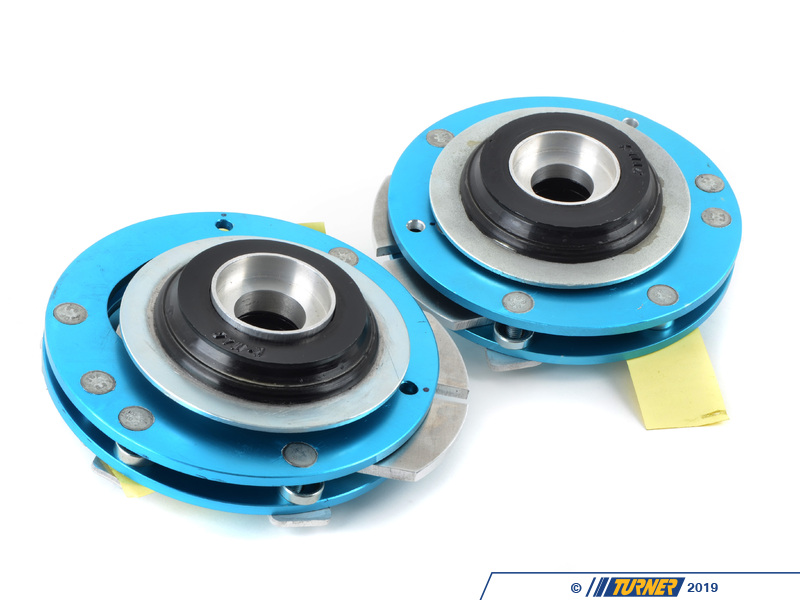

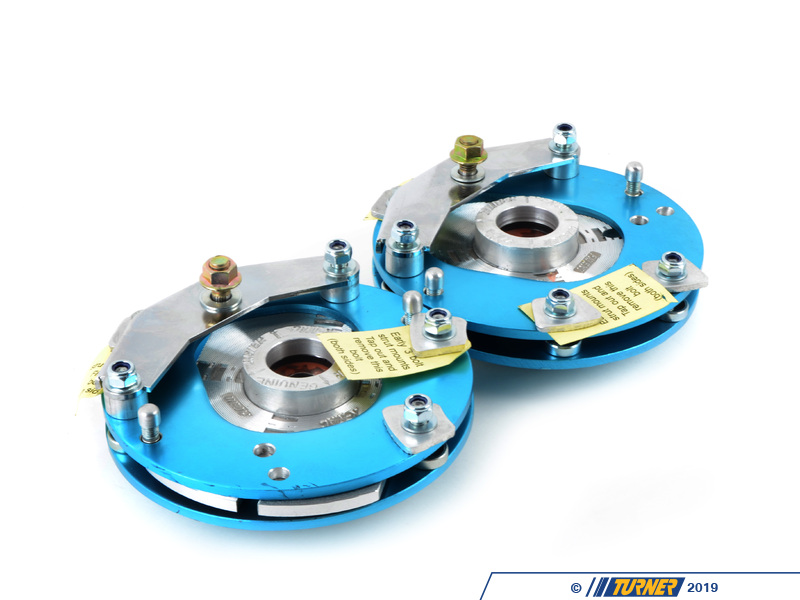

KMAC camber/caster plates use a patented adjustment method designed for easy and rapid alignment adjustments. The KMAC design has a 'floating' inner camber plate, rather than slotted, to allow camber and caster to be adjusted together. To adjust, simply loosen the top three nuts on the strut tower and position the KMAC mount to match your desired alignment settings. The KMAC design allows more camber and caster adjustment because separate caster hardware is eliminated. While primarily designed to increase negative camber for track use these can also be used to fix alignment issues that cause uneven tire wear or unwanted handling behavior.

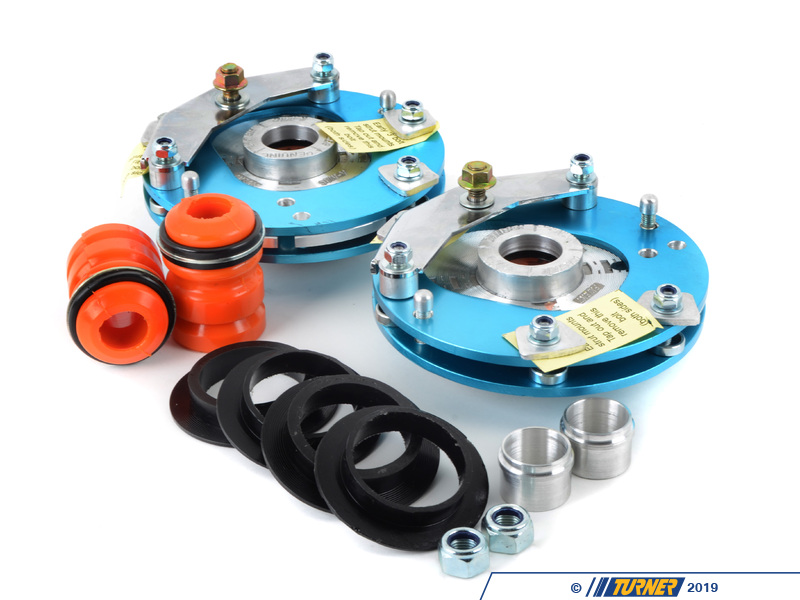

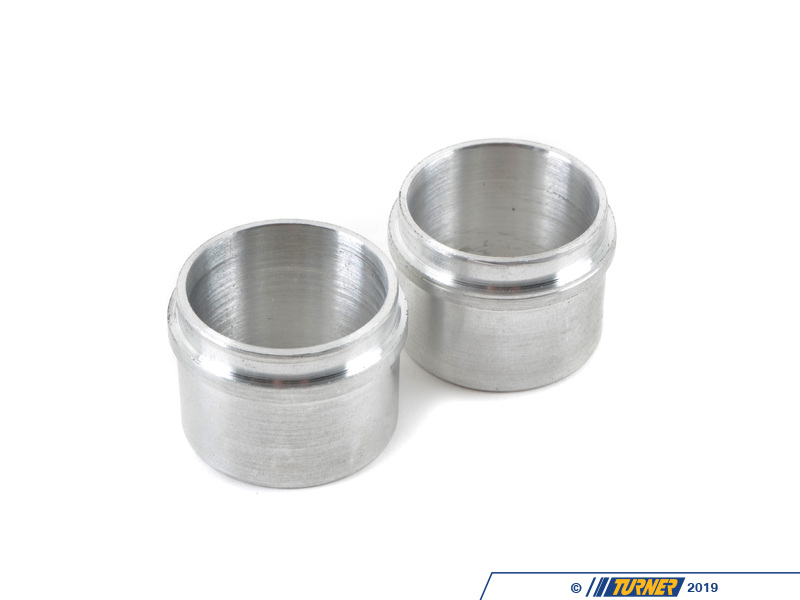

KMAC camber kits are the most complete kits on the market, with all of the common spring perch options and strut hardware included. The OEM size spring perch as well as 60mm and 2.5" spring isolators are included which makes it easy to upgrade from stock struts to coil overs without having to buy new camber plates. Or swap springs on your coil overs between 60mm and 2.5" without buying additional upper perches. Also included are the most common strut pin hardware - 14mm lower bearing adapters and 12x1.5, 12x1.75, and 14x1.5 top nuts. This takes the guesswork out of ordering the correct hardware for your strut type. The urethane main bushing is also replaceable and the camber plate parts are made from 7075-grade aluminum for a lifetime of camber plate use.
Fitment Note 1: replaces factory BMW strut mount with 3 mounting bolts (up to 12/2014 prodution). Not for cars with 5-bolt strut mounts.
Fitment Note 2: suspensions vary from manufacturer to manufacturer. The proper stacked height and clearances are required. K-MAC includes bearing adapters, spacers, and various top nuts but it is still the responsibility of the installer to ensure a correct and safe fitment. Basic instructions are included but professional installation is required. As with any race-derived component, additonal fabrication may be required.
This item fits the following BMWs:
-12/2014 F22 BMW 228i 228i xDrive M235i M235i xDrive
2012-12/2014 F30 BMW 320i 320i xDrive 328d 328d xDrive 328i 328i xDrive 335i 335i xDrive - Sedan
2013-12/2014 F31 BMW 328i xDrive 328d xDrive - Wagon
-12/2014 F34 BMW 328i xDrive GT, 335i xDrive GT - Gran Tourismo
2013-12/2014 F32 BMW 428i 428i xDrive 435i 435i xDrive - Coupe
2013-12/2014 F33 BMW 428i Convertible 428i xDrive Convertible 435i Convertible - Convertible
-12/2014 F36 BMW 428i Gran Coupe 428i xDrive Gran Coupe 435i Gran Coupe 435i xDrive Gran Coupe
Not for cars with Adaptive M Suspension option code S2VFA
- Previous Revisions
-
- 192616L2
This Part Fits the Following BMWs
| Make | Model | Submodel | Engine |
|---|---|---|---|
| BMW | F22 | 228i | N20 2.0L |
| BMW | F22 | 228i xDrive | N20 2.0L |
| BMW | F22 | M235i | N55 3.0L |
| BMW | F22 | M235i xDrive | N55 3.0L |
| BMW | F23 | 228i | N20 2.0L |
| BMW | F23 | M235i | N55 3.0L |
| BMW | F23 | M235i xDrive | N55 3.0L |
| BMW | F30 | 320i | N20 2.0L |
| BMW | F30 | 320i xDrive | N20 2.0L |
| BMW | F30 | 328d | N47 2.0L |
| BMW | F30 | 328d xDrive | N47 2.0L |
| BMW | F30 | 328i | N20 2.0L |
| BMW | F30 | 328i xDrive | N20 2.0L |
| BMW | F30 | 335i | N55 3.0L |
| BMW | F30 | 335i xDrive | N55 3.0L |
| BMW | F31 | 328d xDrive | N47 2.0L |
| BMW | F31 | 328i xDrive | N20 2.0L |
| BMW | F32 | 428i | N20 2.0L |
| BMW | F32 | 428i xDrive | N20 2.0L |
| BMW | F32 | 435i | N55 3.0L |
| BMW | F32 | 435i xDrive | N55 3.0L |
| BMW | F33 | 428i | N20 2.0L |
| BMW | F33 | 428i xDrive | N20 2.0L |
| BMW | F33 | 435i | N55 3.0L |
| BMW | F33 | 435i xDrive | N55 3.0L |
| BMW | F34 | 328i xDrive | N20 2.0L |
| BMW | F34 | 335i xDrive | N55 3.0L |
| BMW | F36 | 428i | N20 2.0L |
| BMW | F36 | 428i xDrive | N20 2.0L |
| BMW | F36 | 435i | N55 3.0L |
| BMW | F36 | 435i xDrive | N55 3.0L |
