ECS Baffled Oil Catch Can System - E46 M3

Mfg Part #
015515ecs01-01KT
Turner Part #
T#394194
Brand
Price:
Qty
283.95
Ships on Aug 3, 2018
Free Shipping Free Shipping
Does this fit my vehicle?
For accurate results, specify your model below.

Product Details

Modern day emissions regulations require the use of a closed crankcase ventilation (PCV) system to recirculate combustion blow-by gases from the crankcase back in to the intake to be burned.  Unfortunately, these blow by gases contain water vapor (which is a byproduct of combustion) and pick up oil mist from and the windage cloud and cam lubrication system as they travel through the crank case.  Due to less than 100% effective air/oil separation in the stock PCV system, some oil mist and water vapor gets carried back to the intake tract and over time cause oil deposits in the intake manifold, intake ports, and on the back of intake valves.  All will eventually lead to poor performance and reduced fuel economy, and the presence of this oil mist in the intake charge may even increase the risk of engine-damaging detonation.

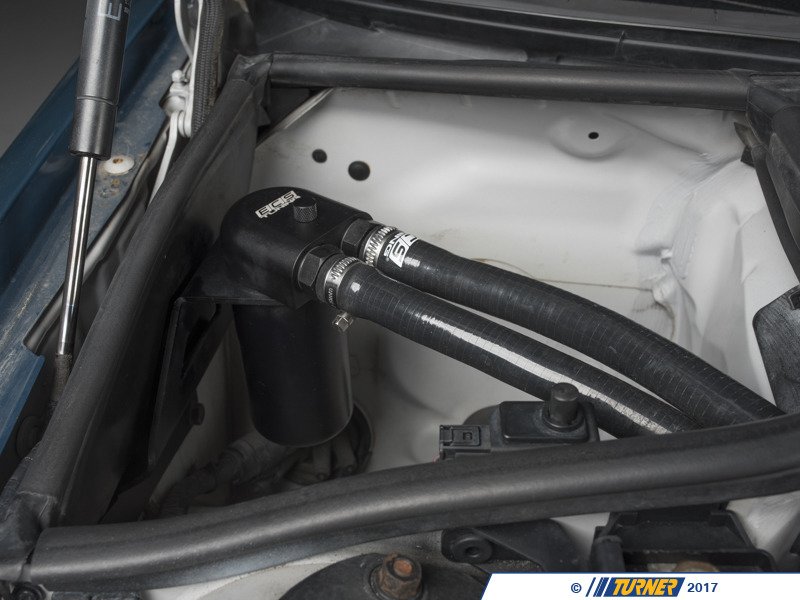

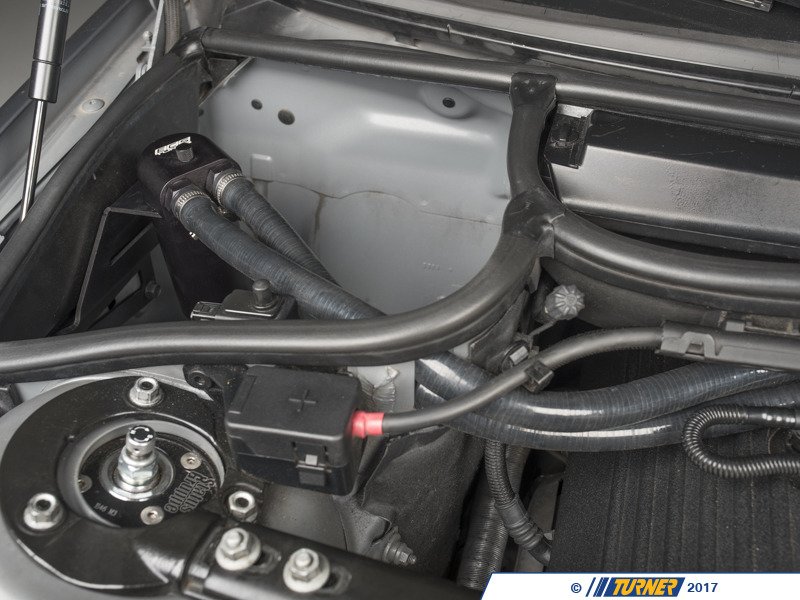

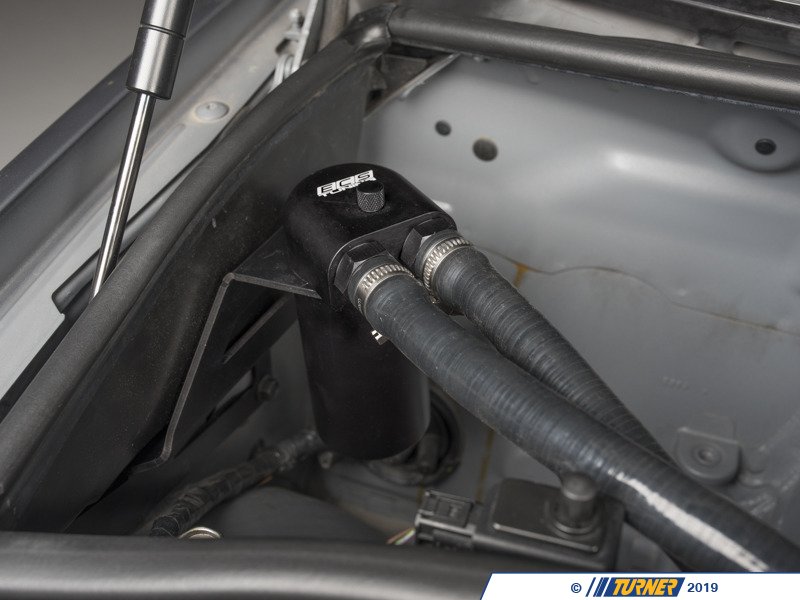

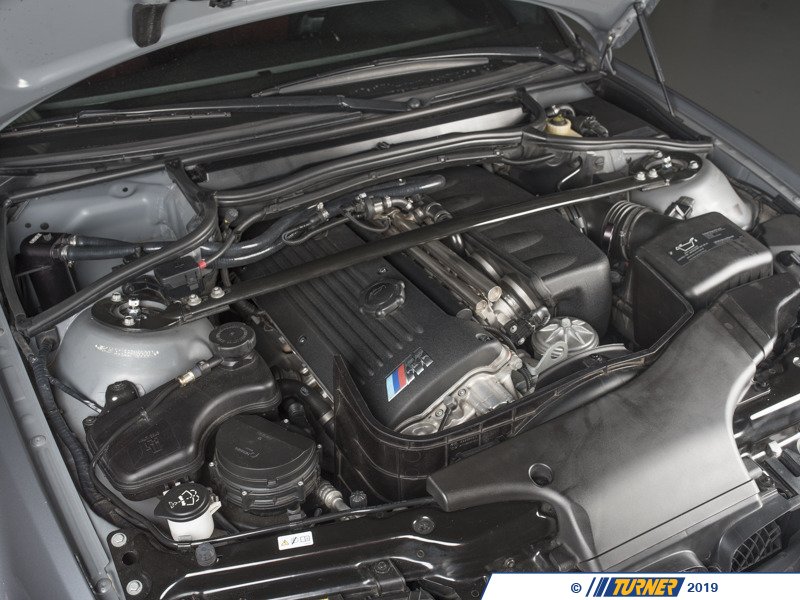

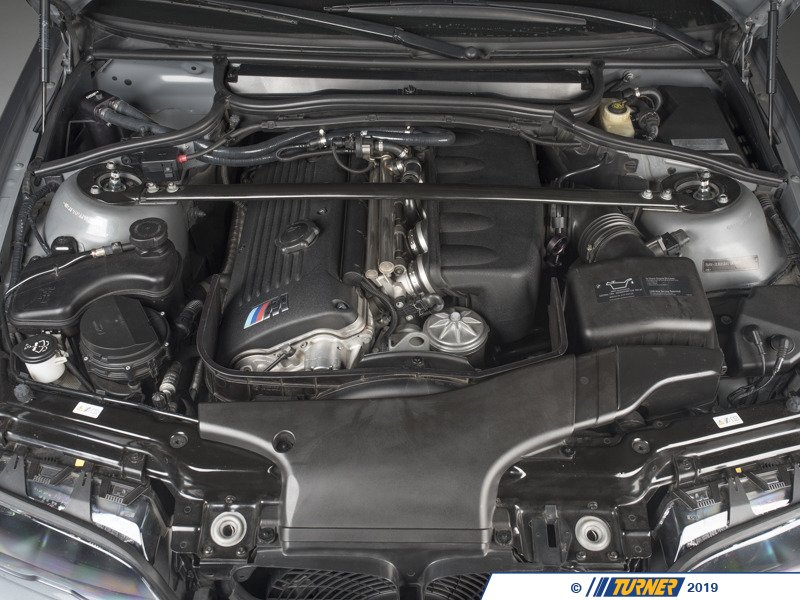

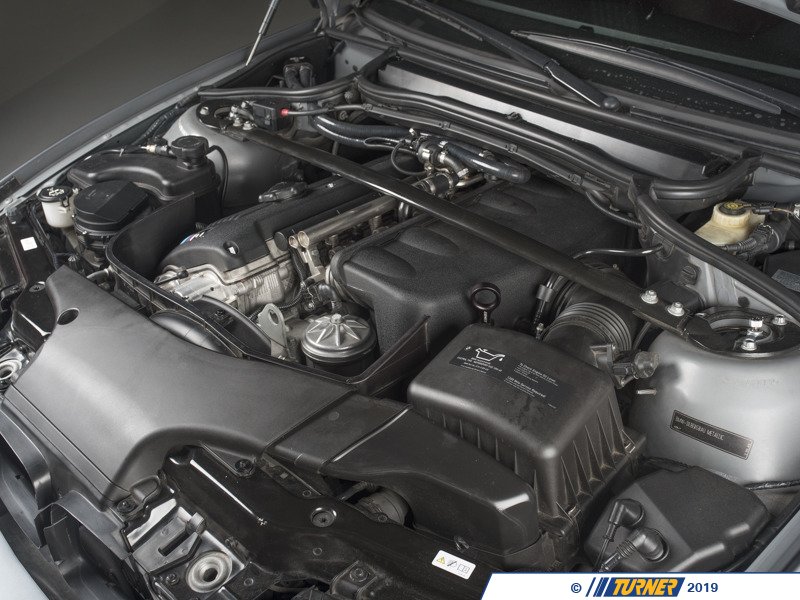

With forced induction, track use, and/or extended high RPM usage, these symptoms increase as the factory PCV system is overwhelmed, and a catch can becomes a must for your E46 M3. This kit is a direct fit making this an easy reversal if desired as well as maintaining a clean appearance by utilizing the open "smuggler's compartment" on the passenger side of the engine bay.

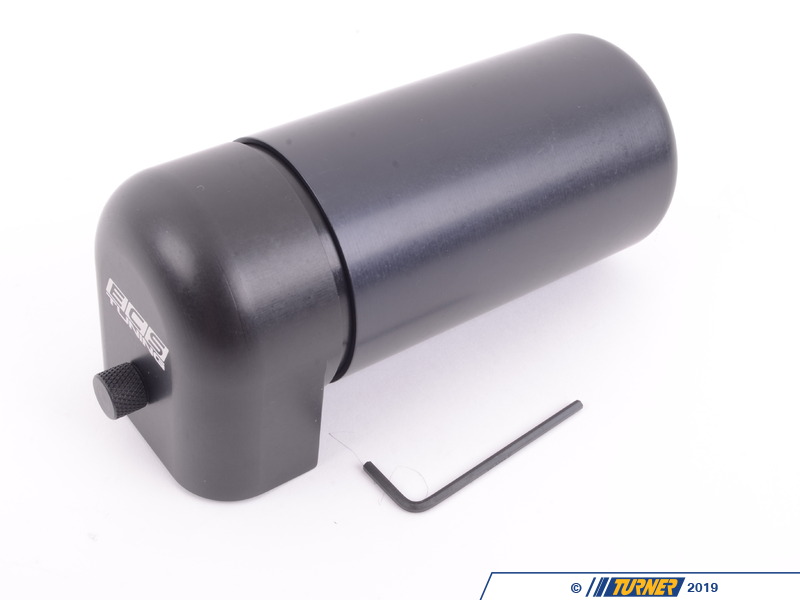

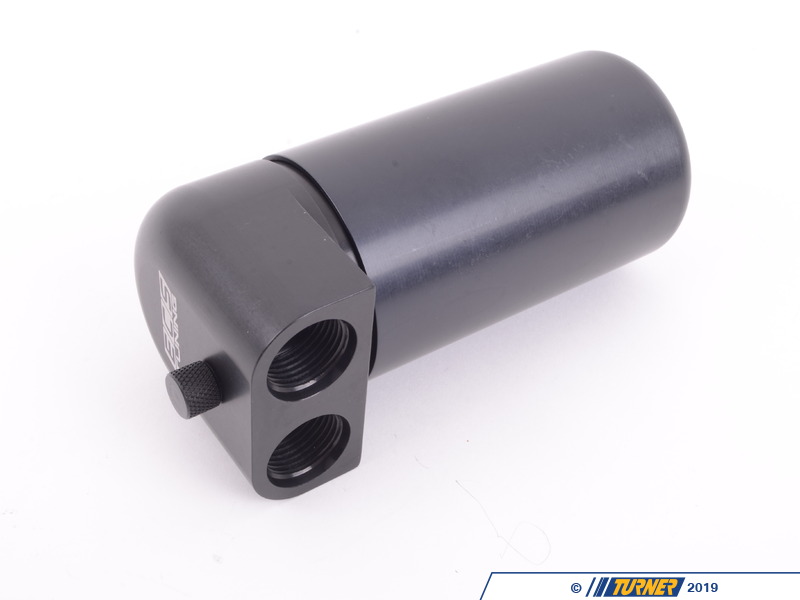

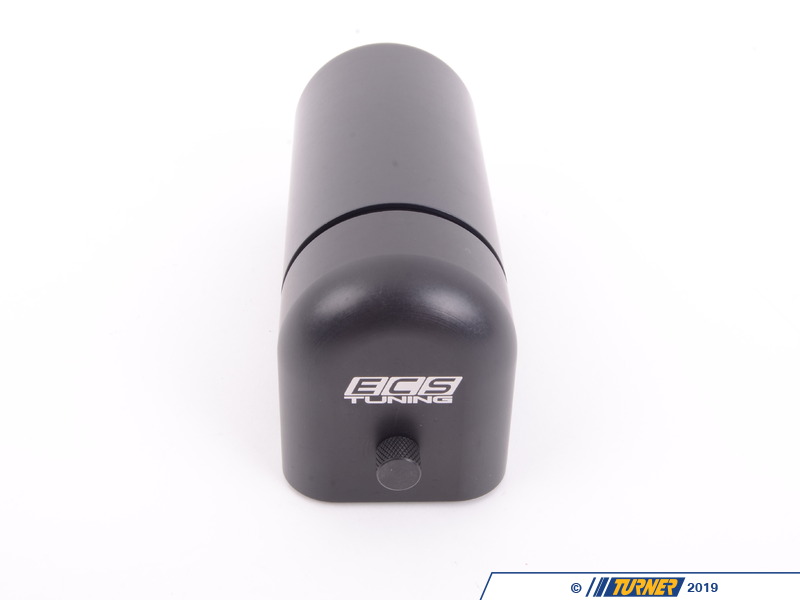

ECS engineers developed a catch can that utilizes a strategically designed 4 chamber baffle plate system engineered to create multiple changes in the direction of airflow to cause oil droplets to fall out of suspension, maximizing the efficiency of the PCV air/oil separation.  A dipstick is integrated into the cap so you can monitor the oil level, and the can is easily serviced.  At each oil change simply unscrew the canister and empty the trapped oil with your regular used oil.  The ECS Oil Catch Can is CNC machined from billet 6061-T6 aluminum and with a stealthy black anodized finish for lasting durability and appearance, and includes everything needed for an OEM-like fully reversible installation.

The ECS Oil Catch Can is made from aluminum and with a stealthy black anodized finish. The location is key as heat will evaporate the oil and send too much vapor back into the engine (where cooler air will turn it back into fluid). The ECS OCC also has a factory-like appearance. Having a kit designed specifically for your E46 M3 makes for a clean looking setup that any skill level mechanic can install.

Note: Since the crankcase vent system is considered part of the overall emissions system, installing this may be a violation of local, state, and federal laws. While exemptions are made for track/race and off-road use, check with your local state inspection facility on using this in street-driven vehicles.

ECS Oil Catch Can Features:
+ Increases air intake efficiency
+ Promotes engine longevity
+ 4 chamber design promotes excellent air/oil separation
+ Large In/Out ports (no tapered sizes that slow flow)
+ Anodized black lightweight aluminum
+ Made in USA

This item fits the following BMWs
E46 M3 2001-2006

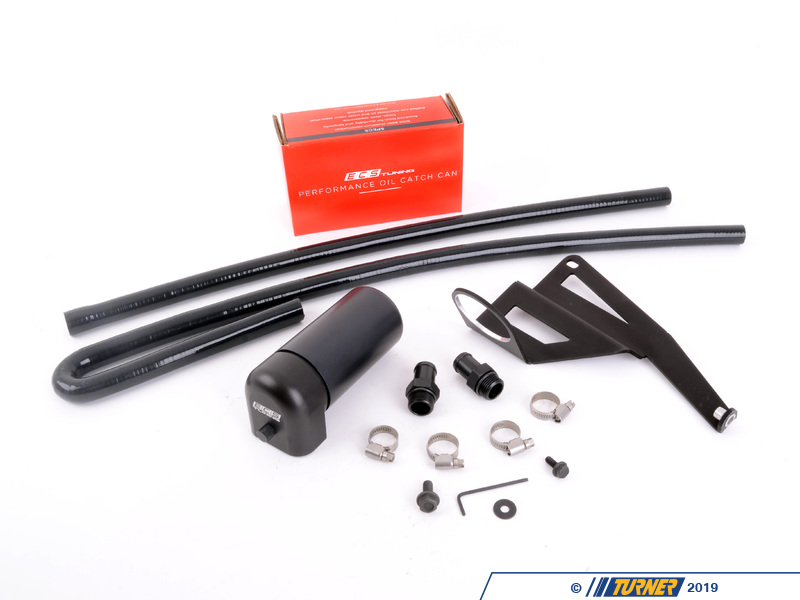

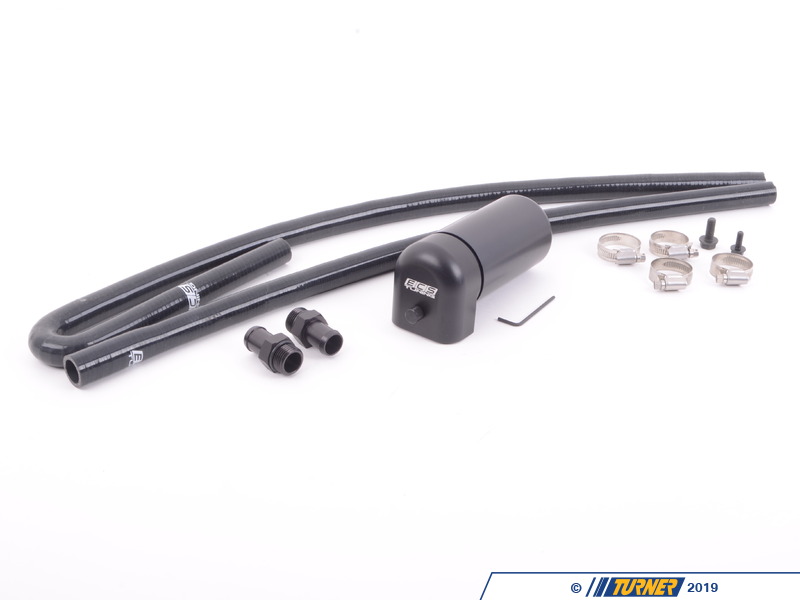

Kit Contents

Description Qty

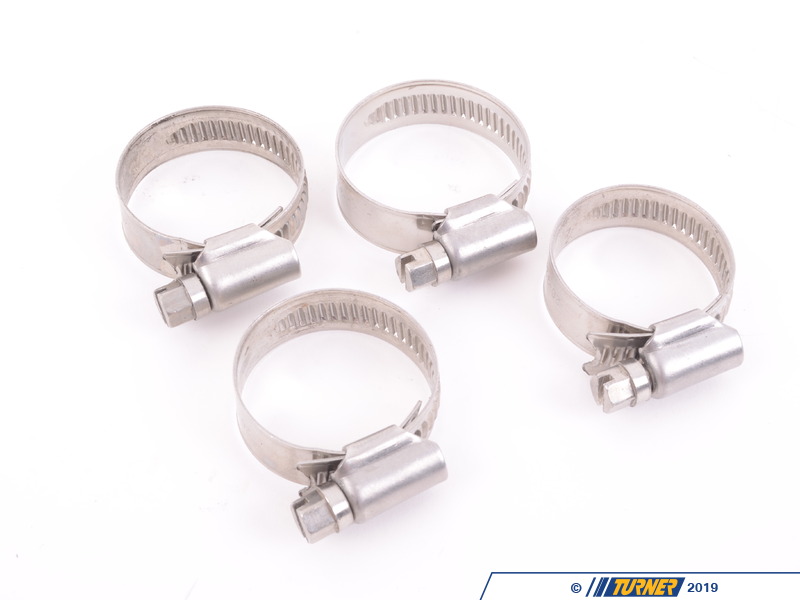

3/8"/9mm Band Hose Clamp - 12-20mm 4
ECS Tuning Baffled Oil Catch Can - 8oz 1
-10AN ORB X 3/4 Hose Barb Fitting Assembly 2
M6x16 Black Phosphate Flange Head Bolt 1
Bracket 1

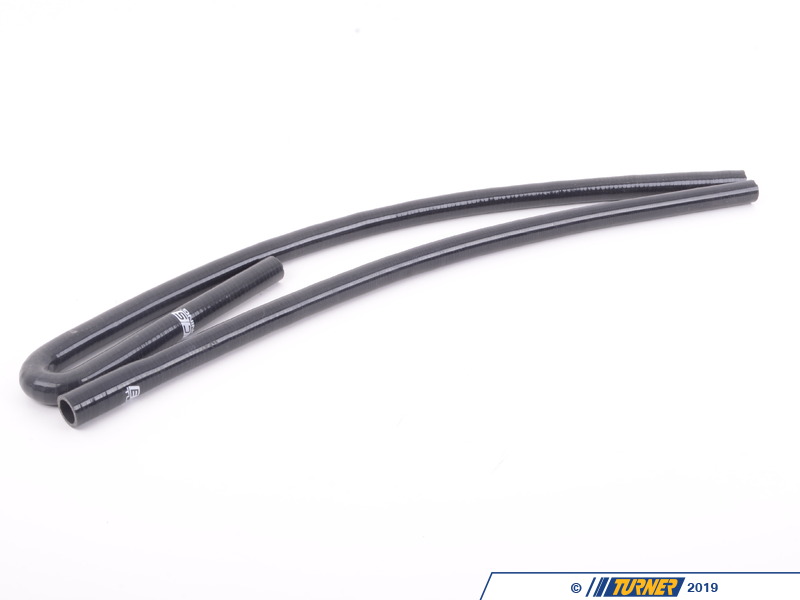

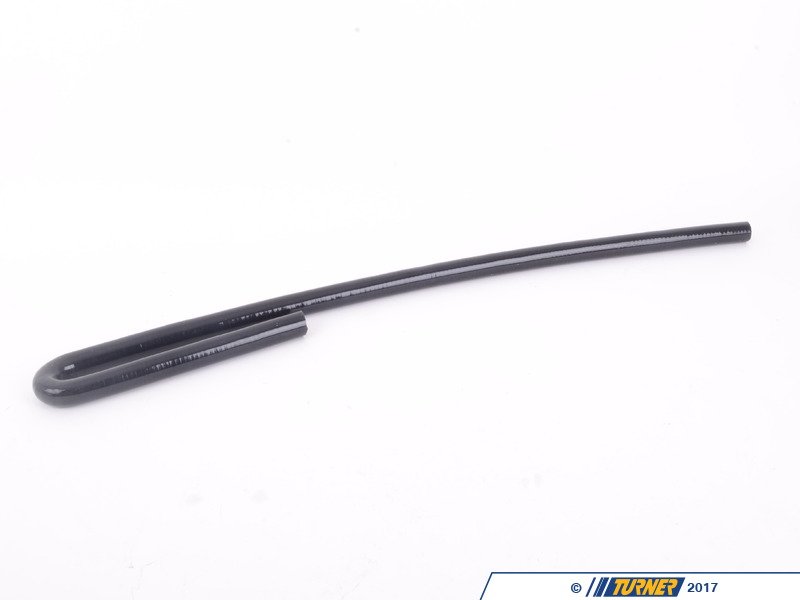

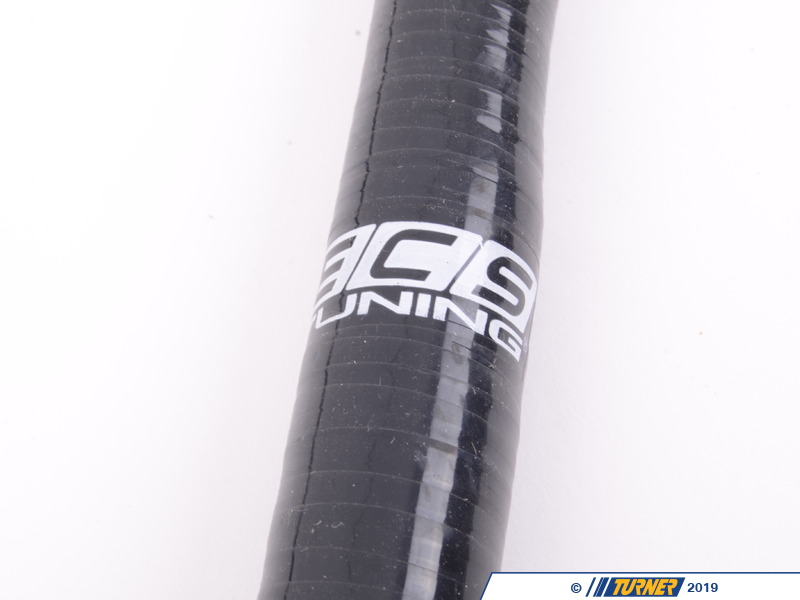

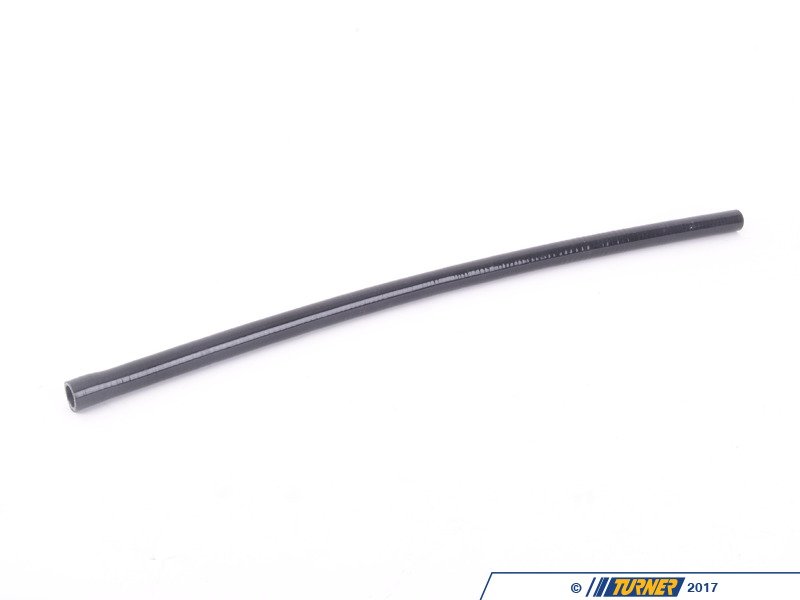

s54 Catch Can Hose Set 1
18-8 Stainless Steel Oversized Washer, Black-Oxide, M6 Screw Size, 6.4 Mm ID, 18 Mm OD 1

This Part Fits the Following BMWs

Make Model Submodel Engine
BMW E46 M3 S54 3.2L
*The above product applications have been written by Turner Motorsport. All warranties, product application, fitment, and performance are the responsibility of Turner Motorsport. For additional information see the terms of use.
