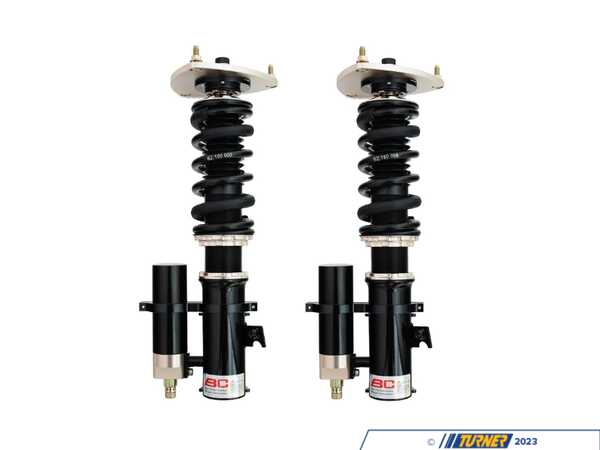

BC Racing ER Series Coilover Suspension Kit - E36

Product Details

The ER Series coilovers bring with them the high quality and unique features seen on the BR and RM type but have the additional benefit of external reservoirs and the ability to allow the end user to individually adjust and set compression and rebound damping rates.

By separating the adjustment for damping compression and rebound the ER Series allows you to dial the vehicle in to your exact needs. When braking hard whilst approaching a corner you want the car to transfer weight to the front tires to maximize grip for the braking effort and also to allow you to trail brake into the corner without the car understeering.

Ride height adjustment:

Ride height is determined by the position of the coil over bottom mount. The mount can be wound up and down the damper body to give a full range of adjustment. Because ride height is determined by an adjustable bottom mount rather than spring platform you retain full damper travel regardless of the ride height run.

Know your protected from the elements! The damper units are black chromed steel to give superb durability even through the darkest of European winters. The aluminium components (top mounts, locking collars etc) are anodised and the steel lower mounts go through an electrophoretic disposition process followed by powder coating. A random selection of steel components (brackets, dampers, screws etc) are put through a salt spray test once a month to check the quality of the protective processes and that anti corrosive properties are kept at the highest possible standard.

Features:

• Highly Customizable
• Mono-Tube Damper
• Linear Twin-Piston Design
• Height Adjustment Independent Of Spring Compression
• 30-Clicks Of Compression Adjustment Via The External Reservoirs
• 30-Clicks Of Rebound Adjustment From The Top Of The Damper
• Front And Rear Camber Plates Standard On All Applicable Kits
• Front And Rear Pillowball Mounts Standard When Camber Plates Do Not Apply
• Custom Spring Rates And Swift Spring Compatible
• Custom Valved To Match The Drivers Requested Spring Rates
• Swift Spring Upgrade Available On Most Applications
• 1-Year Warranty Against Manufacturers Defect
• Fully Rebuildable

NOTE: LEAD TIMES ON ALL NEW ORDERS 4-8 WEEKS. Product images are not application-specific. The product you receive may vary based on the application.
