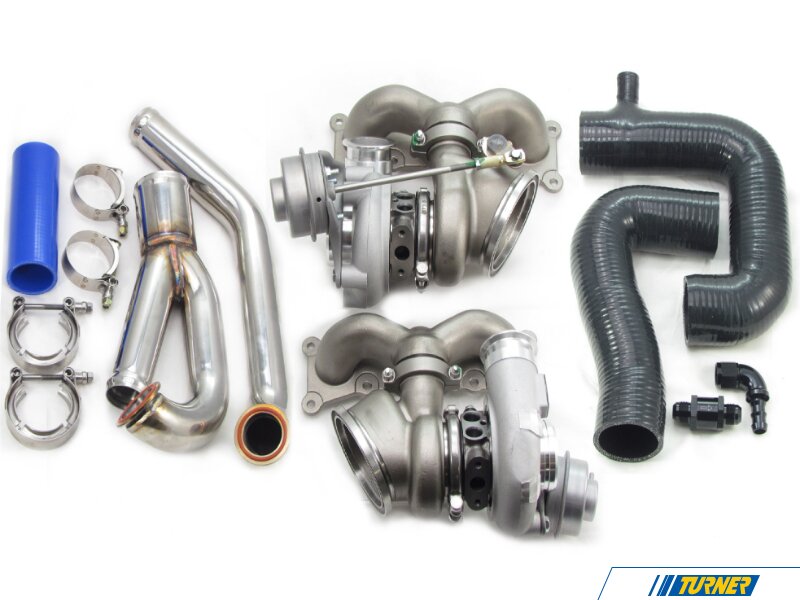

FrankenTurbo F54 Super-TD04 Twin Turbos - BMW E9X 335i

Product Details

The F54 Super-TD04 is the ultimate "bolt-on" evolution for the N54-powered 3-series. While typical "Stage 2" hybrids merely stuff larger wheels into stock housings, the F54 provides a full TD04 conversion. This allows the N54 engine to breathe at high RPM, turning the 335i into a legitimate supercar killer. It is designed to clear the steering rack on xi (all-wheel drive) models and provides a significant top-end power increase for the 335is DCT platform.

Key Features:

• True TD04 Internal Conversion: A larger rotating assembly that provides a massive jump in CFM (Cubic Feet per Minute) over stock-frame turbos.

• AWD (xi) Compatibility: Precision-engineered housing geometry ensures clearance for the front driveshaft and steering rack on all-wheel-drive 3-series models.

• VSR Precision Balancing: Each unit is multi-axis balanced on a Vibration Sorting Rig at speeds exceeding 100,000 RPM for maximum longevity and reliability.

• High-Silicon Molybdenum Finish: Turbine housings are treated for extreme thermal resistance, preventing the cracking common in OEM cast iron under high EGTs.

• Billet Wastegate Actuators: Includes heavy-duty, adjustable wastegate canisters for precise boost mapping and rock-solid target tracking.

Specifications:

• Model: FrankenTurbo F54 (Super-TD04 19T Series).

• Compressor Inducer: 46mm.

• Turbine Wheel: 41.2mm / 47.2mm (TD04L Ultra-High Flow 9-Blade).

• Compressor Wheel: 46mm / 58mm (Forged Billet 19T).

• Turbine Material: 713C Inconel Alloy.

• Bearing Type: Dual-port oiling Journal Bearing with Upgraded Thrust.

• Cooling: Factory Oil/Coolant line compatible (Installation hardware included).

• Max Boost Capacity: 32 PSI.
