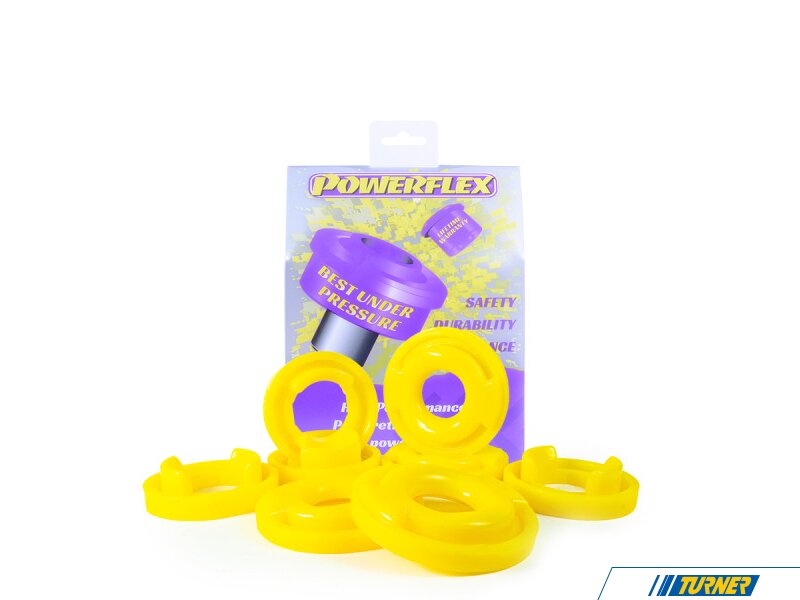

PowerFlex Rear Subframe Mounting Bushing Insert - E39 Touring

Product Details

On the E39 Touring platform, the massive factory rear subframe relies on substantial rubber voids to cushion the ride. While effective for luxury compliance, these voided rubber mounts are a primary failure point under load. Under acceleration, braking, and lateral cornering forces, the entire rear subframe shifts dynamically. This deflection leads to erratic alignment changes (toe and camber steer), imprecise rear-end tracking, and the dreaded E39 dynamic instability.

For teams and high-performance drivers operating the E39 Touring on the street, full solid subframe replacements are often impractical due to excessive cabin resonance. The Powerflex Street Series Inserts offer an elegant engineering solution. Rather than requiring a costly, time-consuming press-out of the intact OEM bushing, these polyurethane inserts slip directly into the voids of the factory rubber mounts. By filling these structural gaps, they mechanically limit subframe movement, locking down suspension geometry without introducing intrusive NVH (Noise, Vibration, Harshness).

Performance Metrics & Materials Science

• Deflection Mitigation: Engineered using Powerflex’s proprietary Street compound (tuned to optimal durometer stiffness over stock). It provides a 25–30% increase in structural rigidity compared to pristine factory rubber, drastically stabilizing the rear chassis architecture.

• Preservation of Geometry: Eliminating subframe twisting ensures that the rear suspension arms maintain their static alignment settings during hard cornering, providing predictable tire contact patches and sharper turn-in.

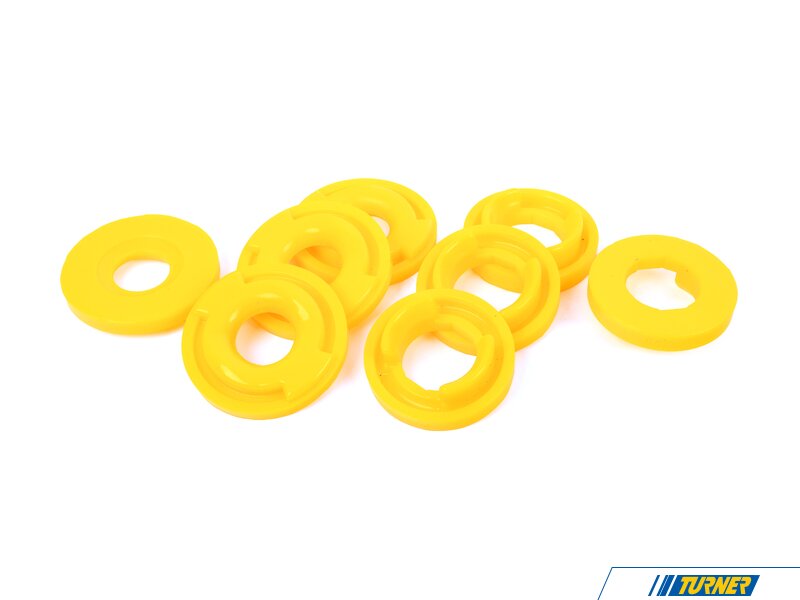

• Rapid Pit Deployment: Designed as a two-piece insert kit per bushing location, this design allows for a rapid install. There is no need to completely drop the rear subframe assembly or use a hydraulic press to extract the outer metal shells of the stock bushings—minimizing shop or paddock downtime.

• High-Load Durability: Formulated to withstand aggressive environmental exposure (exhaust heat, road salts, oil, and moisture) that typically degrades factory rubber compounds.
