Turner Motorsport Adjustable Front/Rear 32/22mm Sway Bar Upgrade Kit - F22/F30/F32
Does Not Fit xDrive Models
Please ensure your correct model is selected
Does NOT fit your Change Vehicle
Fits your Change Vehicle
Lifetime Replacement Program! Read more here
Product Details
*Click here for front sway bar installation instructions*
*Click here for rear sway bar installation instructions*
We here at Turner have partnered with the World-Renowned KW Suspension, to bring these Turner Adjustable 32mm Front & 22mm Rear Sway Bars to life. Engineered and Designed in-house here at Turner, and Manufactured by KW, you know these sway bars are built to last!
Not quite happy with the handling of your 6-cylinder F2X/F3X? Do you experience more understeer or body roll than you'd prefer? These cars have a lot more body roll than desired, and the stock sway bars don't quite do enough for most F2X/F3X owners to be satisfied. Thicker sway bars are less prone to bend and distort and helps to eliminate understeer. This directly translates to more grip, and your wheels being better planted to the pavement. By upgrading to the Turner 32mm Front & 22mm Rear Sway Bars, you will also experience less body roll, and a massive improvement to the handling characteristics of your vehicle, with virtually no sacrifice in ride quality.

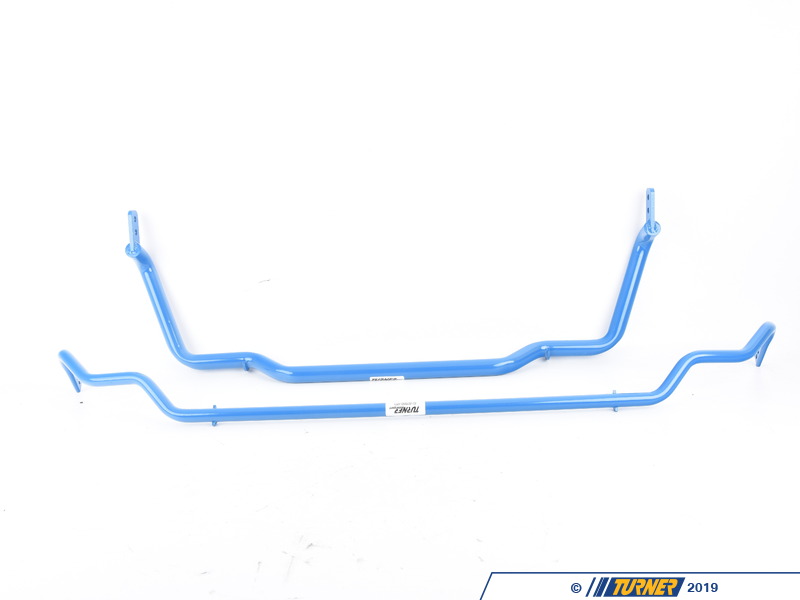

The sway bars are constructed by KW, made of lightweight 1.25” (32mm) OD, 0.120” (3mm) wall DOM tubular steel, for the greatest durability and rigidness possible. Finished in a blue powder coat for maximum corrosion resistance. The Sway Bars also come kitted with 80A Poly Sway Bar Bushing bushings from Energy Suspension, along with black anodized 6061-T6 billet brackets with check valve grease ports, and finally 4 new Genuine BMW nuts to install it all.
The Turner 32mm Front & 22mm Rear Sway Bars are also adjustable, and allows for a “softer” setting, or a “stiffer” setting, depending on your driving preferences.
Stiffness Specs:
- F22 M235i /M240i - 45% stiffness increase on “soft” setting, 76% stiffness increase on “stiff” setting
- F3X 335i/340i/435i/440i - 63% stiffness increase on “soft” setting, 97% stiffness increase on “stiff” setting
- F3X 335i/340i/435i/440i w/ M-Sport - 54% stiffness increase on “soft” setting, 87% stiffness increase on “stiff” setting
Benefits:
- No sacrifice in ride quality
- Increased turn-in response, grip, and cornering
- Reduced body roll without a change in dynamic F/R Balance
- Fully reversible back to factory components
- Turner Step-by-Step Install PDF
Features:
- Lightweight tubular steel construction
- Blue Powder-Coat Finish for Maximum corrosion protection
- Custom 80A Poly Bushings made by Energy Suspension
- Grooved bushing inside diameter for improved grease retention

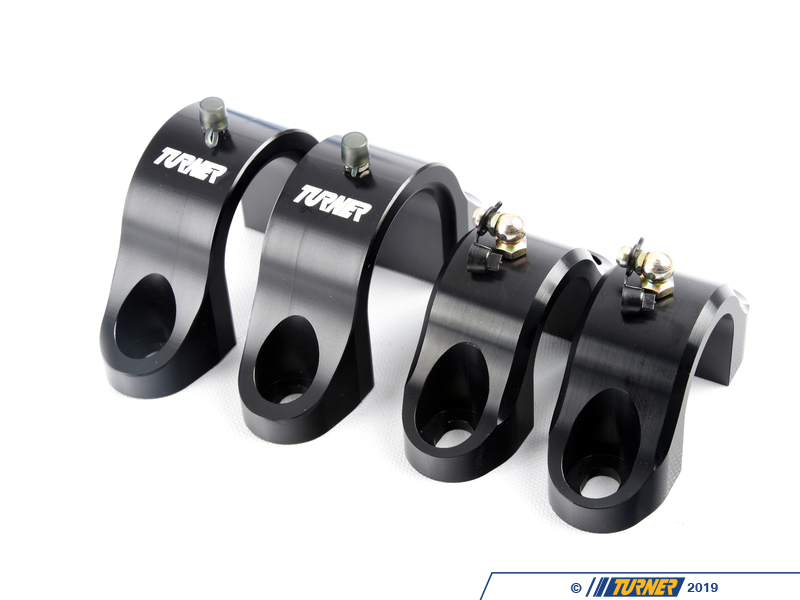

- Black anodized 6061-T6 billet brackets with check valve grease port
Prop 65 Warning

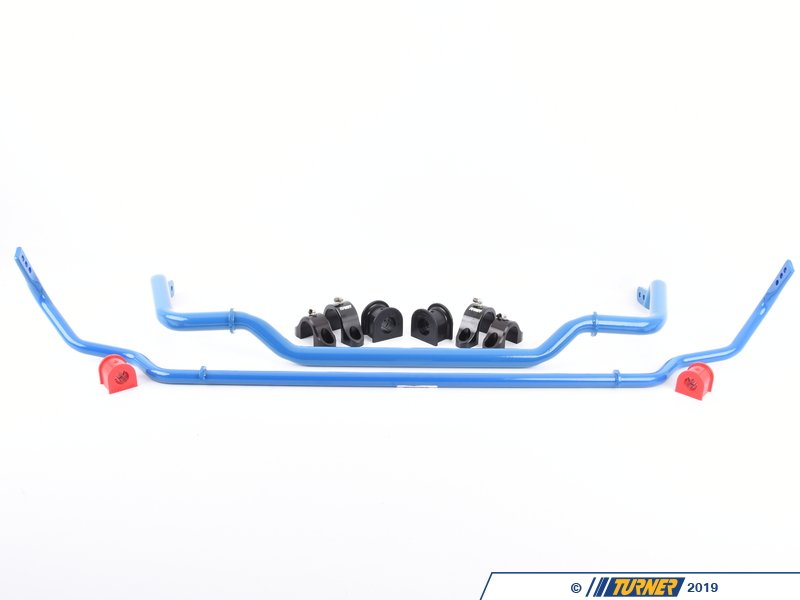

Kit Contents
| Qty | Description | Brand | T# | Part# | Lifetime |
|---|---|---|---|---|---|

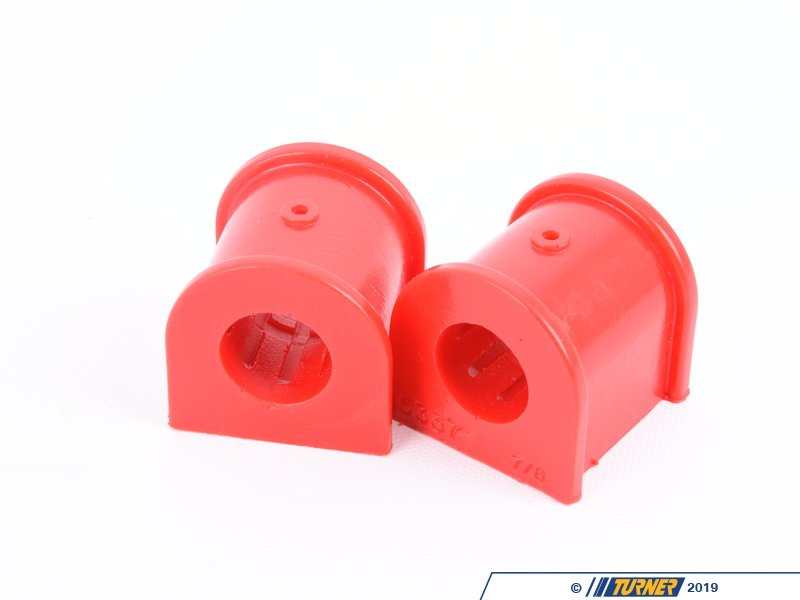

| 2 | Polyurethane Sway Bar Bushing - Each - 21.7mm/22mm - Red |
|
T#555388 | 5337R | YES |

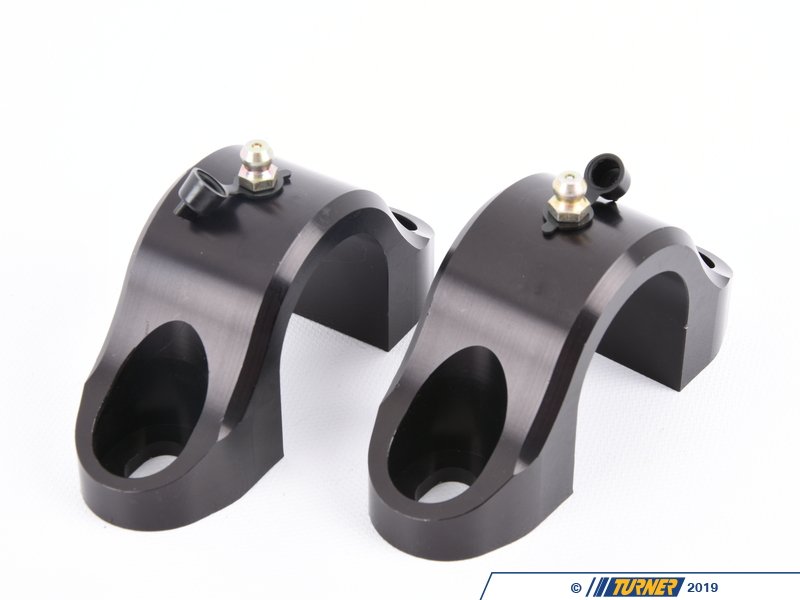

| 1 | Turner Oversized Adjustable Rear Sway Bar mounting brackets - F2X/F3x |
|
T#555389 | 024452TMS02~A | YES |

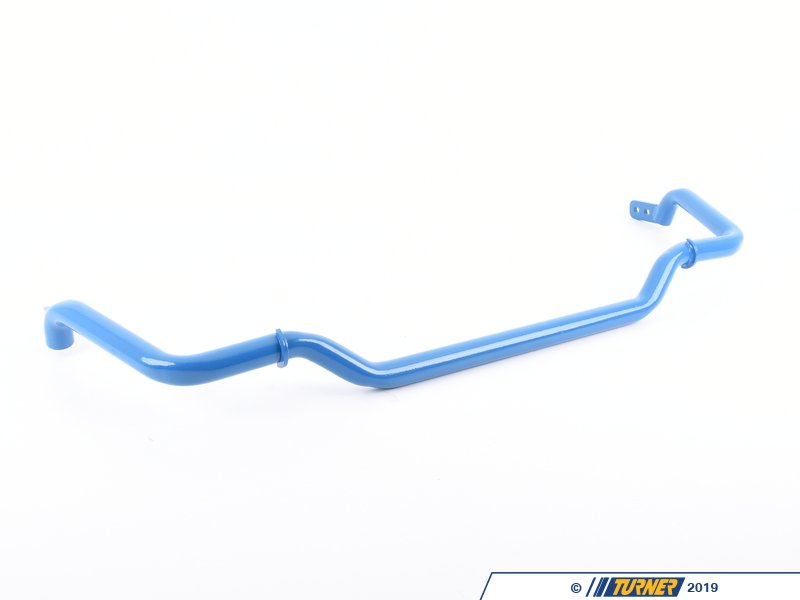

| 1 | Turner Oversized Rear Sway Bar - F2x/F3x |
|
T#555390 | 024452TMS01~A | YES |

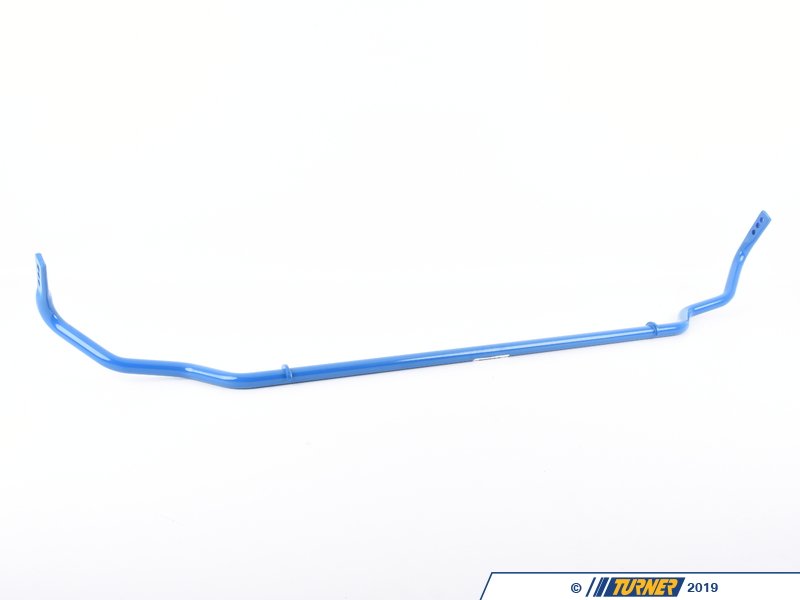

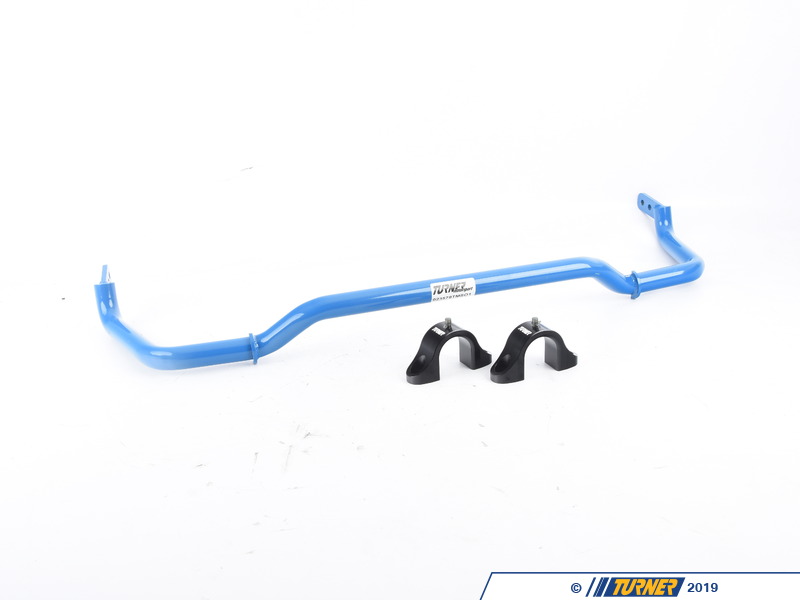

| 1 | Turner Oversized Front Sway Bar - F2x/F3x |
|
T#553591 | 023579TMS01~A | YES |

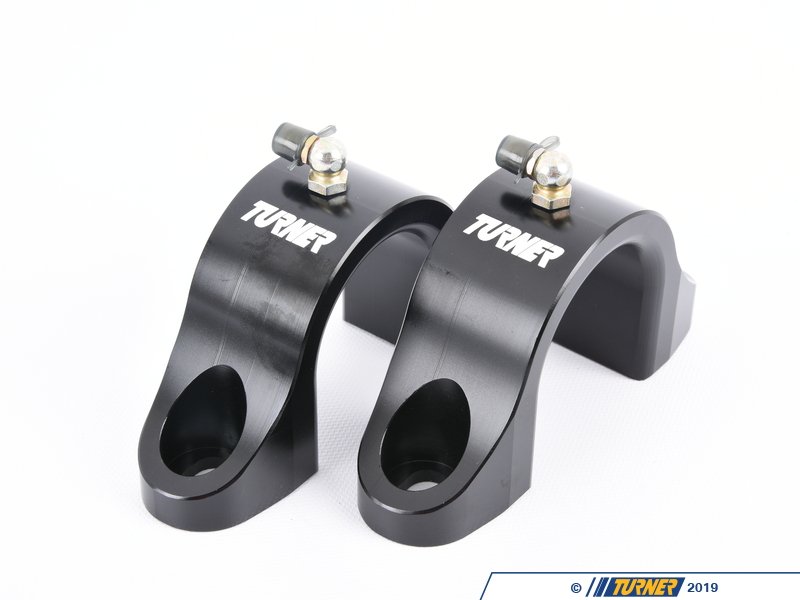

| 1 | Turner F2x/F3x Oversized Front Sway Bar - Brackets |
|
T#553592 | 023579TMS03~A | YES |

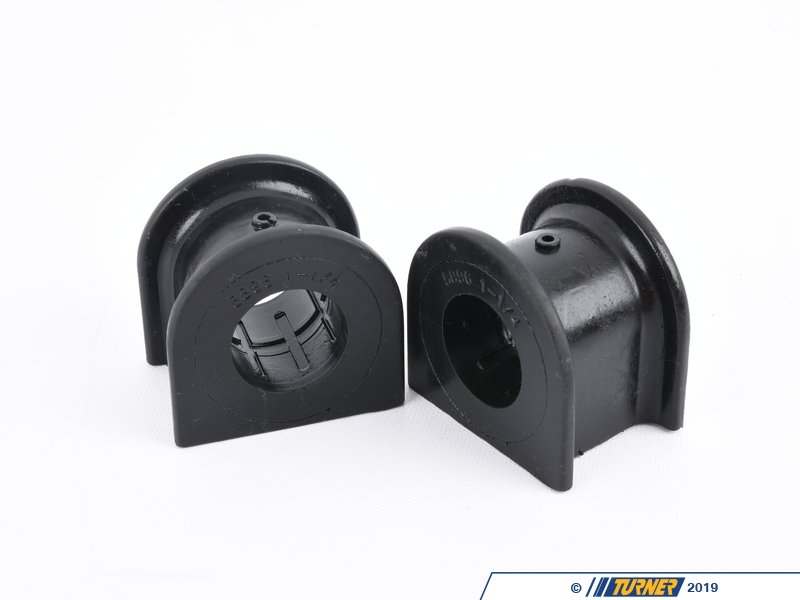

| 2 | 31.5MM Sway Bar Bushing - Black |
|
T#591217 | 5896.01~TMS | YES |
