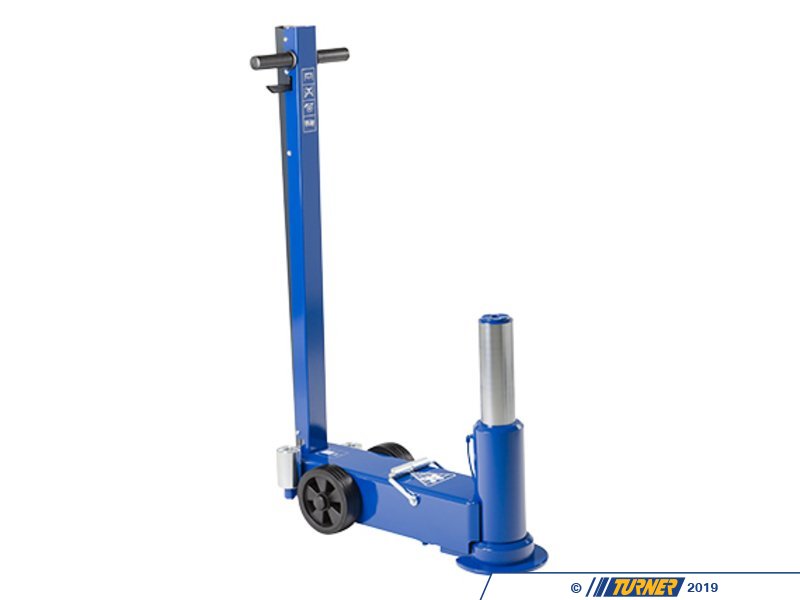

AC Hydraulic Single-Stage Air Hydraulic Jack For High Clearance Applications
If you have a situation where no amount of positioning or floor jack extensions seem to work to lift your vehicle, you may just finally need that specialty jack. This AC Hydraulic Single-Stage Air Hydraulic Jack for high clearance applications is a top of the line, straight lift design floor jack that is both extremely durable and extremely reliable. Plus, unlike traditional jacks, there is no lifting arm that may come in contact with any part of the the vehicles body or other components that would result in damage. With a lift height of up to 24.06 inches, or up to 33.9 inches with an F250 extension, this air hydraulic jack is perfect for high lift, tight clearance needs.
Features:
- Minimum height of 14.21 in
- Maximum height of 24.06 in, the F250 (optional) extension offers a total extended height of 33.90 in
- Hard chromium plated piston rod for long life
- Built-in safety overload valve
- Hand-operated dead-man’s control for optimum safety whilst lifting and lowering
- Ergonomic handle with push buttons
- With 2 extensions (1.97/3.94 in)
Specifications:
- Capacity: 55000 lb
- Min. height: 14.21 in
- Max. height: 24.06 in
- Frame length: 32.17 in
- Handle length: 45.67 in
- Width: 9.06 in
- Width (with wheels): 12.28 in
- Air supply: 9 - 12 bar
- Air consumption: 350 l/min
- Weight: 157lbs
Please ensure your correct model is selected
Does NOT fit your Change Vehicle
Fits your Change Vehicle
Product Details
If you have a situation where no amount of positioning or floor jack extensions seem to work to lift your vehicle, you may just finally need that specialty jack. This AC Hydraulic Single-Stage Air Hydraulic Jack for high clearance applications is a top of the line, straight lift design floor jack that is both extremely durable and extremely reliable. Plus, unlike traditional jacks, there is no lifting arm that may come in contact with any part of the the vehicles body or other components that would result in damage. With a lift height of up to 24.06 inches, or up to 33.9 inches with an F250 extension, this air hydraulic jack is perfect for high lift, tight clearance needs.
Features:
- Minimum height of 14.21 in
- Maximum height of 24.06 in, the F250 (optional) extension offers a total extended height of 33.90 in
- Hard chromium plated piston rod for long life
- Built-in safety overload valve
- Hand-operated dead-man’s control for optimum safety whilst lifting and lowering
- Ergonomic handle with push buttons
- With 2 extensions (1.97/3.94 in)
Specifications:
- Capacity: 55000 lb
- Min. height: 14.21 in
- Max. height: 24.06 in
- Frame length: 32.17 in
- Handle length: 45.67 in
- Width: 9.06 in
- Width (with wheels): 12.28 in
- Air supply: 9 - 12 bar
- Air consumption: 350 l/min
- Weight: 157lbs
