CANchecked MFD32 Multi Function Display - 3.2" Gen2 (LHD) - BMW Pre-LCI G8X G42 G2X

Product Details

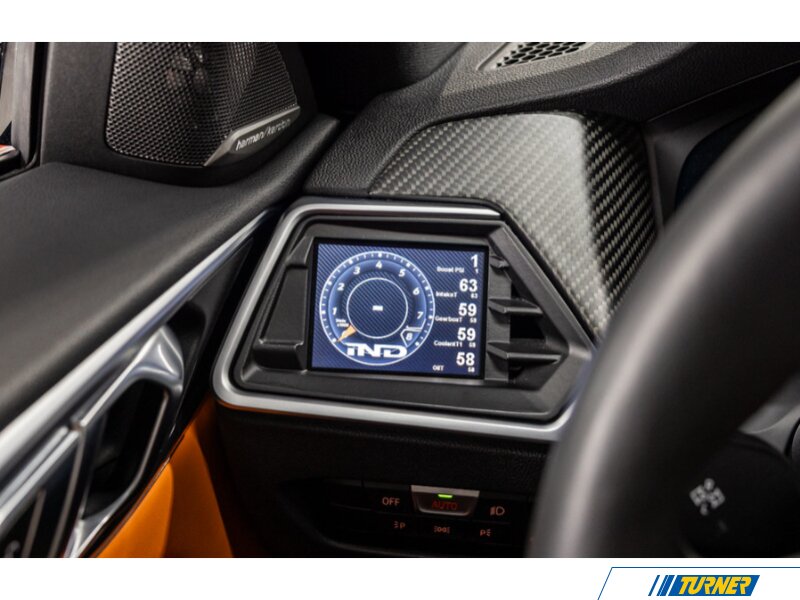

For the ultimate in BMW data acquisition, the CANchecked MFD32 Multi-Function Display delivers motorsport-level monitoring for your Pre-LCI G8X, G2X, or G42 chassis. Engineered and manufactured entirely in Germany, CANchecked develops their own hardware and software in-house to guarantee seamless vehicle integration and lightning-fast CAN bus communication. This display mounts beautifully into the cabin using a model-specific trim panel that replaces the factory vent, retaining critical ventilation airflow while yielding an integrated, OEM-quality appearance suited for any heavily driven street or track BMW.

The MFD32 pulls no punches when it comes to data collection. By emulating a factory diagnostic tester and using optimized communication protocols, it queries ECU data directly from the vehicle's CAN bus system at extremely high refresh rates. Drivers can actively monitor up to 128 sensors simultaneously, providing a crystal-clear picture of engine performance, operating temperatures, fluid pressures, and vehicle dynamics. Through the CANchecked Display Setup Software, you can easily configure distinct layouts and custom widgets tailored specifically for your track sessions, street driving, or diagnostic needs, complete with built-in acceleration testing for 0-100, 100-200, and 0-200 km/h metrics.

Serious drivers and tuners require serious data, which is why the MFD32 features integrated data logging directly to an internal SD card. You can record continuous or manual sessions to meticulously review your BMW’s engine performance after every single stint on the track. For highly modified forced-induction or fueling setups, the system also incorporates four additional analog inputs, allowing you to seamlessly integrate external sensors for exhaust gas temperature, oil pressure, fuel pressure, or ethanol content. The entire system installs via a dedicated plug-and-play wiring harness, completely eliminating the need for permanent vehicle modifications. Preconfigured sensor layouts load the moment you connect the harness, getting you out of the garage and back onto the track with real-time, highly accurate vehicle data.

Product Details

• CANchecked MFD32 Multi-Function Display for BMW G-Series
• Access real-time ECU data directly via CAN bus
• Vehicle-specific trim panel for OEM-style interior integration
• Up to 128 sensors can be monitored simultaneously
• 10 configurable display layouts using DSS Display Setup Software
• Integrated performance meter for acceleration measurements
• Built-in data logging to internal SD card
• Read and clear engine fault codes in plain text
• 4 analog inputs for additional sensors (oil pressure, EGT, fuel pressure, etc.)
• Ethanol sensor compatibility via digital input
• Plug-and-play installation using included wiring harness
• Optional anti-reflective screen film included for improved visibility
• Queries ECU data using manufacturer diagnostic protocols

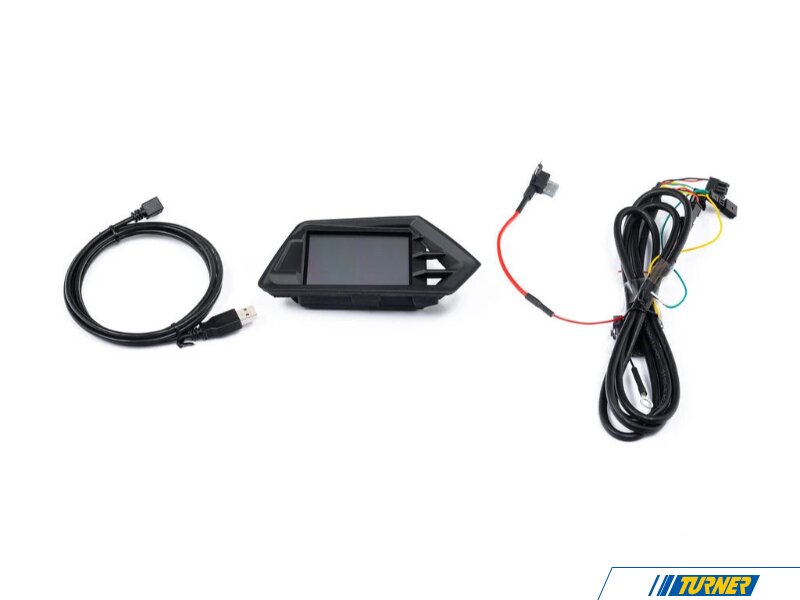

What's Included

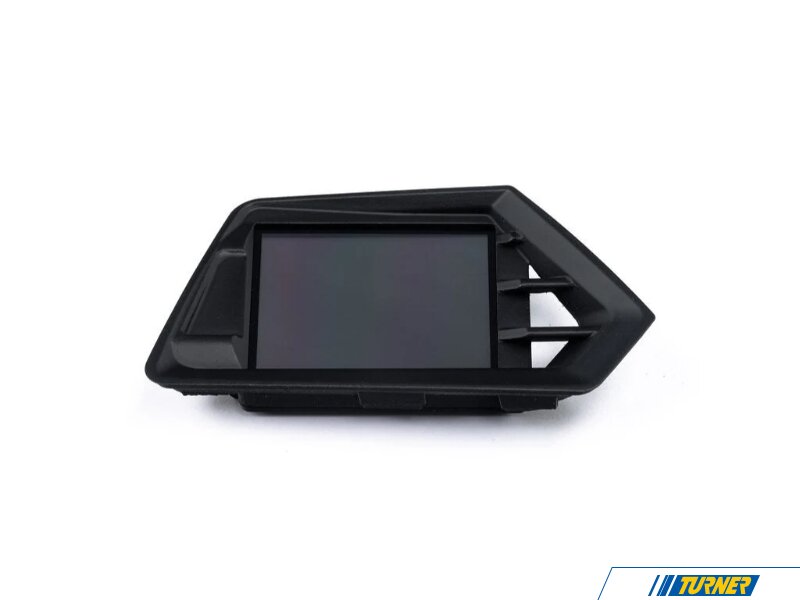

• CANchecked MFD32 Gen2 Multi Function Display integrated into vehicle-specific air vent assembly for LHD models
• Vehicle-specific connection harness
• USB data cable
• Pre-installed SD card
• SD card adapter
• Anti-reflective display film
• Quick Start Guide
