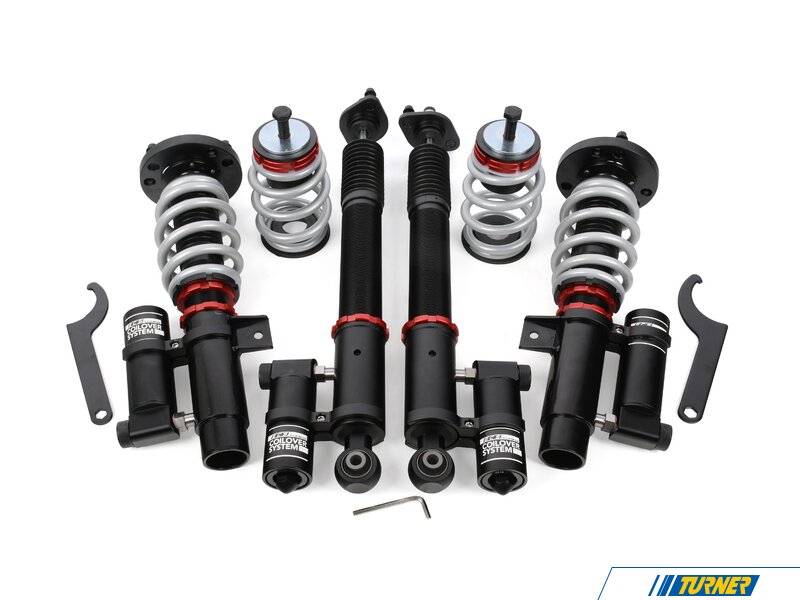

ECS Performance 2-Way Adjustable Coilover System - E46 (Non-M)

Product Details

Take total control of your E46's handling with the ECS Performance 2-Way Adjustable Coilover System. Built specifically for track use, this system bridges the gap between standard off-the-shelf coilovers and full-fledged motorsport suspension. These coilovers feature independent compression and rebound controls supported by external reservoirs; unlocking the precision tuning needed to shave seconds off your lap times.

Traditional 1-way coilovers force a single adjustment knob to balance both bump and rebound. These 2-way dampers eliminate that trade-off with fully independent compression and rebound controls. Use the 32 levels of compression adjustment to control front weight transfer under heavy braking, maximizing entry grip and allowing you to trail-brake deep into corners without understeer. 22 rebound levels fine-tune chassis recovery on brake release, keeping the front tires loaded through the apex for faster power-on exit speeds.

To maintain consistent performance during extended periods of performance driving, these dampers feature dedicated external fluid reservoirs that significantly increase total gas volume. During rigorous track use, rapid piston movement generates intense friction and heat, causing standard damper oil to thin out, aerate, and lose its damping force. By increasing overall fluid capacity, the external reservoirs effectively dissipate heat to keep peak oil temperatures down.

Features & Benefits:

• Separate compression and rebound adjustment controls eliminate the performance compromises of traditional 1-way setups
• 32 compression adjustment settings (on the damper shaft)
• 22 rebound adjustment settings (on the reservoir body)
• Dedicated external oil reservoirs increase total fluid capacity to dissipate heat, preventing shock fade and maintaining consistent damping rates during extended track sessions
• Included 8 kg/mm front and 10 kg/mm rear springs deliver sharp turn-in response while maintaining compliance over curbs
• Full body-length height adjustability allows you to lower the center of gravity without reducing shock travel or altering spring preload

Product Design:

• Strut and shock bodies finished with durable black powdercoat for good looks and even better longevity
• Threaded portions are black zinc-coated for optimum corrosion protection
• Coil springs are finished in silver metallic powdercoat for long-term durability
• Red anodized billet aluminum lower spring seats with locking collars allow for quick, on-the-car adjustment with the included spanner wrenches
