Turner Total Protection Skid Plate - F90 M5

Product Details

*Click here for installation instructions*

BMW F90 M5's are equipped with the 600HP S63 engine. The S63 shares a factory flaw with the S55, the notorious low hanging oil cooler. This poor design from the factory placed the engine oil cooler at the bottom of the car, right under the front bumper. Because of this, it is in a very vulnerable place. Road debris such as branches, rocks, tires, and trash, can easily puncture this low hanging oil cooler, and drain all of the engine's oil within seconds, ultimately causing catastrophic engine failure if the car is not immediately shut off. This problem has been well documented on the online BMW Forums, with damages being reported over $50k to replace the engine.

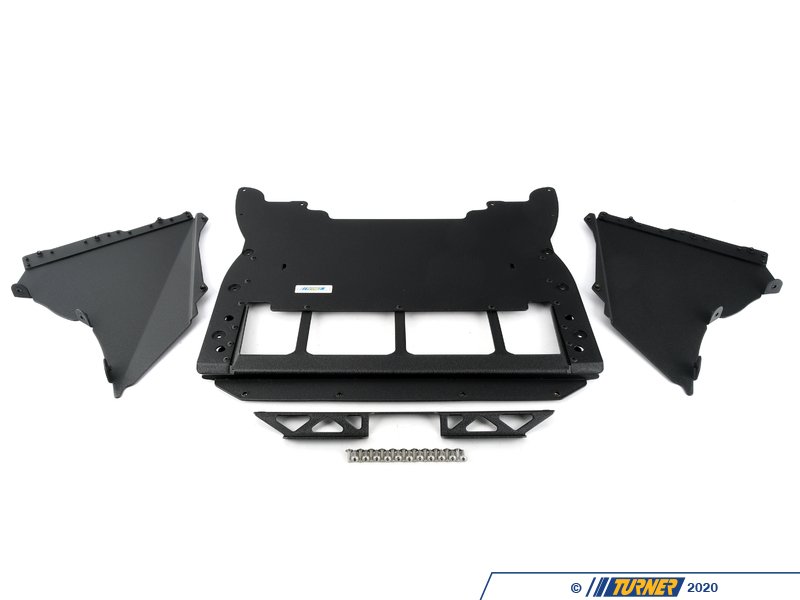

Avoid the anxiety with the Turner F90 M5 skid plate! Constructed of 1/8" 5052 Aluminum, and finished in a wrinkle black powder coat for a sleek under body look. The main skid plate includes a frame mounted support bracket for maximum strength, and ties in oil cooler mounting locations for added security. It also retains the factory air duct for oil cooler, for full functionality. Painstakingly engineered to work with both the factory side splash shields, as well as the optional Turner Aluminum side skid plates. Factory wheel liner mounting positions are retained for OE like fitment. All stainless steel mounting hardware is included.

This kit includes our optional 1/8” 5052 Aluminum Turner side skid plates, T#585388, to replace the plastic factory side splash shields, for maximum underbody protection!

Features:

• 1/8” 5052 Aluminum skid plate construction.
• Black powder coated finish for a sleek look.
• Main skid plate includes frame mounted support bracket for maximum strength.
• Painstakingly designed to work with both the Factory side splash shields as well as the Turner Aluminum side skid plates.
• Ties in oil cooler mounting locations for added security.
• Retains factory air duct for oil cooler.
• Optional 1/8” 5052 Aluminum Side skid plates
• Maintains wheel liner mounting positions.
• All stainless hardware.

Prop 65 Warning

Kit Contents

Qty	Description	Brand	T#	Part#	Lifetime
4	18-8 Stainless Steel Hex Drive Flanged Rounded Head Screws, M6 X 1 Mm Thread, 20 Mm Long		T#583167	97654A382~ECS	YES
1	Turner Skid Plate - F90 M5		T#585389	027748TMS01~A	YES
1	Optional Side Skid Plates - F90 M5		T#585388	027748TMS02~A	YES
