27748tms09KT - F90 M5 Turner Motorsport Skid Plate

F90 M5 Turner Motorsport Skid Plate

Turner Motorsport

T#: 585422 | Part#: 27748tms09KT

affirm Starting At 0% APR - Subject To Eligibility. See Lending Terms

1 of

2 of

3 of

4 of

5 of

6 of

7 of

8 of

9 of

10 of

11 of

12 of

13 of

14 of

15 of

Checking Vehicle Fitment...

SALE: $640.79 (10% OFF)

WAS: $711.99 on 06-14-2026

This product was last offered at the strikethrough price on
06-14-2026

Lifetime Replacement

Free Shipping

Availability:

In Stock

Est. Ship Date:

in 1 Business Day

Qty

Add to Wish List

Product Details

*Click here for installation instructions*

BMW F90 M5's are equipped with the 600HP S63 engine. The S63 shares a factory flaw with the S55, the notorious low hanging oil cooler. This poor design from the factory placed the engine oil cooler at the bottom of the car, right under the front bumper. Because of this, it is in a very vulnerable place. Road debris such as branches, rocks, tires, and trash, can easily puncture this low hanging oil cooler, and drain all of the engine's oil within seconds, ultimately causing catastrophic engine failure if the car is not immediately shut off. This problem has been well documented on the online BMW Forums, with damages being reported over $50k to replace the engine.

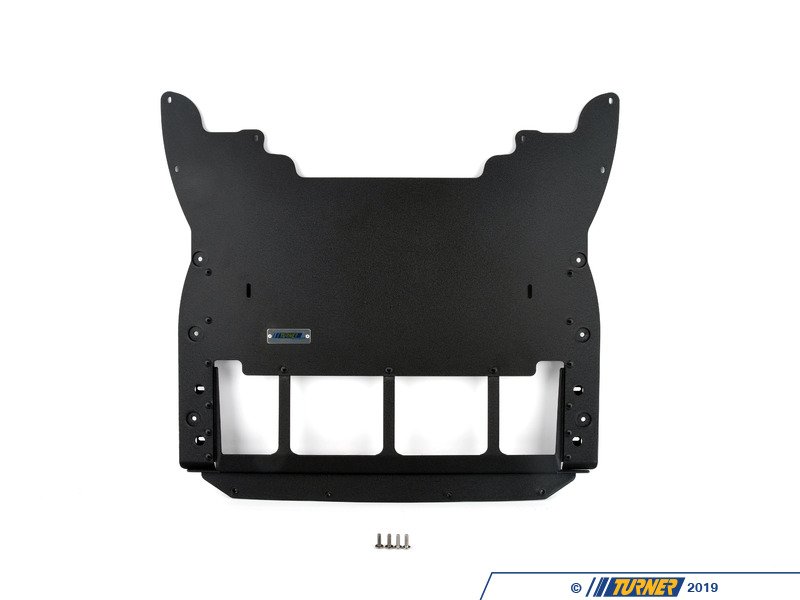

Avoid the anxiety with the Turner F90 M5 skid plate! Constructed of 1/8" 5052 Aluminum, and finished in a wrinkle black powder coat for a sleek under body look. The main skid plate includes a frame mounted support bracket for maximum strength, and ties in oil cooler mounting locations for added security. It also retains the factory air duct for oil cooler, for full functionality. Painstakingly engineered to work with both the factory side splash shields, as well as the optional Turner Aluminum side skid plates. Factory wheel liner mounting positions are retained for OE like fitment. All stainless steel mounting hardware is included.

Add the Optional 1/8” 5052 Aluminum Turner side skid plates, T#585388, to replace the plastic factory side splash shields, for maximum under body protection!

Features:

1/8” 5052 Aluminum skid plate construction.
Black powder coated finish for a sleek look.
Main skid plate includes frame mounted support bracket for maximum strength.
Painstakingly designed to work with both the Factory side splash shields as well as the Turner Aluminum side skid plates.
Ties in oil cooler mounting locations for added security.
Retains factory air duct for oil cooler.
Optional 1/8” 5052 Aluminum Side skid plates
Maintains wheel liner mounting positions.
All stainless hardware.

Prop 65 Warning

Kit Contents

Qty	Description	T#	Part#	Lifetime
1	Tuned By Turner License Plate Frame	T#302054	LIC-TB-WHITE	YES

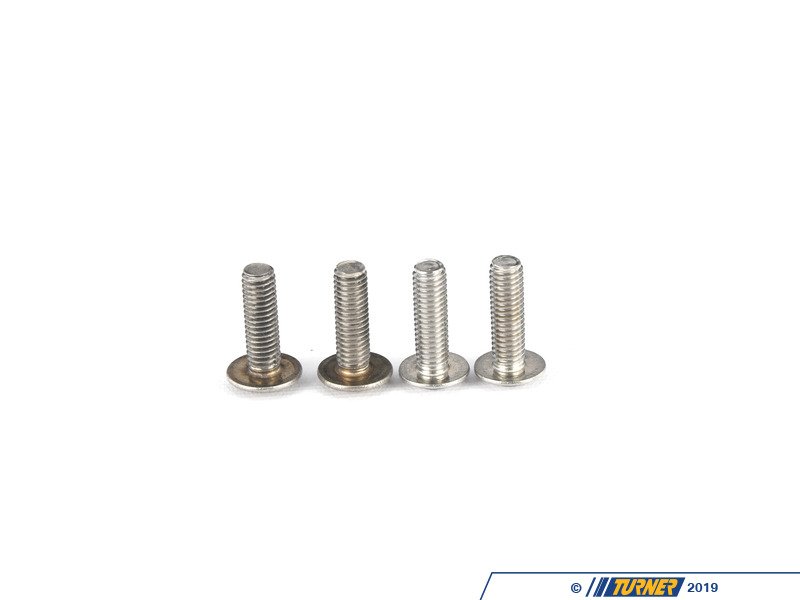

4	18-8 Stainless Steel Hex Drive Flanged Rounded Head Screws, M6 X 1 Mm Thread, 20 Mm Long	T#583167	97654A382~ECS	YES
1	Turner Skid Plate - F90 M5	T#585389	027748TMS01~A	YES

Product Q&A

Lifetime Replacement

This Product Is Covered By Our Lifetime Replacement Program

Products protected by our Lifetime Replacement Program are covered for as long as you own the product, no need to worry about an expiration date. Purchase your products and enjoy some worry-free motoring, knowing we've got you covered.

If you have any questions, would like to learn more or are ready to place a replacement claim, click here!

Fits These Cars

MAKE	MODEL	SUBMODEL	ENGINE	Special Fitment Notes
BMW	F90	M5	S63 4.4L	Use vehicle selector to confirm fitment

*The above product applications have been written by Turner Motorsport. All warranties, product application, fitment, and performance are the responsibility of Turner Motorsport. For additional information see the terms of use.
