Eventuri Eventuri Carbon Intake System - A90 Supra EVE-A90-CF-INT

Eventuri Carbon Intake System - A90 Supra

Maximize your A90 performance potential with this fully sealed intake system from Eventuri. Tuned to optimize flow while reducing intake temperatures.
Eventuri Eventuri
T#: 588634 | Part#: EVE-A90-CF-INT
affirm Starting At 0% APR - Subject To Eligibility. See Lending Terms
Checking Vehicle Fitment...

Please ensure your correct model is selected

Does NOT fit your Change Vehicle

Fits your Change Vehicle

Change Vehicle

1495.00 $1495.00
Lifetime Replacement
This product is backed by our
Lifetime Replacement Program! Read more here
Free Shipping on orders $49 and up
Availability:
Ships Directly From Supplier
Est. Ship Date:
in 6 Business Days
Qty
Add to Wish List
Facebook Twitter Pinterest Google+ Email Price Alert
Eventuri Eventuri Carbon Intake System - A90 Supra EVE-A90-CF-INT
Eventuri Carbon Intake System - A90 Supra
$1495.00

The MK5 Supra Eventuri intake has been developed to provide the turbo with a less restrictive flow path whilst maintaining low inlet temperatures. Heat and Volume are the main considerations when designing an intake for turbocharged engines. In the Supra, the intake system is located next to the exhaust manifold which rapidly heat soaks the engine bay. High temperatures are detrimental for engine performance as the turbo would have to build boost with heated, less dense air and so the only way to ensure IAT’s are kept to a minimum is for a fully sealed intake. This however, results in a restriction with only one stock air feed to draw air in from.

During development Eventuri noticed an additional opening into the wheel arch area and took advantage of this by adding a secondary feed to the airbox. Furthermore the sealed airbox also has a heat shield with gold reflective to minimise the radiative heat transfer from the exhaust manifold. In order to maximise volume Eventuri made the airbox as large as possible with a recess for potential strut braces. The stock convoluted intake tube is replaced with a smooth carbon tube which is also larger in internal volume with a starting internal diameter of 111mm (4.4') smoothly tapering down to match the turbo inlet. The tube provides a smooth path from the filter to the turbo inlet. Finally, a custom made high-flow dry filter which is ISO tested for filtration performance and has a larger filtration area than the stock filter.

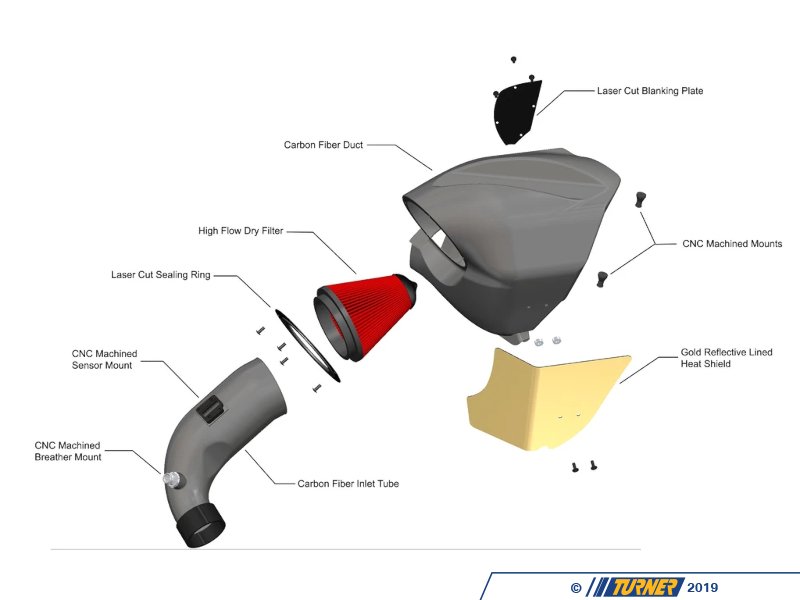

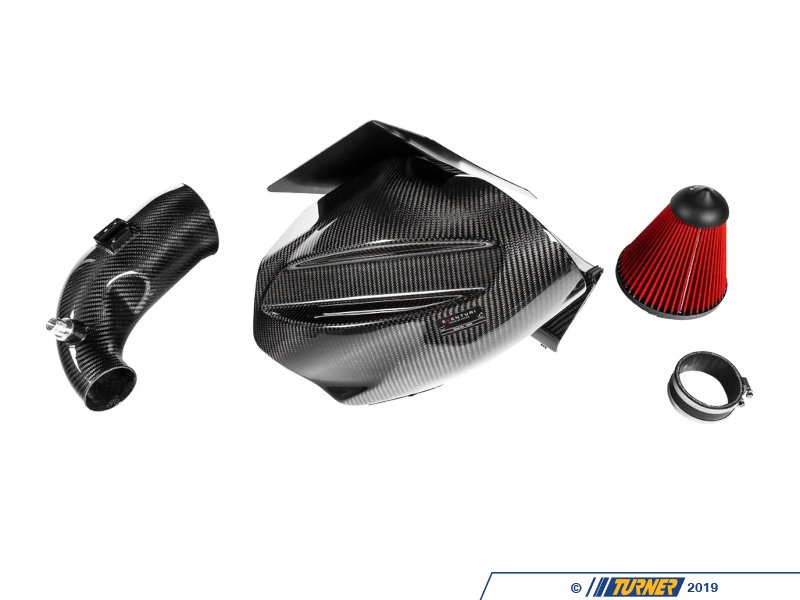

Features:

  • Carbon Fiber Airbox with Dual Feeds
  • Bespoke High Flow Dry Cone Filter
  • Carbon Fiber Inlet Tube with 111mm opening ID
  • CNC Machined Temperature Sensor Mount
  • CNC Machined Breather adapter
  • Heat Shield with Gold Reflective Backing
  • Laser Cut Stainless Steel Brackets
  • Silicon Coupler with OEM Specification Clamps



Not for sale or use in the state of California on any pollution-controlled vehicle as per the California Air Resources Board.


Prop 65 WarningProp 65 Warning

Product Q&A

Lifetime Replacement

This Product Is Covered By Our Lifetime Replacement Program

Products protected by our Lifetime Replacement Program are covered for as long as you own the product, no need to worry about an expiration date. Purchase your products and enjoy some worry-free motoring, knowing we've got you covered.

If you have any questions, would like to learn more or are ready to place a replacement claim, click here!

MAKE MODEL SUBMODEL ENGINE Special Fitment Notes
BMW A90 MKV Supra B48 2.0L Use vehicle selector to confirm fitment
BMW A90 MKV Supra B58 3.0L Use vehicle selector to confirm fitment
