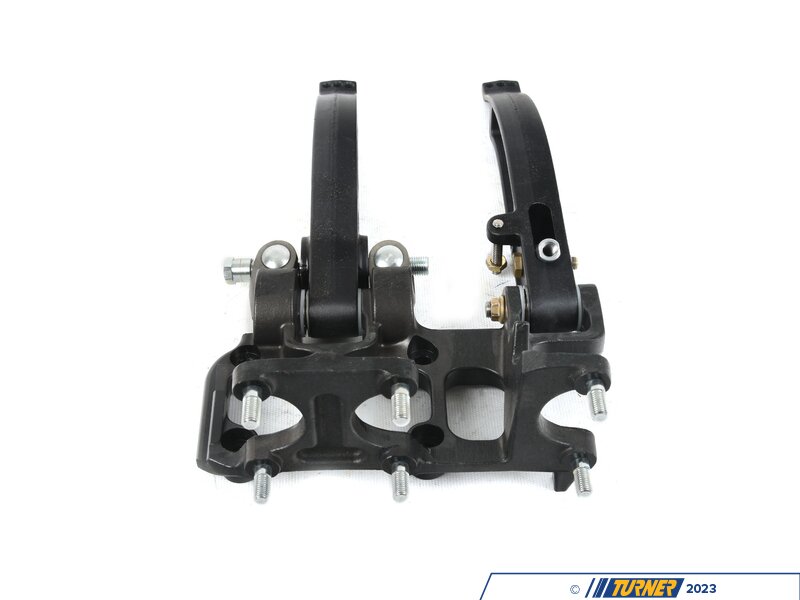

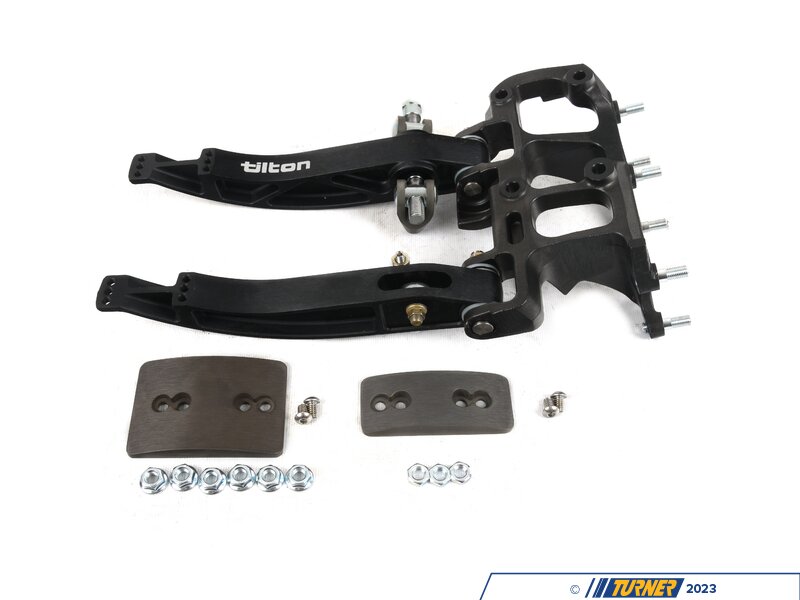

Tilton Dual Pedal Assy, 5.29 - 5.75 Ratio, Floor Mount, Alum

Product Details

These sturdy and well-made aluminum brake and clutch pedal assemblies are designed to accept any master cylinders with standard 2.25-inch mounting hole spacing (master cylinders sold separately).

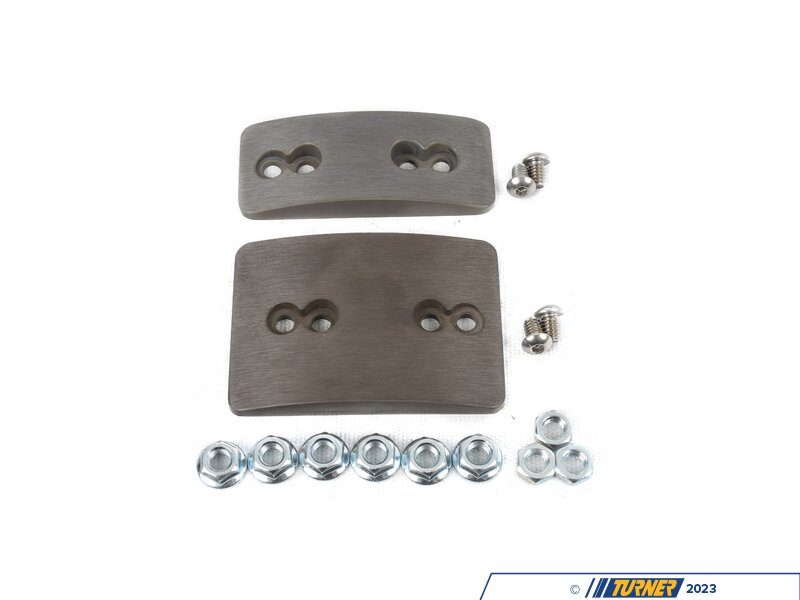

The brake pedal is equipped with an adjustable bias bar (7/16-20) for dual master brake cylinders. The clutch pedal is designed for hydraulic clutch actuation, and an adjustable pedal stop is built in to prevent overtravel. Both pedals feature non-skid pedal pads that can be adjusted to achieve different pedal ratios from 5.29:1 to 5.75:1. The pads can also be adjusted horizontally for clearance. Maximum pedal height 11.3" (287mm) from the floor. Overall width 8.13".

The Floor Mount style mounts the pedal cluster on top of the floor, with the master cylinders facing toward the front of the car (typically in front of the front bulkhead).

Master cylinders, reservoirs, and remote bias adjuster sold separately.
