Tilton Tilton 3-Pedal Assembly, 5.29 - 5.75 Ratio, Floor Mt, Alum TE72-603
Tilton 3-Pedal Assembly, 5.29 - 5.75 Ratio, Floor Mt, Alum
$500.99

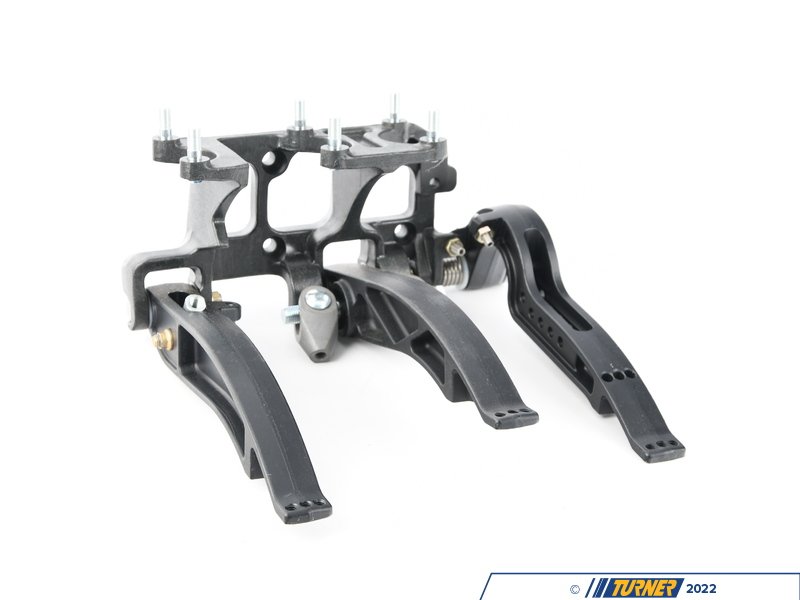

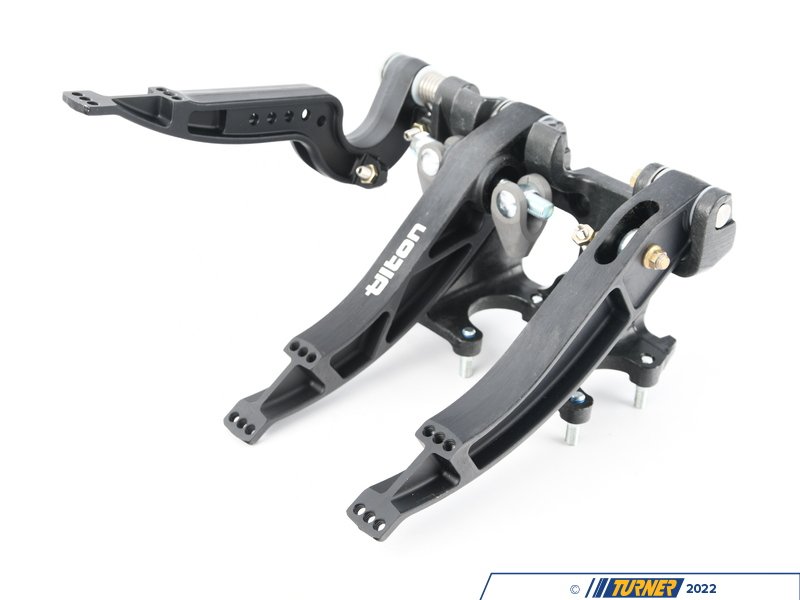

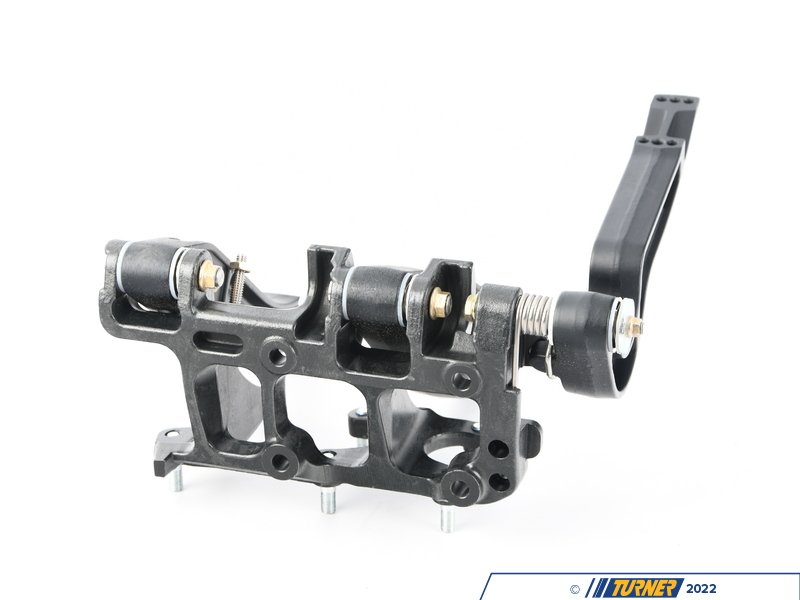

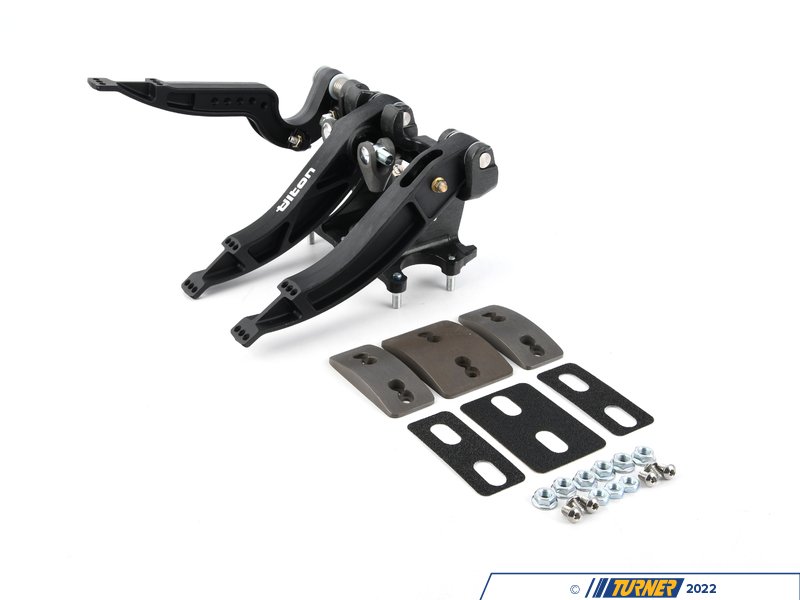

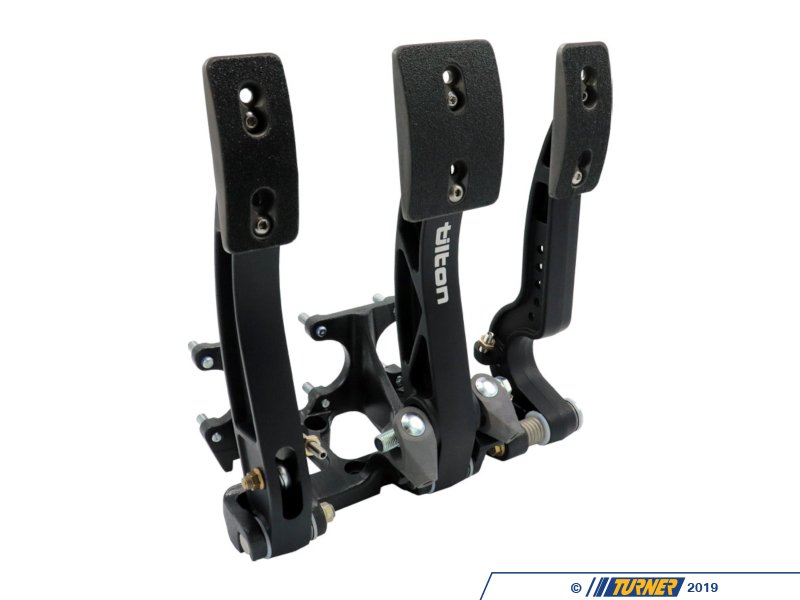

Tilton's 3-pedal floor-mount pedal assembly offers an all-inclusive system that is simple to install and service, making it suitable for a wide range of applications. This lightweight yet strong aluminum assembly includes Brake, Clutch, and Throttle pedals all in one system.

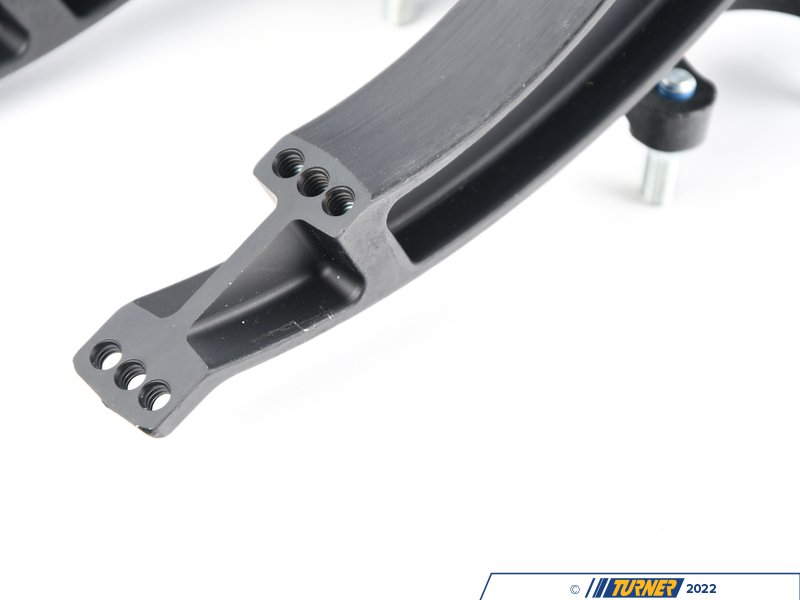

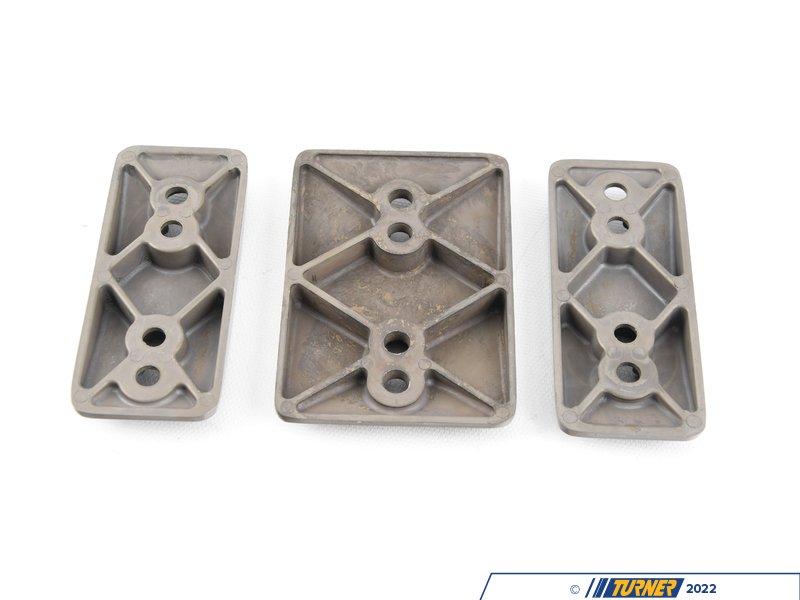

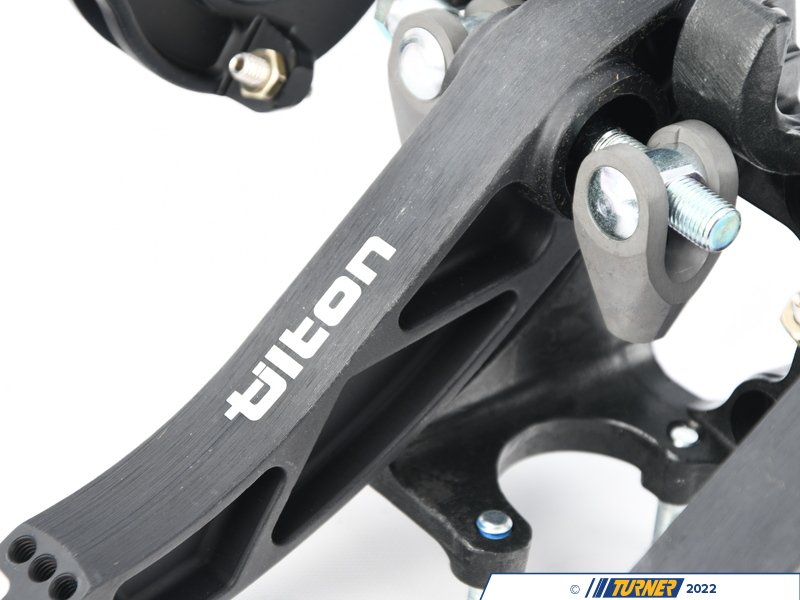

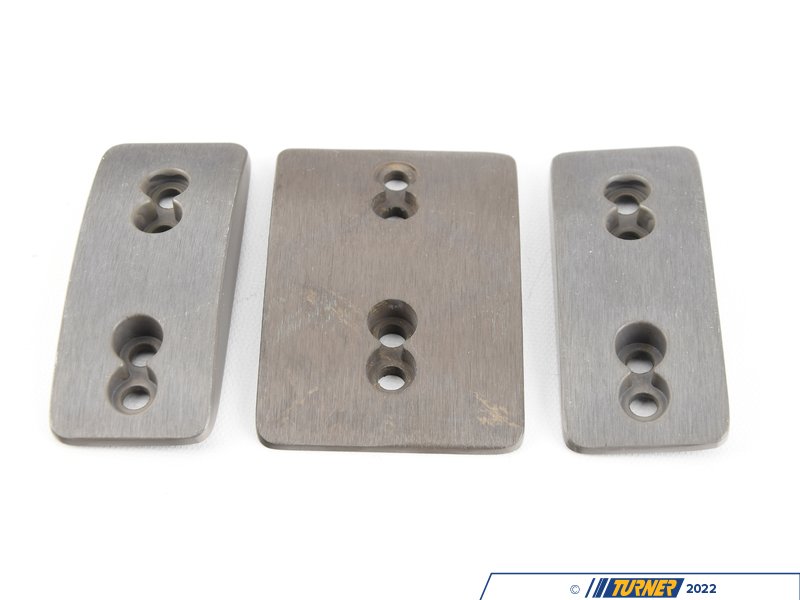

All three-pedal pads are independently adjustable for height and spacing between the pedal pads (3/4" height adjustment in 3/16" increments, 9/16" lateral in 3/16" increments). The Clutch pedal is designed for hydraulic actuation and has a built-in adjustable pedal stop, and the brake pedal is designed for dual master cylinders and includes a 7/16" brake balance bar built-in.

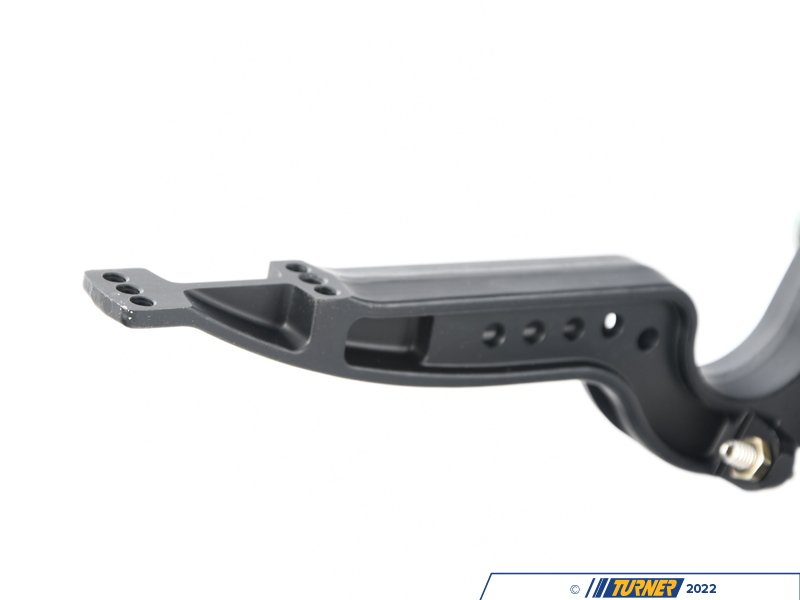

The Throttle pedal is contoured to avoid interference with your brake bias adjuster cable (sold separately) and a cut-to-length extension tube for rear-engine applications moves the throttle cable away from your foot.
Uses standard master cylinders (not included) with 2.25" mounting bolt spacing and 5/16-24 pushrods (such as Tilton 74, 75, or 76 series; vintage-type Girling or Lockheed; Wilwood GS-Series, Compact Remote Flange Mount, or Combination Remote type).

Note: Three master cylinders, 7/16-20 remote bias adjuster, and throttle linkage kit sold separately.

Tilton's 3-pedal floor-mount pedal assembly offers an all-inclusive system that is simple to install and service, making it suitable for a wide range of applications. This lightweight yet strong aluminum assembly includes Brake, Clutch, and Throttle pedals all in one system.

All three-pedal pads are independently adjustable for height and spacing between the pedal pads (3/4" height adjustment in 3/16" increments, 9/16" lateral in 3/16" increments). The Clutch pedal is designed for hydraulic actuation and has a built-in adjustable pedal stop, and the brake pedal is designed for dual master cylinders and includes a 7/16" brake balance bar built-in.
The Throttle pedal is contoured to avoid interference with your brake bias adjuster cable (sold separately) and a cut-to-length extension tube for rear-engine applications moves the throttle cable away from your foot.
Uses standard master cylinders (not included) with 2.25" mounting bolt spacing and 5/16-24 pushrods (such as Tilton 74, 75, or 76 series; vintage-type Girling or Lockheed; Wilwood GS-Series, Compact Remote Flange Mount, or Combination Remote type).

Note: Three master cylinders, 7/16-20 remote bias adjuster, and throttle linkage kit sold separately.
