297117 - JE Pistons Forged Piston Set Of 6 - 87mm Bore - 11.5:1 CR - E46 M3 S54B32
JE Pistons Forged Piston Set Of 6 - 87mm Bore - 11.5:1 CR - E46 M3 S54B32

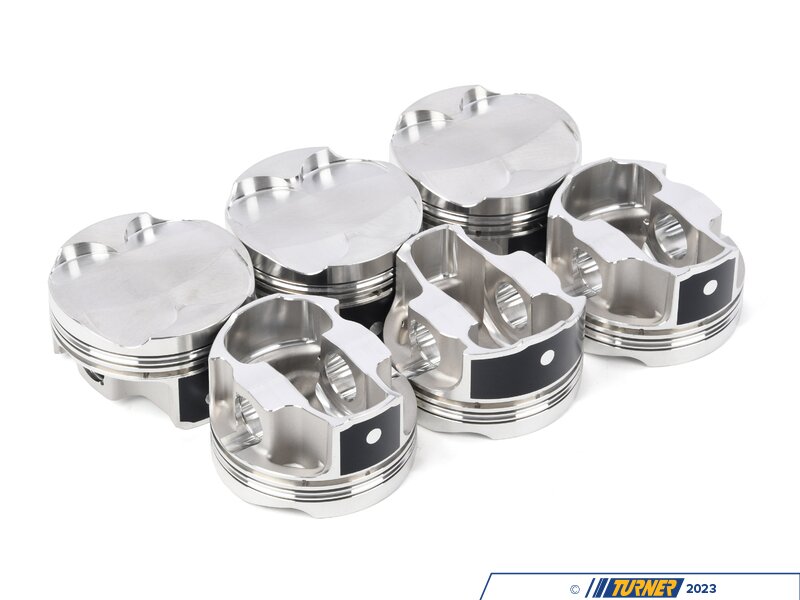

JE, BMW, S54B32, 3.425 in. Bore, 11.50:1, Inverted Dome/Dish, 6 Cyl. Piston Kit
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons’ performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
Designed specifically for each engine and use application to provide optimized performance durability

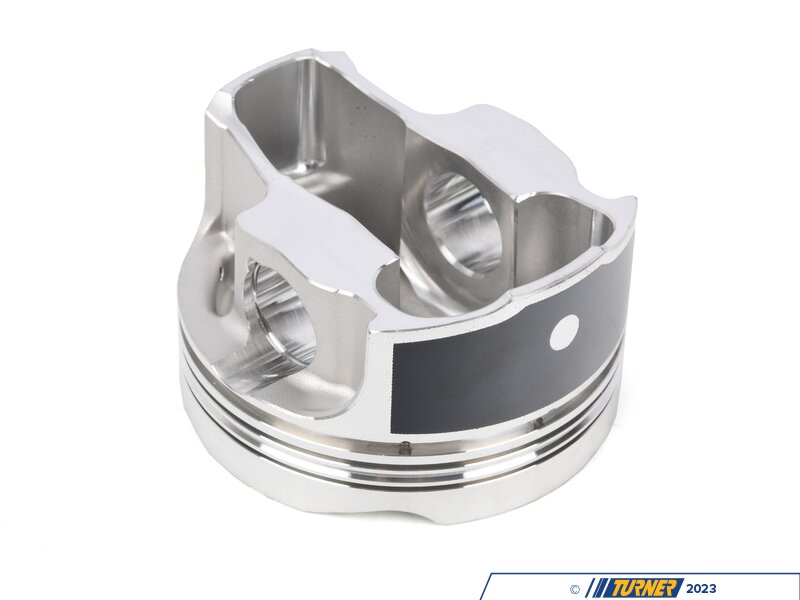

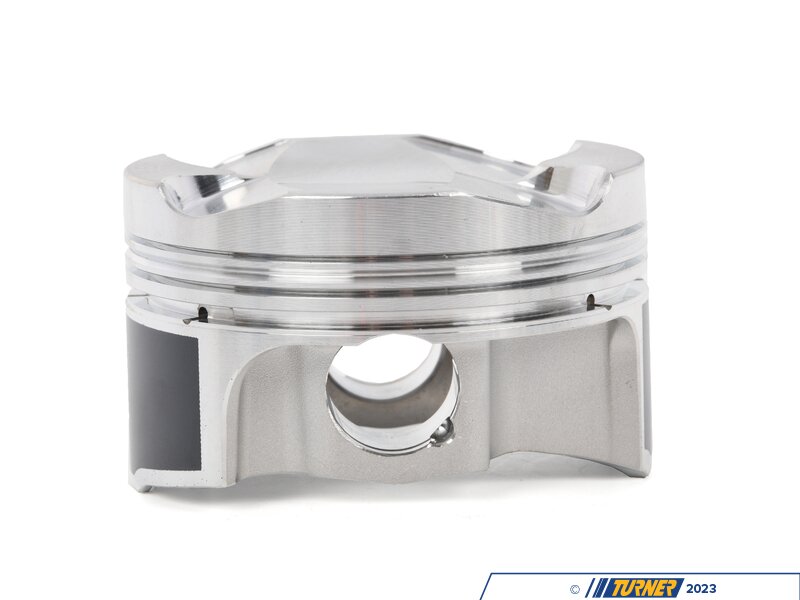

Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power

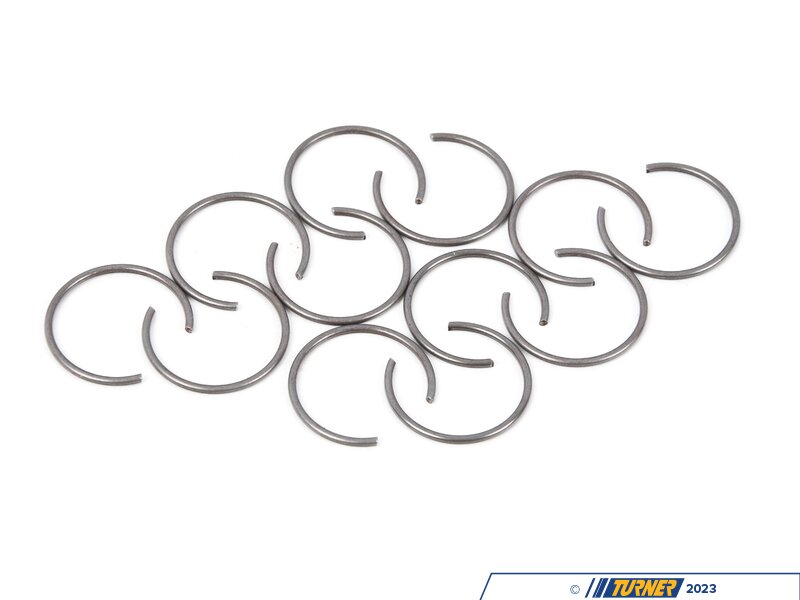

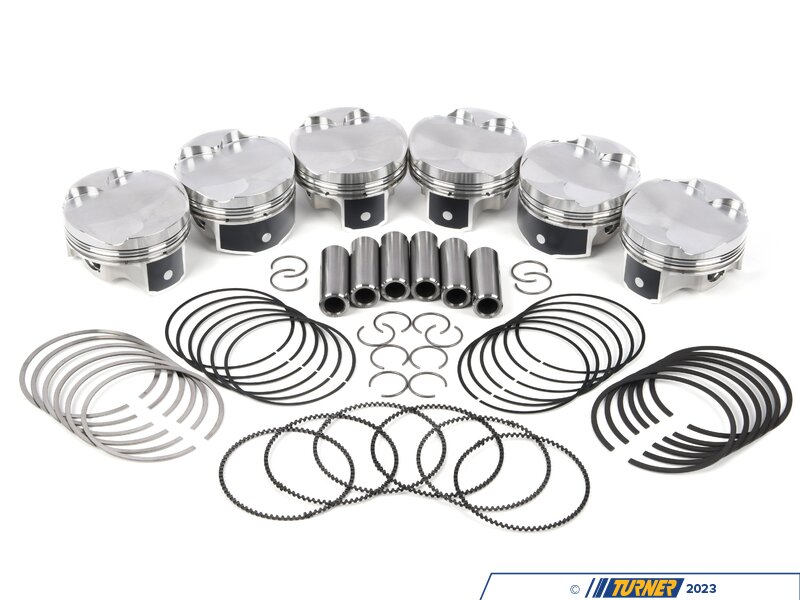

Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
Made 100% in the USA
Specifications:
Piston Series: JE Pistons
Cylinder Head: S54B32 USA
Bore Diameter: 87.00 MM

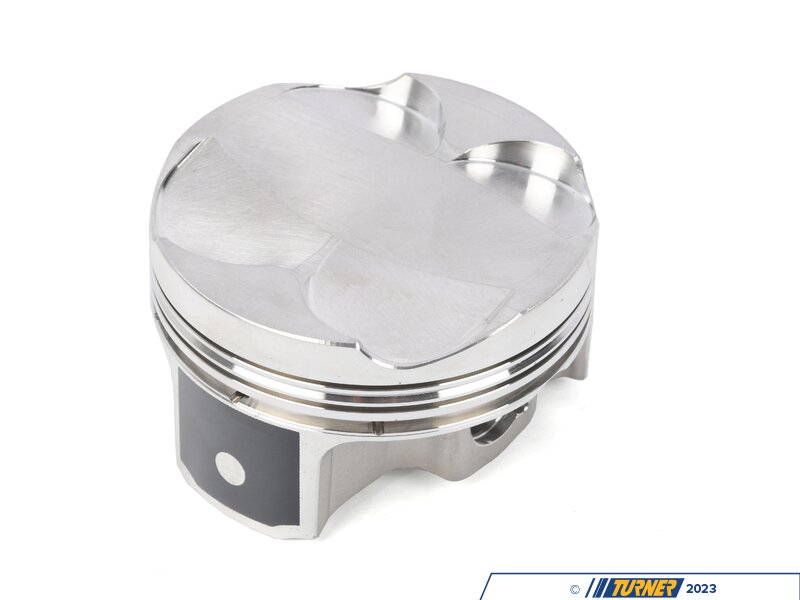

Piston Head Type: Dish
Compression Height: 1.271 IN
Piston Volume: -13.20 CC
Piston Material: 2618
Piston Quantity: 6
Forging Type: FSR
Piston Average Weight: 329 GR

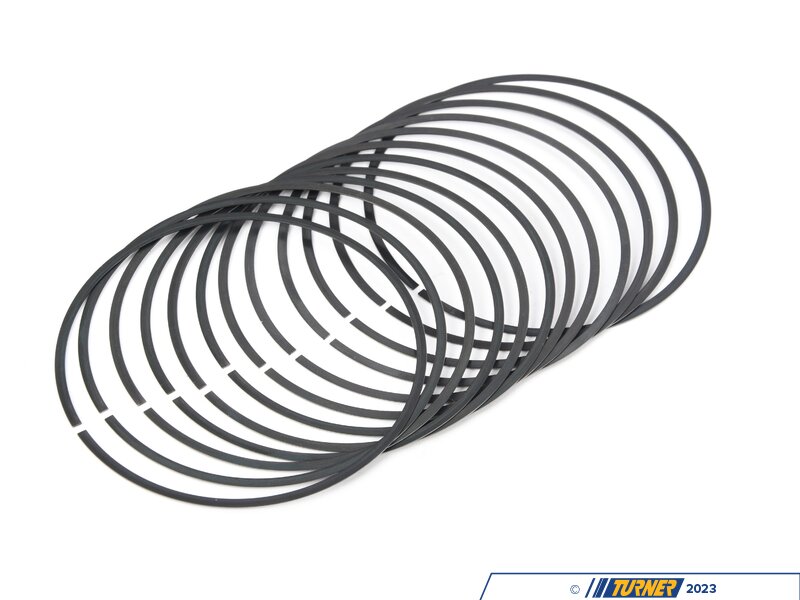

Ring Set Included: Yes

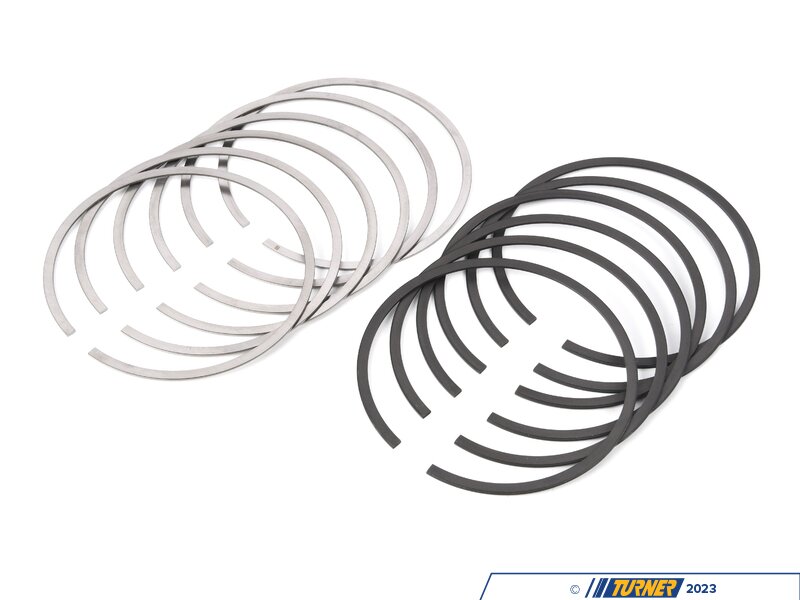

Top Compression Ring Thickness: 0.0400 IN
Second Compression Ring Thickness: 0.0480 IN

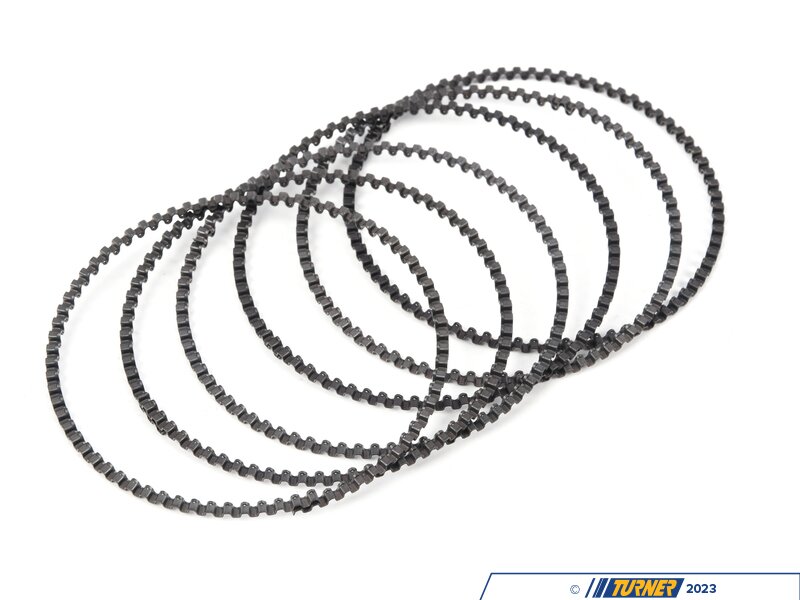

Oil Ring Thickness: 0.111 IN

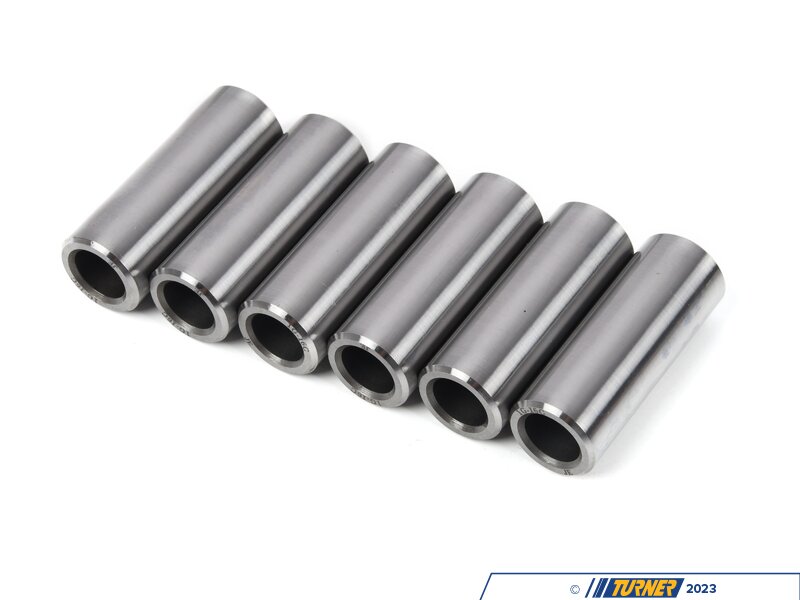

Wrist Pin Outer Diameter: 0.827 IN
Wrist Pin Length: 2.250 IN
Wrist Pin Wall Thickness: 0.150 IN
JE Pistons Forged Piston Set Of 6 - 87mm Bore - 11.5:1 CR - E46 M3 S54B32
$1203.99
Product Details
JE, BMW, S54B32, 3.425 in. Bore, 11.50:1, Inverted Dome/Dish, 6 Cyl. Piston Kit
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons’ performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
Designed specifically for each engine and use application to provide optimized performance durability
Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
Made 100% in the USA
Specifications:
Piston Series: JE Pistons
Cylinder Head: S54B32 USA
Bore Diameter: 87.00 MM
Piston Head Type: Dish
Compression Height: 1.271 IN
Piston Volume: -13.20 CC
Piston Material: 2618
Piston Quantity: 6
Forging Type: FSR
Piston Average Weight: 329 GR
Ring Set Included: Yes
Top Compression Ring Thickness: 0.0400 IN
Second Compression Ring Thickness: 0.0480 IN
Oil Ring Thickness: 0.111 IN
Wrist Pin Outer Diameter: 0.827 IN
Wrist Pin Length: 2.250 IN
Wrist Pin Wall Thickness: 0.150 IN
Not for sale or use in the state of California on any pollution-controlled vehicle as per the California Air Resources Board.
Prop 65 Warning
Product Q&A
Lifetime Replacement
This product is not eligible for Lifetime Replacement
Fits These Cars
MAKE
MODEL
SUBMODEL
ENGINE
Special Fitment Notes
BMW
E46
M3
S54 3.2L
Use vehicle selector to confirm fitment
