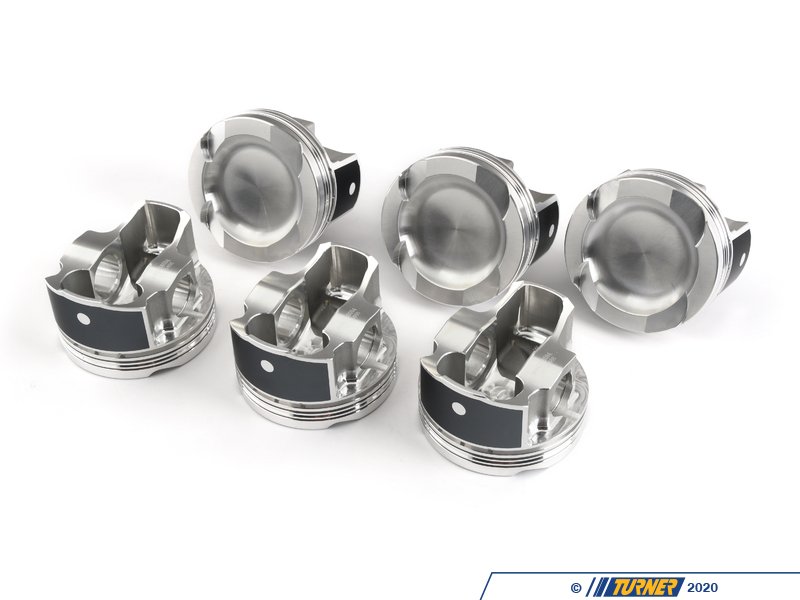

JE Piston JE Pistons Forged Piston Set Of 6 - 87.5mm Bore - 11.5:1 CR - E46 M3 S54B32 297118
JE Pistons Forged Piston Set Of 6 - 87.5mm Bore - 11.5:1 CR - E46 M3 S54B32
$1203.99

Made to order.  A turnaround time 3-4 weeks is typical.

Features:

  • Crown requires no deburring or preparation
  • 2618 T6 high tensile forged aluminum
  • New asymetrical FSR forging! State of the art asymmetrical skirt technology reduces friction and mass while providing a more rigid and durable platform
  • In this environment, higher boost levels or heavy nitrous usage necessitate JE's wrought 2618 alloy
  • FSR pistons include offset pins for quiet operation
  • Pistons feature new Smooth Finished Crown process for excellent flame travel
  • 1.0 x 1.2 x 2.8mm ring widths

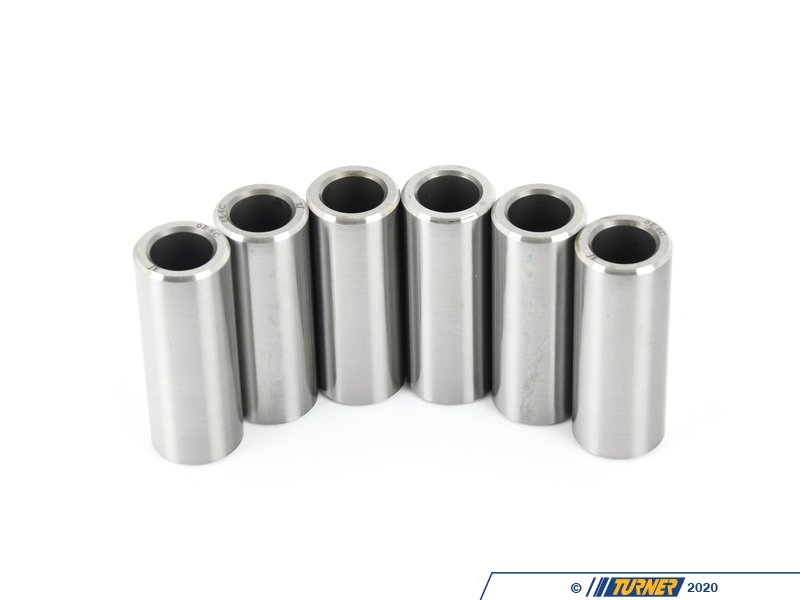

  • .827 x 2.250 straight wall carbon steel wrist pin provided

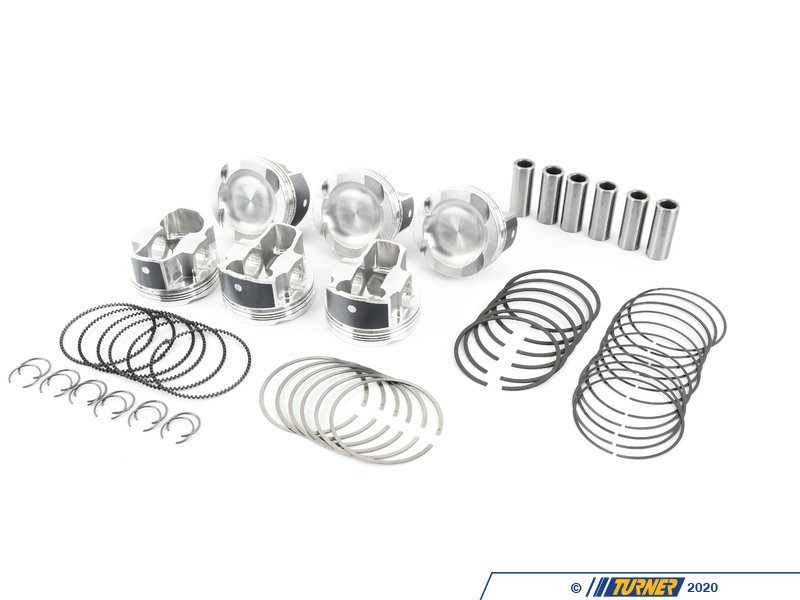

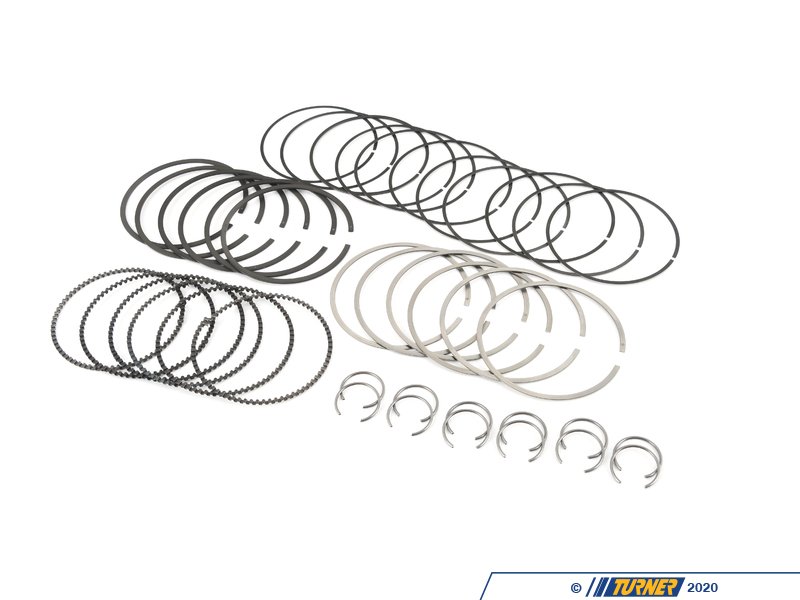

  • Pin fitting, rings and wire locks included

Specifications:

  • Bore (in): 3.445
  • Bore (mm): 87.50
  • Top Compression Ring Thickness: 0.0400
  • Second Compression Ring Thickness: 0.0480
  • Oil Ring Thickness: 0.111
  • Forging Type: FSR
  • Volume (cc): -13.80
  • Series: JE Pistons
  • Piston Head Type: Inv Dome/Dish
  • Pin Diameter (IN): 0.827
  • Compression Height: 1.271
  • Make: BMW
  • Wrist Pin Style - floating or press fit: Floating
  • Wall Type: CHAMFERED
  • Wall Thickness (IN): 0.150
  • Ringset Part Number: JG1001-3445
  • Ring Brand: ProSeal
  • Ringset Included: Yes
  • Retainer Thickness: 0.063
  • Retainer Lock Style: Wire Lock
  • Retainer Lock Part Number: 827-063-MW
  • Retainer Diameter (IN): 0.827
  • Replacement Single Piston: 297118S
  • Replaced By: 289132
  • Piston Pin Inside Diameter: 0.527
  • Piston Pin Material: 5115 LOW CARBON STEEL, CASE HARDENED
  • Piston Material: 2618
  • Piston Pin Length (IN): 2.250
  • Piston Avg Wt: 332
  • Pin Offset: Yes
  • Pin Brand: JE Pistons
  • Pin Part Number: 827-2250-15-51C
  • Pin Included: Yes
  • Pin Diameter (mm): 21.00
  • Oil Rail Support Included: No
  • Deck Clearance: -0.008

Not for sale or use in the state of California on any pollution-controlled vehicle as per the California Air Resources Board.


Prop 65 WarningProp 65 Warning

Product Q&A

Lifetime Replacement

This Product Is Covered By Our Lifetime Replacement Program

Products protected by our Lifetime Replacement Program are covered for as long as you own the product, no need to worry about an expiration date. Purchase your products and enjoy some worry-free motoring, knowing we've got you covered.

If you have any questions, would like to learn more or are ready to place a replacement claim, click here!

MAKE MODEL SUBMODEL ENGINE Special Fitment Notes
BMW E46 M3 S54 3.2L Use vehicle selector to confirm fitment
