JE Piston JE Pistons Forged Piston Set - E36 S50B30 361346
JE Pistons Forged Piston Set - E36 S50B30
$1349.99

Building a high powered engine for road race, drag race, or full out competition racing? JE Pistons for your S50B30 US engine offer the ultimate in strength and reliability in a forged piston.

Features:

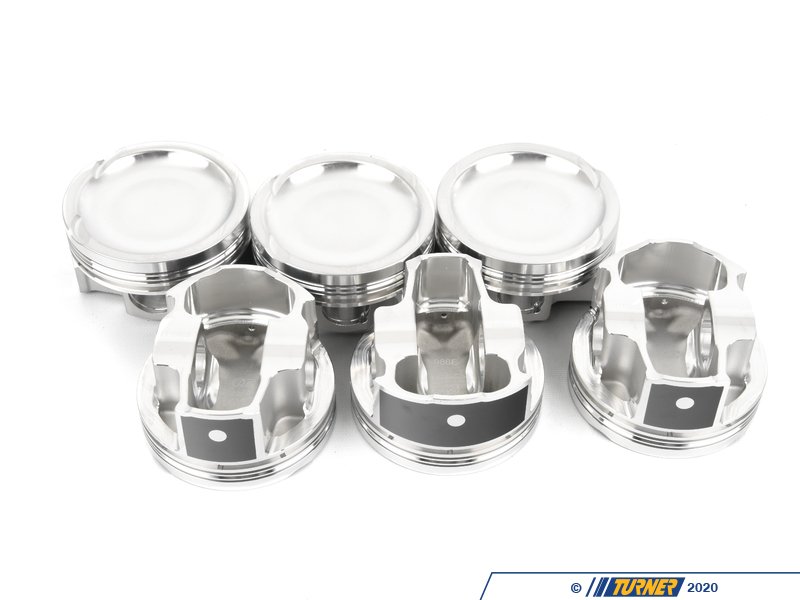

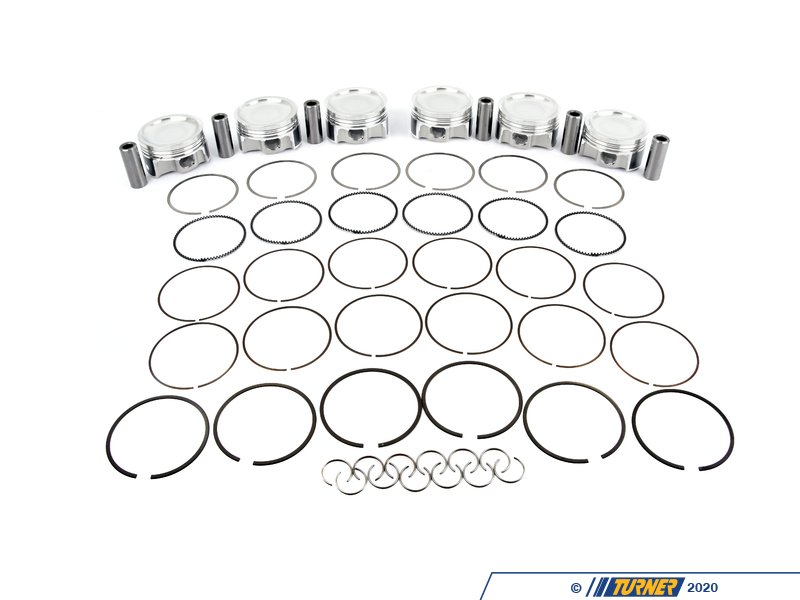

  • Ultra-high performance forged piston set

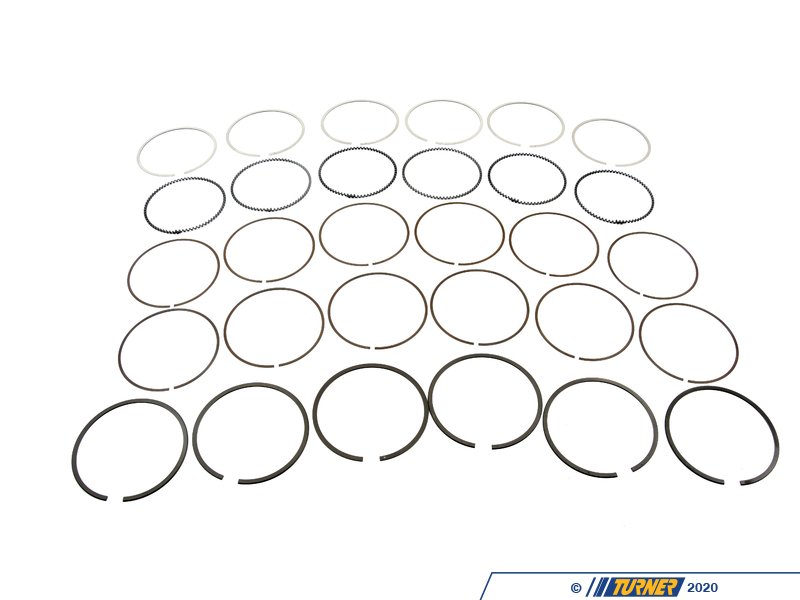

  • Includes JE Pro Seal piston rings

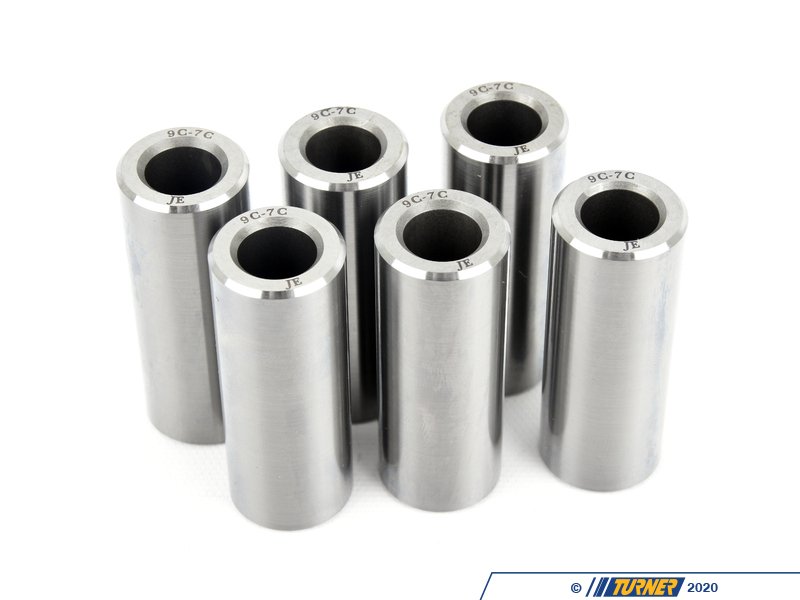

  • Includes wrist pins and pin locks
  • No dish deburring or preparation needed
  • Individually prepared inspection report of dimensional conformity
  • Each piston individually serialized for complete traceability
  • 23-point post-production inspection conducted by certified personnel
  • Tighter tolerances on 14 critical areas of the piston
  • All critical surfaces machined in dedicated Critical Manufacturing Cell

Specifications:

  • Bore (in):  3.396
  • Bore (mm):  86.25
  • Top Compression Ring Thickness:  0.0400
  • Second Compression Ring Thickness:  0.0480
  • Oil Ring Thickness:  0.111
  • Forging Type:  FSR
  • Volume (cc):  -24.00
  • Series:  JE Pistons
  • Piston Head Type:  Inv Dome/Dish
  • Pin Diameter (IN):  0.866
  • Compression Height:  1.291
  • Make:  BMW
  • Wrist Pin Style - floating or press fit:  Floating
  • Wall Type:  CHAMFERED
  • Wall Thickness (IN):  0.180
  • Ringset Part Number:  JG1001-3396
  • Ring Brand:  ProSeal
  • Ringset Included:  Yes
  • Retainer Thickness:  0.063

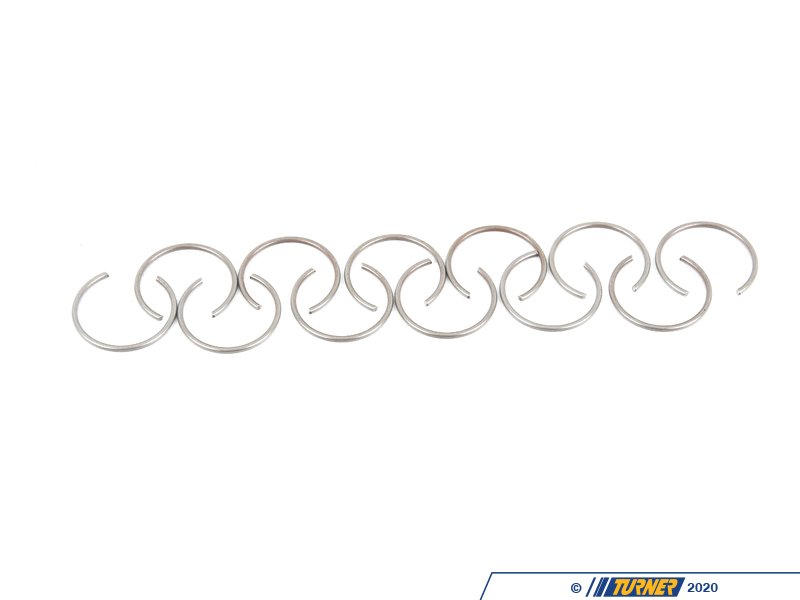

  • Retainer Lock Style:  Wire Lock
  • Retainer Lock Part Number:  866-063-MW
  • Retainer Diameter (IN):  0.866
  • Replacement Single Piston:  361346S
  • Piston Pin Inside Diameter:  0.506
  • Piston Pin Material:  5115 LOW CARBON STEEL, CASE HARDENED
  • Piston Material:  2618
  • Piston Pin Length (IN):  2.250
  • Piston Avg Wt:  299
  • Pin Offset:  Yes
  • Pin Brand:  JE Pistons
  • Pin Part Number:  866-2250-18-51C
  • Pin Included:  Yes
  • Pin Diameter (mm):  22.00
  • Oil Rail Support Included:  No
  • Deck Clearance:  0.030
  • Brand:  JE Pistons

Not for sale or use in the state of California on any pollution-controlled vehicle as per the California Air Resources Board.


Prop 65 WarningProp 65 Warning

Product Q&A

Lifetime Replacement

This Product Is Covered By Our Lifetime Replacement Program

Products protected by our Lifetime Replacement Program are covered for as long as you own the product, no need to worry about an expiration date. Purchase your products and enjoy some worry-free motoring, knowing we've got you covered.

If you have any questions, would like to learn more or are ready to place a replacement claim, click here!

MAKE MODEL SUBMODEL ENGINE Special Fitment Notes
BMW E36 M3 S50 3.0L Use vehicle selector to confirm fitment
