Turner R56-R59 N14 Baffled Oil Catch Can System - 8oz

Product Details

Today's direct fuel injection systems have taken engine performance to a whole new level, but there is a drawback. With no fuel vapors to clean the intake valves, the oil particles that are drawn into the intake from the PCV system will deposit themselves onto the valves and intake ports. Over time this will result in an excessive carbon buildup, resulting in lost power and poor drivability.

Turner now has the solution with our Performance Baffled Oil Catch Can System. In house engineered, our system is designed to collect toxic blow-by gasses, reduce carbon build up and reduce concentrations of acids, oxidants and water within the engine oil.

Turner has a proven design with extensive long term testing and with the proper understanding of the Gen2 MINI engine's PCV system, they can confidently give you the finest oil catch can system available on the market!

The all-in-one system makes it easy to install on the top side of your engine with a few common tools.

Catch can can be easily drained every so often and/or removed if needed.   Recommend checking with every engine oil service change.

Key benefits of the Turner Motorsport Performance Baffled Oil Catch Can System:

• Highly Efficient Oil Separator (Catch Can) 8oz:
  • Strategically positioned 4 chamber baffle system maximizes oil / air separation
  • Engineered to create multiple changes in the direction of airflow within the separator to cause oil droplets to fall out of suspension before exiting the catch can
  • Knurled and black anodized integrated oil dipstick makes inspecting oil volume of the reservoir clean and simple
  •  Fully serviceable for routine cleaning and maintenance; Includes 2.5mm allen key to remove baffle plates for cleaning
  • -10AN ORB (O-Ring Boss) fittings for leak-free fitting connections
  • 6061-T6 billet machined body, anodized black for lasting protection and appearance
  • Easy to drain reservoir, simply un-threads from the oil separator for quick draining or cleaning
• The OEM System connection and line heater is retained.
• Engine cover fitment is maintained with no modifications needed
• Completely reversible installation, as no OEM components are permanently modified. Just install and use a ziptie on the factory heater hose location.
• OE style appearance once installed
• Can Be fitted with Factory MINI intake, JCW Intake, and ECS Tuning Carbon Fiber Intake
• Most aftermarket open box filter will fit, please verify before ordering but looking ate our install guide.

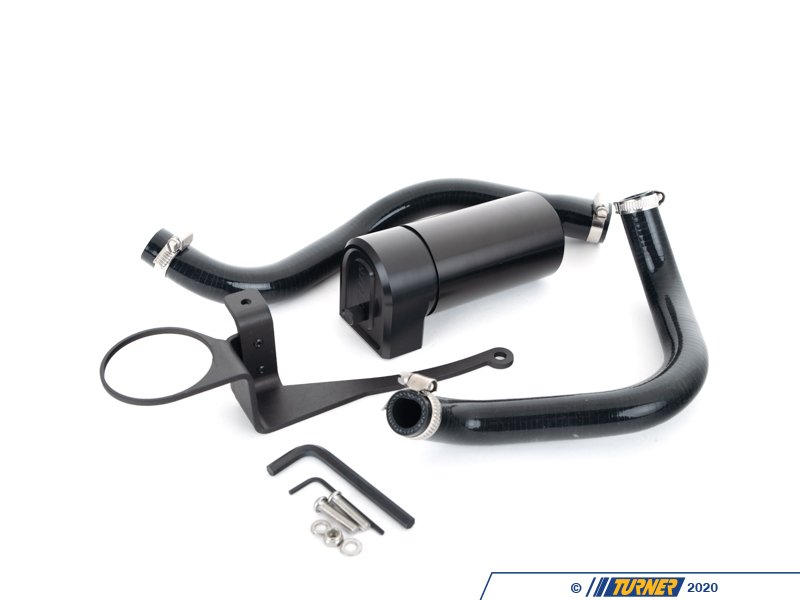

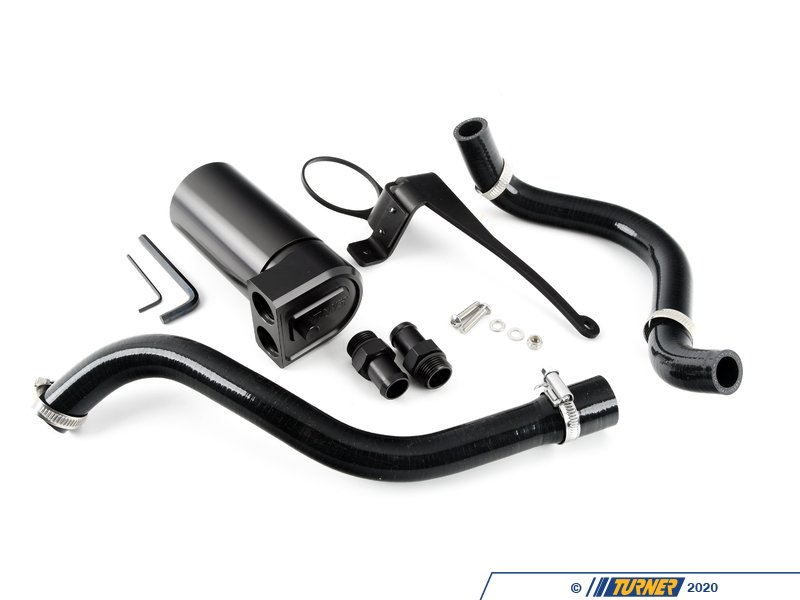

Each system includes the following:

• 4 Chamber Baffled Oil Catch Can with integrated dipstick and service tool
• CNC bent, black anodized, aluminum catch can bracket
• Black zinc OEM fasteners to secure the bracket to the right side engine mount
• -10AN black nylon braided hose
  • Cut to the perfect length -- This alone make's installation as easy as changing your own oil!
  • -10AN black anodized swivel fittings are pre-installed on each hose for a direct fit install

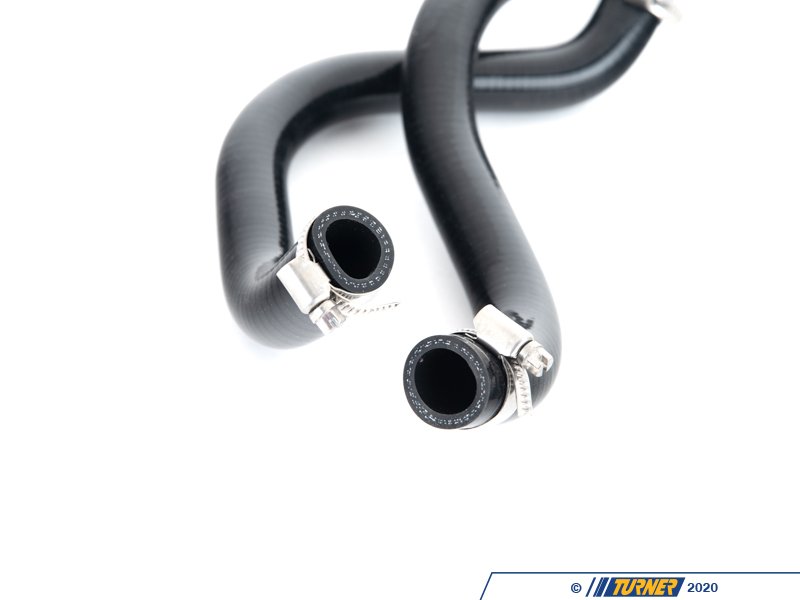

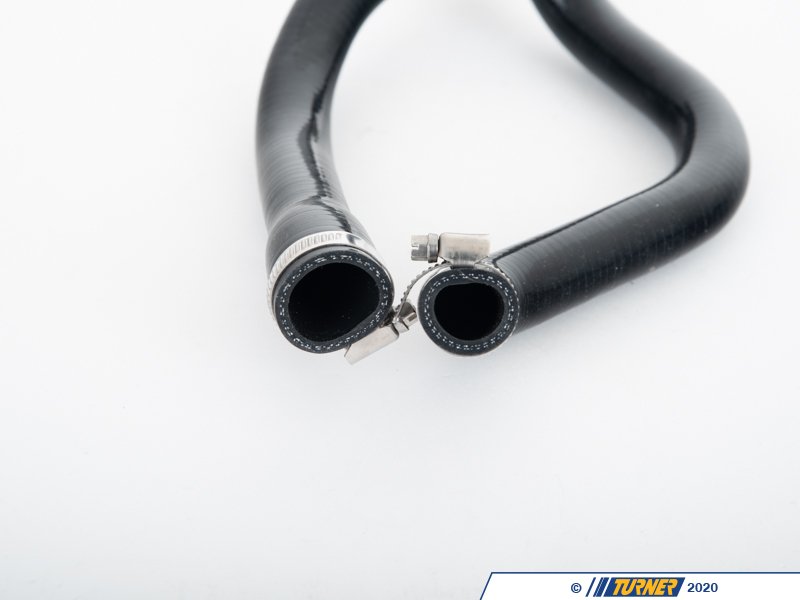

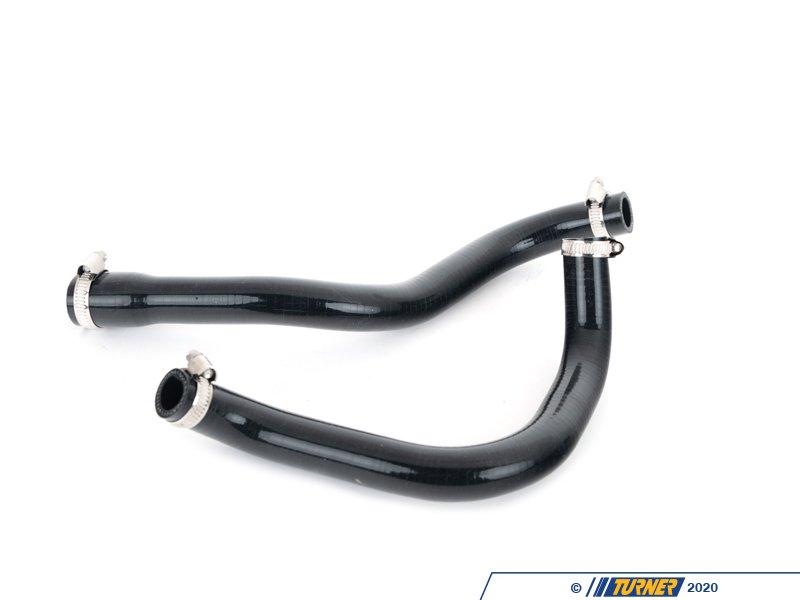

  • Silicone hoses set to fit with factory like connections.  4 worm clamps are provided (only 3 are needed), one extra one just encase you loose one.
• Oil and fuel resistant, high temperature viton O-Rings pre-installed on all adapters
• Billet machined 6061-T6 aluminum components, anodized black.

Engineered and manufactured in the USA, you can expect the very best performance, quality and longevity with our superior Oil Catch Can System from Turner Motorsport!

*This system does not prevent all carbon build up but to reduce carbon build up as designed.

Not for sale or use in the state of California on any pollution-controlled vehicle as per the California Air Resources Board.
