EVEG20B58V2INT - Eventuri B58 Black Carbon Intake System - BMW G42 M240i B58 3.0L
Eventuri B58 Black Carbon Intake System - BMW G42 M240i B58 3.0L

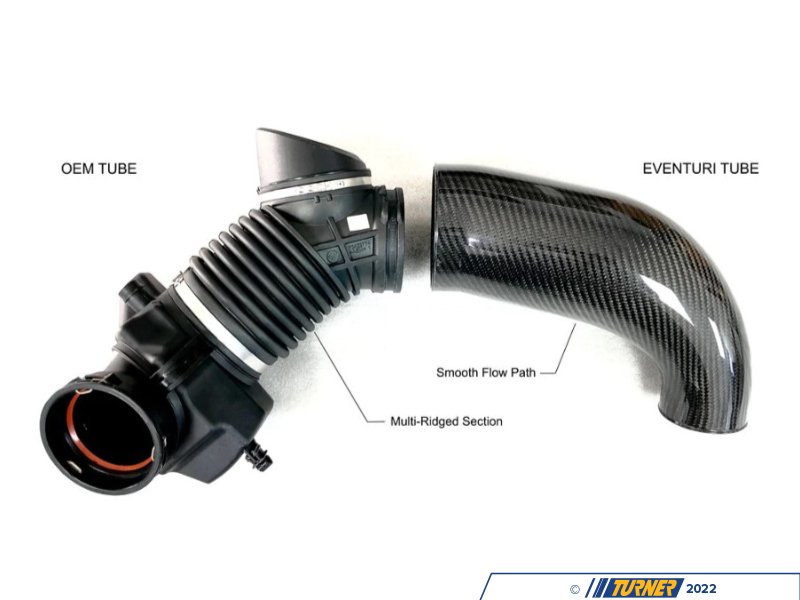

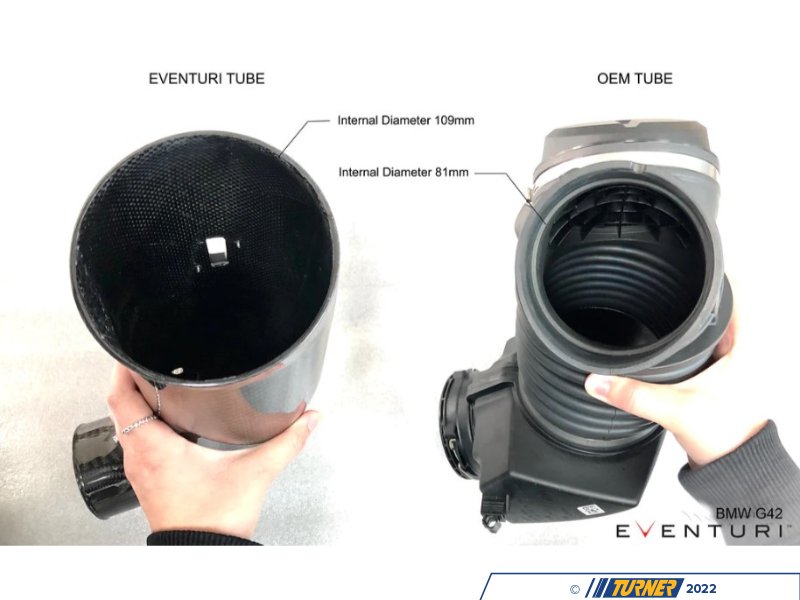

The BMW G42 B58 Eventuri intake has been developed to provide the turbo with a less restrictive flow path whilst maintaining low inlet temperatures. Heat and Volume are the main considerations when designing an intake for turbocharged engines. In the G42, the intake system is located next to the exhaust manifold which rapidly heat soaks the engine bay. High temperatures are detrimental to engine performance as the turbo would have to build boost with heated, less dense air and so the only way to ensure IATs are kept to a minimum is for a fully sealed intake. This, however, results in a restriction with only one stock air feed to draw air in from. During development, we noticed an additional opening into the wheel arch area and took advantage of this by adding a secondary feed to our airbox. Furthermore, our sealed airbox also has a heat shield with gold reflective to minimize the radiative heat transfer from the exhaust manifold. In order to maximize volume, we made the airbox as large as possible with a recess for potential strut braces. The stock convoluted intake tube is replaced with a smooth carbon tube which is also larger in internal volume with a starting internal diameter of 111mm (4.4″) smoothly tapering down to match the turbo inlet. The tube provides a smooth path from the filter to the turbo inlet. Finally, we use a custom-made high-flow dry filter which is ISO tested for filtration performance and has a larger filtration area than the stock filter.

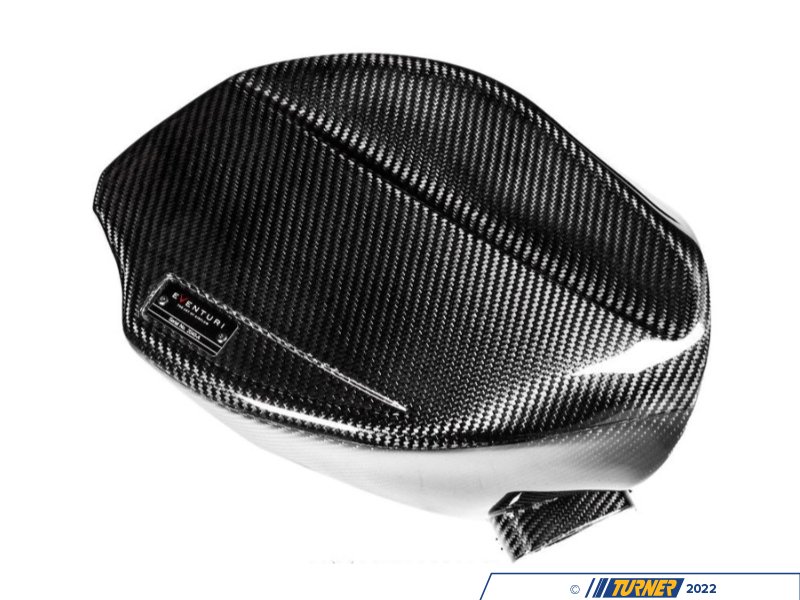

Crafted from Prepreg Carbon Fiber, the airbox serves 2 objectives - to seal the filter against engine bay heat and to provide a dual cold air feed. Since the airbox is positioned next to the exhaust manifold it is crucial for the filter to be fully sealed so we designed the airbox to encapsulate the filter and at the same time provide a large internal volume. To seal the intake tube we have designed a laser-cut plate with a rubber sealing strip that secures to the airbox. The intake tube passes through the plate and the rubber seal ensures heated air does not enter the airbox. To further minimize heat soak, there is an additional heat shield with a gold reflective layer on the exhaust manifold side which effectively combats the radiant heat transfer.

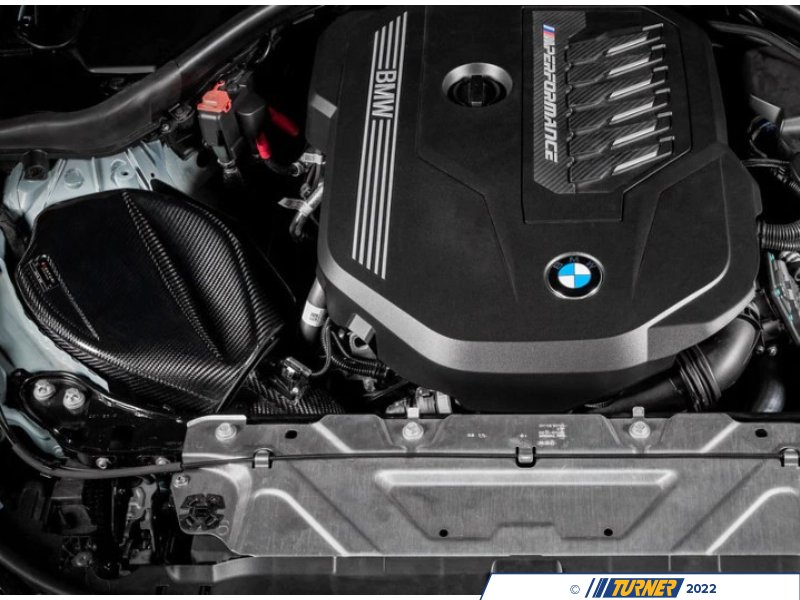

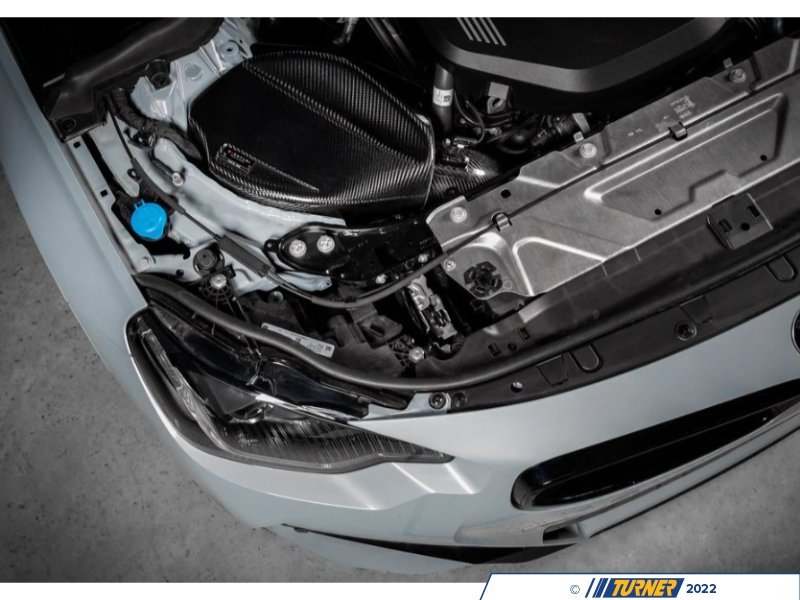

Having a fully sealed airbox results in the problem of having a restriction for the cold air feed. The stock airbox draws air from a single duct that extends to the front bumper area. During development, we identified another area to draw cold air from which was a gap between the wheel arch and the chassis on which the airbox sits. To utilize this feed we extended a scoop at the back of our design which protrudes into the wheel arch and can even be seen after installation behind the front wheel. This second feed allows the turbo to draw from a larger area, therefore, reducing the restriction.
The Eventuri Difference: The G42 M240i B58 Eventuri system uses our Patented Carbon Fiber Housings with our Gen 2 bespoke filters, which provide an aerodynamically efficient airflow path from the filter to the turbos. Not just another cone filter with a heat shield but a unique design that invokes the Venturi effect and maintains laminar flow conditions to reduce the drag on the turbo.

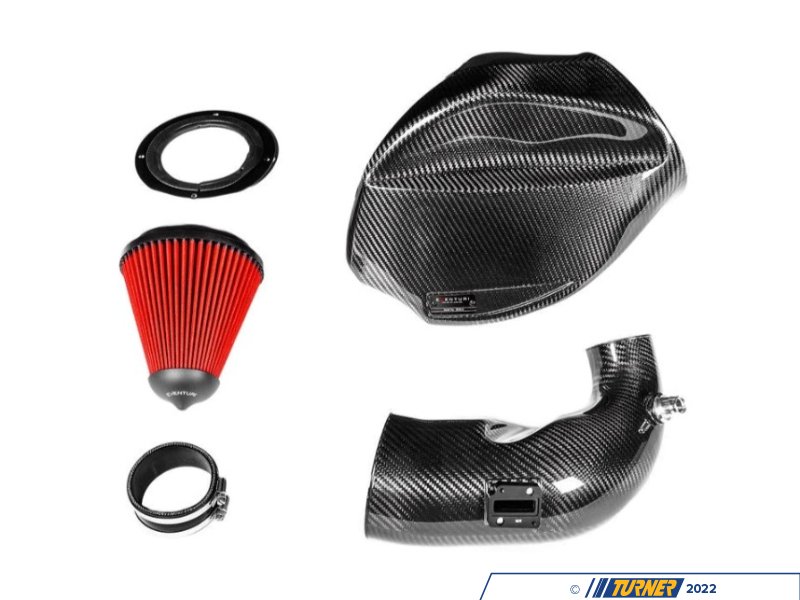

Each intake system consists of:
Carbon Fiber Airbox with Dual Feeds
Bespoke High Flow Dry Cone Filter

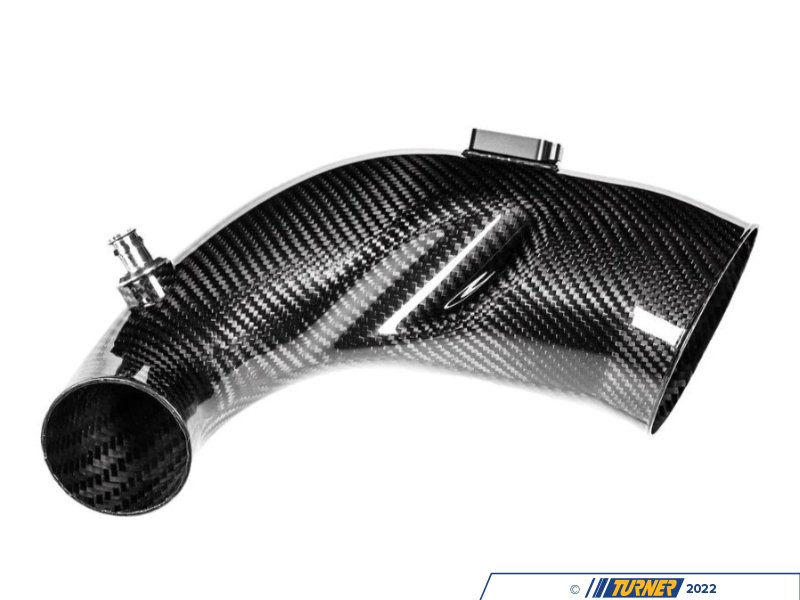

Carbon Fiber Inlet Tube
CNC Machined Temperature Sensor Mount
CNC Machined Breather adapters
Heat Shield with Gold Reflective Backing
Laser Cut Stainless Steel Brackets
Silicon Reducer with OEM Specification Clamps
NOTE: ** This item is not eligible for return **
Eventuri B58 Black Carbon Intake System - BMW G42 M240i B58 3.0L
$1495.00
Product Details
The BMW G42 B58 Eventuri intake has been developed to provide the turbo with a less restrictive flow path whilst maintaining low inlet temperatures. Heat and Volume are the main considerations when designing an intake for turbocharged engines. In the G42, the intake system is located next to the exhaust manifold which rapidly heat soaks the engine bay. High temperatures are detrimental to engine performance as the turbo would have to build boost with heated, less dense air and so the only way to ensure IATs are kept to a minimum is for a fully sealed intake. This, however, results in a restriction with only one stock air feed to draw air in from. During development, we noticed an additional opening into the wheel arch area and took advantage of this by adding a secondary feed to our airbox. Furthermore, our sealed airbox also has a heat shield with gold reflective to minimize the radiative heat transfer from the exhaust manifold. In order to maximize volume, we made the airbox as large as possible with a recess for potential strut braces. The stock convoluted intake tube is replaced with a smooth carbon tube which is also larger in internal volume with a starting internal diameter of 111mm (4.4') smoothly tapering down to match the turbo inlet. The tube provides a smooth path from the filter to the turbo inlet. Finally, we use a custom-made high-flow dry filter which is ISO tested for filtration performance and has a larger filtration area than the stock filter.
Crafted from Prepreg Carbon Fiber, the airbox serves 2 objectives - to seal the filter against engine bay heat and to provide a dual cold air feed. Since the airbox is positioned next to the exhaust manifold it is crucial for the filter to be fully sealed so we designed the airbox to encapsulate the filter and at the same time provide a large internal volume. To seal the intake tube we have designed a laser-cut plate with a rubber sealing strip that secures to the airbox. The intake tube passes through the plate and the rubber seal ensures heated air does not enter the airbox. To further minimize heat soak, there is an additional heat shield with a gold reflective layer on the exhaust manifold side which effectively combats the radiant heat transfer.
Having a fully sealed airbox results in the problem of having a restriction for the cold air feed. The stock airbox draws air from a single duct that extends to the front bumper area. During development, we identified another area to draw cold air from which was a gap between the wheel arch and the chassis on which the airbox sits. To utilize this feed we extended a scoop at the back of our design which protrudes into the wheel arch and can even be seen after installation behind the front wheel. This second feed allows the turbo to draw from a larger area, therefore, reducing the restriction.
The Eventuri Difference: The G42 M240i B58 Eventuri system uses our Patented Carbon Fiber Housings with our Gen 2 bespoke filters, which provide an aerodynamically efficient airflow path from the filter to the turbos. Not just another cone filter with a heat shield but a unique design that invokes the Venturi effect and maintains laminar flow conditions to reduce the drag on the turbo.
Each intake system consists of:
Carbon Fiber Airbox with Dual Feeds
Bespoke High Flow Dry Cone Filter
Carbon Fiber Inlet Tube
CNC Machined Temperature Sensor Mount
CNC Machined Breather adapters
Heat Shield with Gold Reflective Backing
Laser Cut Stainless Steel Brackets
Silicon Reducer with OEM Specification Clamps
NOTE: ** This item is not eligible for return **
Not for sale or use in the state of California on any pollution-controlled vehicle as per the California Air Resources Board.
Prop 65 Warning
Cross Reference
EVE-G20B58-V2-INT
Product Q&A
Lifetime Replacement
This Product Is Covered By Our Lifetime Replacement Program
Products protected by our Lifetime Replacement Program are covered for as long as you own the product, no need to worry about an expiration date. Purchase your products and enjoy some worry-free motoring, knowing we've got you covered.
If you have any questions, would like to learn more or are ready to place a replacement claim, click here!
Fits These Cars
MAKE
MODEL
SUBMODEL
ENGINE
Special Fitment Notes
BMW
G42
M240i xDrive
B58 3.0L
For post 2018 November production date
