AAF Oil Pressure Sensor Relocate Kit - M20

Product Details

Since 2010, Advanced Auto Fabrication has been producing and developing both parts and full fledged race cars. Their knowledge base covers a wide range of vehicles both domestic and imported. In the specific case of BMW, the team at AAF has a particular affinity for building and designing components for BMW race cars.

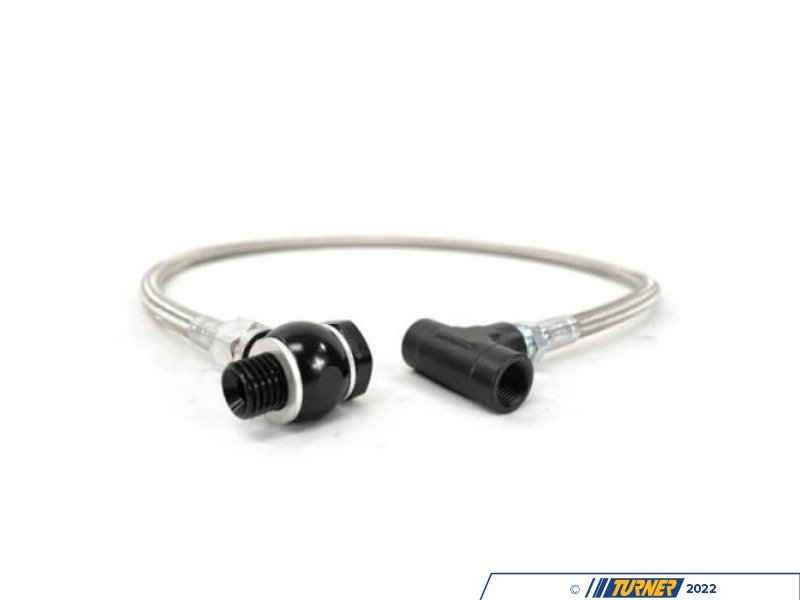

AAF's Oil Pressure Sensor Relocation Kit allows for an aftermarket low pressure switch as well as oil pressure sensor, or two 1/8' NPT pressure sensors to be installed. This can allow a gauge or light to be on the dash and still log oil pressure in a data logger. This kit also moves the oil pressure sensor away from the engine and onto the chassis (or any other spot) where is it much easier to access, or install larger size diameter sensors. Fits all M20 Engines.

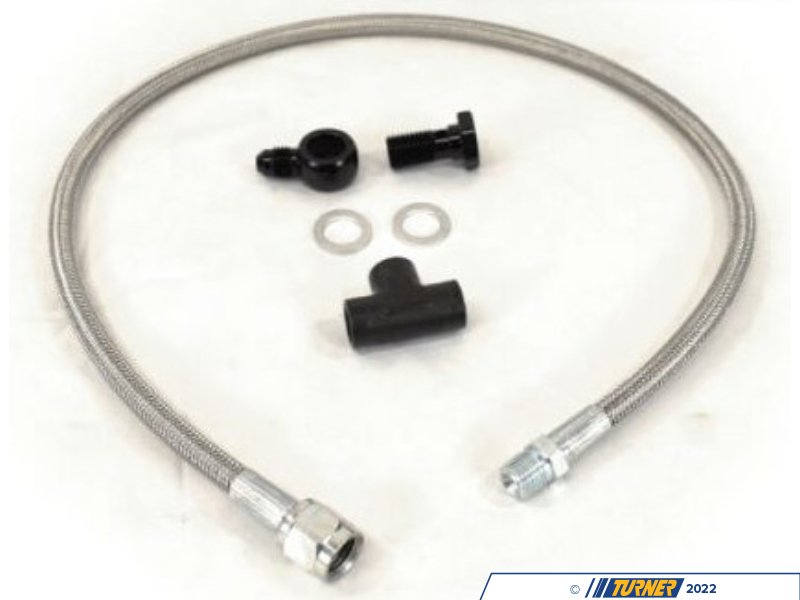

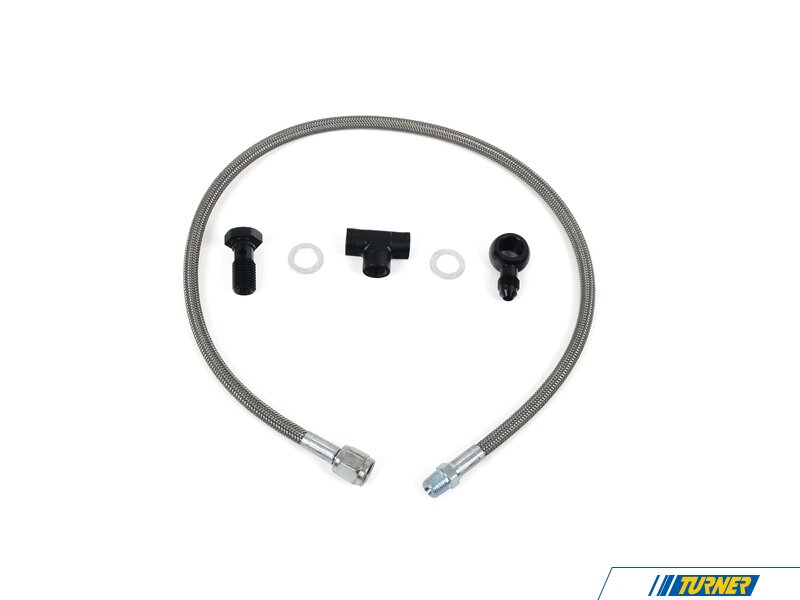

Features:

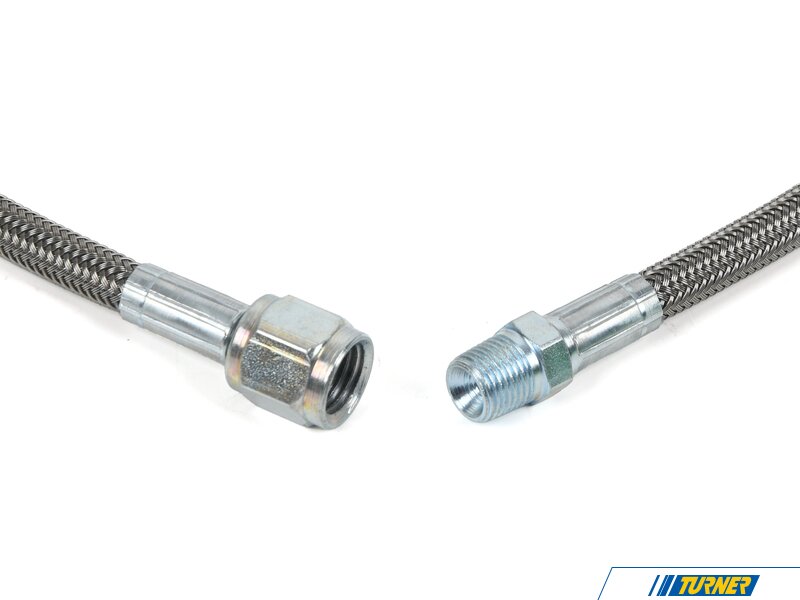

• 4AN Stainless Steel Braided Line

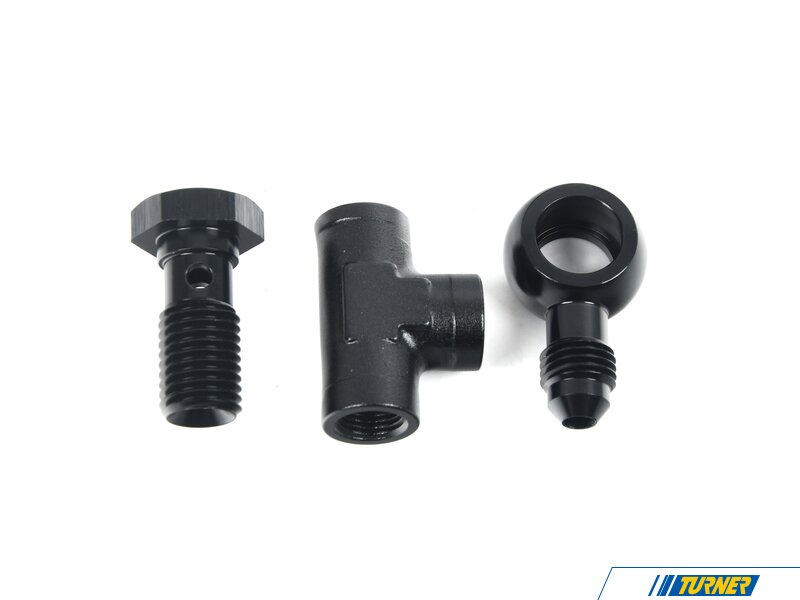

• Banjo Bolt and Fitting (installs onto block)
• 3 Way 1/8' NPT Tee Fitting, for hose from block and 2 sensors.

Note: This kit does not come with sensors – the factory low pressure switch can NOT be used. An aftermarket 1/8' NPT low pressure switch can be used with the factory wire.
