Doorbusters BMW Control Arm Replacements & Upgrades for BMW 5 Series E39 (1996-2003)

Clear BMW chassis

Please ensure your correct model is selected

Control arms, and their integrated ball joints, are some of the most crucial components on a BMW suspension. The control arms literally control the wheel and suspension as they go through their range of motions. They do more than just keep the alignment in a constant spec - they are a vital locating component for the suspension itself. A faulty or worn control arm or ball joint is a very dangerous and potentially life-threatening problem so make sure they are inspected and replaced at regular intervals.

Most control arms for BMWs consist of an inner and outer ball joint made of plastic, rubber, Delrin, or metal and covered in grease with a rubber boot to seal it from the outside. The ball joint rotates and spins as the control arm goes through its movements and that will wear the ball joint and make it loose. The grease inside the housing can also get used up, evaporate, or become contaminated from moisture and foreign particles. As the ball joint becomes worn it can result in excess movement within the housing. Your steering and handling will become less precise and there is usually a light clunking or clicking sound. In rare and extreme cases the ball joint can separate from the control arm completely, leading to a total loss of suspension and steering control. You should have the ball joint play checked annually and replace them every 3-4 years. Most track organizations will not allow a car if they are older than three years.

Control arms also take abuse from impacts and handling forces. Aluminum control arms will generally bend and prevent an accurate alignment. Steel control arms will crack and fracture and require close inspection annually and replacement every 3-4 years.

We sell OE BMW, OEM, and performance upgrade control arms from proven manufacturers. The control arm is so important to a BMW suspension that we insist on only top quality brands and designs and will never sell a control arm based on price alone. We also have upgrade packages with superior designs and better bushing options and we have bundled these together with valuable package savings.
Sort By:

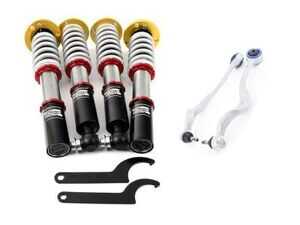

E39 Upgraded Monoball Thrust Arms With Performance Coilovers Purchase
E39 Upgraded Monoball Thrust Arms With Performance Coilovers Purchase...
Doorbusters - Corporate Logo
T#:22822588
Part#: 000188LA01DBKT
Back Ordered
$ 1,975.99 USD
Free Shipping
Add to Wish List
$ 1,975.99 USD
Free Shipping
Add to Wish List

Upgrade the suspension of your E39 6 Cylinder with ECS Tuning's BMW Coilover line, designed for daily drivers seeking enhanced performance without compromising comfort. These coilovers offer a smooth and comfortable ride, akin to stock setups, while delivering an aggressive look and significantly improved handling at a fraction of the cost.

Key Features:

  • Performance Coilover System:
    • Sport-tuned, height, damping, and body adjustable suspension
    • High-quality materials and coatings for improved performance
    • Perfect ride height without sacrificing comfort
  • Adjustable Ride Heights:
    • Initial height: Front 14"3/4, Rear 14"
    • Lowest: Front 13"1/2, Rear 12"1/2
    • Highest: Front 15"3/4, Rear 14"3/4
  • Spring Rates: Front 8kg/mm, Rear 6kg/mm
  • Performance Features:
    • 32 levels of rebound damping adjustment
    • Monotube shocks/struts with progressive rate coil springs
    • Lowered ride height improves handling
  • Product Design:
    • Durable gloss black powder coat on strut and shock bodies
    • Clear zinc-coated threaded portions for corrosion protection
    • Reflex Silver Metallic finish on powder-coated coil springs
    • Red anodized billet aluminum lower spring seats with locking collars
    • Integrated bump stops

Enhance the durability and performance of your E39 6 Cylinder with Turner's Thrust Arms featuring pre-installed monoballs. Designed to address the weaknesses of stock rubber bushings, these thrust arms offer superior durability, nearly instantaneous cornering, and braking response for an unparalleled driving experience. Ideal for both track enthusiasts and spirited street driving.

Key Features:

  • Turner Thrust Arm Monoballs:
    • Sealed OEM BMW ball joint for exceptional durability
    • Precision CNC machined 6061-T6 anodized aluminum housing
    • Knurled OD for a perfect fit and extended component life
  • Bearing Inserts:
    • CNC machined 304ss for precision fit
  • Performance:
    • Nearly instantaneous, crisp steering and braking response
    • Maintenance-free, long-lasting performance
    • Improved road feel without undesirable NVH

Ensure optimal handling and braking performance with Turner's Thrust Arms, offering a no-compromise upgrade for both track and street driving.
