BMW Coilovers for BMW 6 Series E63 (2004-2010)

The H&R Street Performance Coil Over kit takes the traditional shock/spring package one step further. H&R combines their progressive-rate springs with specially valved shocks and adds height adjusters that let you set the ride height to your own personal tastes. These coil overs are designed for street use with progressive rate springs that start out soft and stiffen as they are compressed. This helps to keep the ride compliant while still giving better handling and balance.

H&R designs each suspension to work as a coil over. This means that the correct amount of travel has been built into each shock. And the shocks are valved specifically for the spring rates to give a tight and controlled ride without being harsh or ultra-stiff. Each H&R coil over is TUV tested and approved and meets ISO quality standards. These are used with the stock strut and shock mounts for a quick and easy install.

SPECIAL PRICING FOR A VERY LIMITED TIME!
FREE GROUND SHIPPING

Height adjustment range:
F: -1.0-2.0"
R: -.75-1.5"

This coilover kit fits the following BMWs:
2004-2010 E63 BMW 645ci 650i
2004-2010 E64 BMW 645ci Convertible 650i Convertible

Looking for coilovers that will provide reliability on street driven vehicles but are also capable of feeding your weekend track demon's desire for performance? BC Racing's BR Series coilover kit may be just the thing for you.

BR Series coilovers are the most popular and versatile option offered by BC racing, offering features such as 30-level dampening adjustment (simultaneous compression and rebound control), linear springs where possible, and a minimum of 2 inches ride height drop. To ensure performance, comfort, and quality, all BR Series kits are Dyno tested during the design stage to determine the best valving and spring rates, then installed and tested for a minimum of 6 months. This kit features mounts and brackets that are fully compatible with all stock mounting points and components.

The upper shock/strut mounts are all constructed of 6061-T6 Aluminum for strength and weight savings. BC Racing design 1 of 3 types of upper mounts for each vehicle: Caster/Camber Plates (+/- 3* camber), Camber Plates (+/- 3* camber), and Rubber Mount Plates (NVH reduction). The included mount option for this kit is shown in the kit specs and features below.

Lower shock mounts are powder coated for corrosion protection and constructed of either 6061-T6 aluminum that has been milled from a single piece (fork or bolt eye mount) or of STKM13C steel with all brackets welded robotically.

The included springs come in one of 3 styles: linear, S-barrel, and V-barrel. Linear springs are used in most applications unless limited by the OE design that does not allow the use of linear springs. All spring options are made from SAE9254 steel and have a zinc coating applied under the powder coating for increased spring corrosion protection and long term reliability.

All shock bodies used in the BR Series coilovers use a 53mm shock body (unless noted otherwise) for added strength, performance, and increased fluid capacity. All shocks are then powder coated black chrome for clean styling and corrosion protection.

Specs and Features:

• 9k Front & 6k Rear Spring Rate
• S-Barrel front & Linear rear springs
• Valved specifically to spring style and rate
• Aluminum and Rubber Front Mounts
• Aluminum and Rubber Front Mounts
• Black Powder Coated Components
• All OE style brackets and mounting for perfect fit
• 30 Levels of Simultaneous Compression and Rebound Dampening
• 2 inch minimum and 3+ Inches of total potential drop
• Great for Track, Street, and any other conditions

The B16 PSS9 coilovers offer a stiffer spring rate than stock and a lower ride height for less bodyroll and better handling. These are among the easiest coil over kits on the market - no special mounts required (works with stock mounts and sway bar links), larger adjustment knob allows for easy shock damping changes, and coil over spanner wrenches included for easy height changes. Bilstein backs up their technology with a limited lifetime warranty. TUV approved for fitment, safety, and quality!

Bilstein's monotube shock dampers in the PSS9 offer 9 precise settings for compression and rebound. A new setting is just a click away, allowing you to set a ride and handling combination that works for your setting. Instead of offering too many shock settings that you're never going to use, Bilstein has chosen ten optimal damping curves from a smooth street setting (P9) to an ultra-stiff track-only setup (P1). Shock changes are made from an easy-to-use over-sized adjuster knob.

Ride height adjustments are done from perches that ride on each shock body, which are zinc coated for excellent wear and corrosion resistance. You can set the ride height between 0.5 to 1.3 inches lower than stock ride height. Springs are progressively rated so their initial compression rating is quite soft and then becomes stiffer as the spring compresses. These are stiffer than most coil over kit manufacturers and the results of Bilstein's extensive testing on the German Nurgburgring and Autobahn.

The fitment of these is just like a standard shock and spring package. The front struts and rear shocks are compatible with the stock strut and shock mounts. You can re-use your own or choose a mount with additional features. Because the Bilstein design keeps the sway bar tab in the original location, you can re-use the stock sway bar links. Using the stock mounts keeps the cost and complexity down and allows for TUV certification. You can also be assured of the stock mount's quiet and long-lasting performance. The assembly of the front strut is the same as a the factory strut. In the rear, ride height is made by an adjustable spring perch that sits under the rear spring. Install instructions and diagrams included.

If you're looking for a supremely capable and high quality suspension, then look no further than the Bilstein PSS9. It combines all of the best German engineering with real-world development, and a lifetime warranty.

Fitment note: this system works only on cars not equipped with the factory EDC electronically adjustable shocks.

Featuring:

• Largest available piston diameter for greater sensitivity and precise control.
• Patented digressive piston head design and deflective valving instantly reacts to changing road conditions.
• 9-way adjustable dampening knobs that "click" from soft to hard with no tools or jacking required.
• Monotube design dissipates heat more effectively than a twin tube shock for cooler, more efficient operation and longer life.
• Weather resistant coating to resist oxidization, and ensure long life.
• Lighter weight reduces wear and tear on suspension components.
• Wrenches to adjust front and rear ride height included!

This Bilstein PSS9 coilover kit fits the following BMWs:
2004-2005 E63 645Ci coupe
2004-2005 E64 645Ci convertibe
2006-2010 E63 650i coupe
2006-2010 E64 650i convertible

Adjustable Rebound & Compression Damping

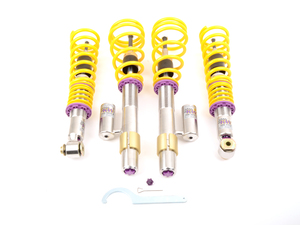

Want full control? The KW V3 gives you multiple settings for both rebound and compression. You have full access over ride comfort and handling to dial in that perfect setup. Race teams rely on adjustments to get that perfect lap time and having shock controls at your fingertips is key. KW V3 features -

• Separate adjustments for compression (14 positions) and rebound (infinite settings),
• Stiffer springs over stock for less bodyroll than the standard suspension,
• Stainless steel strut/shock bodies and composite spring perches for superior corrossion resistance,
• Individually height-adjustable - Front = 10-40mm lowering; Rear = 20-50mm lowering,
• TUV approved lowering range and operation,
• Expert engineering and design for ease-of-use and long durability,

Whether you track the car often or only use it for backroad carving the V3 will give you the tools to set up an ideal handling condition. You can crank it up for smooth and fast surfaces or soften it for city or rough roads. Since each shock is 2-way adjustable you can alter the front-rear balance to account for brake dive or squat during power application coming out of the corner. You are in total control!

Coil over suspensions are better engineered suspension options compared to a standard shock + spring package. Since the springs and shocks in a coil over are designed by a team of engineers to work together, there is much better suspension travel and more precisely tuned specifications for spring and shock rates. Using separate shock and spring specs may result in premature coil bind or shock bottoming. And most coil over kits offer more features than the traditional packages. Coil overs are also more useful when larger wheels/tires are used because you can precisely set the ride heights to clear the new tires.

Fitment Note: Wheel spacers may be required depending on wheel/tire sizing and ride height setting.

Lifetime warranty!

FREE FEDEX GROUND SHIPPING!
FREE FEDEX GROUND shipping within the 48 contiguous states.

This item fits the following BMWs:
2004-2011 E63 BMW 645ci 650i Coupe
2004-2011 E64 BMW 645ci 650i Convertible

Adjustable Rebound & Compression Damping

Want full control? The KW V3 gives you multiple settings for both rebound and compression. You have full access over ride comfort and handling to dial in that perfect setup. Race teams rely on adjustments to get that perfect lap time and having shock controls at your fingertips is key. KW V3 features -

• Separate adjustments for compression (14 positions) and rebound (infinite settings),
• Stiffer springs over stock for less bodyroll than the standard suspension,
• Stainless steel strut/shock bodies and composite spring perches for superior corrossion resistance,
• Individually height-adjustable - Front = 15-45mm lowering; Rear = 15-45mm lowering,
• TUV approved lowering range and operation,
• Expert engineering and design for ease-of-use and long durability,

• Whether you track the car often or only use it for backroad carving the V3 will give you the tools to set up an ideal handling condition. You can crank it up for smooth and fast surfaces or soften it for city or rough roads. Since each shock is 2-way adjustable you can alter the front-rear balance to account for brake dive or squat during power application coming out of the corner. You are in total control!

  Coil over suspensions are better engineered suspension options compared to a standard shock + spring package. Since the springs and shocks in a coil over are designed by a team of engineers to work together, there is much better suspension travel and more precisely tuned specifications for spring and shock rates. Using separate shock and spring specs may result in premature coil bind or shock bottoming. And most coil over kits offer more features than the traditional packages. Coil overs are also more useful when larger wheels/tires are used because you can precisely set the ride heights to clear the new tires.

  Fitment Note: Wheel spacers may be required depending on wheel/tire sizing and ride height setting.
  The factory EDC system must be disabled with the KW EDC Cancellation Kit.

  Lifetime warranty!




  This item fits the following BMWs:
  2006-2011 E63 BMW M6

Fine-tuning your coilover damping shouldn’t mean stripping out your rear seats or interior panels. On many applications, rear shock adjusters are hidden behind carpet, trim, or seatbacks, making quick adjustments a hassle.

The ECS Rear Damping Extension Kit solves that problem with a clean and functional solution. These flexible extensions relocate the adjustment knobs to an easily accessible point above the rear shock towers, letting you dial in your suspension from inside the cabin, no disassembly required.

Installation is straightforward: simply drill a small access hole in your interior trim and route the extension cables through. The adjustment knobs can be removed to allow the line to pass through smaller openings, minimizing cutting. For proper installation, be sure to fully loosen the set screw, insert the cable, then securely tighten it using the provided Allen key.

Kit Includes:

(2) Rear damping adjuster extension cables

Installation hardware and Allen key

A smart upgrade for track cars, daily drivers, or anyone who values easy access to suspension tuning, without compromising interior fit and finish.
