These 5-ply silicone reinforced couplers are capable of withstanding high temperatures and include new hose clamps. Designed for factory intercooler and aFe tubes.
Fits the Following BMWs:
E90 E92 E93 335i N54
This fully TIG-welded bar & plate design intercooler from aFe is 29% larger than stock, outflowing the factory intercooler by 17% and substantially lowering intake temperatures. Intercooler bolts into place with factory-style connections.
Fits the Following BMWs:
F30 F31 F34 328i N20

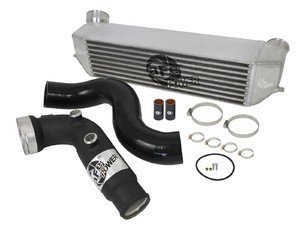

This BladeRunner Intercooler represents the next generation of intercoolers. Designed specifically for the 2007-2010 BMW 335i (E9X) L6-3.0L (tt) N54 engines, this BladeRunner intercooler utilizes a 5" bar and plate core design. This design outflows the factory tube and fin core design, while the 3/16" TIG-Welded end tanks offer superior strength and durability. In testing, this intercooler showed gains up to +14 horsepower and +18 lbs. x ft. without any type of tune, and dropped the intake air temperature up to 10 degrees.
End Tanks:
The unique BladeRunner end tanks are constructed out of 3/16" thick aluminum plates and include two 1/8" NPT ports for sensors or water-methanol injection.
5" Bar and Plate Core Design:
The use of the bar and plate core design allows for greater airflow and increased heat dissipation over the much smaller tube and fin design used by the factory.
TIG-Welded:
100% TIG-Welded inside and out by a certified craftsmen for strength and durability. TIG-Welding provides the strongest welds while reducing stress cracks.
Pressure Tested:
The BladeRunner Intercooler is test pressure rated at 200psi.
Perfect Fit:
Utilizes the factory mounting locations for a hassle-free installation. The billet 2 1/2" intercooler inlet utilizes a factory style quick connect to assure compatibility with the factory hot side inlet tube. The supplied cold side tube retains the factory style throttle body quick connect and retains the factory diverter valve connections. This kit will not work with the factory cold side intercooler tubing.
DETAILS:
Fits the following BMWs:
2007-2010 E9X 335i w/ N54
This fully TIG-welded bar & plate design intercooler from aFe is 25% larger than stock, outflowing the factory intercooler and tubes by 21% and substantially lowering intake temperatures. Intercooler and tubes bolt into place with factory-style connections.
Fits the Following BMWs:
F87 M2
Reinforced Silicone:
These couplings feature high temperature 5-Ply reinforced silicone material which meet or exceed SAEJ20 Standard.
Durable Couplings:
Allow for expansion, movement, and extreme vibration between two hard pipes while reducing the possibility of connections coming apart or having your hard pipe or other equipment break.
Note: This coupling kit fits aFe intercooler with tube (46-20152-B) Only.
Fits the following BMWs:
2007-2010 E9X BMW 335i w/ N54
This fully TIG-welded bar & plate design intercooler from aFe is 25% larger than stock, outflowing the factory intercooler and tubes by 21% and substantially lowering intake temperatures. Intercooler and tubes bolt into place with factory-style connections.
Fits the Following BMWs:
F30 335i N55 manual transmission only
This BladeRunner Intercooler represents the next generation of intercoolers. Designed specifically for the 2012-2016 BMW 328i (F3X) 12-16 L4-2.0L (t) with the N20 engine, this BladeRunner intercooler utilizes a 5" bar and plate core design. This design outflows the factory tube and fin core design, while the 3/16" TIG-Welded end tanks offer superior strength and durability. In testing, this intercooler showed flow gains up to 21% and lowered the intake air temperatures.
End Tanks:
The unique BladeRunner end tanks are constructed out of 3/16" thick aluminum plates and include two 1/8" NPT ports for sensors or water-methanol injection.
5" Bar and Plate Core Design:
The use of the bar and plate core design allows for greater airflow and increased heat dissipation over the much smaller tube and fin design used by the factory.
TIG-Welded:
100% TIG-Welded inside and out by a certified craftsmen for strength and durability. TIG-Welding provides the strongest welds while reducing stress cracks.
Pressure Tested:
The BladeRunner Intercooler is test pressure rated at 200psi.
Cold Side Tube:
Constructed of 2-1/2" to 2-3/4" mandrel-bent aluminum tubing and powder-coated wrinkle-black for heat and corrosion resistance. The smooth transition mandrel bends decrease turbulence which increases horsepower and torque. The high-temp wrinkle-black powder-coating insulates the tube from engine heat and protects the tube from corrosion. Includes stainless steel clamps for a leak-free seal and heavy-duty 5-Ply reinforced silicone coupling for strength.
Perfect Fit:
Utilizes the factory mounting locations for a hassle-free installation. The intercooler and tubes utilize billet factory style quick connects to assure a leak-free connection.
Also Fits:
2014-2016 BMW 128i/ix (F20/21) L4-2.0L (turbo) N20
2014-2016 BMW 228i/ix/220i (F22/23) 14-16 L4-2.0L (turbo) N20
2013-2016 BMW 320i/ix (F30/31/34) L4-2.0L (turbo) N20
2012-2016 BMW 328ix (F30) L4-2.0L (turbo) N20
2013-2016 BMW 328i/ix (F31/34) L4-2.0L (turbo) N20
2014-2016 BMW 420i/ix (F32/33) L4-2.0L (turbo) N20
2014-2016 BMW 428i/ix (F32/33/36) L4-2.0L (turbo) N20
Note: This intercooler kit is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicle.
This fully TIG-welded bar & plate design intercooler from aFe is 25% larger than stock, outflowing the factory intercooler by 15% and substantially lowering intake temperatures. Intercooler bolts into place with factory-style connections.
Fits the Following BMWs:
F30 335i N55
Reinforced Silicone:
These couplings feature high temperature 5-Ply polyester reinforced silicone material which meet or exceed SAEJ20 Standard.
Durable Couplings:
Allow for expansion, movement, and extreme vibration between two hard pipes while reducing the possibility of connections coming apart or having your hard pipe or other equipment break.
Note: This coupling kit fits aFe intercooler tube (46-20239-B, 46-20229-B/R, 46-20222-B) Only.
This fully TIG-welded bar & plate design intercooler from aFe is 25% larger than stock, outflowing the factory intercooler and tubes by 21% and substantially lowering intake temperatures. Intercooler and tubes bolt into place with factory-style connections.
Fits the Following BMWs:
E90 E92 E93 335i N55
This fully TIG-welded bar & plate design intercooler from aFe is 25% larger than stock, outflowing the factory intercooler and tubes by 21% and substantially lowering intake temperatures. Intercooler and tubes bolt into place with factory-style connections.
Fits the Following BMWs:
F30 335i N55 automatic transmission only
These 5-ply silicone reinforced couplers are capable of withstanding high temperatures and include new hose clamps. Designed for aFe intercooler and aFe tubes.
Fits the Following BMWs:
E90 E92 E93 335i N55
