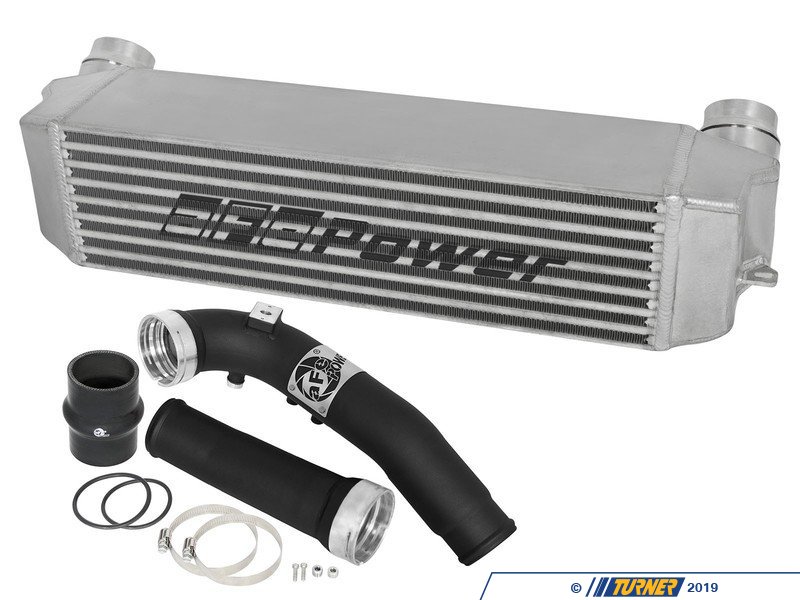

aFe Power BladeRunner GT Series Intercooler With Tubes - F22/23 228i/ix, F3X 328i/ix 428i/ix N20

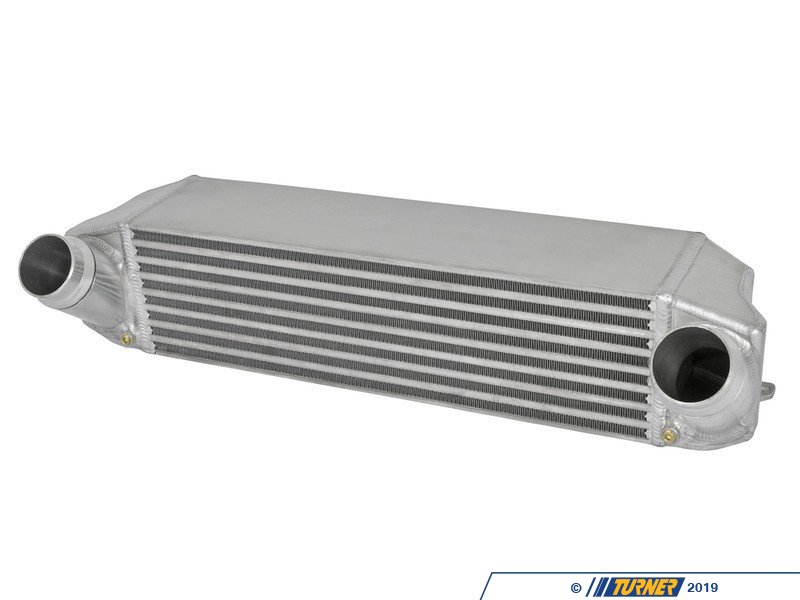

This BladeRunner Intercooler represents the next generation of intercoolers. Designed specifically for the 2012-2016 BMW 328i (F3X) 12-16 L4-2.0L (t) with the N20 engine, this BladeRunner intercooler utilizes a 5" bar and plate core design. This design outflows the factory tube and fin core design, while the 3/16" TIG-Welded end tanks offer superior strength and durability. In testing, this intercooler showed flow gains up to 21% and lowered the intake air temperatures.
End Tanks:

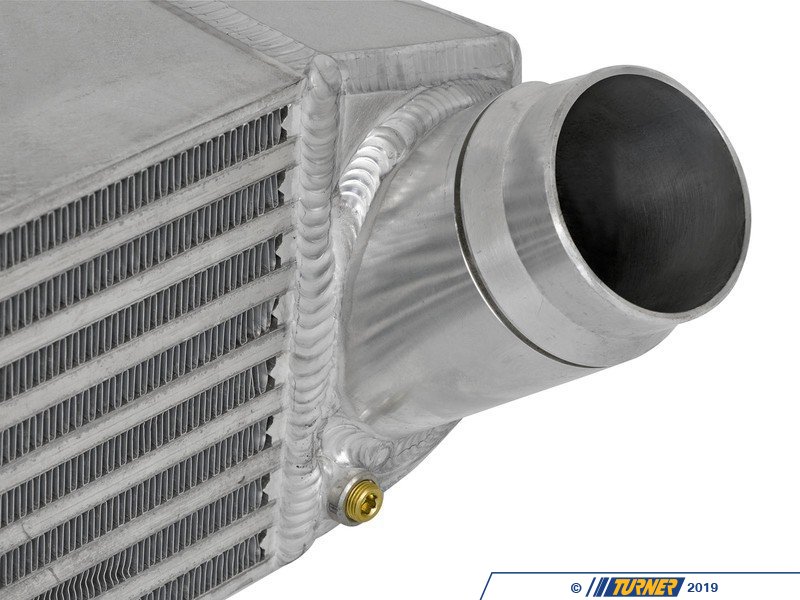

The unique BladeRunner end tanks are constructed out of 3/16" thick aluminum plates and include two 1/8" NPT ports for sensors or water-methanol injection.
5" Bar and Plate Core Design:
The use of the bar and plate core design allows for greater airflow and increased heat dissipation over the much smaller tube and fin design used by the factory.
TIG-Welded:
100% TIG-Welded inside and out by a certified craftsmen for strength and durability. TIG-Welding provides the strongest welds while reducing stress cracks.
Pressure Tested:
The BladeRunner Intercooler is test pressure rated at 200psi.

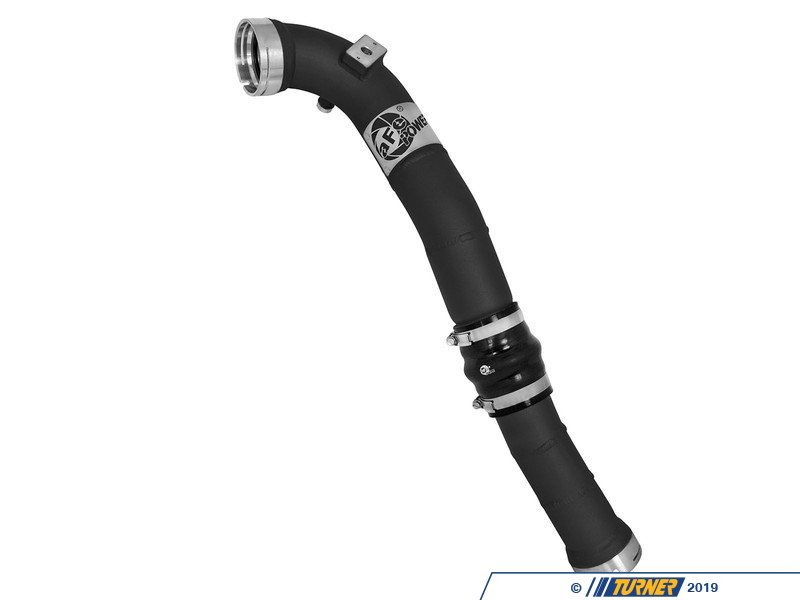

Cold Side Tube:

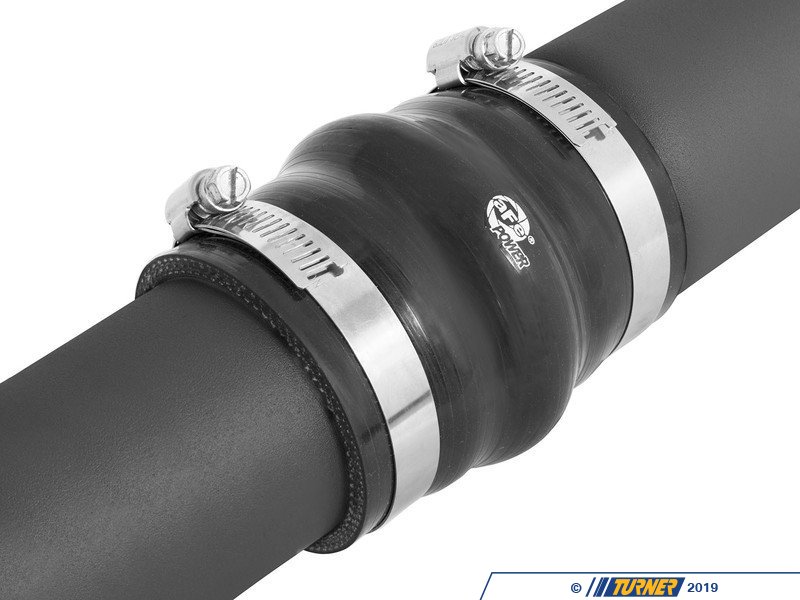

Constructed of 2-1/2" to 2-3/4" mandrel-bent aluminum tubing and powder-coated wrinkle-black for heat and corrosion resistance. The smooth transition mandrel bends decrease turbulence which increases horsepower and torque. The high-temp wrinkle-black powder-coating insulates the tube from engine heat and protects the tube from corrosion. Includes stainless steel clamps for a leak-free seal and heavy-duty 5-Ply reinforced silicone coupling for strength.
Perfect Fit:
Utilizes the factory mounting locations for a hassle-free installation. The intercooler and tubes utilize billet factory style quick connects to assure a leak-free connection.
Also Fits:
2014-2016 BMW 128i/ix (F20/21) L4-2.0L (turbo) N20
2014-2016 BMW 228i/ix/220i (F22/23) 14-16 L4-2.0L (turbo) N20
2013-2016 BMW 320i/ix (F30/31/34) L4-2.0L (turbo) N20
2012-2016 BMW 328ix (F30) L4-2.0L (turbo) N20
2013-2016 BMW 328i/ix (F31/34) L4-2.0L (turbo) N20
2014-2016 BMW 420i/ix (F32/33) L4-2.0L (turbo) N20
2014-2016 BMW 428i/ix (F32/33/36) L4-2.0L (turbo) N20
Note: This intercooler kit is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicle.
Please ensure your correct model is selected
Does NOT fit your Change Vehicle
Fits your Change Vehicle
Product Details
This BladeRunner Intercooler represents the next generation of intercoolers. Designed specifically for the 2012-2016 BMW 328i (F3X) 12-16 L4-2.0L (t) with the N20 engine, this BladeRunner intercooler utilizes a 5" bar and plate core design. This design outflows the factory tube and fin core design, while the 3/16" TIG-Welded end tanks offer superior strength and durability. In testing, this intercooler showed flow gains up to 21% and lowered the intake air temperatures.
End Tanks:
The unique BladeRunner end tanks are constructed out of 3/16" thick aluminum plates and include two 1/8" NPT ports for sensors or water-methanol injection.
5" Bar and Plate Core Design:
The use of the bar and plate core design allows for greater airflow and increased heat dissipation over the much smaller tube and fin design used by the factory.
TIG-Welded:
100% TIG-Welded inside and out by a certified craftsmen for strength and durability. TIG-Welding provides the strongest welds while reducing stress cracks.
Pressure Tested:
The BladeRunner Intercooler is test pressure rated at 200psi.
Cold Side Tube:
Constructed of 2-1/2" to 2-3/4" mandrel-bent aluminum tubing and powder-coated wrinkle-black for heat and corrosion resistance. The smooth transition mandrel bends decrease turbulence which increases horsepower and torque. The high-temp wrinkle-black powder-coating insulates the tube from engine heat and protects the tube from corrosion. Includes stainless steel clamps for a leak-free seal and heavy-duty 5-Ply reinforced silicone coupling for strength.
Perfect Fit:
Utilizes the factory mounting locations for a hassle-free installation. The intercooler and tubes utilize billet factory style quick connects to assure a leak-free connection.
Also Fits:
2014-2016 BMW 128i/ix (F20/21) L4-2.0L (turbo) N20
2014-2016 BMW 228i/ix/220i (F22/23) 14-16 L4-2.0L (turbo) N20
2013-2016 BMW 320i/ix (F30/31/34) L4-2.0L (turbo) N20
2012-2016 BMW 328ix (F30) L4-2.0L (turbo) N20
2013-2016 BMW 328i/ix (F31/34) L4-2.0L (turbo) N20
2014-2016 BMW 420i/ix (F32/33) L4-2.0L (turbo) N20
2014-2016 BMW 428i/ix (F32/33/36) L4-2.0L (turbo) N20
Note: This intercooler kit is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicle.
Not for sale or use in the state of California on any pollution-controlled vehicle as per the California Air Resources Board.
