Piggyback Tuning Modules

BMW OBD2 Cable K+DCAN Cable - FTDI FT232RL Style provides a reliable solution for connecting your BMW to a laptop or tablet for advanced diagnostics and coding using various software options. This high-quality cable is designed for use with BMW vehicles, offering versatile compatibility and ease of use.

• Comprehensive Connectivity: Enables diagnostics and coding for a wide range of BMW models by connecting to a laptop or tablet.
• Supports Multiple CAN Protocols: Includes support for D-CAN, PT-CAN, and K-CAN operation, with a convenient switch for selecting the appropriate protocol.
• Driver Software Included: Comes with a CD containing the necessary driver software for seamless setup.
• Wide Vehicle Compatibility: Compatible with numerous BMW models, including E60, E63, E64, E83, E81, E87, E82, E88, E90, E91, E92, E93, E70, E71, E72, R55, R56, R57, R50, R52, R53, E46, E53, and E65, E66, E67. Also supports 1995-1998 vehicles without K-Line.
• Diagnostic and Coding: Ideal for performing diagnostics and coding tasks, although diagnostic and coding software must be purchased separately.

Adding between 60-75 WHP/WTQ on BMW S58 powered applications, the Dinan PCU is our newest in-line tuner that not only gives more power but also many additional features accessible via our free BT phone app. Changing power levels as well as monitoring the health of your vehicle via logging, code reading, and gauges (to name a few) has never been easier!

More Power: Max gains between +61-67 HP and +57-73 lb-ft TRQ (Wheel); +70-76 HP and +61-77 lb-ft TRQ (Crank), depending on application

Bluetooth connectivity and control via free iOS or Android PCU apps

Multiple power levels, plus stock, to choose from

Designed for peak performance utilizing pump gas fueling; 91octane tuning (levels 1-3) and 93 octane tuning (Levels4-5)

Improves power and torque across the entire RPM range

Customizable in-app gauges

Real-time logging up to 20 (16 max at one time) parameters courtesy of CAN/OBDII integration and the supplied PCU app

Logs can be viewed directly in the PCU app or exported/emailed as a CSV file for more detailed scrutiny

Boost by gear user customization to reduce unwanted wheel spin in lower gears

Read and clear fault codes as well as check emissions readiness

Retains all factory safeguards and works flawlessly with onboard emissions controls

Unaffected by factory updates

Plug-and-play installation

Unplug and go back to stock at any time or transfer the unit (Not VIN locked)

Designed, developed, and manufactured entirely in the USA

Developed wholly from the ground up, the Dinan Power Control Unit (PCU) is an evolutionary step in Dinan in-line tuning models based off over a decade of lessons learned in the category. At its core the PCU is like its precursors and installs in between select sensors and the ECU, adjusting these signals in order to achieve increased performance the stock programming is unable to approach. However, what sets the PCU apart is its integration into more than just the fundamental boost sensors but also additional connections--inclusive of OBDII. The result is a more capable system that can do so much more than just increase power. Live monitoring of vehicle health via logging, customizable gauges, and code reading/clearing, among others, are now possible ensuring a seamless tuning experience even a novice can be comfortable with.

The Dinan PCU is controlled by a free Bluetooth app, available for both iOS and Android, and is home to all the potent features the device offers. Equipped with 5 different pre-set performance levels, in addition to stock, you can choose to select your desired output and enjoy more power for a true install-and-forget experience, or you can opt to engage in the more advanced features at your fingertips. Boost by gear customization, as an example, allows you to limit power delivery as you see fit in lower gears ensuring optimum traction and a perfect launch. Where the PCU shines however is in data acquisition and monitoring that gives insight into the vehicle's overall health and makes certain your tuned vehicle is always running at peak potential.

Safety and reliability have been cornerstones of the Dinan brand for generations and not only does the Dinan PCU not hinder any factory safeguards or emissions controls but incorporates its own safeties as well. Going one step beyond our own internal protections, the PCU also grants the end user the ability to monitor up to 20 different engine parameters in real-time via customizable in-app gauges for verification of worry-free operation. Those same parameters can also be logged/viewed in app (or exported to CSV) for further scrutiny if desired.

All told, the Dinan PCU delivers more power and more features with improved reliability and drivability than ever offered before. Performance without sacrifice is alive and well!

SKU variations / Warranty: The Dinan S58 PCU is available with a standard 2-YR product-only warranty (Dinan S58 PCU–D440-0200) or a factory matching 4-YR/50k mile warranty (Dinan+ S58 PCU–D440-0200-W) that covers both consequential damages as well as labor reimbursement. Functionally, the units are identical but carry different warranty terms. In the case of the factory matching warranty Dinan+ PCU, the warranty ONLY applies to the first VIN the unit is installed on. Successive VIN’s will not be granted warranty coverage from Dinan.

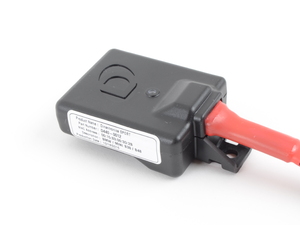

This boost controller was designed from the beginning to be easily installed and even easier to use. It plugs into a sensor and uses the factory DME to re-map boost, timing, and fuel maps. Changes can be made via Bluetooth, allowing you to use your smartphone to turn boost up for max performance or down for conservative driving. The app contains a live boost monitor that streams data in real time.

• Up to 40HP/50lb/ft gain
• Easy installation
• Adjust boost via free Bluetooth app
• Live, real-time streaming boost data on your smartphone
• Worth 1 point toward your Dinan badge

For over 35 years, Dinan has been America's premier tuning company, pioneering advancements in BMW modification while retaining a focus on balanced performance that preserves the original character and driving feel that a BMW offers. When you install this Dinan part on your car, know that it's not only carefully developed and tested, but that Dinan stands behind it with a one year warranty. Dinan believes so fully in their “total package” approach that once your car has been fitted with enough of their parts, they celebrate your conversion from stock to Dinan with an exclusive trunk badge, displayed proudly by BMW enthusiasts everywhere.

Note: Dinan's one year warranty on DINANTRONICS Sport modules covers the product itself, and not damage related to misuse or associated labor costs.

A simple Plug-and-Play system, this small boost controller is the perfect way to monitor your boost levels and make adjust with ease via a Bluetooth connection to either your Android or Apple device. Installation is simple, connecting to just a single sensor. Once installed this small, but powerful, package works in tandem with the DME re-mapping fuel, boost levels, and timing to get the highest performance possible out of your engine, giving you a gain of up to 30hp and 40ft/lb of torque for the 2.0L B46/48 engine or up to 20hp and 40ft/lb of torque for the 1.5L B38 engine.

Want to make adjustments? The Bluetooth connection allows you to turn up or down boost pressure levels on the fly with just a slide of your thumb! Or, for a bit more control, you can select from one of the optional 3 presets: Sport, Sport+, and Race. Night out on the town? Set the system to Valet Mode to limit the amount of boost and prevent someone from going on a thrilling joy-ride. All of these features are easily controlled from the free app for both Android and Apple Phones. Another great perk of this app is its live boost monitor, letting you see what you can already feel similarly to the iDrive sport gauge system.

Product Features:

• Up to +30 HP and +40 lb-ft (B48), Up to +20 HP and +40 lb-ft (B38)
• Bluetooth smart (Android and iOS Compatible)
• Live boost monitor
• Multiple power settings to choose from (Sport, Sport+, and Race).
• Valet / parental control modes (-3 PSI)
• Quick, easy, and discrete installation
• Automatically detects engine type and loads appropriate mapping
• CARB EO submitted and approval is pending.
• 14 day satisfaction guarantee
• 1 year product warranty (does not include consequential damages or labor costs)


Fits the following vehicles:

2014-2017 Mini Cooper

2014-2017 Mini Cooper S

2015-2017 Mini Cooper JCW

2016-2017 Mini Clubman

2016-2017 Mini Clubman S

2016-2017 Mini Clubman JCW

2017+ Mini Countryman

2017+ Mini Countryman S

2016+ BMW X1 28i

BMW N54 JB4 2 Step / NLS Relay is a powerful add-on for BMW N54 engines that enables your JB4 to “2-step” by cycling power to the ignition coils, allowing for quick boost build-up even when the engine is not under load. Ideal for both manual and automatic transmissions, this relay is perfect for creating dramatic sound effects and for launching with manual transmissions. Additionally, it provides No Lift Shifting (NLS) capability for manual cars, enhancing performance and shifting speed.

• Enables 2-step functionality for boost control, enhancing launch performance
• No Lift Shifting (NLS) for seamless gear changes in manual transmissions
• Compatible with both manual and automatic BMW N54 models
• Easy installation with updated JB4 firmware (v32_15 for twin turbo or v13_7 for single turbo) - clutch wire no longer required
• Requires JB4, back-end flash map, and either a BMS data cable or JB4 mobile connect kit
