E36 M3 96-99 Stage 2 Turner Motorsport Performance Package

N3TKIT
Mfg Part #
TMS-I3TKIT
Turner Part #
T#153
Brand
Price:
Qty
1535.85
Ships on Jun 25, 2018
Free Shipping Free Shipping
Does this fit my vehicle?
For accurate results, specify your model below.

Product Details

1996-99 E36 M3 Stage 2 Performance Package
Peak Power Gain: +15whp / +13wft-lbs Rev limit: 7000
Octane: 91 or higher

Stage 2 Performance Package includes:
aFe Euro Cold Air Intake (oiled cotton filter, heat shield, HFM adatper, and intake tube)
Porsche 911 3.5" HFM (Bosch #0 280 217 803 or 0 280 217 809)
Turner HFM wiring harness adapter and bracket
"24lb" fuel injectors
TMS Shark Injector performance software
hardware, install instructions

Our Stage 2 for the E36 M3 and MZ3 is a building block to Stages 3, 4, and 5. All of the following stages require the parts from Stage 2. In this Package we supply a aFe Euro Cold Air Intake, TMS 3.5" HFM with adapter, "24lb" Bosch fuel injectors, associated installation hardware and instructions, and TMS-exclusive Stage 2 software (co-developed with Jim Conforti).

The aFe Euro intake is designed for a 3.5" HFM and includes a heat shield to block warm air from the engine compartment. The aFe intake uses an oiled cotton air filter for maximum air flow and excellent filtration. The kit is supplied complete with heat shield, intake tube, sealing materials, hardware, and install instructions.

The HFM is 3.5 inches in diameter - a half-inch larger than the stock HFM. We selected the HFM from the Porsche 911 (993) because of its superior metering capability over the Euro M3 or 540 HFM. This HFM comes with a custom wiring harness for a seamless install and full compatibility with the Siemens DME and Conforit software. The beauty of this HFM is that it reads airflow far more accurately than less-expensive other HFMs on the market. Imagine the data stream on a strip of tape 3 feet long. A stock or Euro/540 HFM will read that data 50 times for the length of the tape. The Porsche HFM will read the same data 300 times in that same distance. That extra metering allows us to fine-tune the software to make the engine more responsive, smoother, and produce more power!

We found that the stock fuel injectors on the S52 engine were at their maximum capacity with the larger HFM and intake. To prevent dangerous lean conditions we spec'd out a larger set of Bosch fuel injectors (24lb/hour or 25.5lb at the BMW-spec 3.5bar of pressure). The software was recalibrated to match the larger fuel flow.

The rest of this Package is made up of a HFM adapter to work with the stock throttle body boot (Samco silicone boot optional), installation hardware, HFM wiring harness, and installation instructions. As a Package, installation time for the typical do-it-yourselfer would be 3-4 hours.

Related Upgrades -
Underdrive Power Pulley Kit - Underdriving means each component is moving slower which requires less power. The saved horsepower is put back to the engine where it transfers to power at the wheels. Power gains are typically 10hp at the wheels.
Exhaust - Borla or Corsa cat-back muffler for more performance, lighter weight, and a more-aggressive sound. Expect a gain of 5whp with either of these exhausts.

This item fits the following BMWs:
1996-1999 E36 M3 (manual transmission)

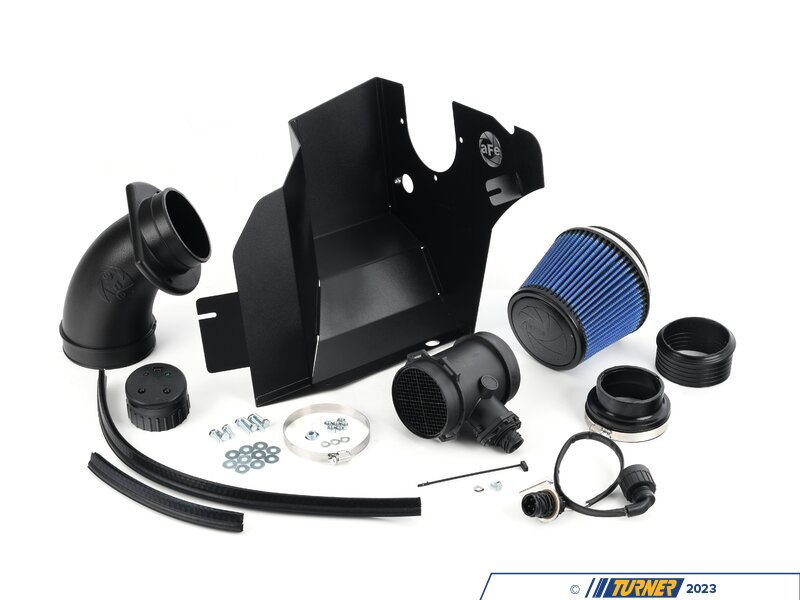

Kit Contents

Description Qty
Mass Air Flow Meter 1
aFe Intake Kit - E36 323/325/328/M3 - Stage 2 Pro5R 1
E36 M3 Euro HFM Adapter (to Stock Throttle Body Boot) 1
Bosch 24 lb Fuel Injector 6
Turner Porsche 3.5" HFM Wiring Harness Adapter 1
Shark Injector File - E36 M3 Turner Stage 2 (HFM/Fuel Injectors Kit) 1

This Part Fits the Following BMWs

Make Model Submodel Engine
BMW E36 M3 S52 3.2L
