Ultimate Clutch Pedal - E82, E90, E92, F22, F30, F32

Mfg Part #
UCP310
Turner Part #
T#187011
Brand
Price:
Qty
295.00
Ships on Aug 10, 2018
Free Shipping Free Shipping
Does this fit my vehicle?
For accurate results, specify your model below.

Product Details

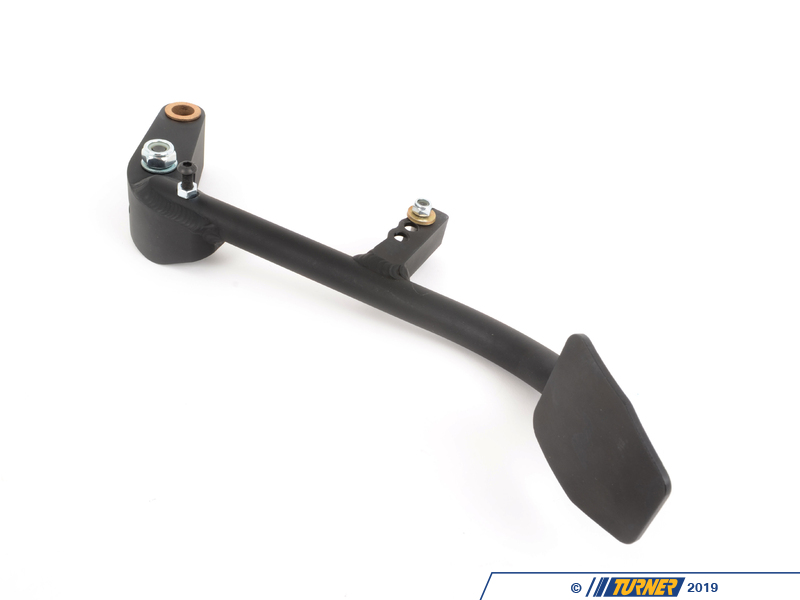

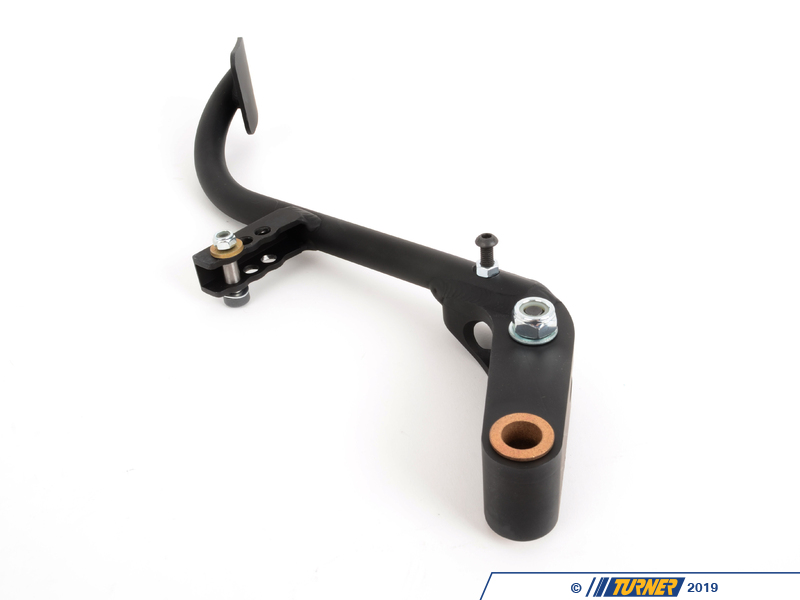

This is the Ultimate Clutch Pedal. Experience faster shifts and a more robust feel in the pedal with this precision engineered clutch arm. The Ultimate Clutch Pedal replaces the stock plastic arm with one made from billet and 6061 aluminum tube. Instead of mounting with a stock nylon bushing that wears over time and allows excessive play, the UCP uses self-lubricating and maintenance-free bronze bushings. Combined with a much stronger, CNC-machined base nearly all slop and deflection has been eliminated from the clutch action. This is an upgrade that you will appreciate on every shift! Especially on vehicles with higher mileage where the stock clutch arm bushings have worn. Even when new the rubber mounted arm lacks a high quality and precise feel. This changes everything! This pedal upgrade was designed and developed over the course of a year by racers and driving instructors alike. All had praise for the improvements the UCP makes in feel, shift speed, and rigidity.

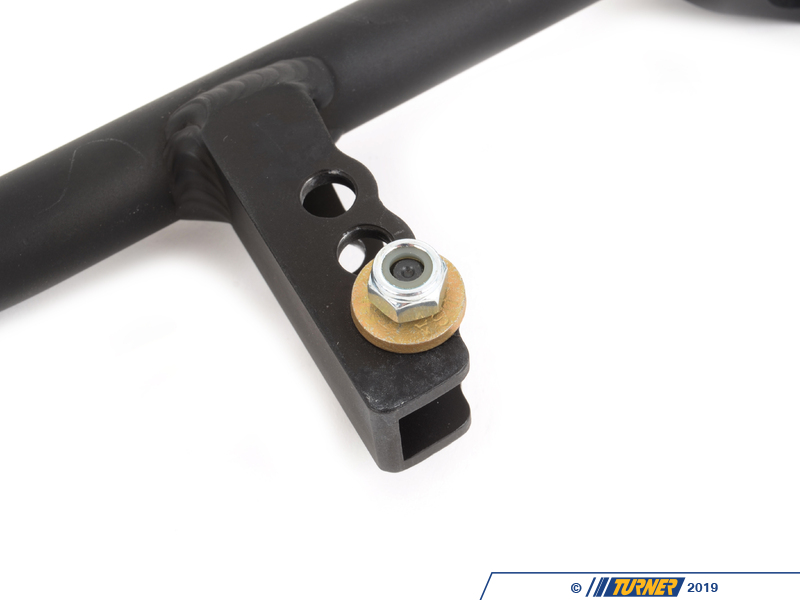

The Ultimate Clutch Pedal is a short throw design and sits 15mm lower than the original pedal position. There's less 'leg lift' to put your foot at the top of the pedal. This eliminates wasted motion and saves time during every shift. An adjustable clutch stop is included to fine tune the travel and release characteristics. This pedal also has an adjustable tension feature. The amount of tension on the spring is adjustable to one of three positions.

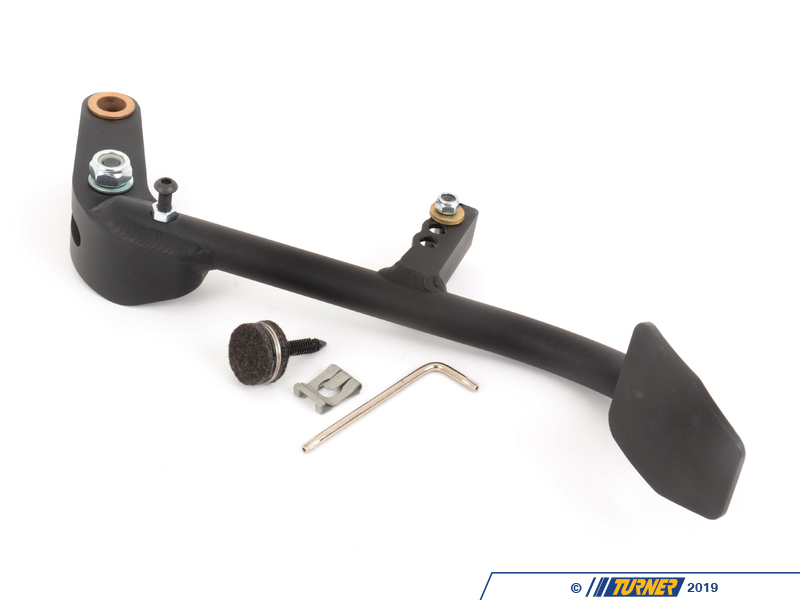

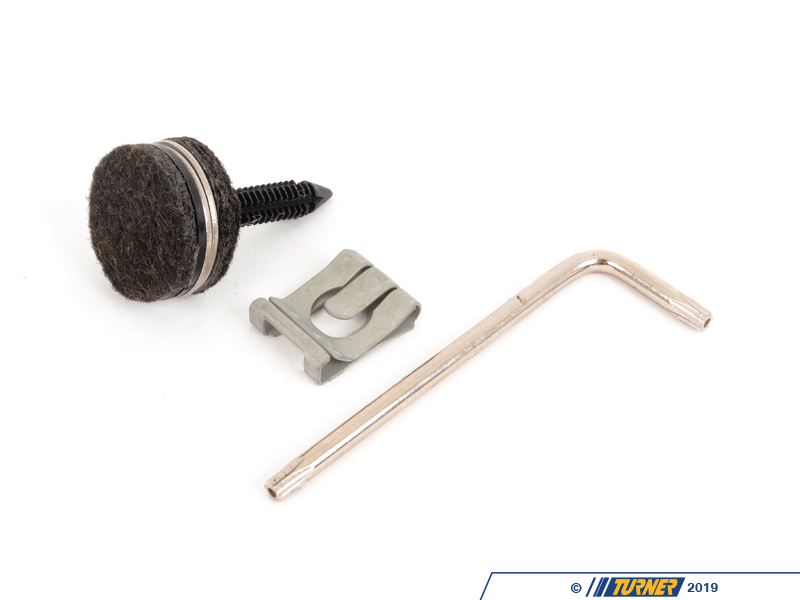

The pedal has been designed to accept the stock rubber pedal pad or any suitable aluminum pedal pad (BMW, Turner, etc). This, along with the black anodized finish, helps to maintain a stealthy, stock-like appearance. It installs in place of the factory clutch arm and is completely reversible (no alterations or modifications required). Access to the pedal assembly on the interior firewall is required and a T20 Torx tool is included to aid in installation. Overall install time should be less than an hour. Instructions are included.

This item fits the following BMWs:
2008-2012 E82 BMW 128i 135i 1M Coupe
2014+ F22 BMW 228i M235i
2006-2011 E90 BMW 325i 325xi 328i 328xi 328i xDrive 330i 330xi 335d 335i 335xi 335i xDrive M3 - Sedan
2006-2012 E91 BMW 325xi 328i 328xi 328i xDrive - Wagon
2007-2013 E92 BMW 328i 328xi 328i xDrive 335i 335is 335xi 335i xDrive M3 - Coupe
2007-2013 E93 BMW 328i 335i M3 - Convertible
2012+ F30 BMW 320i 328i 335i - Sedan
2012+ F31 BMW 328i - Wagon
2014+ F34 BMW 328i 328iX - Gran Turismo
2014+ F32 BMW 428i 435i 435iX - Coupe
2013+ E84 BMW X1 28i X1 35i

This Part Fits the Following BMWs

Make Model Submodel Engine
BMW E82 1 M Coupe N54 3.0L
BMW E82 128i N52 3.0L
BMW E82 135i N54 3.0L
BMW E82 135i N55 3.0L
BMW E84 X1 sDrive28i N20 2.0L
BMW E84 X1 xDrive35i N55 3.0L
BMW E88 128i N52 3.0L
BMW E88 135i N54 3.0L
BMW E88 135i N55 3.0L
BMW E90 325i N52 3.0L
BMW E90 325xi N52 3.0L
BMW E90 328i N52 3.0L
BMW E90 328xi N52 3.0L
BMW E90 330i N52 3.0L
BMW E90 330xi N52 3.0L
BMW E90 335i N54 3.0L
BMW E90 335i N55 3.0L
BMW E90 335xi N54 3.0L
BMW E90 335xi N55 3.0L
BMW E90 M3 S65 4.0L
BMW E91 325xi N52 3.0L
BMW E91 328i N52 3.0L
BMW E91 328xi N52 3.0L
BMW E92 328i N52 3.0L
BMW E92 328xi N52 3.0L
BMW E92 335i N54 3.0L
BMW E92 335i N55 3.0L
BMW E92 335is N54 3.0L
BMW E92 335xi N54 3.0L
BMW E92 335xi N55 3.0L
BMW E92 M3 S65 4.0L
BMW E93 328Ci All
BMW E93 328i N52 3.0L
BMW E93 335i N54 3.0L
BMW E93 335i N55 3.0L
BMW E93 335is N54 3.0L
BMW E93 M3 S65 4.0L
BMW F22 228i N20 2.0L
BMW F22 228i xDrive N20 2.0L
BMW F22 230i B46 2.0L
BMW F22 230i xDrive B46 2.0L
BMW F22 M235i N55 3.0L
BMW F22 M235i xDrive N55 3.0L
BMW F22 M240i B58 3.0L
BMW F22 M240i xDrive B58 3.0L
BMW F23 228i N20 2.0L
BMW F23 228i xDrive N20 2.0L
BMW F23 230i B46 2.0L
BMW F23 230i xDrive B46 2.0L
BMW F23 M235i N55 3.0L
BMW F23 M235i xDrive N55 3.0L
BMW F23 M240i B58 3.0L
BMW F23 M240i xDrive B58 3.0L
BMW F30 320i N20 2.0L
BMW F30 320i xDrive N20 2.0L
BMW F30 328d N47 2.0L
BMW F30 328d xDrive N47 2.0L
BMW F30 328i N20 2.0L
BMW F30 328i xDrive N20 2.0L
BMW F30 335i N55 3.0L
BMW F30 335i xDrive N55 3.0L
BMW F30 340i B58 3.0L
BMW F30 340i xDrive B58 3.0L
BMW F30 ActiveHybrid 3 N55 3.0L
BMW F31 328d xDrive N47 2.0L
BMW F31 328i xDrive N20 2.0L
BMW F32 428i N20 2.0L
BMW F32 428i xDrive N20 2.0L
BMW F32 430i B46 2.0L
BMW F32 430i xDrive B46 2.0L
BMW F32 435i N55 3.0L
BMW F32 435i xDrive N55 3.0L
BMW F32 440i B58 3.0L
BMW F32 440i xDrive B58 3.0L
BMW F33 428i N20 2.0L
BMW F33 428i xDrive N20 2.0L
BMW F33 430i B46 2.0L
BMW F33 430i xDrive B46 2.0L
BMW F33 435i N55 3.0L
BMW F33 435i xDrive N55 3.0L
BMW F33 440i B58 3.0L
BMW F33 440i xDrive B58 3.0L
BMW F34 328i xDrive N20 2.0L
BMW F34 335i xDrive N55 3.0L
BMW F34 340i xDrive B58 3.0L
BMW F36 428i N20 2.0L
BMW F36 428i xDrive N20 2.0L
BMW F36 430i B46 2.0L
BMW F36 430i xDrive B46 2.0L
BMW F36 435i N55 3.0L
BMW F36 435i xDrive N55 3.0L
BMW F36 440i B58 3.0L
BMW F36 440i xDrive B58 3.0L
BMW F48 X1 sDrive28i B46 2.0L
BMW F80 M3 S55 3.0L
BMW F82 M4 S55 3.0L
BMW F83 M4 S55 3.0L
BMW F87 M2 N55 3.0L
*The above product applications have been written by Turner Motorsport. All warranties, product application, fitment, and performance are the responsibility of Turner Motorsport. For additional information see the terms of use.
