030358LA - Single Vanos Billet Valve Cover - M50TU/M52, S50/S52

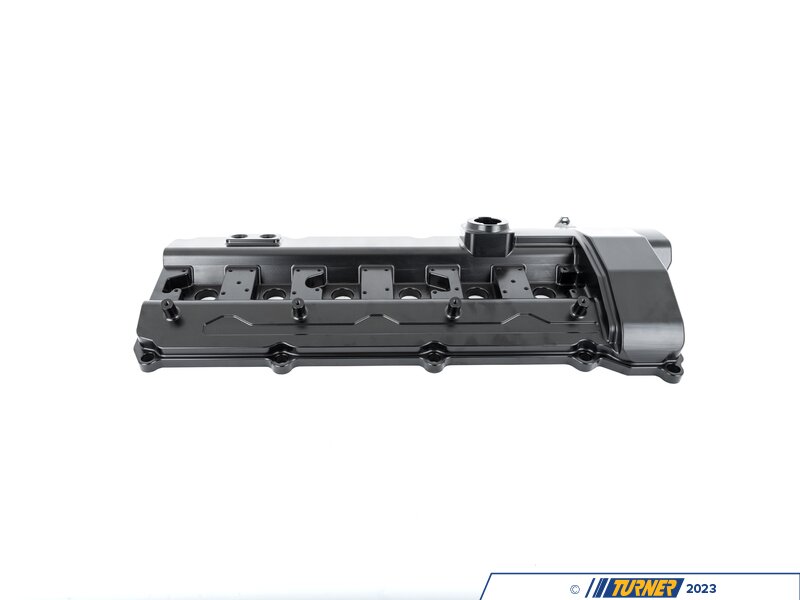

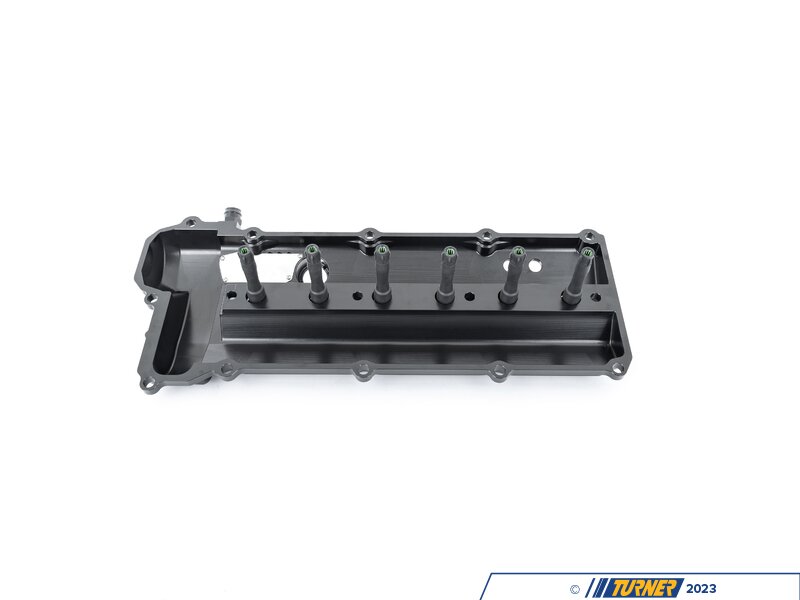

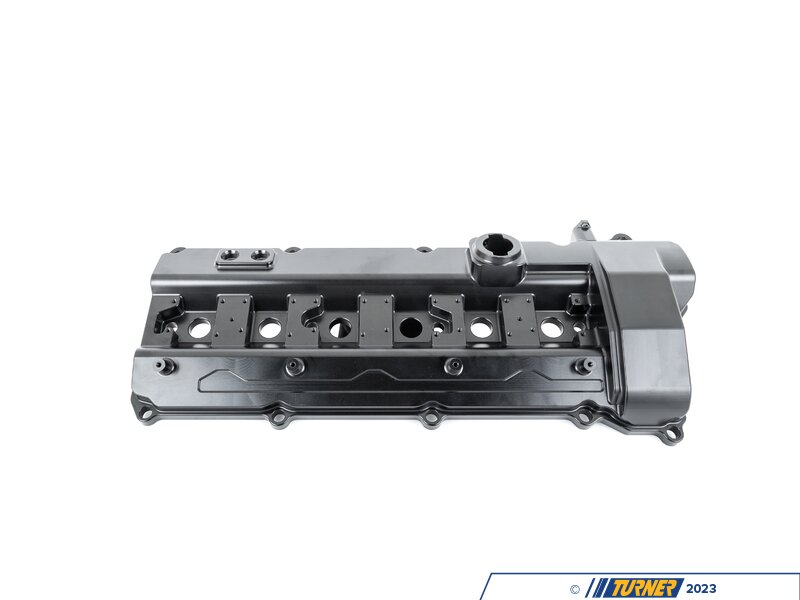

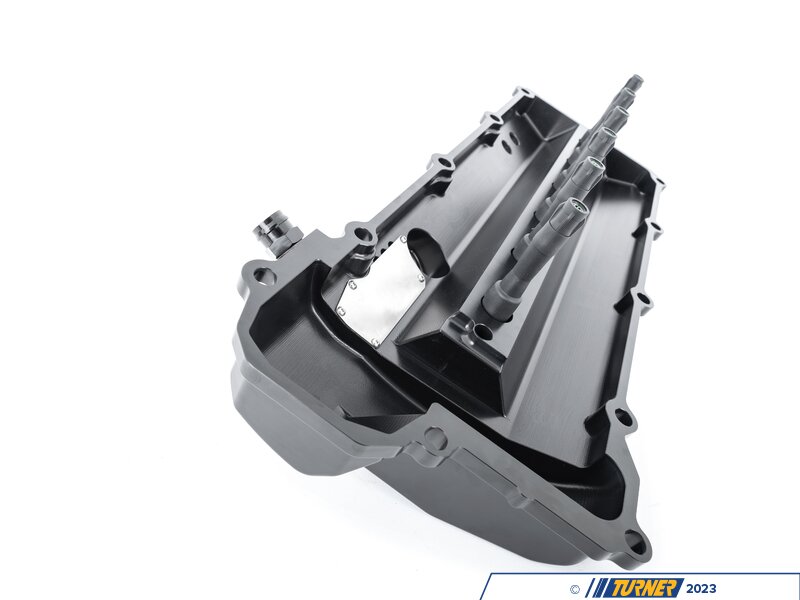

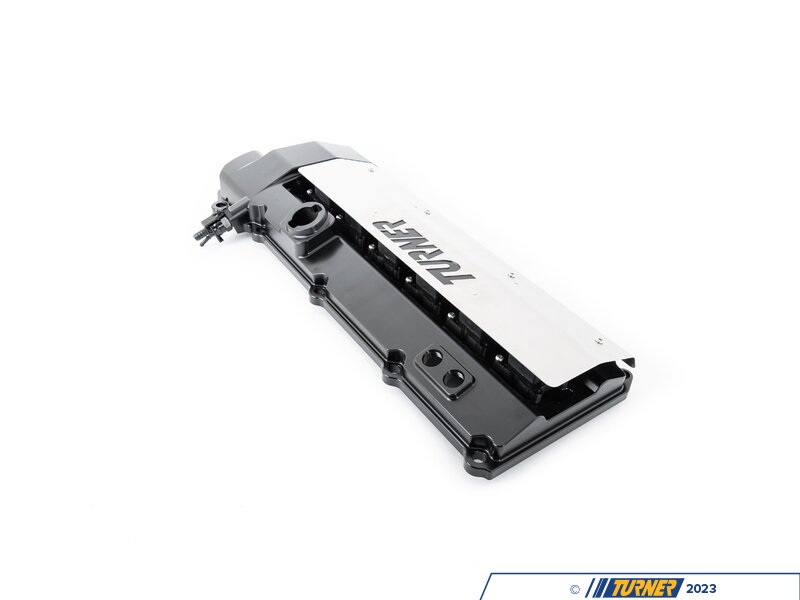

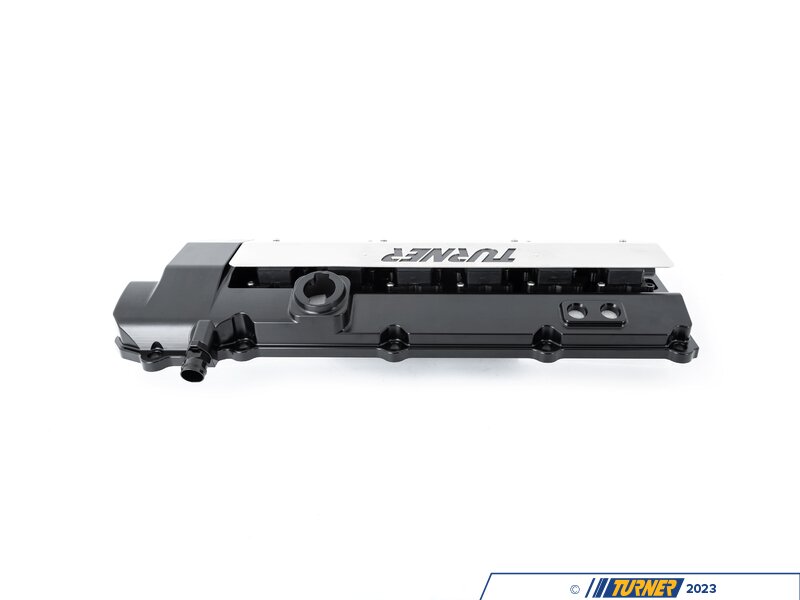

Single Vanos Billet Valve Cover - M50TU/M52, S50/S52

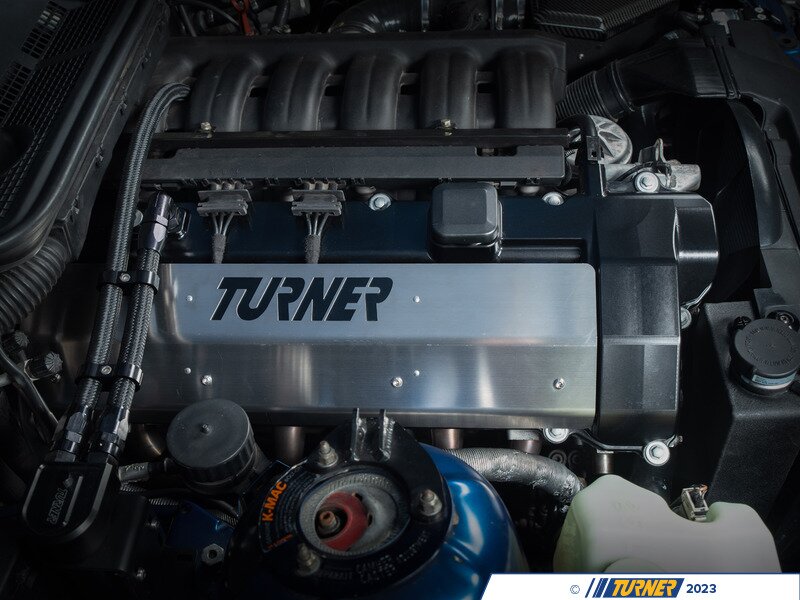

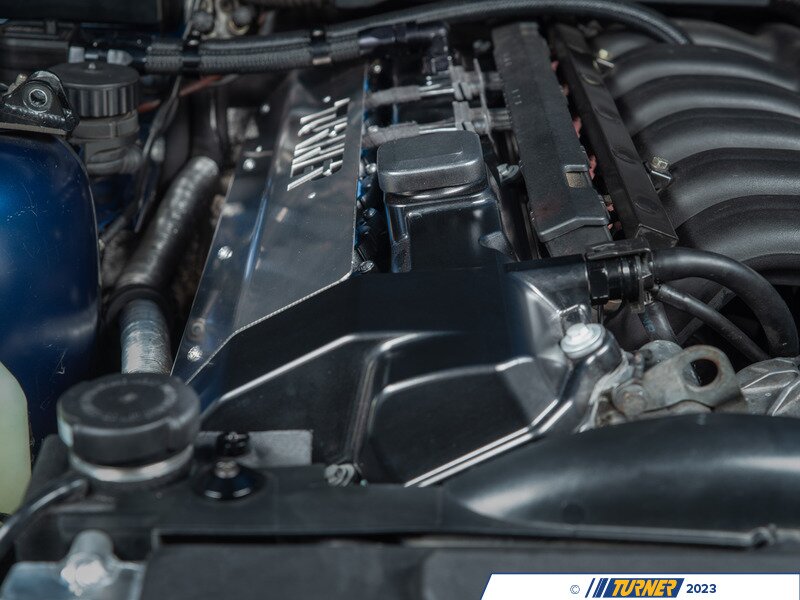

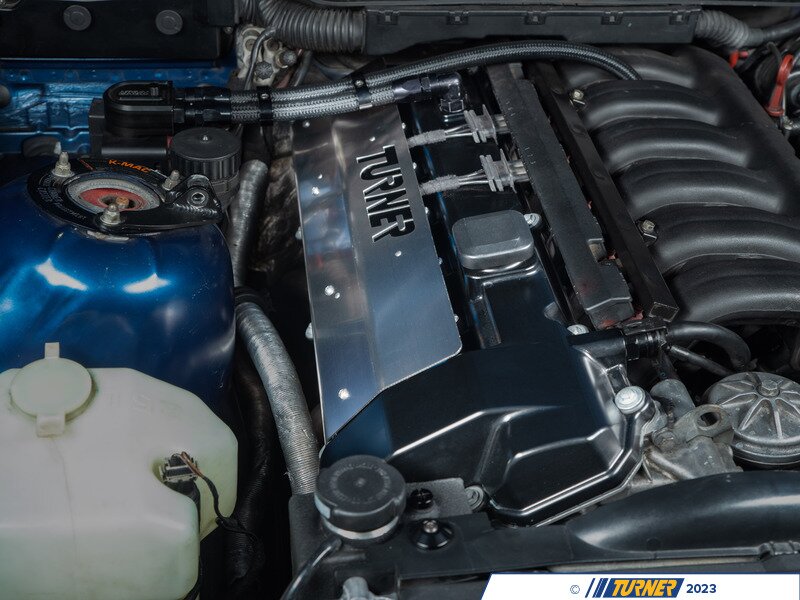

Introducing our newest upgrade for your E36: a full billet aluminum valve cover engineered to eliminate factory and aftermarket valve cover issues. If you're familiar with our new Turner Motorsport products for 2023 and 2024 you can tell that our engineering team at Turner has a focus on older chassis, especially the E36.

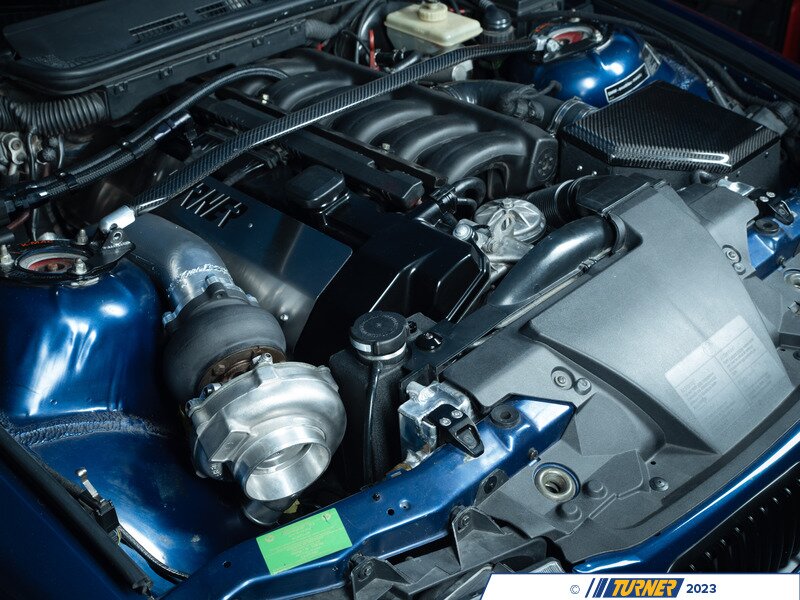

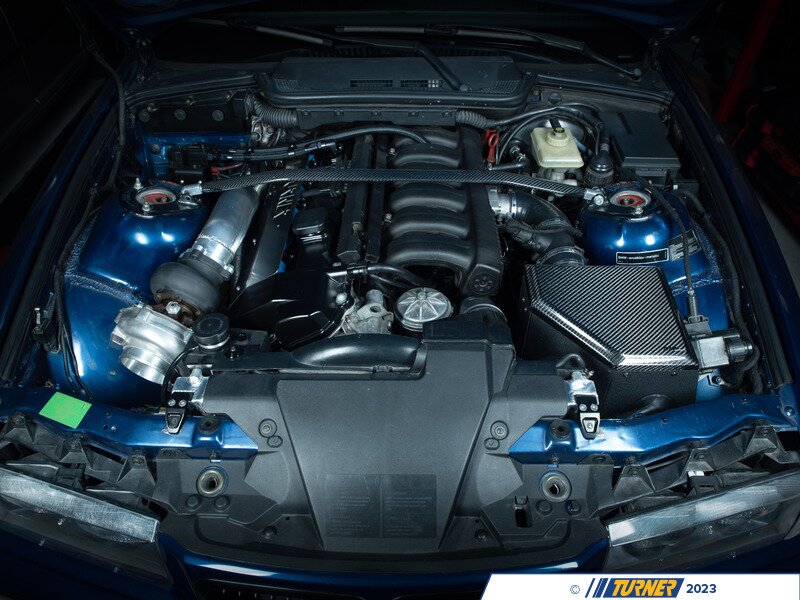

Our valve cover is designed to fit some of the best engines BMW ever came out with, single vanos M50/M52 and S50/S52. Not only are these great motors in general and deserve an upgraded valve cover but they are also prime for boosting. When adding boosting you will be introducing heat which can wreak havoc on your ignition system and make your factory valve cover extremely prone to failure.

The reality of the M5x/S5x motors is that the plastic valve covers are sub-par and the magnesium versions are no longer available from BMW and even those can even warp. You can end up replacing your valve cover time and time again dealing with issues if you prefer but the option is here for you. The last valve cover you buy for your E36.

Our engineers designed this valve cover with experience and personal passion that offers a plethora of benefits for your M5x/S5x motor. Whether you plan to cherish your E36 for years to come or envision a turbocharger upgrade, our valve cover is the ultimate solution. It boasts rugged durability and brilliant aesthetics, ensuring it's a perfect fit for any enthusiast.

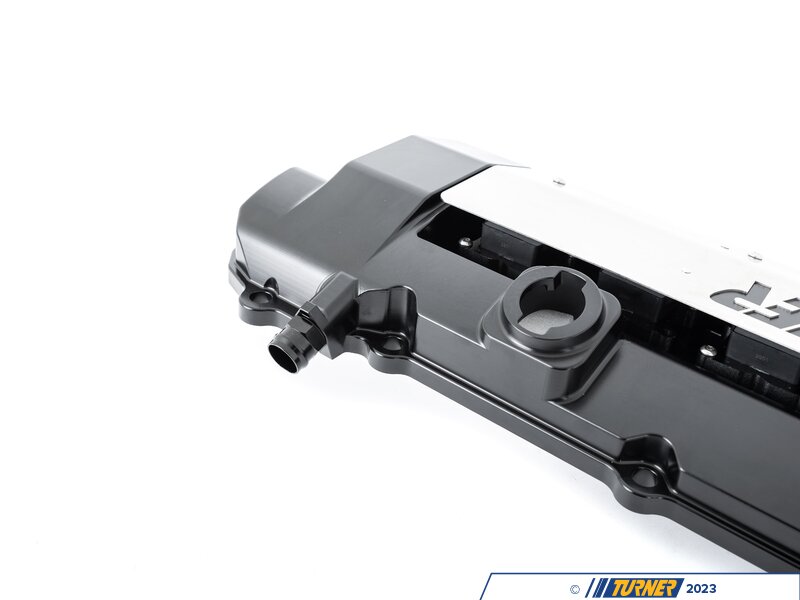

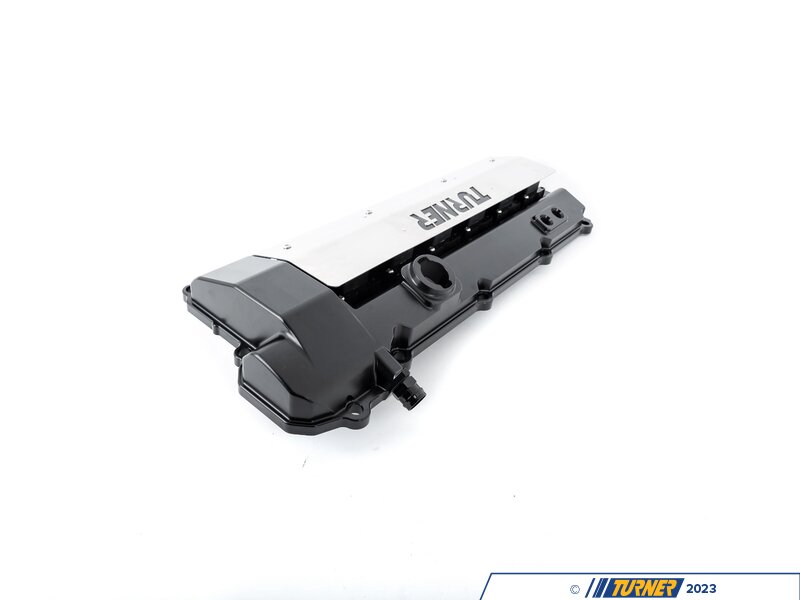

Featuring full 6061 billet construction and a type-3 hard coat finish, our valve cover is built to endure extreme conditions and rigorous use. Whether you opt to retain your factory PCV setup or upgrade to a catch can for racing purposes, the cover provides dedicated, direct-fit ports for both configurations.

The base kit includes all the necessary components for a seamless installation. Additionally, the description provides part numbers for optional replacements and add-ons, ensuring you have everything you need to complete your install.

Features:

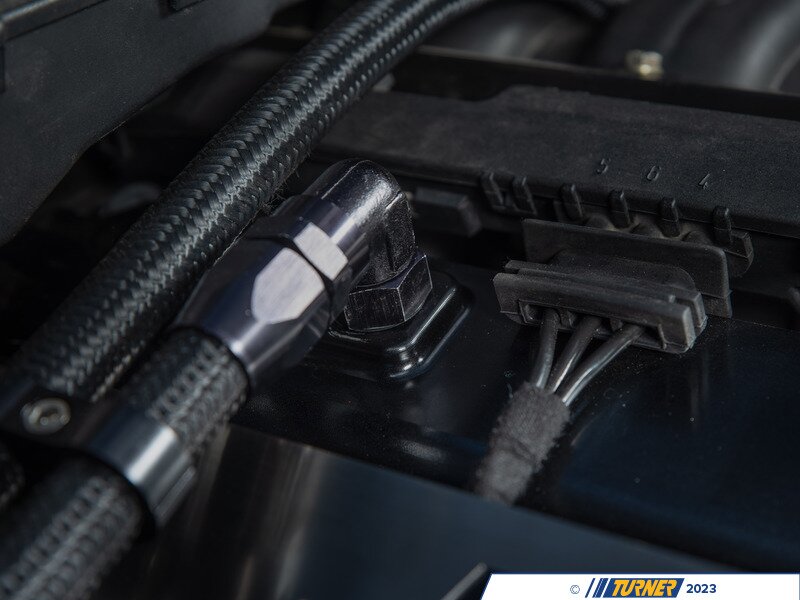

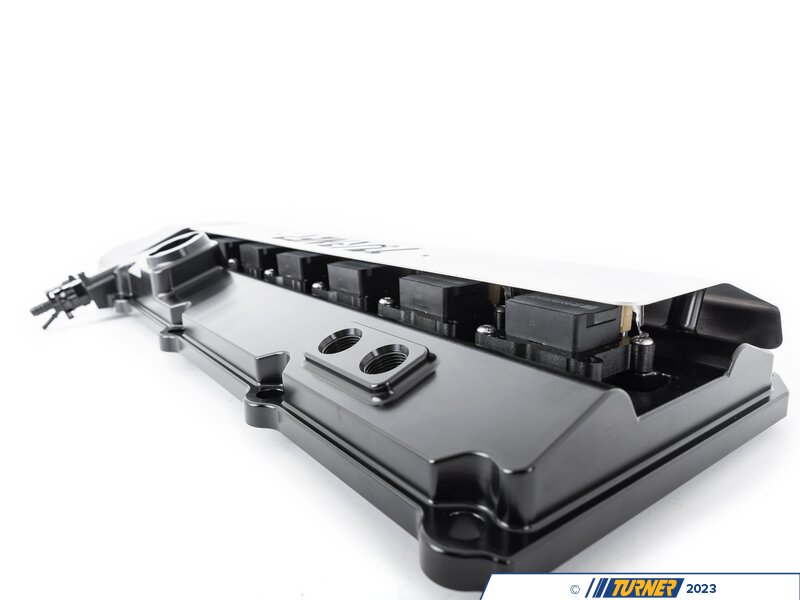

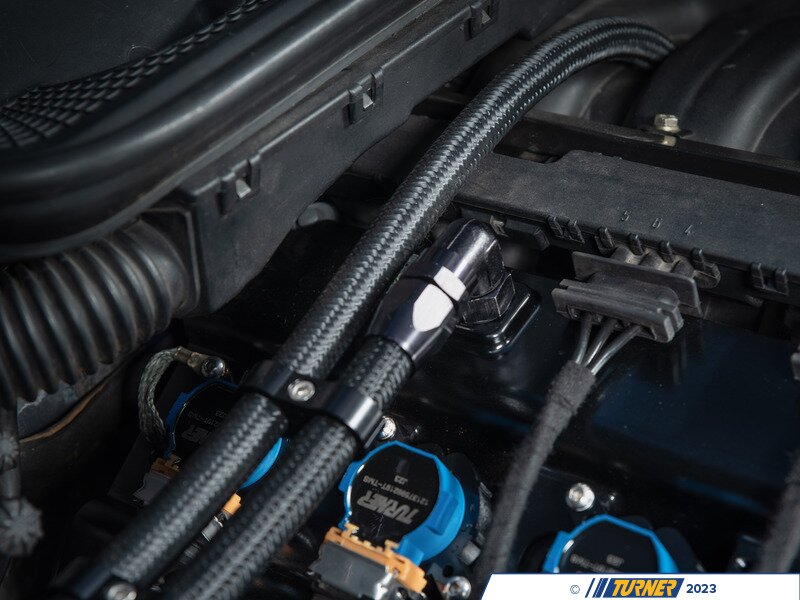

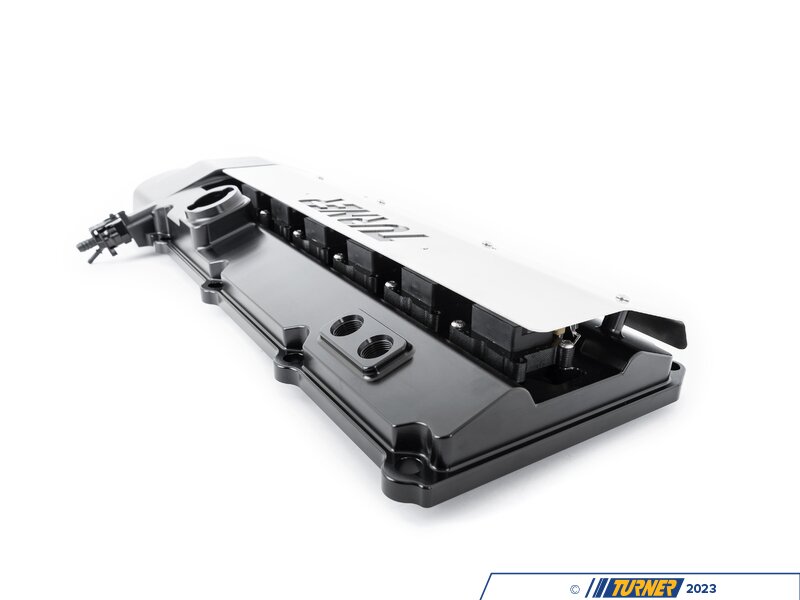

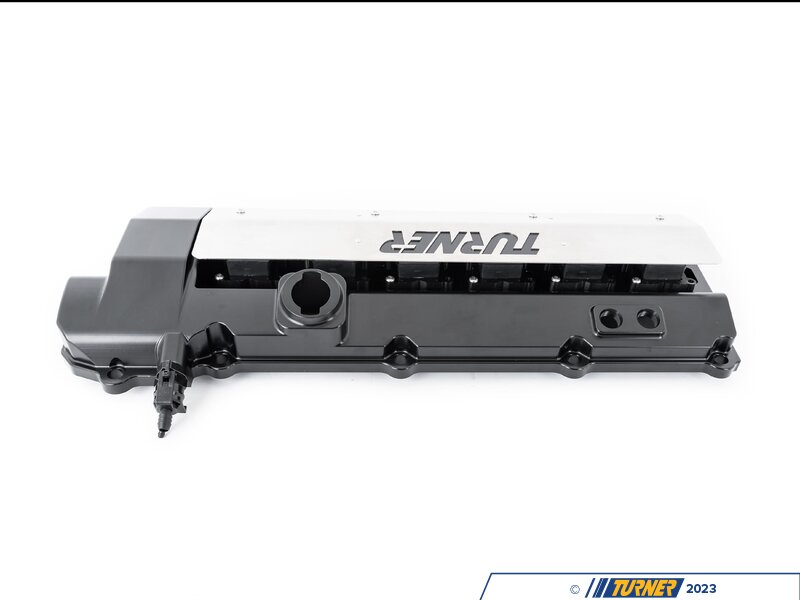

Integrated -10AN ORB ports for a catch can setup to keep your intake free from oil in racing applications

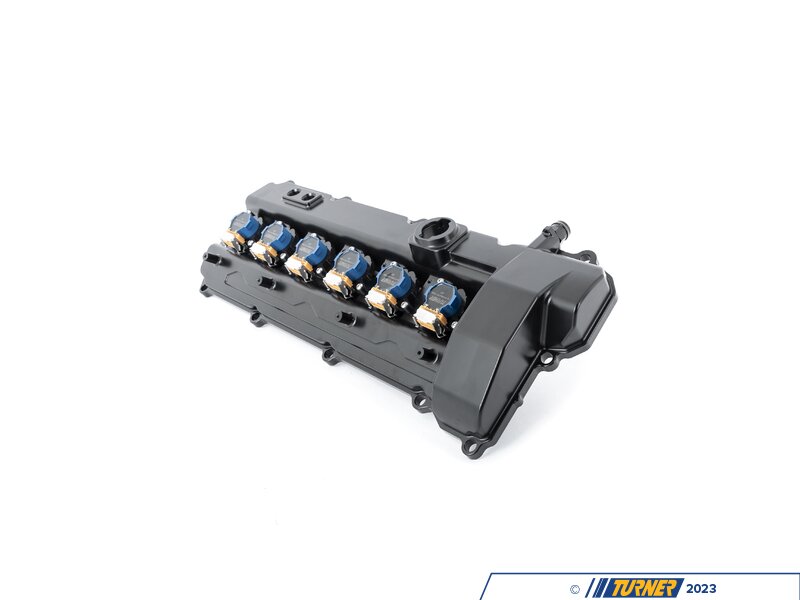

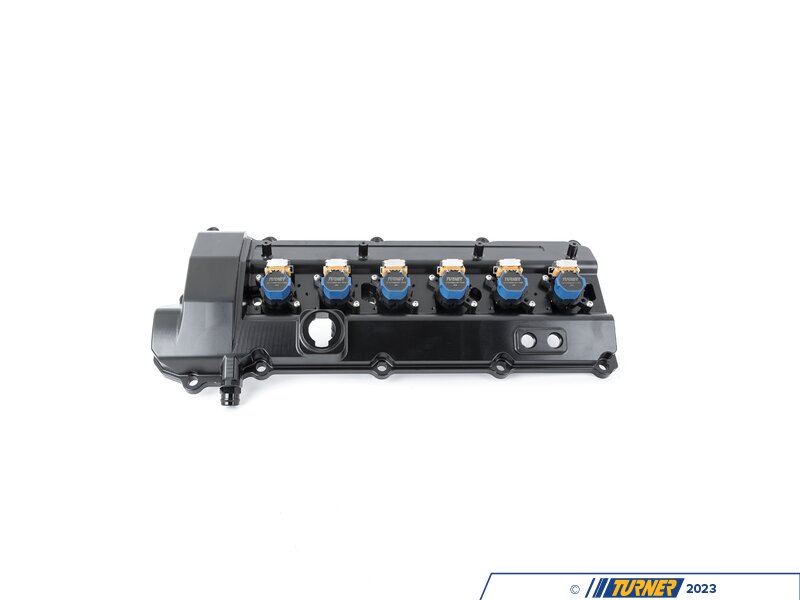

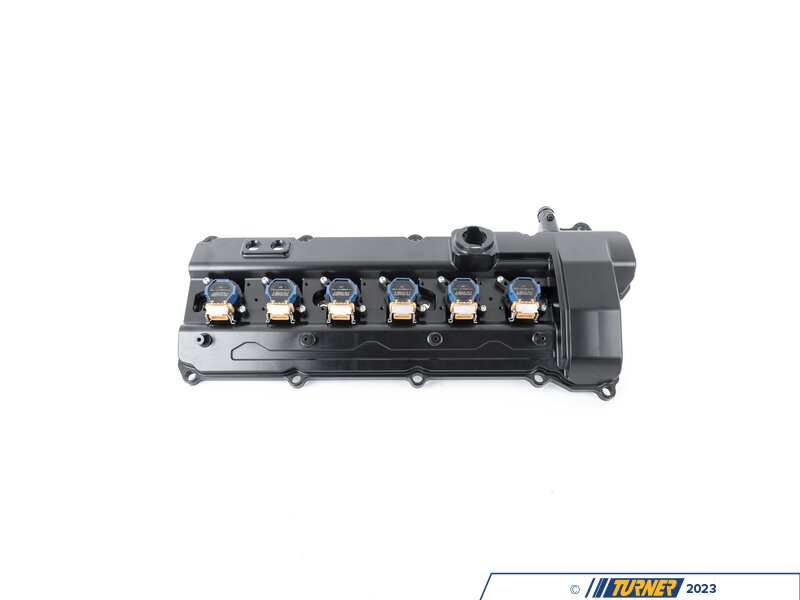

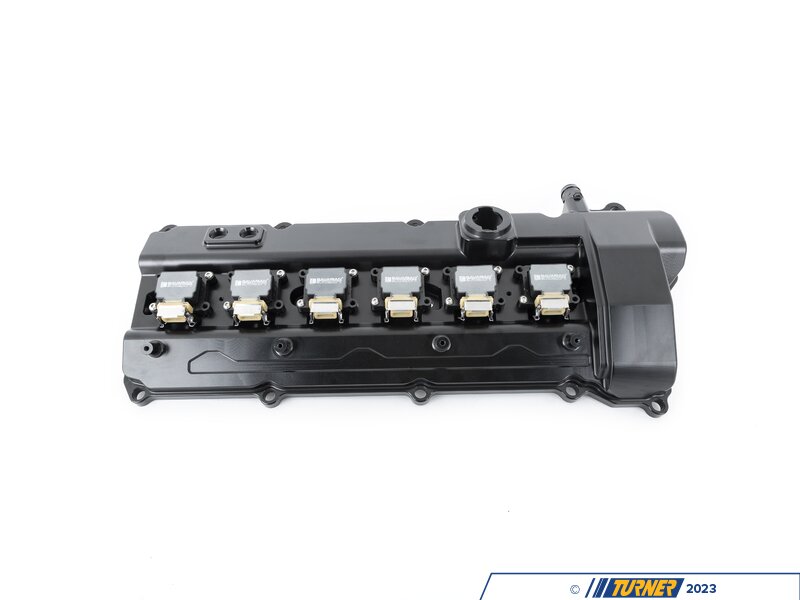

Compatible with factory M5x/S5x ignition coil packs

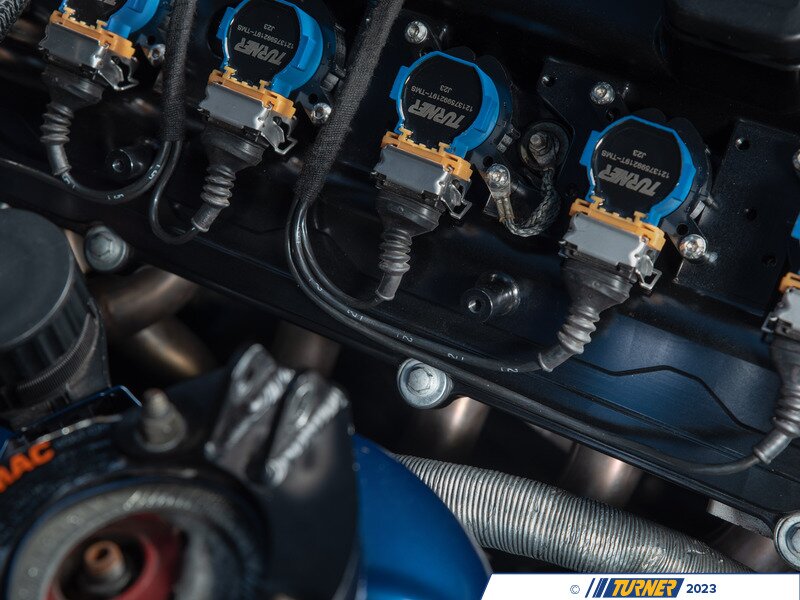

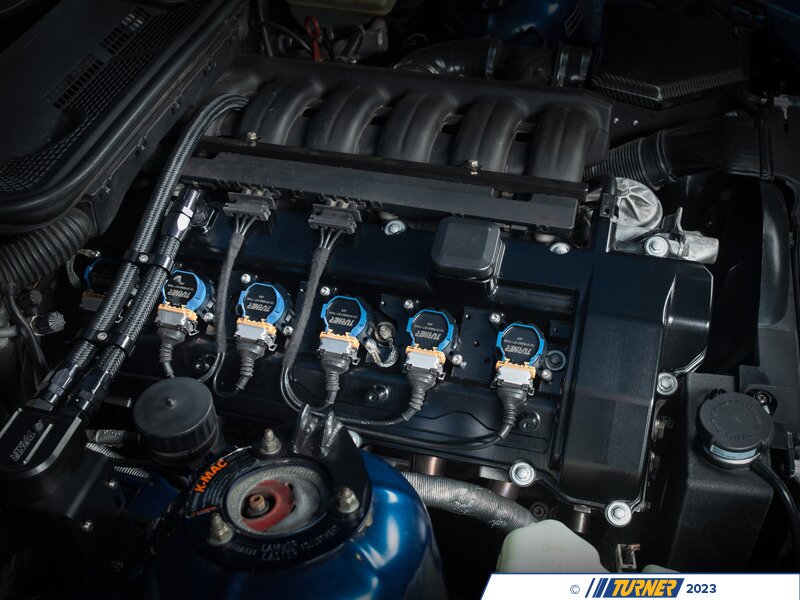

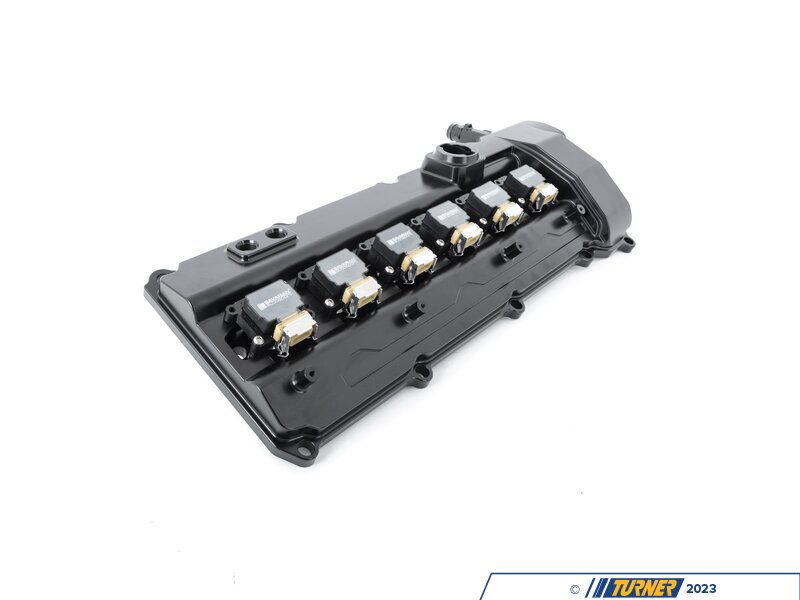

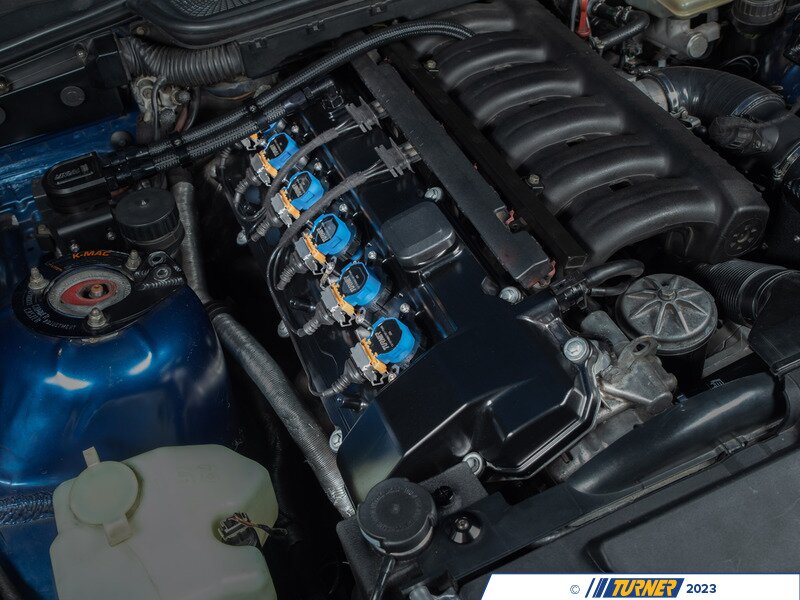

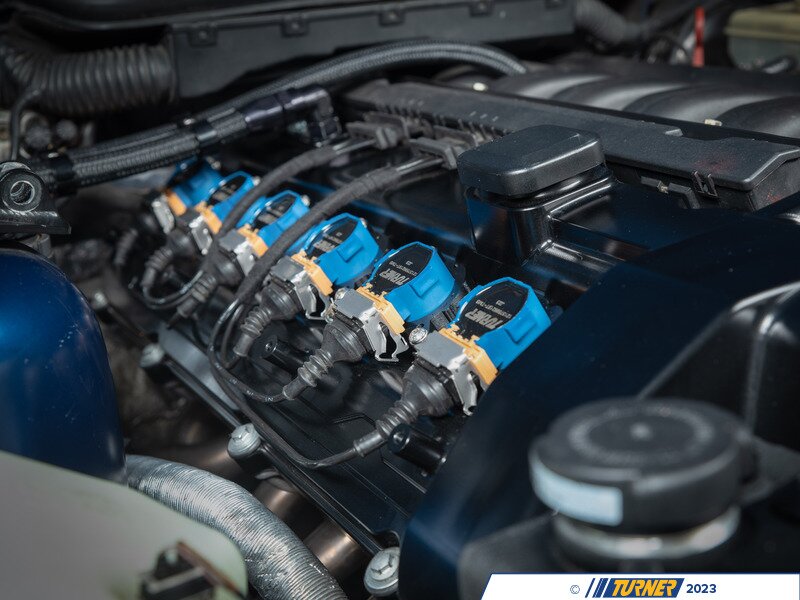

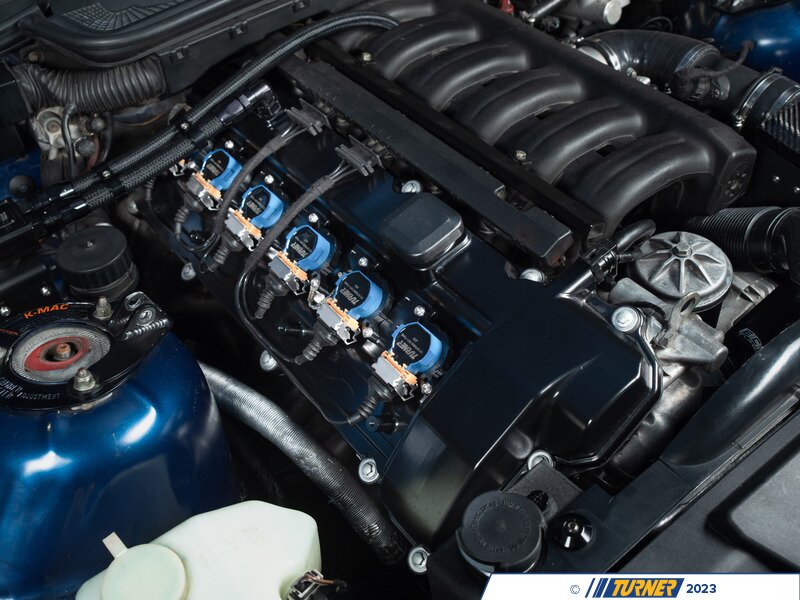

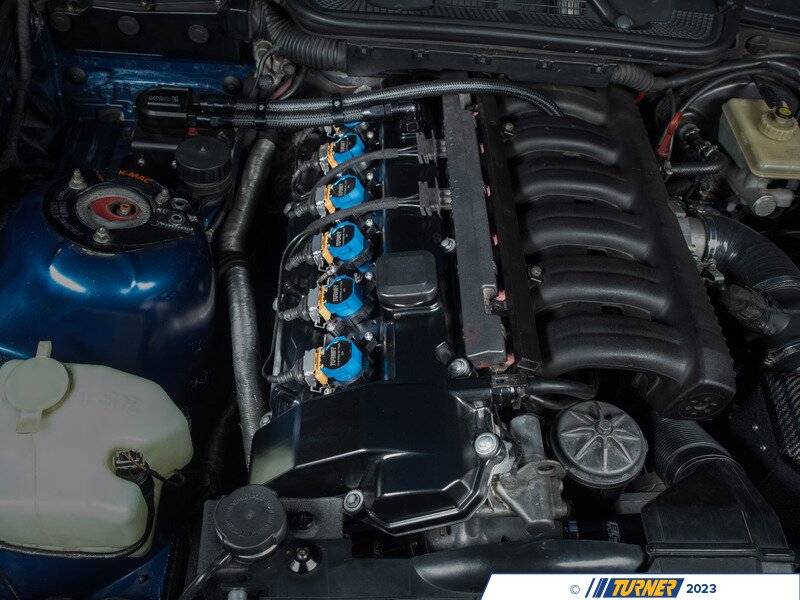

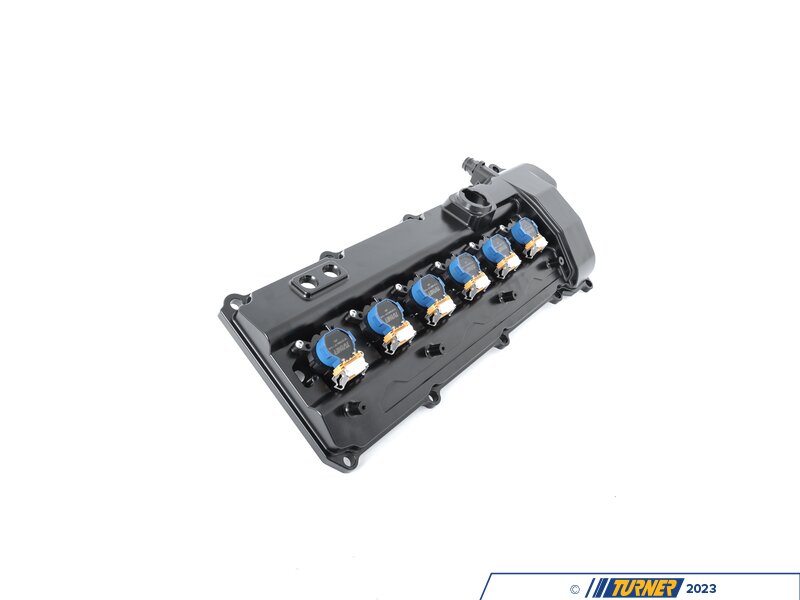

Compatible with Red Top "Smart Coils" (Audi R8) for standalone ECU applications

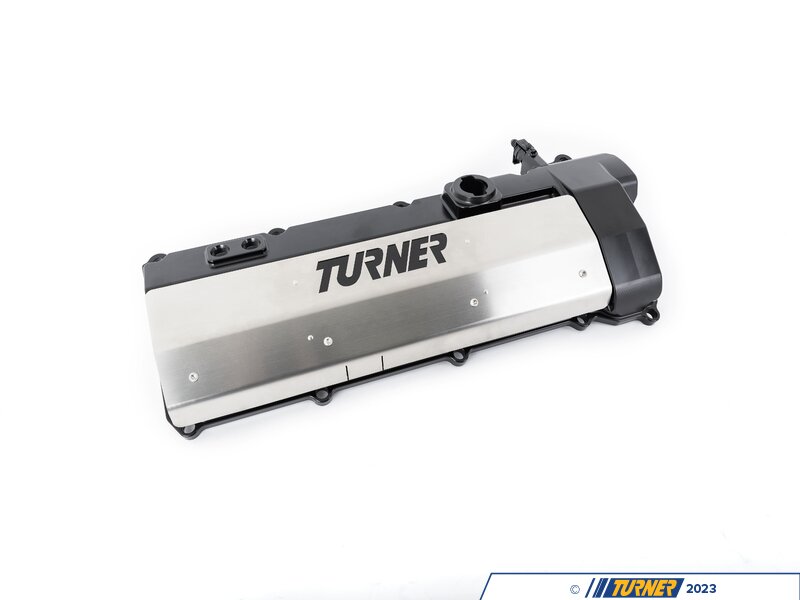

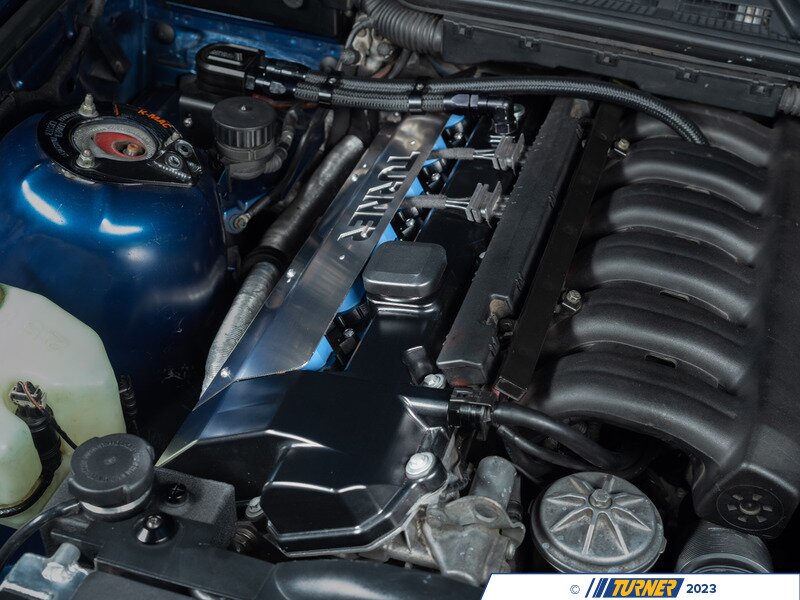

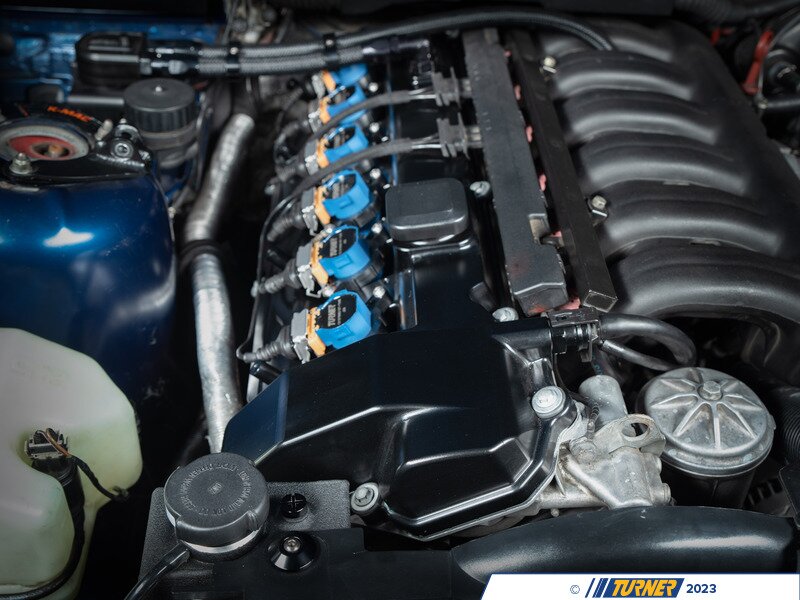

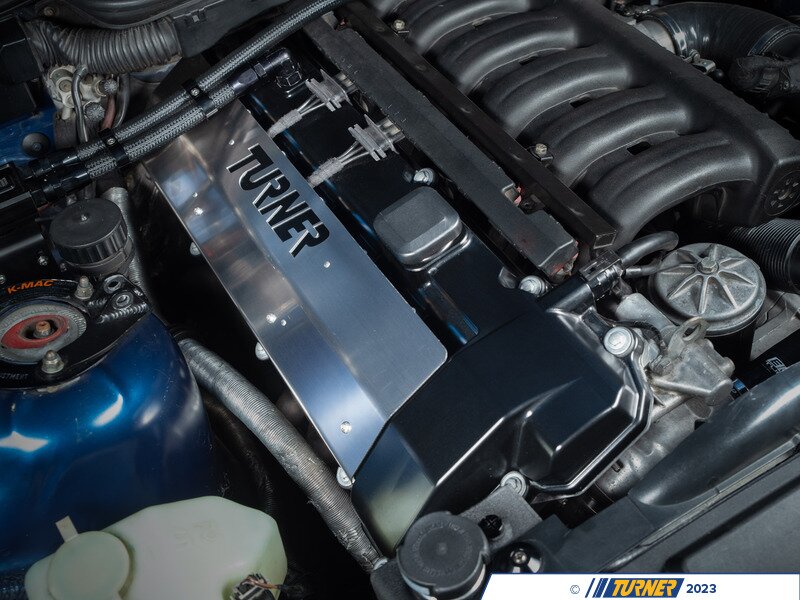

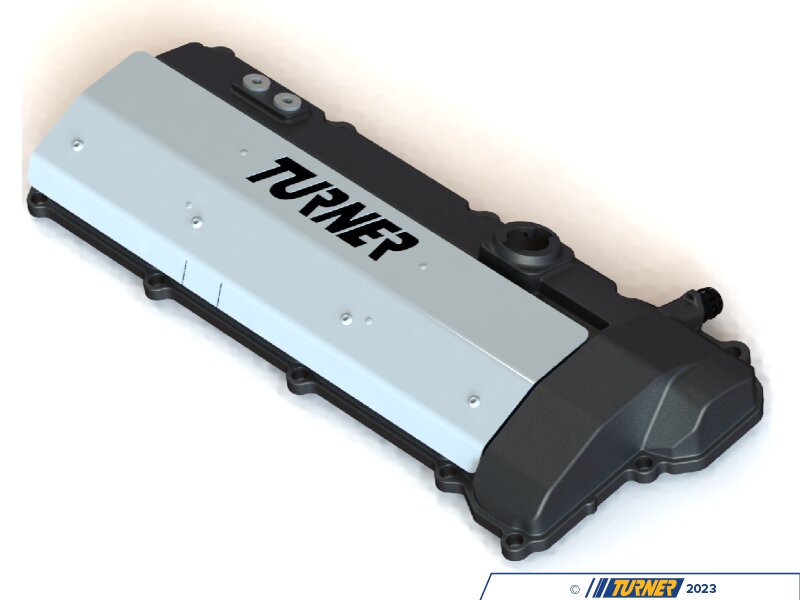

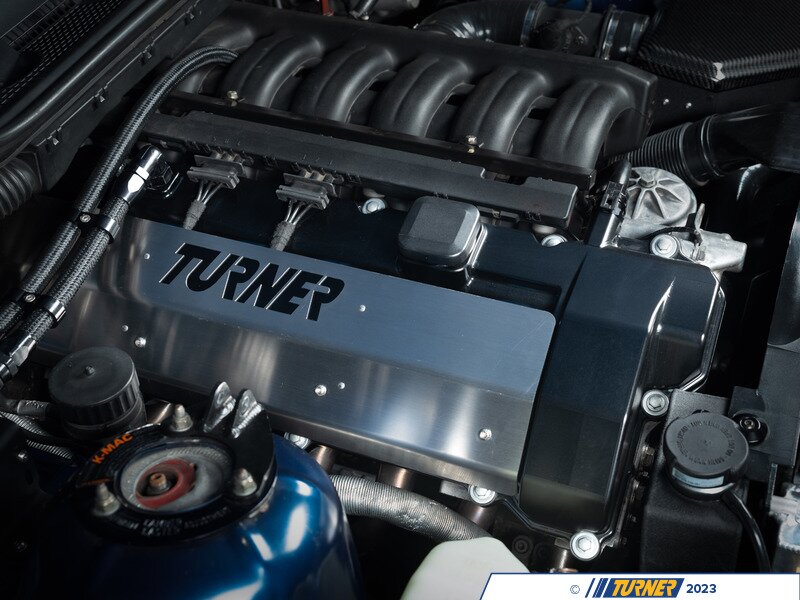

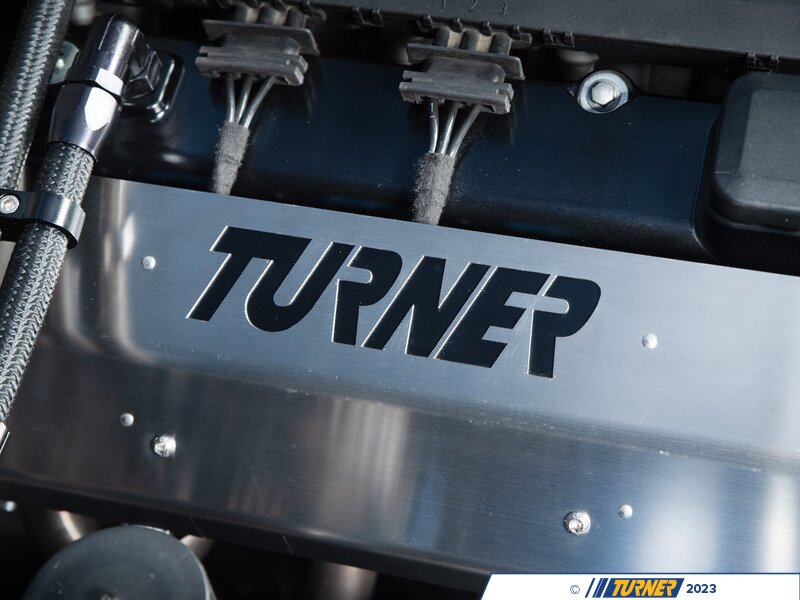

Stainless steel coil pack heat shield for enhanced protection in factory and top mount turbocharger applications

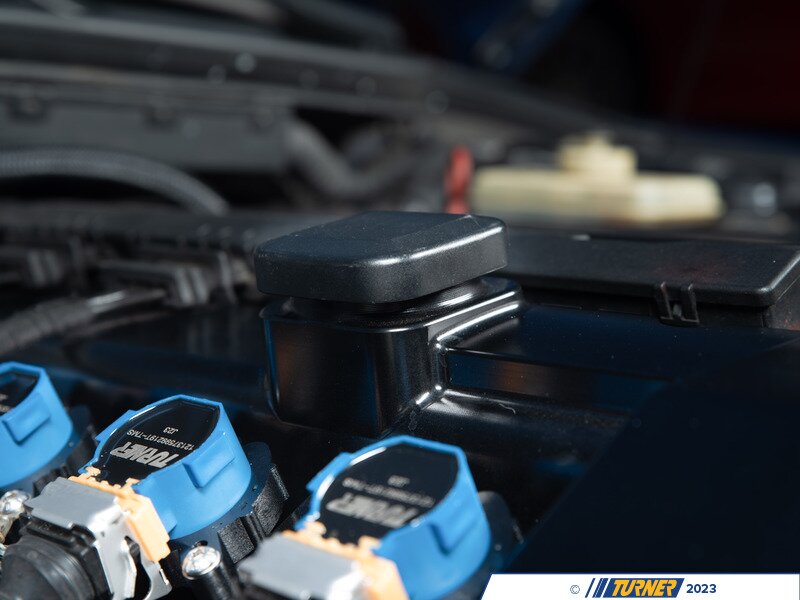

Compatible with factory oil cap
Modular heatshield with bendable tab to accommodate 96-99 coil harness that crosses over the top of the exhaust manifold
Online instructions included for PCV, heatshield and coil pack installation
Benefits:

Leak-free - Never deal with a warped valve cover again thanks to the full billet aluminum construction
Retains all factory PCV functions
Protected ignition coils and wiring
Superior heat resistance - Will not melt like plastic replacement valve covers
Durable and clean anodized coating able to withstand excessive engine and exhaust temperatures
Optimized oil path for vanos/timing chain lubrication
Design:

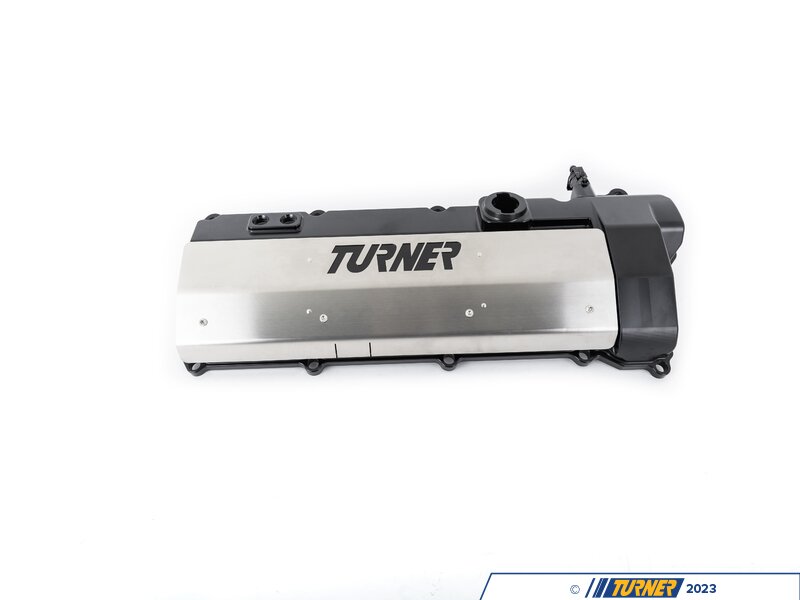

Full 6061-T6 Billet Aluminum
Type 3 black hard coat for increased durability and thermal capacity
Compatible with all Single Vanos M5x/S5x engines

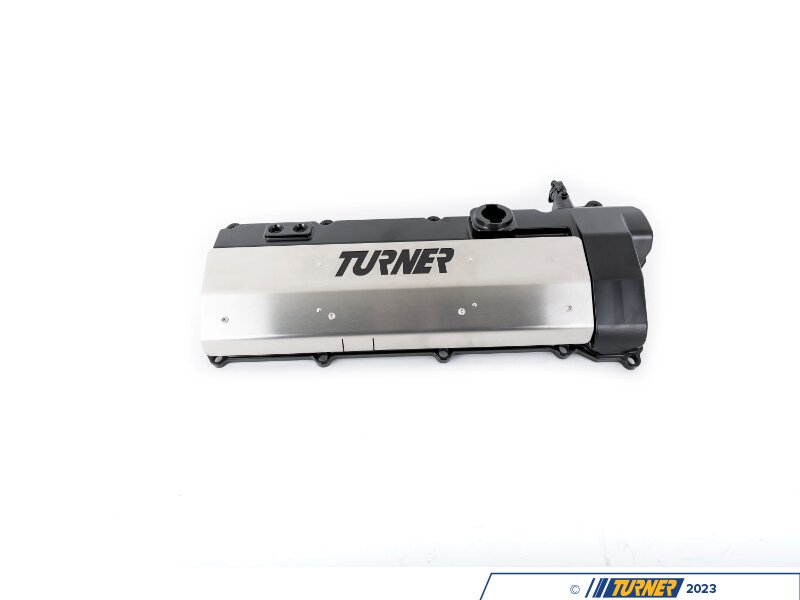

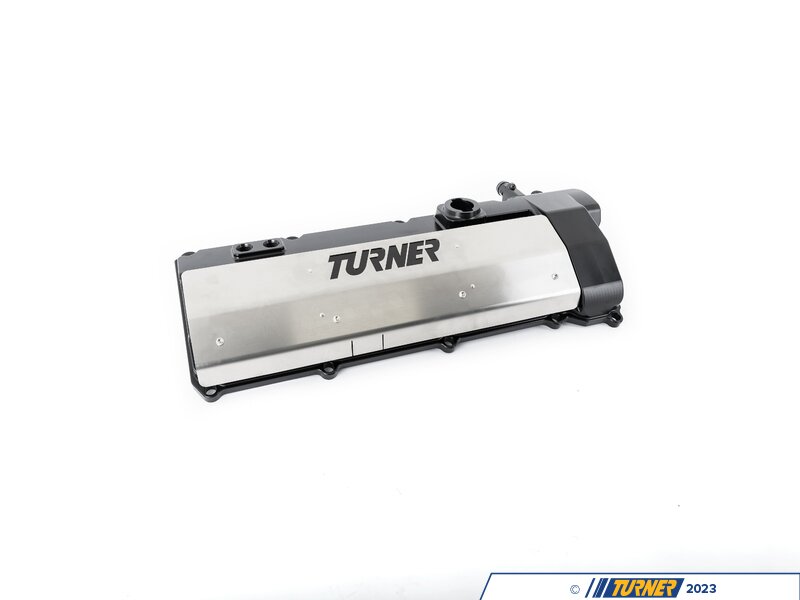

Heat shield with black anodized Turner back plate for a clean and durable finish
Designed to utilize M50/S50 valve cover gasket - fits all M50, M52, S50, S52
Kit options:

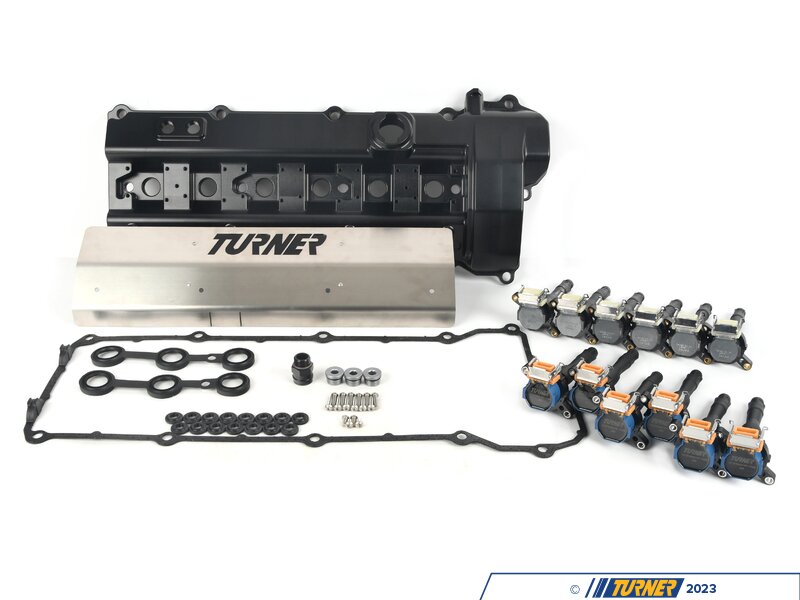

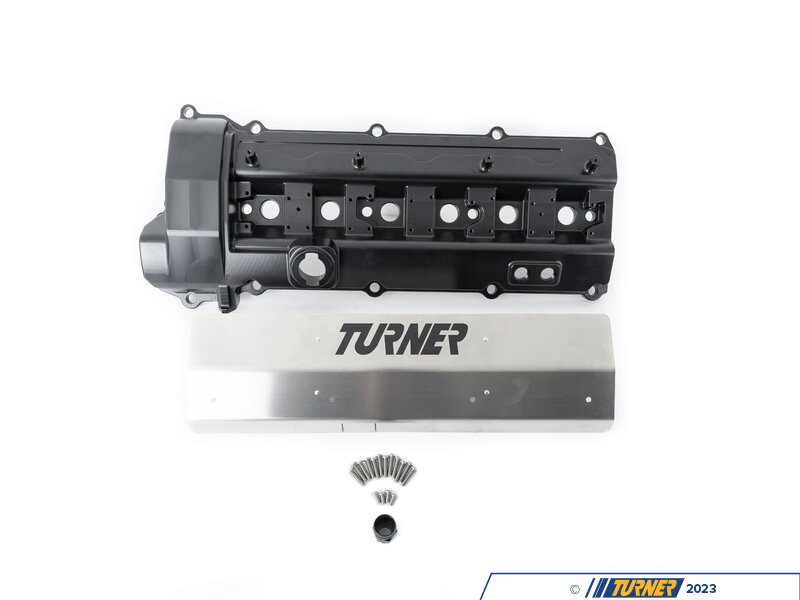

The base kit includes:
Billet Valve Cover
Heat Shield, PCV Adapter - QTY 1
-10AN ORB Block-Off Fittings - QTY 2
M50/S50 Valve Cover Gasket Set
Valve Cover Securing Hardware Grommets - QTY 15

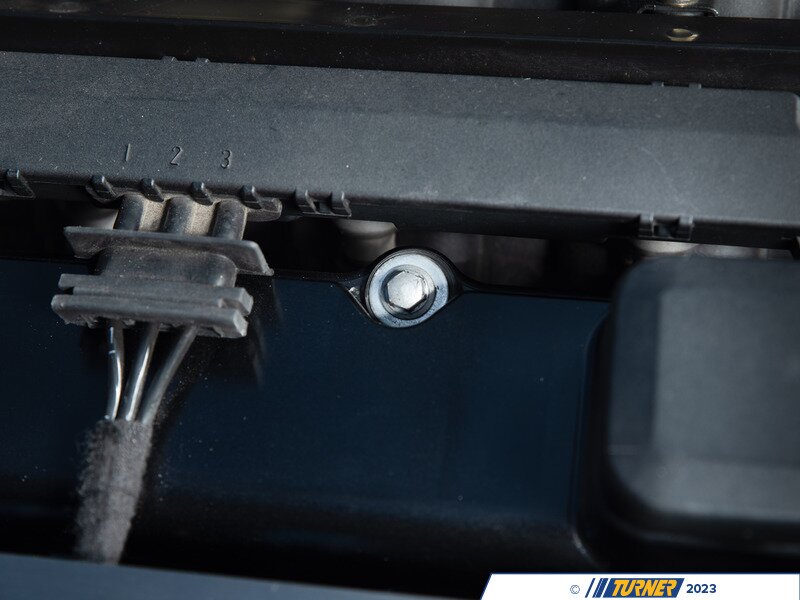

Ignition Coil Install Hardware (M6x1, 25mm length) - QTY 12
Heat Shield Install Hardware (M6x1, 12mm length) - QTY 4
Optional Ignition Coils
PCV options:

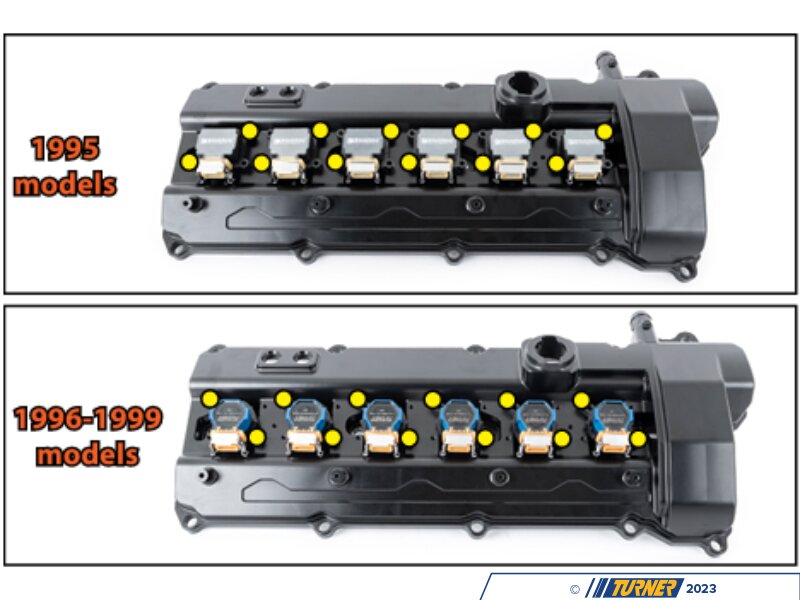

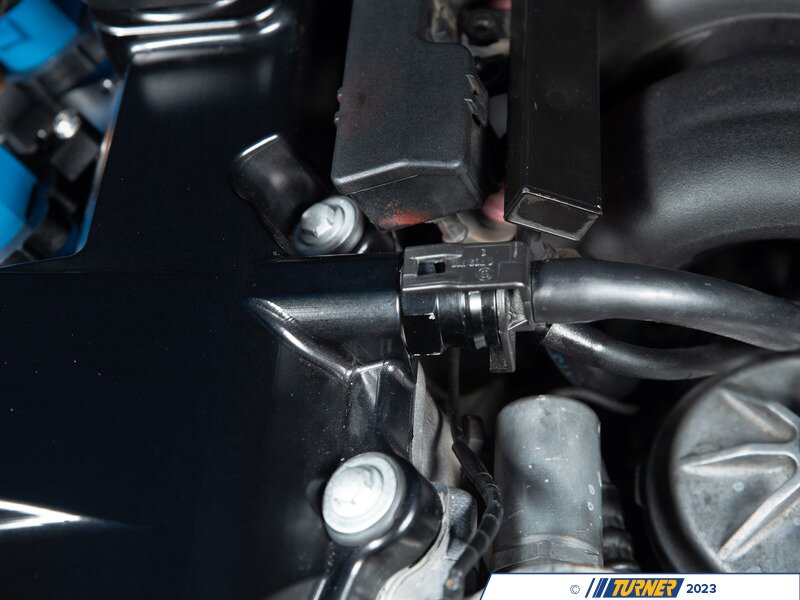

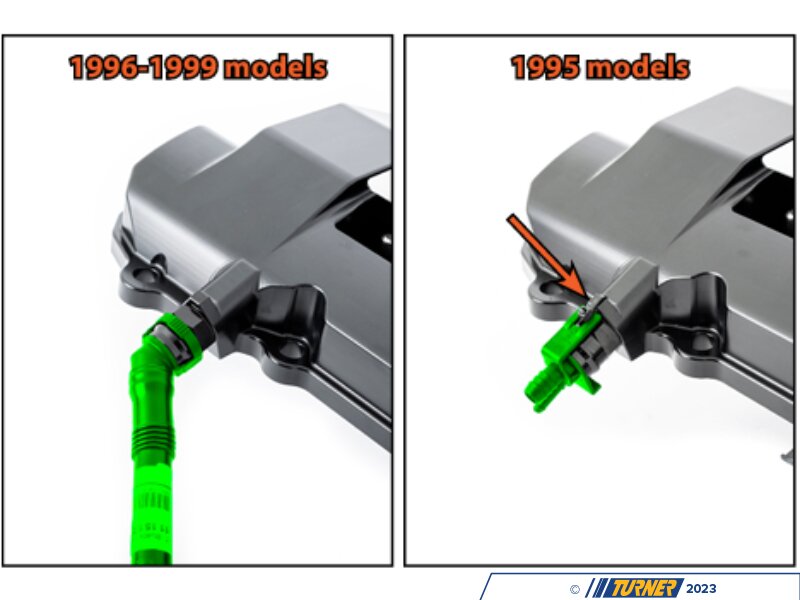

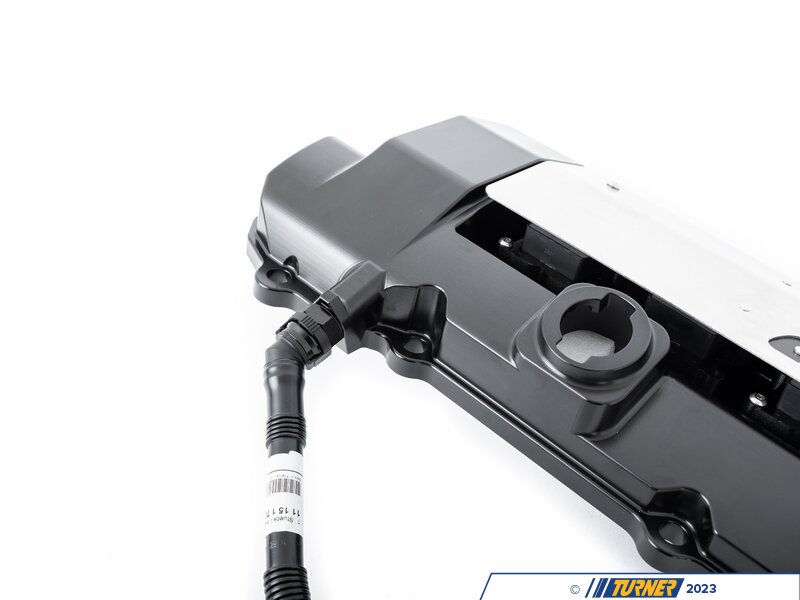

There are different PCV connections based on year splits for M5x/S5x motors. If you have a damaged or worn-out PCV component please reference the replacement component that matches your motor.

(1995 Only) Valve cover breather connector - P# 11151703710
(1996-1999) Replacement oil separator hose - P# 11151703775
Looking for catch can and or AN lines and fittings?

Right angle catch can feed/return lines - T#26493912
Feed/Return line separator - T#26493913
Universal catch can kit with mounting - T#398786

Turner Motorsport

T#: 26238386 | Part#: 030358LA

affirm Starting At 0% APR - Subject To Eligibility. See Lending Terms

1 of

2 of

3 of

4 of

5 of

6 of

7 of

8 of

9 of

10 of

11 of

12 of

13 of

14 of

15 of

16 of

17 of

18 of

19 of

20 of

21 of

22 of

23 of

24 of

25 of

26 of

27 of

28 of

29 of

30 of

31 of

32 of

33 of

34 of

35 of

36 of

37 of

38 of

39 of

40 of

41 of

42 of

43 of

44 of

45 of

46 of

47 of

48 of

49 of

50 of

51 of

52 of

53 of

54 of

55 of

56 of

Checking Vehicle Fitment...

Starting at $1575.99

$1575.99

With selected options

Free Shipping

Availability:

In Stock

Est. Ship Date:

on Jul 6, 2026

Qty

Add to Wish List

Product Details

Features:

Integrated -10AN ORB ports for a catch can setup to keep your intake free from oil in racing applications
Compatible with factory M5x/S5x ignition coil packs
Compatible with Red Top "Smart Coils" (Audi R8) for standalone ECU applications
Stainless steel coil pack heat shield for enhanced protection in factory and top mount turbocharger applications
Compatible with factory oil cap
Modular heatshield with bendable tab to accommodate 96-99 coil harness that crosses over the top of the exhaust manifold
Online instructions included for PCV, heatshield and coil pack installation

Benefits:

Leak-free - Never deal with a warped valve cover again thanks to the full billet aluminum construction
Retains all factory PCV functions
Protected ignition coils and wiring
Superior heat resistance - Will not melt like plastic replacement valve covers
Durable and clean anodized coating able to withstand excessive engine and exhaust temperatures
Optimized oil path for vanos/timing chain lubrication

Design:

Full 6061-T6 Billet Aluminum
Type 3 black hard coat for increased durability and thermal capacity
Compatible with all Single Vanos M5x/S5x engines
Heat shield with black anodized Turner back plate for a clean and durable finish
Designed to utilize M50/S50 valve cover gasket - fits all M50, M52, S50, S52

Kit contents:

The base kit includes:
- Billet Valve Cover
- Heat Shield, PCV Adapter - QTY 1
- -10AN ORB Block-Off Fittings - QTY 2
- M50/S50 Valve Cover Gasket Set
- Valve Cover Securing Hardware Grommets - QTY 15
- Ignition Coil Install Hardware (M6x1, 25mm length) - QTY 12
- Heat Shield Install Hardware (M6x1, 12mm length) - QTY 4
Optional Ignition Coils

PCV options:

There are different PCV connections based on year splits for M5x/S5x motors. If you have a damaged or worn-out PCV component please reference the replacement component that matches your motor.

(1995 Only) Valve cover breather connector - P# 11151703710
(1996-1999) Replacement oil separator hose - P# 11151703775

Looking for catch can and or AN lines and fittings?

Right angle catch can feed/return lines - T#26493912
Feed/Return line separator - T#26493913
Universal catch can kit with mounting - T#398786

- Click HERE for Installation Instructions -

Prop 65 Warning

Cross Reference

11121703341
11120034107
11121738607
11121437395
11121404466
11121748633

Product Q&A

Lifetime Replacement

Fits These Cars

MAKE	MODEL	SUBMODEL	ENGINE	Special Fitment Notes
BMW	E34	525i	M20 2.5L	Use vehicle selector to confirm fitment
BMW	E34	525i	M50 2.5L	Use vehicle selector to confirm fitment
BMW	E36	323ic	M52 2.5L	Use vehicle selector to confirm fitment
BMW	E36	323is	M52 2.5L	Use vehicle selector to confirm fitment
BMW	E36	325i	M50 2.5L	Use vehicle selector to confirm fitment
BMW	E36	325ic	M50 2.5L	Use vehicle selector to confirm fitment
BMW	E36	325is	M50 2.5L	Use vehicle selector to confirm fitment
BMW	E36	328i	M52 2.8L	Use vehicle selector to confirm fitment
BMW	E36	328ic	M52 2.8L	Use vehicle selector to confirm fitment
BMW	E36	328is	M52 2.8L	Use vehicle selector to confirm fitment
BMW	E36	M3	S50 3.0L	Use vehicle selector to confirm fitment
BMW	E36	M3	S52 3.2L	Use vehicle selector to confirm fitment
BMW	E39	528i	M52 2.8L	Use vehicle selector to confirm fitment
BMW	Z3	2.3	M52 2.5L	Use vehicle selector to confirm fitment
BMW	Z3	2.5	M52 2.5L	Use vehicle selector to confirm fitment
BMW	Z3	2.8	M52 2.8L	Use vehicle selector to confirm fitment
BMW	Z3	M Coupe	S52 3.2L	Use vehicle selector to confirm fitment
BMW	Z3	M Roadster	S52 3.2L	Use vehicle selector to confirm fitment

*The above product applications have been written by Turner Motorsport. All warranties, product application, fitment, and performance are the responsibility of Turner Motorsport. For additional information see the terms of use.
