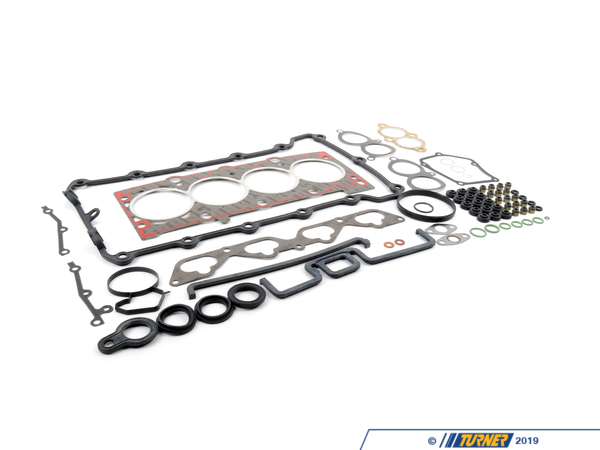

Head Gasket Set - E36 318i/318is 96-98, Z3 1.9 (M44 Engine)

Product Details

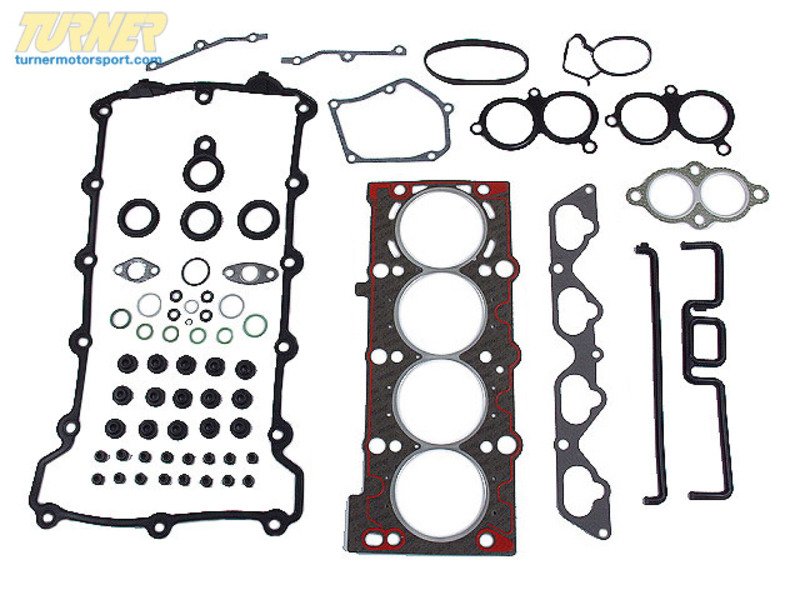

Replacement Head Gasket Set Fits E36 318i 318is 318ic 1996-1998 with M44 engine, and Z3 1.9 1996-1998. Includes all the gaskets and seals needed when rebuilding the cylinder head. Includes head gasket.

This set of gaskets is a both a time and money saver. It includes all of the commonly replaced gaskets, seals, and o-rings when performing this overhaul. Having these on hand instead of chasing them down at the last minute will save you time, money, and frustration. With this area of the engine apart you're going to want or need to replace these items anyway to ensure it's free of fluid and vacuum leaks. This is especially important because some states have very strict emissions regulations and vacuum and oil leaks can lead to failed inspections tests. On newer cars this can also create issues in the on-board diagnostics system. Even if you're not pulling the head this set includes so many valuable parts you'll want to keep this on hand to use for spares.
If you drive a European vehicle, chances are high your vehicle came equipped with one or more Victor Reinz gaskets. Choose OE quality VR gaskets and seals and do the job right the first time.

Complete Parts List

(click to expand)

BMW p/nQtyDescription

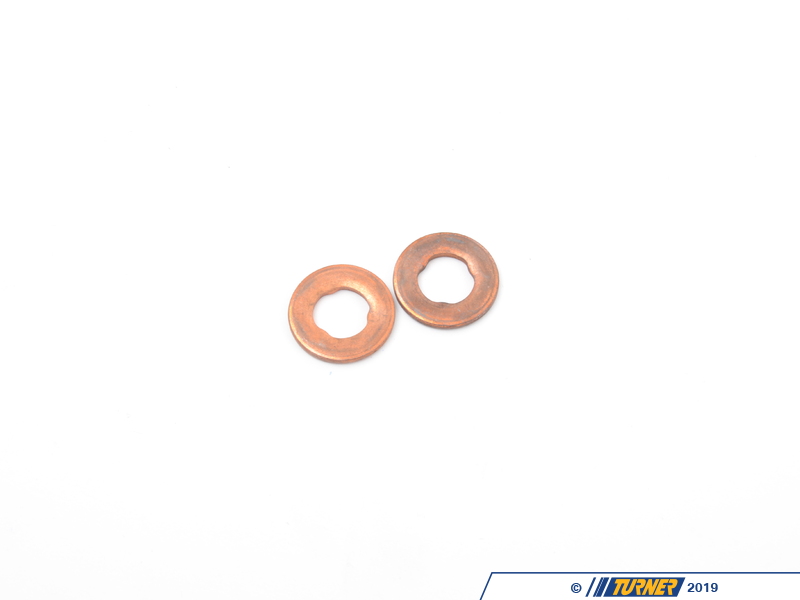

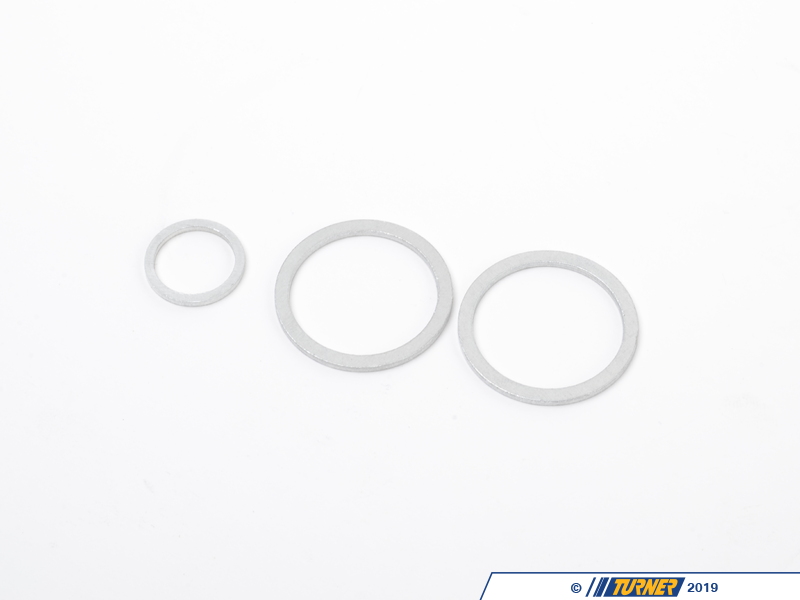

071199631302screw plug gasket ring

071199633551timing rail screw plug o-ring

111212479481gasket

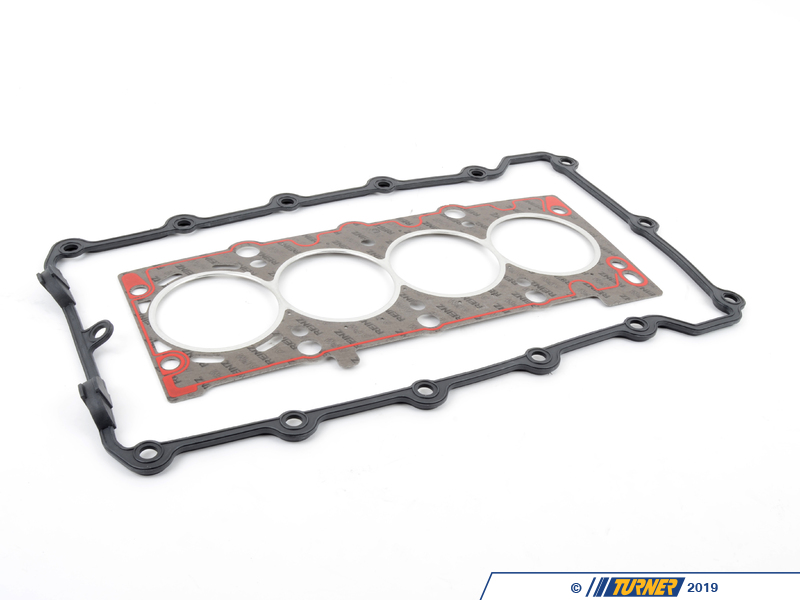

111214339501head gasket

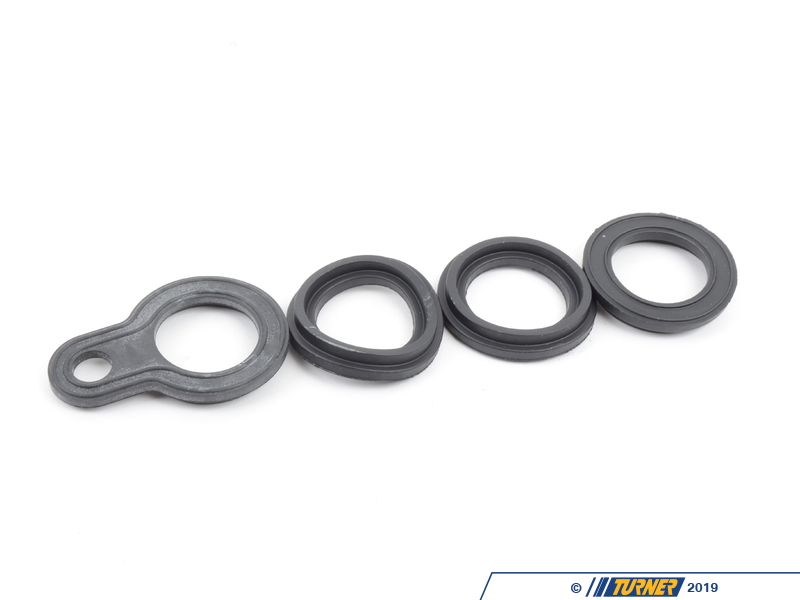

111217214751spark plug hole / valve cover screw
profile gasket

111217214763spark plug hole profile gasket

111217218761main valve cover gasket

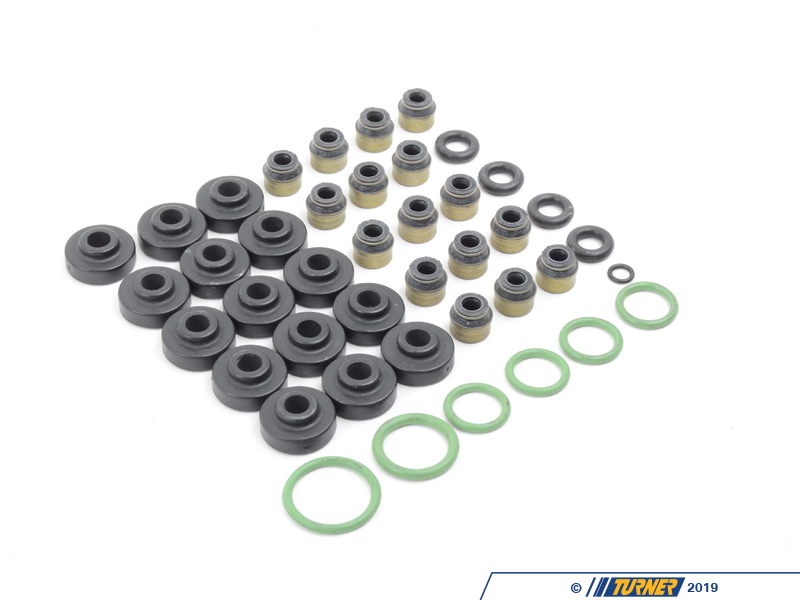

1112172187915valve cover screw seal

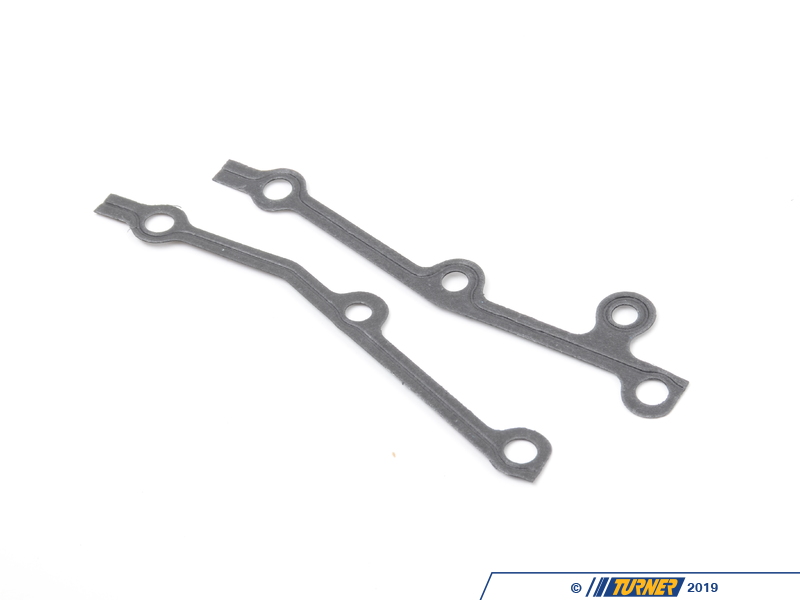

111412478371profile gasket between
outer upper and lower timing covers

111412478491profile gasket between
inner upper and lower timing covers

111417430651upper timing cover profile gaskets

113490654382valve stem seals
2 sets = 16 valves

115117396911o-ring

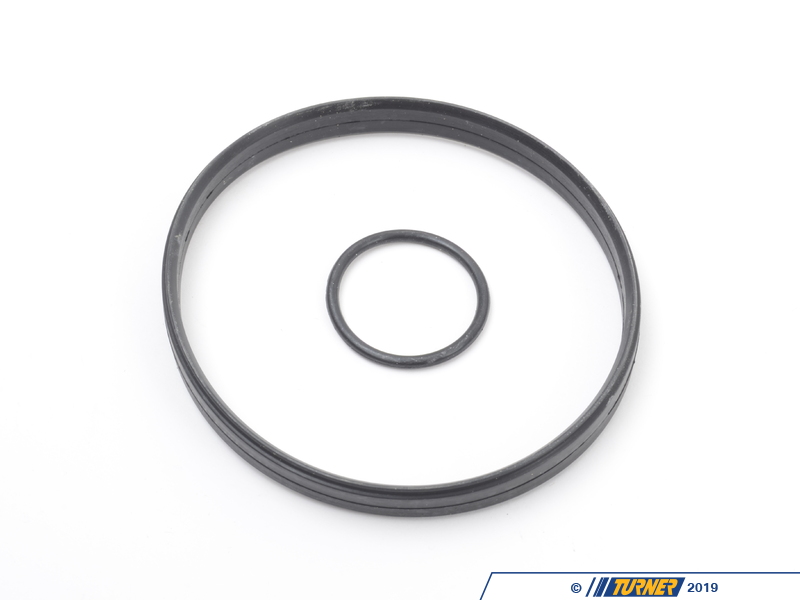

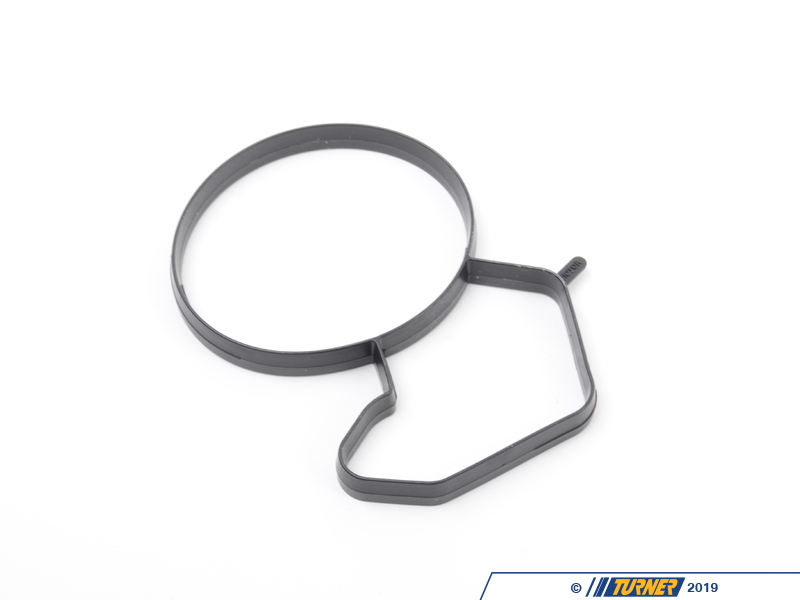

115317431791thermostat housing o-ring

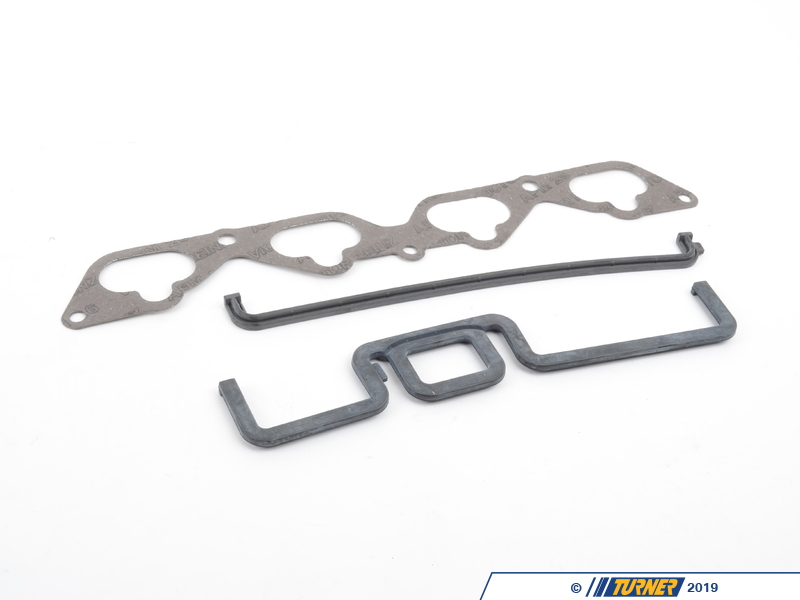

116112474782upper and lower intake plenum profile gasket

116117346841lower intake plenum profile gasket

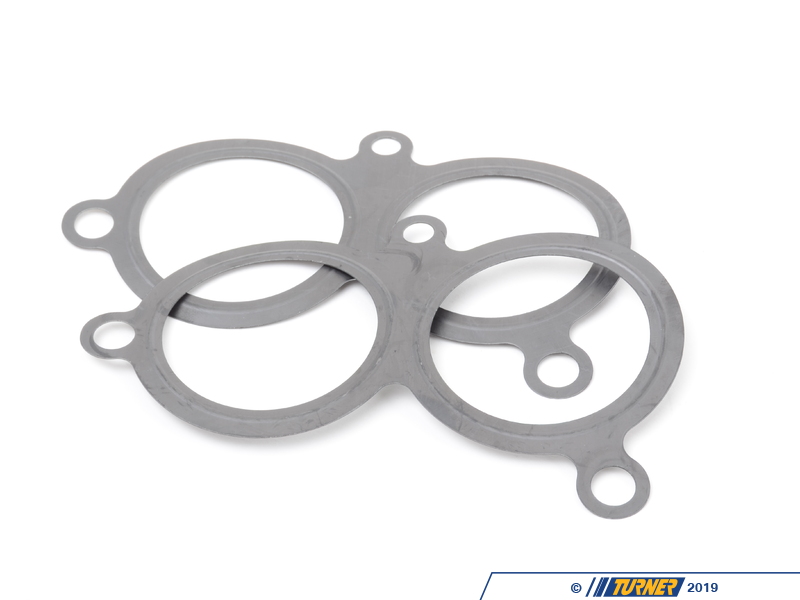

116214353662exhaust manifold gasket plate

117214353671gasket

117275052591gasket

121417483981camshaft position sensor o-ring

135317202511fuel pressure regulator o-ring, large

135317202521fuel pressure regulator o-ring, small

135417398091throttle body o-ring profile gasket

136417307674fuel injector o-ring

136417433774fuel injector o-ring

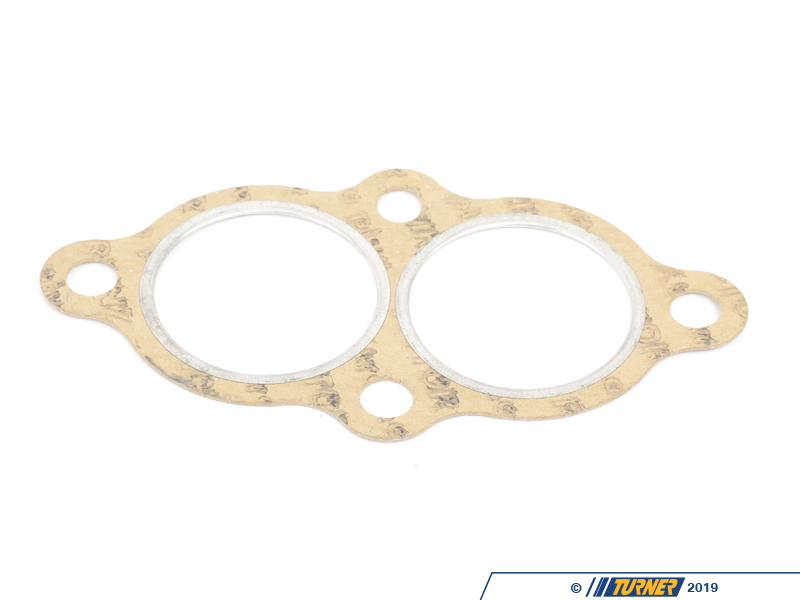

183017119691exhaust manifold flange gasket

This item fits the following BMWs:
1996-1998 E36 BMW 318i 318is 318ic 318ti
1996-1998 Z3 BMW Z3 1.9
