This top-end gasket set covers the cylinder head on the S54 engine used in the E46 M3, Z3 M Roadster/M Coupe, and E85/E86 Z4 M Roadster, M Coupe. If you're pulling the head, intake manifold, or doing any other upper end engine work this set can be a time and money saver. This set includes all of the commonly replaced gaskets, seals, and o-rings when overhauling the head. It's also a useful kit to have and dip into any time you're doing upper end engine work. Not having a critical seal or gasket on hand can ruin your work and this gasket set can prevent that from happening. This Victor Reinz set includes the head gasket.
BMW #QtyDescription
071199035461left timing rail upper bolt seal
071199630724VAN0S oil line seal ring
071199631292crankcase vent banjo bolt seals
071199632522screw plug seal ring
071199633421right upper timing rail bolt seal ring
071199634181timing chain tensioner seal ring
111214373952valve cover stud grommet seal
1112783097213valve cover stud grommet seal
111278312716spark plug hole profile gasket
111278320341main valve cover gasket
111278370241oil fill cap seal ring
111278370251crankcaske oil separator seal ring
111417367581VAN0S-camshaft plate o-ring
111578309661crankcase oil separator o-ring, large
111578321191crankcase oil separator plug o-ring
113113173181inside o-ring for internal VAN0S regulating valve
113490644572valve stem seal, 2 sets = 24 valves
113678319381VAN0S unit profile gasket
114113060821outside o-ring for internal VAN0S regulating valve
115313184021thermostat-to-water pump o-ring
115378307083coolant pipe o-ring gasket
115378307092thermostat housing connector o-ring
116114076951intake bellows o-ring profile gasket
116178301041intake bellows-to-airbox gasket
116278306676exhaust manifold port gasket
117275052591air pump valve profile gasket
121417483982camshaft position sensor o-ring
135478314836throttle body o-ring
136414374746fuel injector o-ring, upper
136478306116fuel injector o-ring, lower
111278359181head gasket
This item fits the following BMWs:
2001-2006 E46 BMW M3
2001-2002 Z3 BMW Z3 M Roadster Z3 M Coupe
2006-2008 E85 BMW Z4 M Roadster Z4 M Coupe
This product was last offered at the strikethrough price on
05-02-2026
This product was last offered at the strikethrough price on
05-02-2026
This product was last offered at the strikethrough price on
12-22-2025
This product was last offered at the strikethrough price on
12-22-2025
|
This product was last offered at the strikethrough price on
05-07-2026
This product was last offered at the strikethrough price on
05-07-2026
This product was last offered at the strikethrough price on
05-07-2026
This product was last offered at the strikethrough price on
04-08-2026
This set of top-end gaskets is a both a time and money saver. It includes all of the commonly replaced gaskets, seals, and o-rings when pulling the cylinder head for overhaul. Having these on hand instead of chasing them down at the last minute will save you time, money, and frustration. With the head off the car you're going to want or need to replace these items anyway to ensure it's free of fluid and vacuum leaks. This is especially important because the newer BMW models have very strict emissions controls and vacuum and oil leaks can create turmoil in the system. Even if you're not pulling the head this set includes so many valuable parts you'll want to keep this on hand to use for spares.
This item fits the following BMWs:
2003-2006 E46 BMW 325i 325ci 325xi 330i 330ci 330xi
9/2002-on E39 BMW 525i 530i
2004-2005 E60 BMW 525i 530i
2004-2006 E83 BMW X3 2.5i X3 3.0i
2003-2006 E53 BMW X5 3.0i
9/2002-on Z3 BMW Z3 2.5i Z3 3.0i
2003-2006 E85 BMW Z4 2.5i Z4 3.0i
|

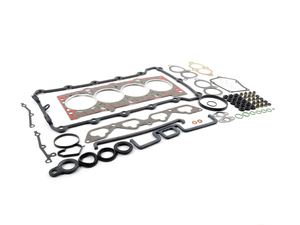

Replacement Head Gasket Set Fits E36 318i 318is 318ic 1996-1998 with M44 engine, and Z3 1.9 1996-1998. Includes all the gaskets and seals needed when rebuilding the cylinder head. Includes head gasket.
This set of gaskets is a both a time and money saver. It includes all of the commonly replaced gaskets, seals, and o-rings when performing this overhaul. Having these on hand instead of chasing them down at the last minute will save you time, money, and frustration. With this area of the engine apart you're going to want or need to replace these items anyway to ensure it's free of fluid and vacuum leaks. This is especially important because some states have very strict emissions regulations and vacuum and oil leaks can lead to failed inspections tests. On newer cars this can also create issues in the on-board diagnostics system. Even if you're not pulling the head this set includes so many valuable parts you'll want to keep this on hand to use for spares.
If you drive a European vehicle, chances are high your vehicle came equipped with one or more Victor Reinz gaskets. Choose OE quality VR gaskets and seals and do the job right the first time.
Complete Parts List
(click to expand)
BMW p/nQtyDescription
071199631302screw plug gasket ring
071199633551timing rail screw plug o-ring
111212479481gasket
111214339501head gasket
111217214751spark plug hole / valve cover screw
profile gasket
111217214763spark plug hole profile gasket
111217218761main valve cover gasket
1112172187915valve cover screw seal
111412478371profile gasket between
outer upper and lower timing covers
111412478491profile gasket between
inner upper and lower timing covers
111417430651upper timing cover profile gaskets
113490654382valve stem seals
2 sets = 16 valves
115117396911o-ring
115317431791thermostat housing o-ring
116112474782upper and lower intake plenum profile gasket
116117346841lower intake plenum profile gasket
116214353662exhaust manifold gasket plate
117214353671gasket
117275052591gasket
121417483981camshaft position sensor o-ring
135317202511fuel pressure regulator o-ring, large
135317202521fuel pressure regulator o-ring, small
135417398091throttle body o-ring profile gasket
136417307674fuel injector o-ring
136417433774fuel injector o-ring
183017119691exhaust manifold flange gasket
This item fits the following BMWs:
1996-1998 E36 BMW 318i 318is 318ic 318ti
1996-1998 Z3 BMW Z3 1.9
