N20/N26 Mishimoto Baffled Oil Catch Can

Mfg Part #
MMBCCN20N2612CB
Turner Part #
T#389788
Brand
Price:
Qty
198.75
In Stock
Free Shipping Free Shipping
Does this fit my vehicle?
For accurate results, specify your model below.

Product Details

il venting and circulation continues to be a problem on BMW engines and the N20 engine is not immune from this. The existing stock system does a poor job of separating fluid and vapor and this leads to an oily film or even small pools of oil throughout the turbos and intake. Performance issues are caused by oil sneaking by the ring seals and is coating the intake piping, intercooler, intake valves, and other critical areas. The problem is worsened with higher boost levels. Oil is excellent for lubricating moving parts but terrible when it gets into the combustion chamber, effectively lowering the octane rating and reducing performance. Our own shop has gone the extra step and offers media and chemical blasting of the intake valves to strip away the oily buildup we have seen.

Our shop also strongly recommends an oil catch can be installed in the line for the crankcase vent. The oil catch can traps oil as it leaves the valve cover and holds it in a canister. This catch can is located on the cooler side of the engine where the oil will condense easier and stay in the can. Whatever minimal vapors are left over in the oil is then vented back through the canister and into the intake where it is safe to be burned up in the engine or recirculated back through the system again. This is the way the system was designed! At each oil change simply unscrew the canister and empty the trapped oil with your regular used oil. Installing one of these will avoid costly repairs in the future and help maintain your boost and performance. It's one of the smartest modifications you can make because it demonstrates a well-thought out tuning strategy and care for the condition of your engine.

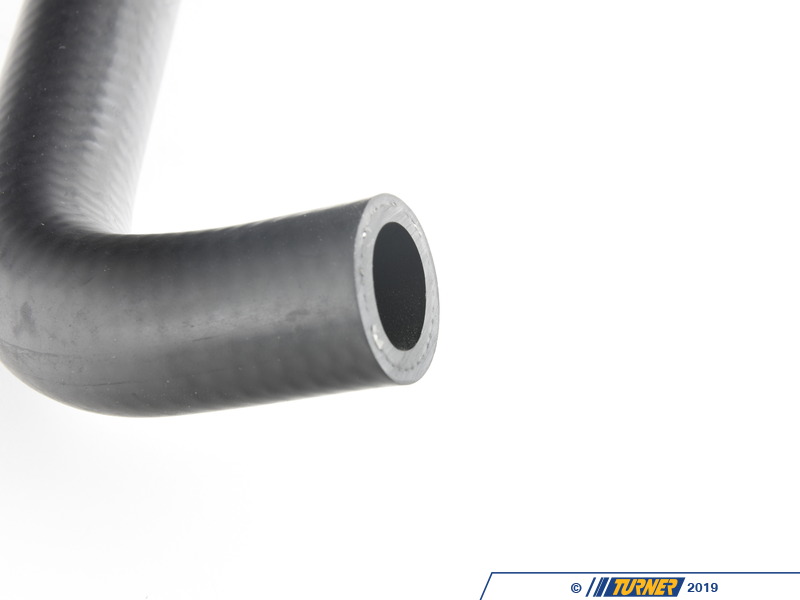

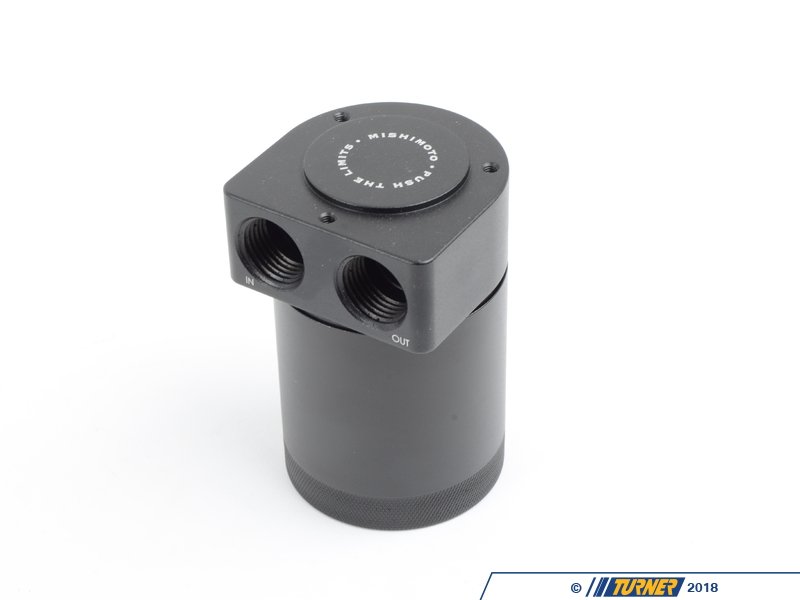

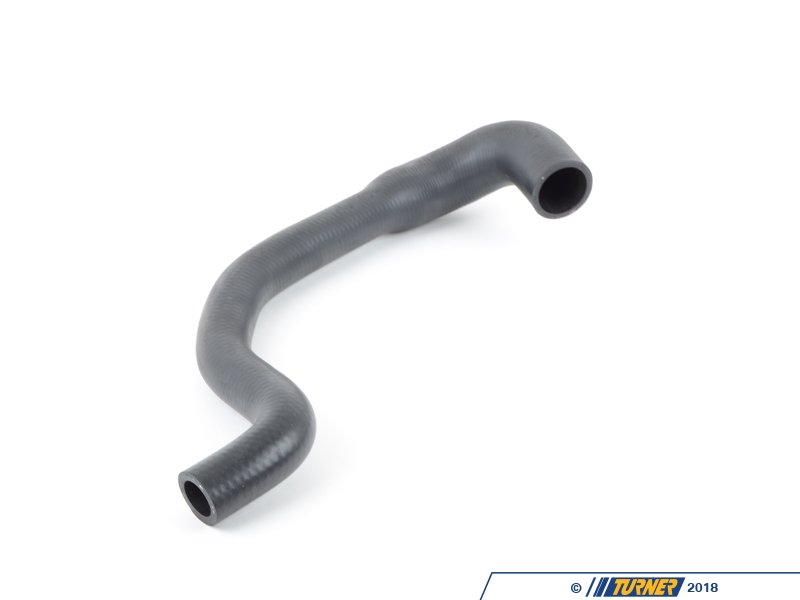

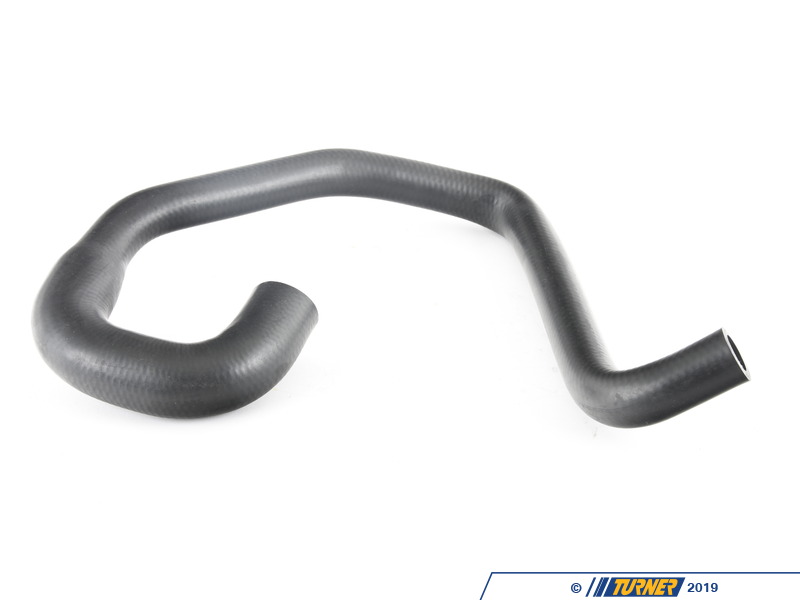

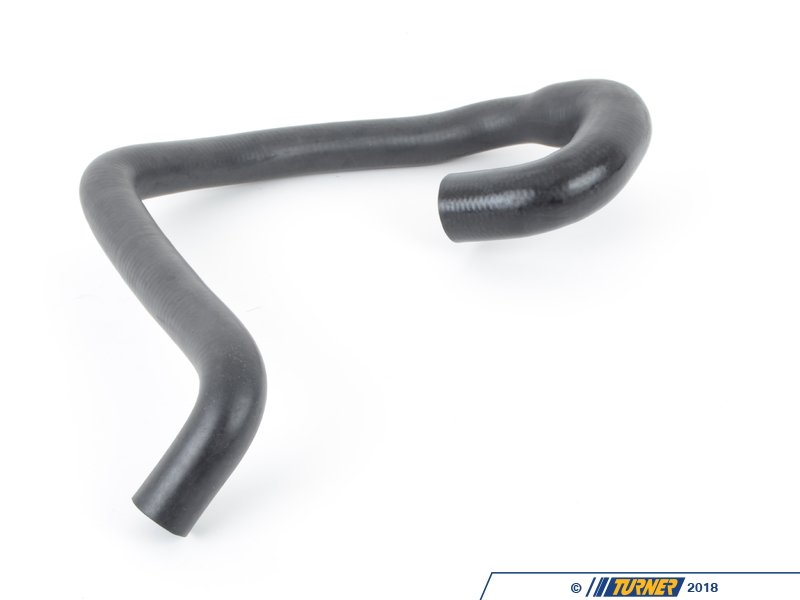

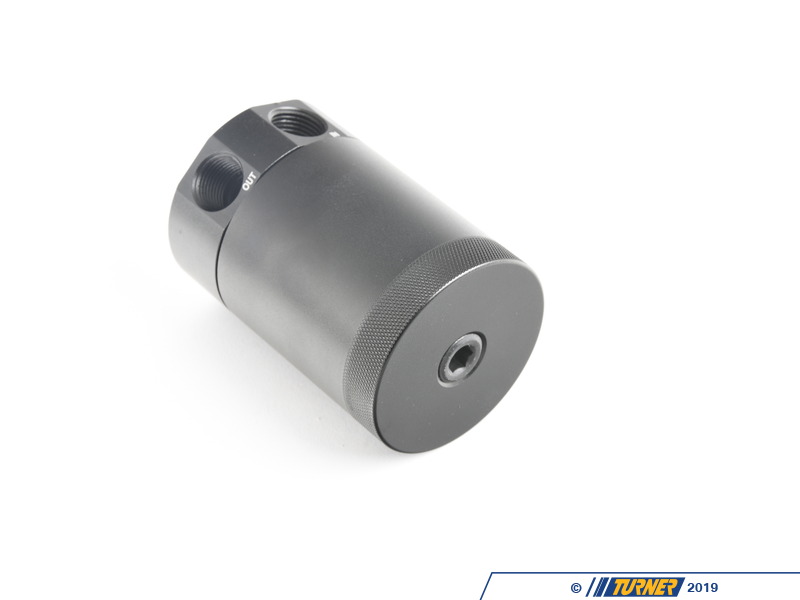

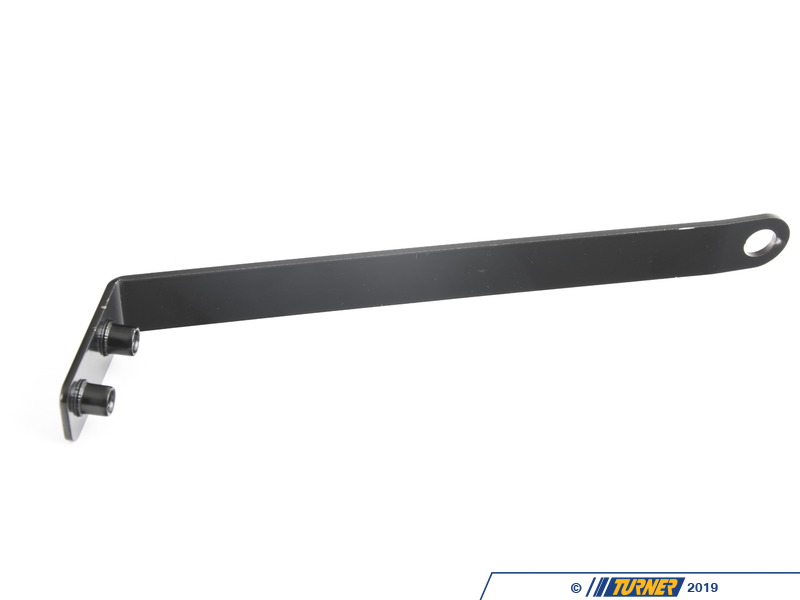

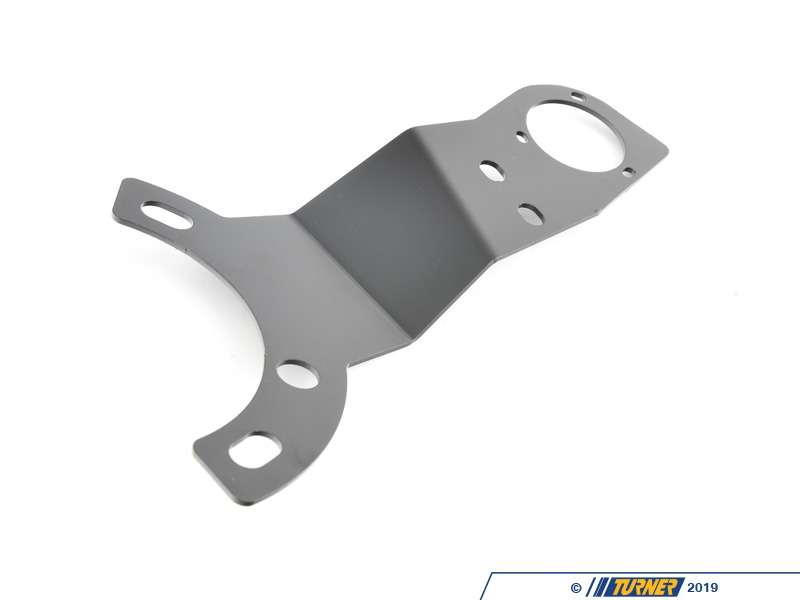

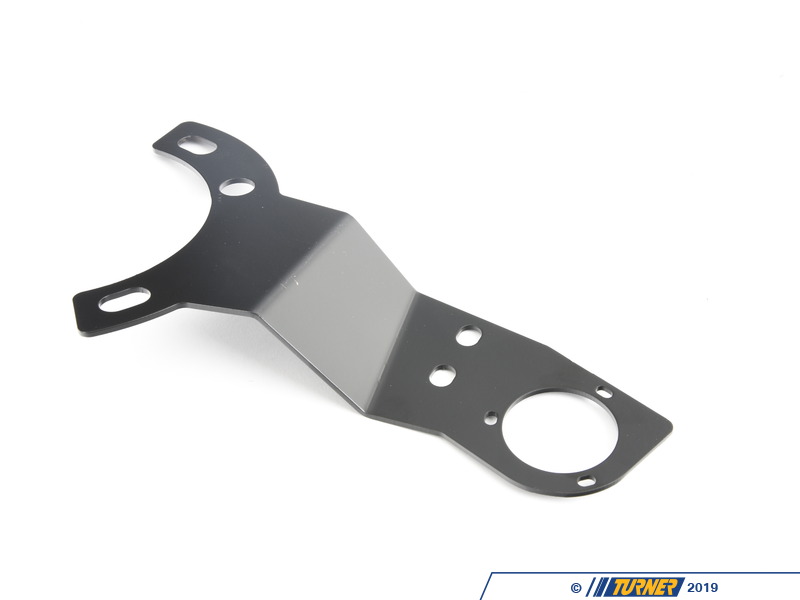

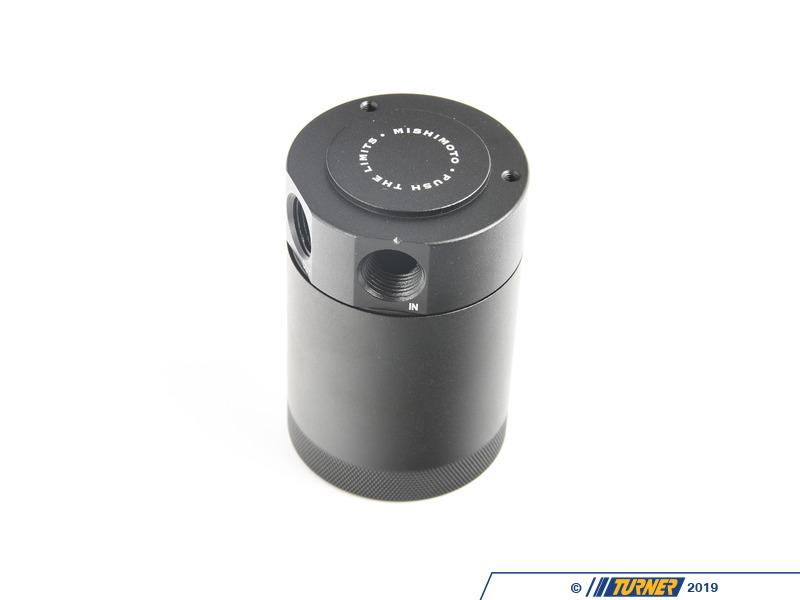

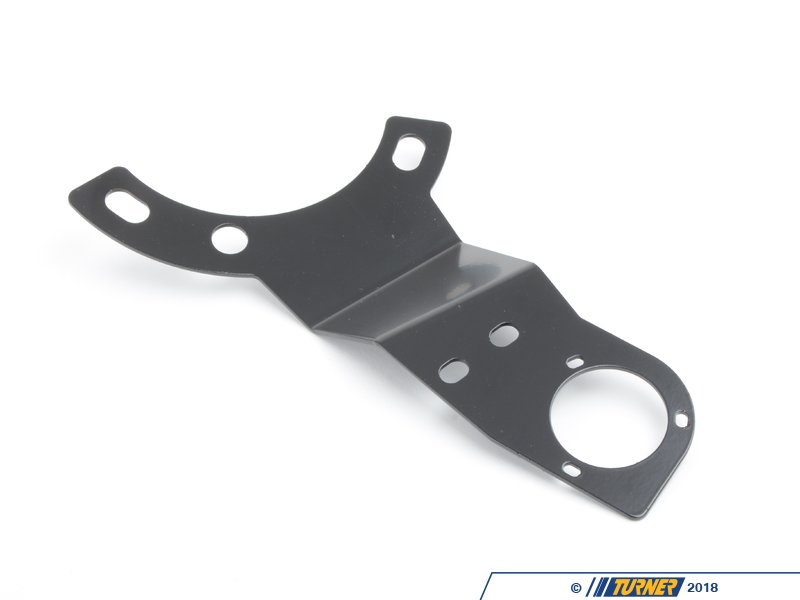

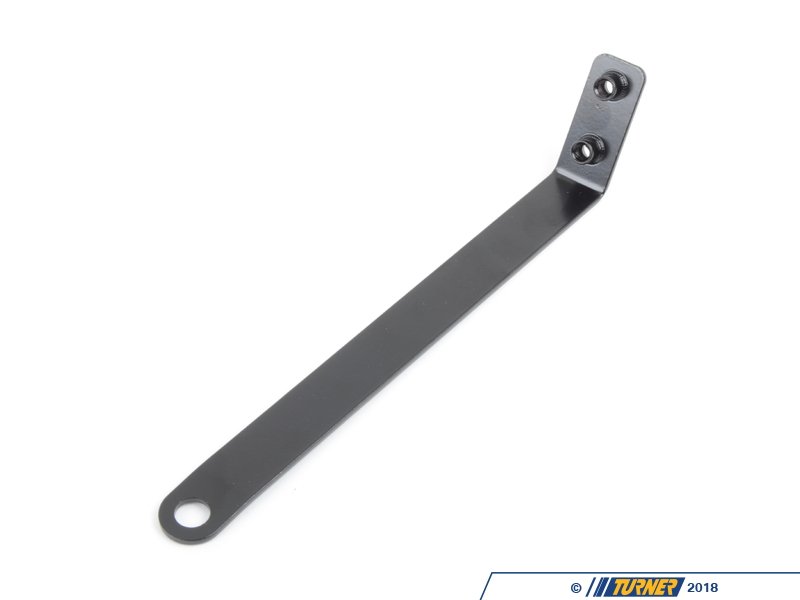

The Mishimoto Oil Catch Can is made from aluminum and with a stealthy black anodized finish. It installs on the cooler side of the engine with a dedicated bracket and new oversized vent lines. The location is key as heat will evaporate the oil and send too much vapor back into the engine (where cooler air will turn it back into fluid).

Note: Since the crankcase vent system is considered part of the overall emissions system, installing this may be a violation of local, state, and federal laws. While exemptions are made for track/race and off-road use, check with your local state inspection facility on using this in street-driven vehicles.

This item fits the following BMWs with the N20 or N26 turbo engine:
2014-2016 F2X 228i 228i xDrive
2012-2016 F3X 320i 320i xDrive 328i 328i xDrive 428i 428i xDrive

This Part Fits the Following BMWs

Make Model Submodel Engine
BMW F22 228i N20 2.0L
BMW F22 228i xDrive N20 2.0L
BMW F23 228i N20 2.0L
BMW F23 228i xDrive N20 2.0L
BMW F30 320i N20 2.0L
BMW F30 320i xDrive N20 2.0L
BMW F30 328i N20 2.0L
BMW F30 328i xDrive N20 2.0L
BMW F31 328i xDrive N20 2.0L
BMW F32 428i N20 2.0L
BMW F32 428i xDrive N20 2.0L
BMW F33 428i N20 2.0L
BMW F33 428i xDrive N20 2.0L
BMW F34 328i xDrive N20 2.0L
BMW F36 428i N20 2.0L
BMW F36 428i xDrive N20 2.0L
*The above product applications have been written by Turner Motorsport. All warranties, product application, fitment, and performance are the responsibility of Turner Motorsport. For additional information see the terms of use.
