QuickJack BL-3500SLX - 3,500 Lb. Capacity - 110 Volt (60Hz)

Product Details

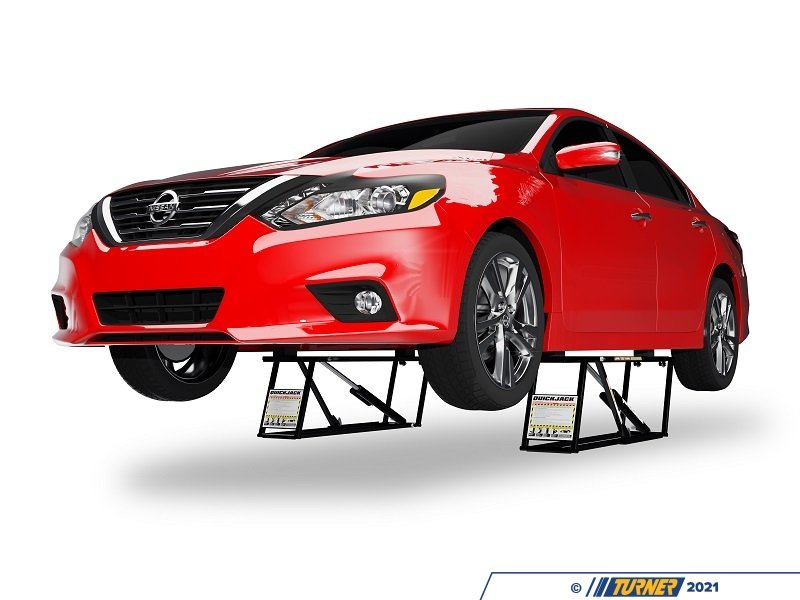

The BL-3500SLX has a maximum lifting capacity of 3,500-lb. But its true strength is that you can take it with you. The QuickJack is so light-weight and space-efficient that you can transport it in your regular sized trunk or backseat. It also takes seconds to get up and running following initial one-time assembly. Just drop it on the ground and hook-up the power. As soon as the jack frames and rubber blocks are in place under your vehicle, it'll be at a work-ready height in no time at all.

Working in a garage can become troublesome when stuck with only a jack and a few jack stands. Not only are jack-stands very unsteady at raised heights, it also requires the long, tedious process of raising each corner individually. Eliminate this issue with a vehicle lift that is unlike any other lifting system you have seen! QuickJack can raise your vehicle with the push of a button, raising your vehicle to the lift's maximum height in just seconds. This allows you complete access to service your vehicle's suspension, drivetrain, and under body, without any crossbeams to get in your way. Also, keeping safety paramount, QuickJack uses rugged, welded steel construction for strength and rock solid stability, and features auto-locking bars that lock the lift and vehicle at a set height until you are finished. This ensures the lift will never fail with you underneath, standing up to the toughest real-world garage and track conditions.

**INTERNATIONAL CUSTOMERS NOTE** We are unfortunately unable to offer QuickJack internationally at this time. All international orders will be cancelled.

Features:

• Perfect for the track: Convert your garage lift to a portable car lift just by rolling it to the truck of your car and hauling it to the track. If you don’t have a professional pit crew at your disposal, you’ll want QuickJack by your side. Have a heavier vehicle? The 5000TL (ES4421544) is also great for track day.
• Extended block trays: We increased the size of our rubber block trays to improve access to varied lift points. Position blocks from 26.75" – 50.5" apart, satisfying most lift point spreads.
• Zero-leak fittings: Our car lift components include flush-face hose fittings to ensure fluids stay in the unit and not on your garage floor. You don’t want to be the one to leak all over the track, either.

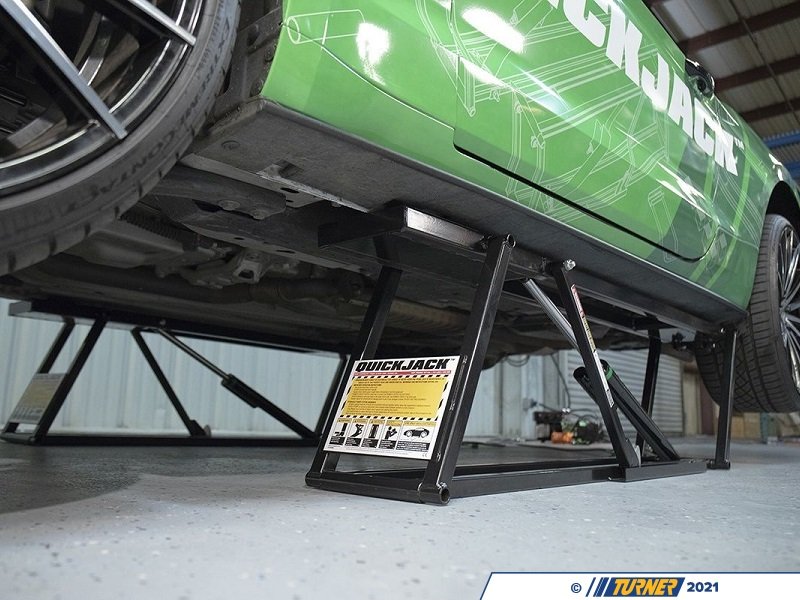

• Open-center design: Don’t let us get in your way! Inspired by larger frame-engaging car lifts, our open-center design gives users total access to the wheels and undercarriage.

Includes:

• BL-3500SLX Left Frame Assembly
• BL-3500SLX Right Frame Assembly
• 1x Hydraulic power unit with control
• 4x Medium rubber lift blocks (2")
• 4x Tall rubber lift blocks (3")
• 2x Short hydraulic hoses
• 2x Long hydraulic hoses
• 2x Frame-positioning handles
• Fittings and thread tape for setup
• Instruction manual

Not Included With Standard Frame Set:

• 3 liters of Automatic Transmission Fluid
• Air source to inflate air cylinders up to 50 PSI
• Assembly tools

Specifications:

• Lifting capacity
  • 3,500 lbs. (1,588 kg)
• Lowered height
  • Frame only: 3" (76 mm)
  • With 2" block: 3.5" (89 mm)
• Lifting height
  • Frame only: 16.5" (419 mm)
  • With 2" block: 17.5" (445 mm)
  • With 3" block: 18.5" (470 mm)
  • Max. height: 21" (533 mm)
  • With adapters: Not compatible
  • With adapters + pin: Not compatible
• Lift point spread
  • Maximum: 50.5" (1,283 mm)
  • Minimum: 27" (686 mm)
• Frame dimensions (ea.)
  • Width: 10.5" (267 mm)
  • Length: 62.5" (1,588 mm)
  • Height: 3" (76 mm)
  • Weight: 60 lbs. (27 kg)
• Other specs
  • Time to full rise: 30 seconds
  • Power unit weight: 30 lbs. (13 kg)
  • Shipping weight (per frame): 64 lbs. (29 kg)
