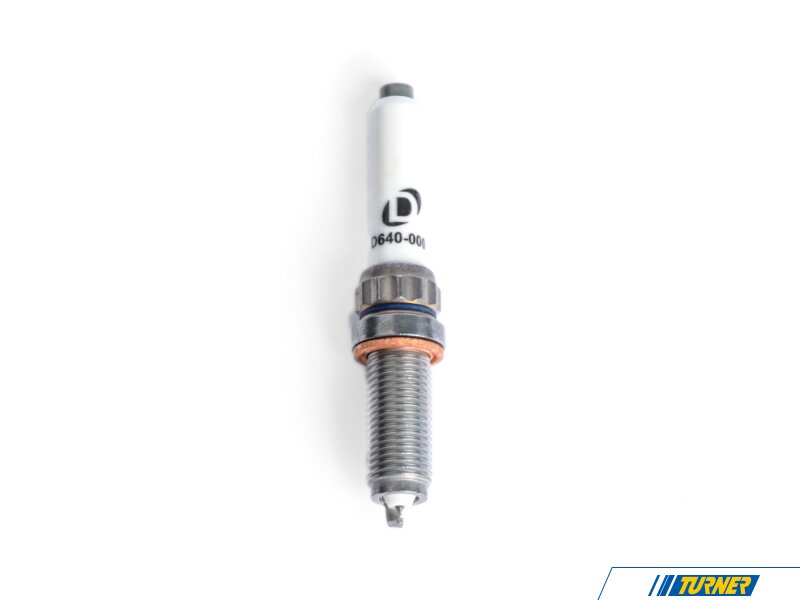

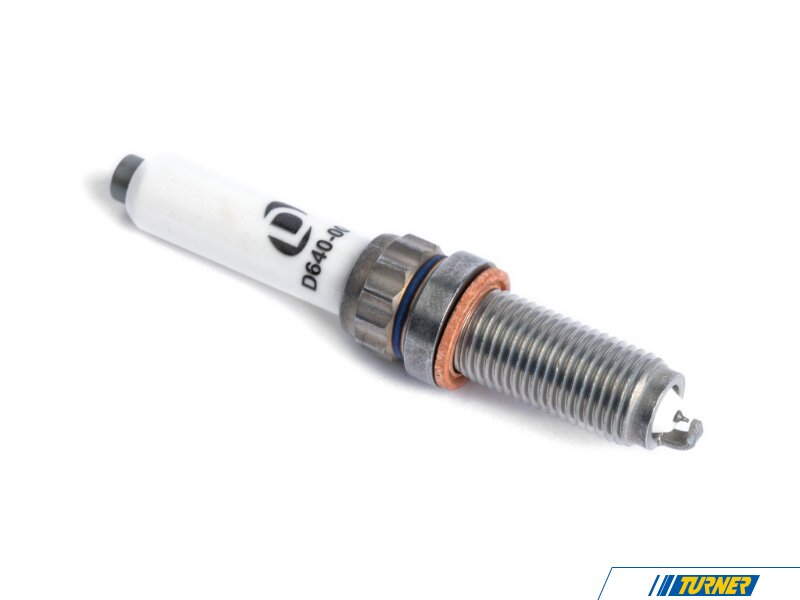

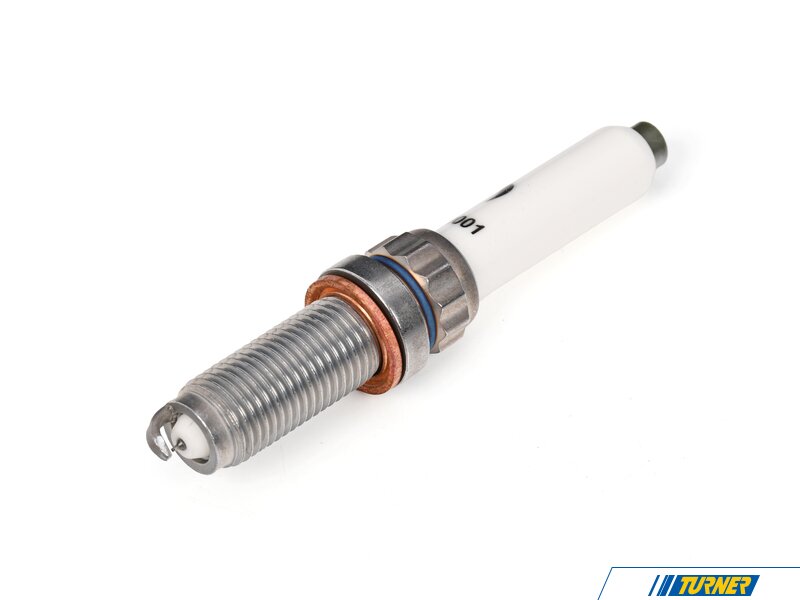

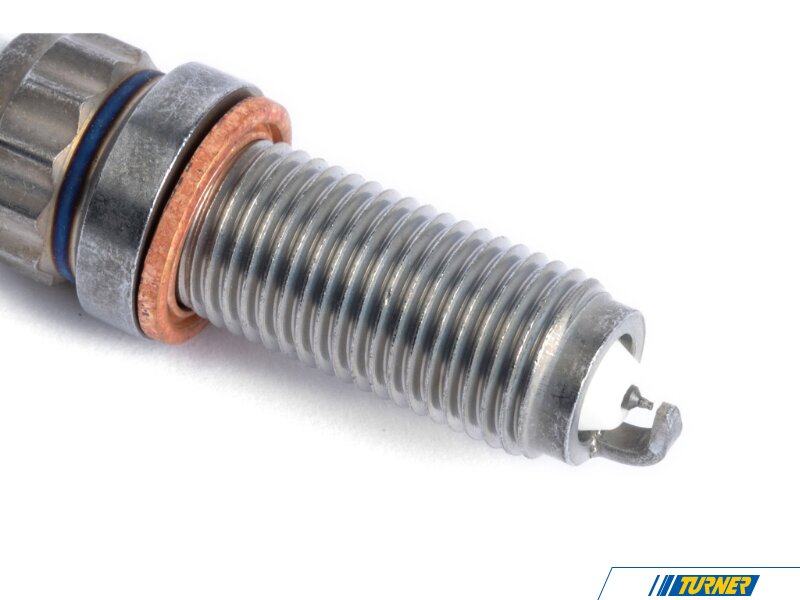

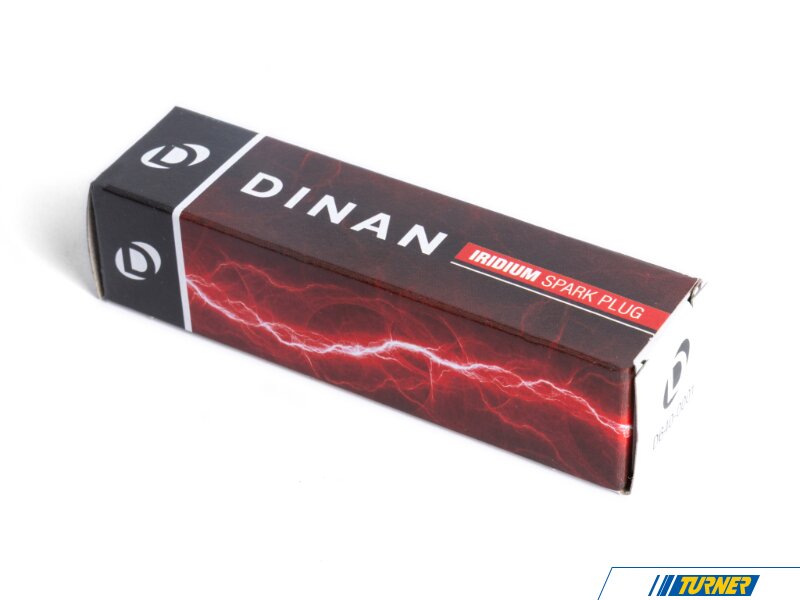

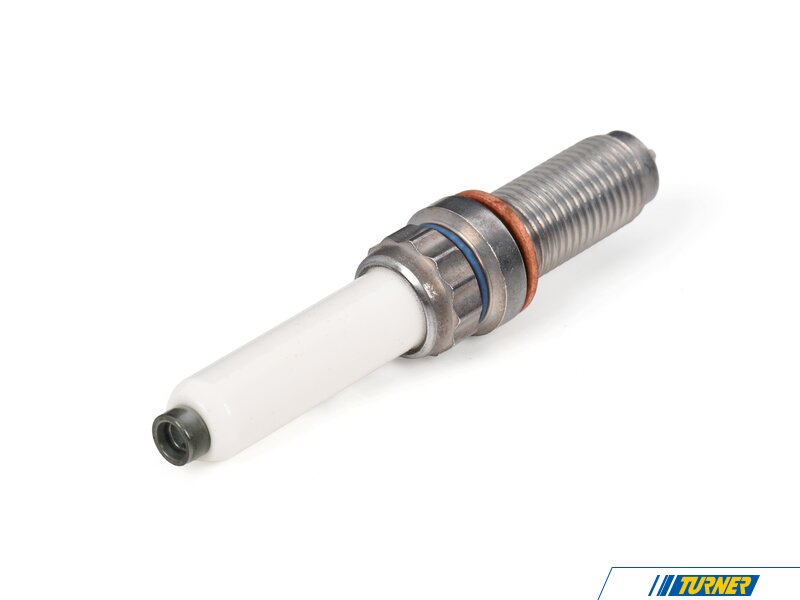

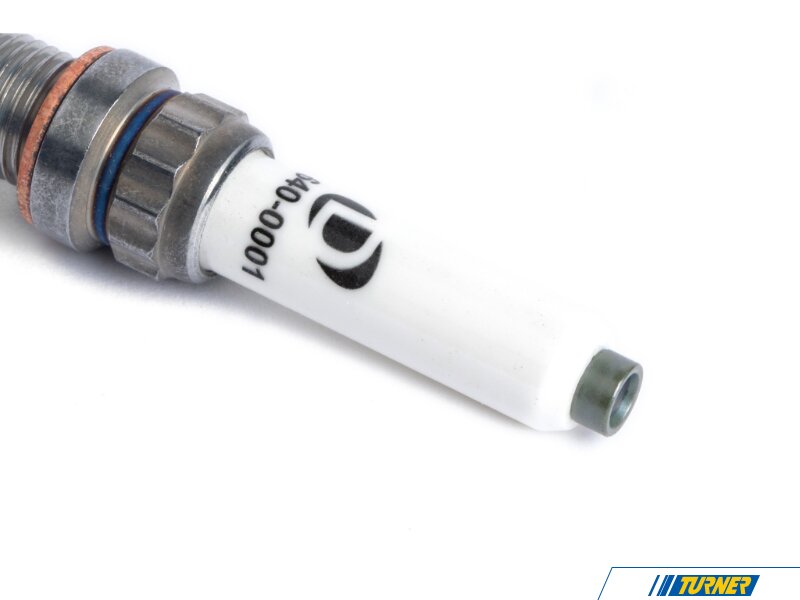

Dinan Iridium Spark Plug - B48/B46 B58 S58

Product Details

Dinan Iridium Spark Plugs are an excellent upgrade for tuned and even stock engines. Our spark plugs are made from Iridium - one of the strongest materials available. They last longer than other materials with higher melting points, run cooler, resist preignition, and even require less voltage to produce a strong spark. The iridium electrode with its copper core is harder and stronger than other materials, can dissipate heat more easily, and is better protected from melting, cracking, and other limitations found with standard plugs.

Dinan spark plugs are great for high boost, high cylinder pressure, high cylinder temperatures, and high-power situations, and they pair nicely with a set of Dinan ignition coils, where applicable. However, they are not only for tuned and higher output vehicles that may benefit from a plug cooler than the factory heat range – they are also applicable to non-tuned / stock vehicles as well!

Features:

• Heat range 9 spark plug (Similar: Bosch 3, Brisk 10, Champion 4, Denso 27, and NGK 9)
• 152% higher melting point than silver, 125% higher than copper, and 38% higher than platinum
• Stronger than copper and platinum
• Acceptable for high performance / tuned and stock vehicle applications alike
• Projected insulator design
• Lower required supplied voltage
• Cooler operating temperature than stock plugs
• Optimized electrode design for hard to ignite fuels, such as ethanol
• Resists preignition better than stock plugs
• An excellent match for Dinan ignition coils
• Thread reach: 26.5mm
• Thread diameter: 12mm
• Hexagon: 14mm Bi-Hex
• Terminal Type: Cup
• Seat Type: Flat
• Install Torque: 17 Nm
• Insulator Material: Ceramic
• Supplied Gap: 0.5mm
• 1 step colder than OEM (Gen 1 B48, Gen 1/2 B58, & S58)
• Made in the EU

OEM Part # Cross Reference:

• 12120040551
• 12122455258
• 12120046646
• 12125A4EF60

Specifications:

• Center Electrode Core Material:  Copper
• Center Electrode Projection:  Short Projection
• Center Electrode Tip Material:  Iridium
• Electrical Terminal Type:  Cup
• Emission Code:  7
• Grade Type:  Performance
• Hex Size:  14 MM
• Hex Type:  Bi-Hex
• Indexed:  No
• Insulator Material:  Ceramic
• Reach:  26.5 MM
• Seat Type:  Flat
• Thread Diameter:  12 MM
• Warranty:  Manufacturer's Limited 1 Year Warranty

INSTALLATION NOTE: Always check sizes, gap, and heat range specs before installing. Installation of the wrong length plug can cause damage to the engine. You must verify this before installing the plug.
