CSF CSF Universal Large Single-Pass Oil Cooler - Universal Application 8371

CSF Universal Large Single-Pass Oil Cooler - Universal Application

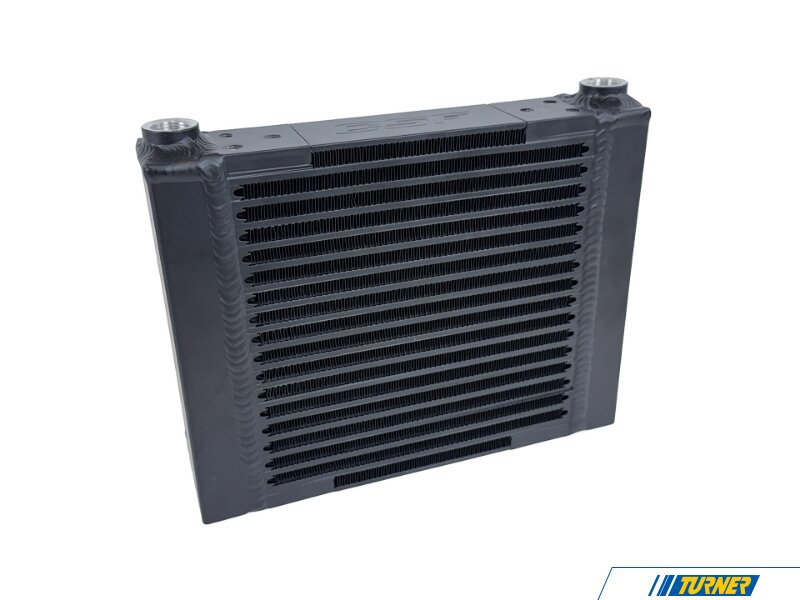

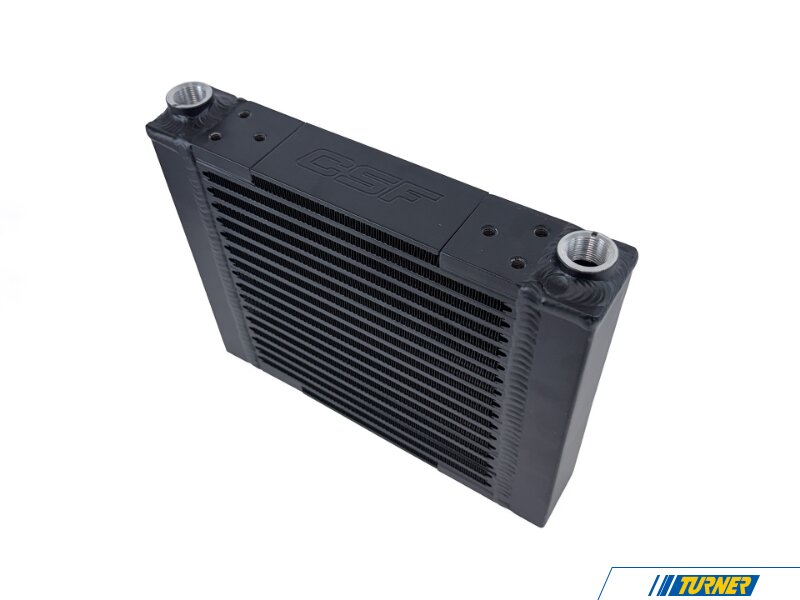

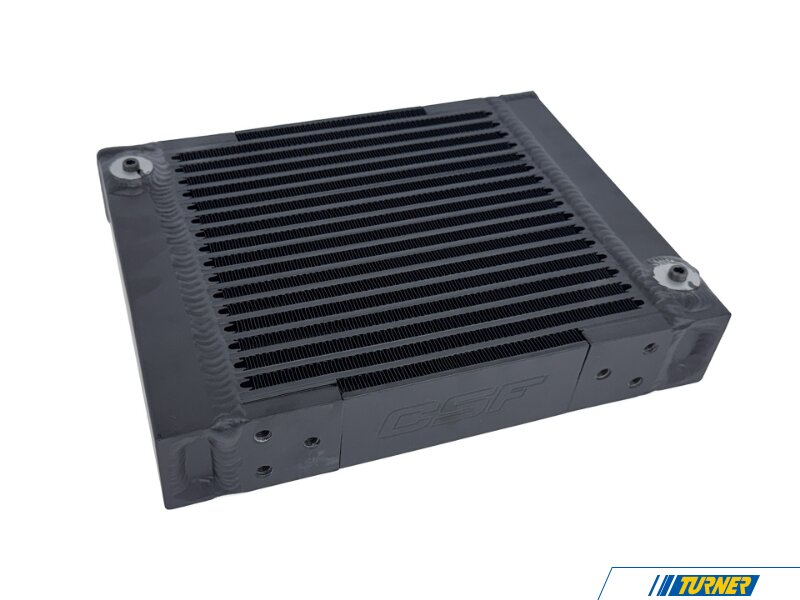

CSF redesigned this cooler and went with a more traditional inlet/outlet orientation. The new single pass design features high efficiency and high durability, but with vertically oriented inlet and outlet connections.
CSF CSF
T#: 53608839 | Part#: 8371
Universal fitment design - modifications may be necessary to run this cooler
Checking Vehicle Fitment...

Please ensure your correct model is selected

Does NOT fit your Change Vehicle

Fits your Change Vehicle

Change Vehicle

499.00 $499.00
Free Shipping
Availability:
Ships Directly From Supplier
Est. Ship Date:
in 3 Business Days
Qty
Add to Wish List
Facebook Twitter Pinterest Google+ Email Price Alert
CSF CSF Universal Large Single-Pass Oil Cooler - Universal Application 8371
CSF Universal Large Single-Pass Oil Cooler - Universal Application
$499.00

CSF redesigned this cooler and went with a more traditional inlet/outlet orientation. The new single pass design features high efficiency and high durability, but with vertically oriented inlet and outlet connections.

Key Features:

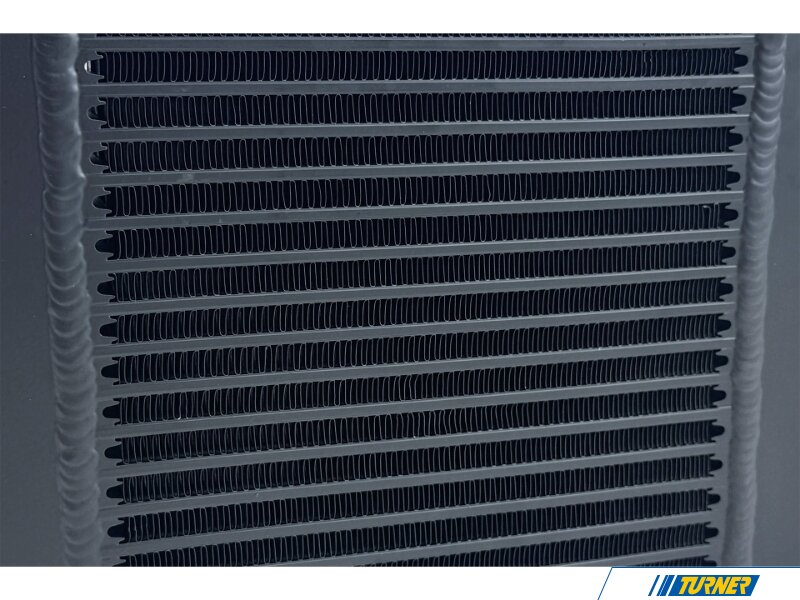

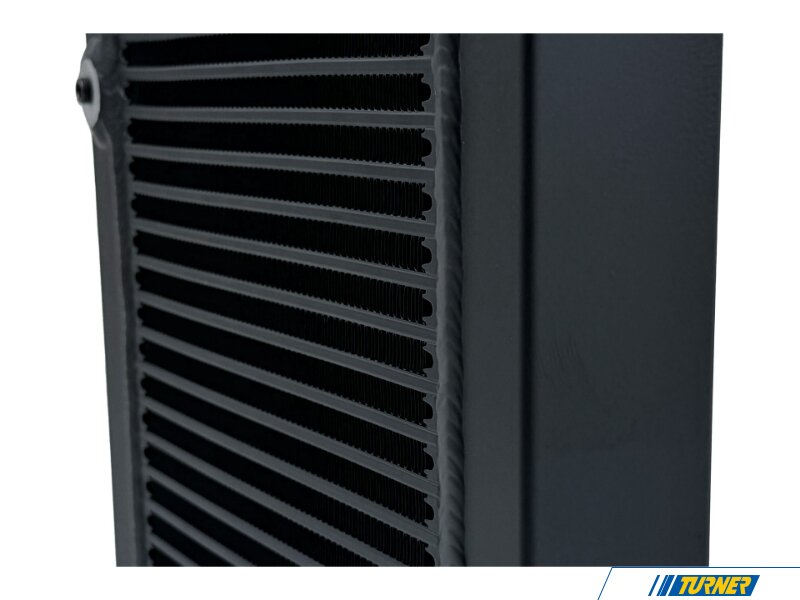

  • High Efficiency "Aero-Flow" Bar/Plate Core - Designed to be Lightweight, Durable, and offer Maximum Flow.
  • TIG-Welded End Tanks - Stronger and more durable than the brazed construction, reducing the risk of leaks.
  • Massive Fluid Capacity - This oil cooler offers a whopping 1.5L (1.6 qt) of increased Fluid Capacity.

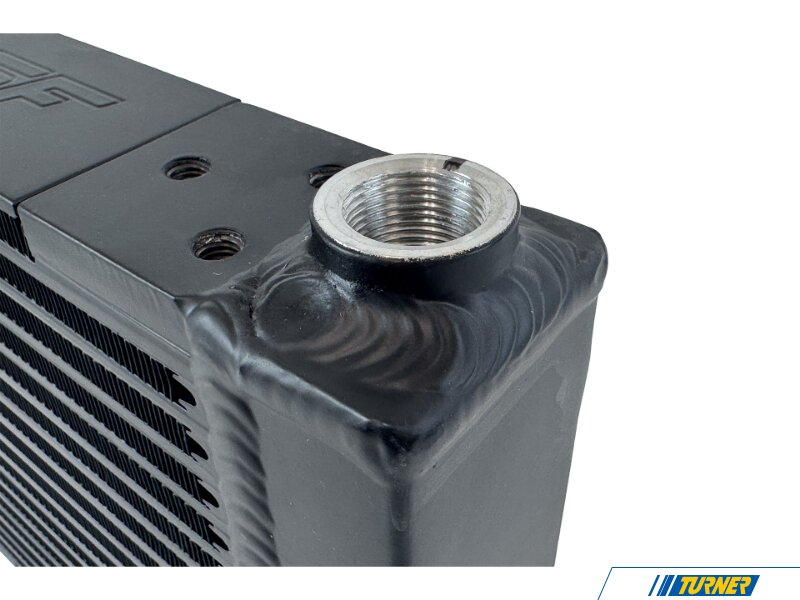

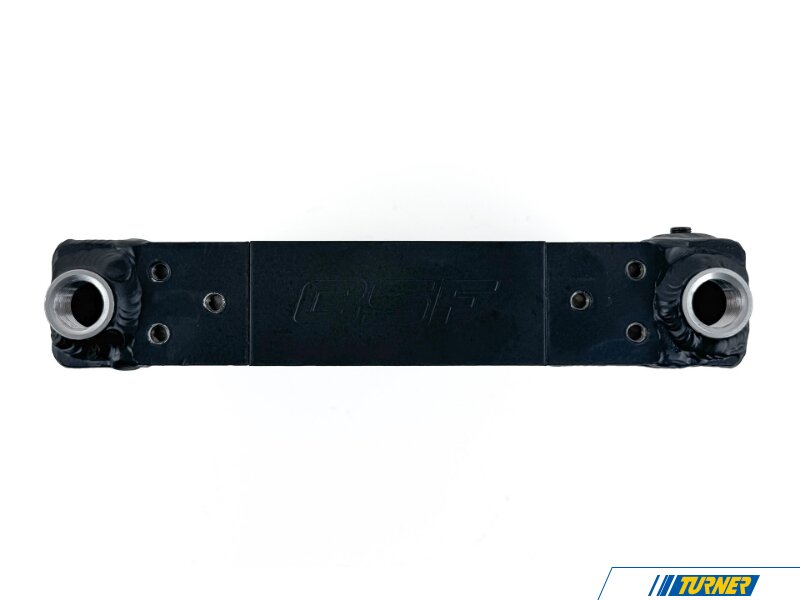

  • M22 x 1.5 Inlet/Outlet Connections - TIG-welded for extreme durability. Internal Radius for Maximum Flow and Optimized to also accept -16AN Connections.

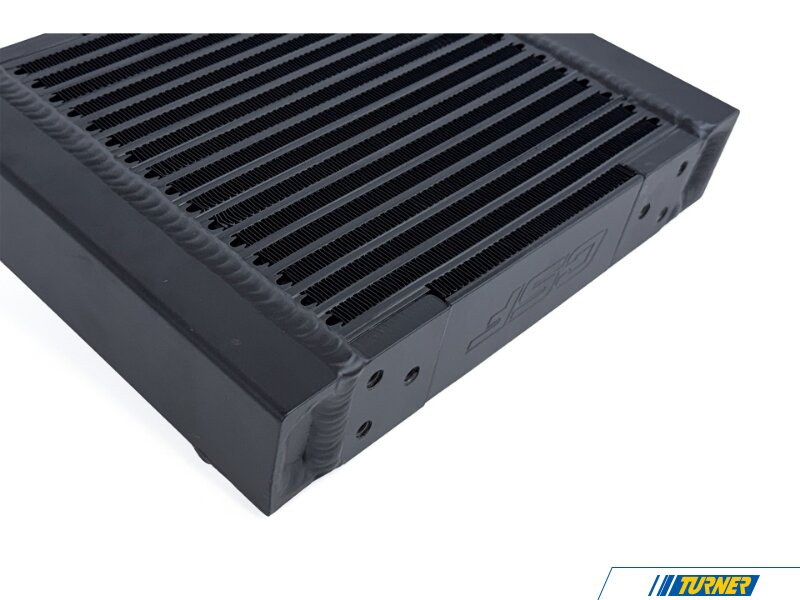

  • Triangular Flush Mounting Holes - (M8 x 1.25) on top and bottom - Offers a wide variety of mounting options and easy fabrication of mounting brackets.

Specifications:

  • Overall Dimensions (including fitting bosses): 12.0" L x 9.85" H x 2.36" W (305mm x 250mm x 60mm)
  • Core Dimensions: 9.25" L x 9.33" H x 2.16" W (235mm x 237mm x 55mm)

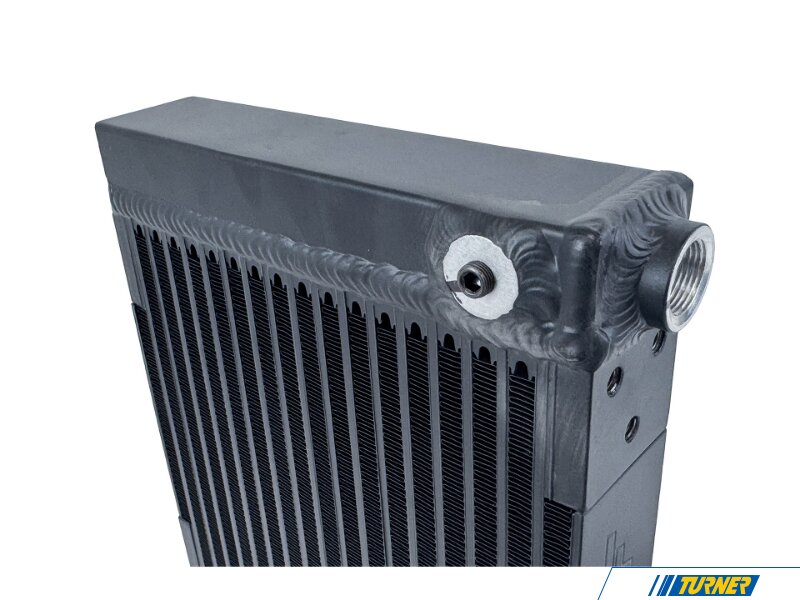

  • Two 1/8 NPT Ports on each tank for bleeding or temperature sensors
  • Satin Black Finish for Extreme Protection Against Corrosion and Debris
  • Pressure Tested at 120psi
  • 2-Year Limited Warranty

NOTE: The CSF #8371 is designed to be a "Custom Fit" application. Installation may require modifications and fabrication. If you do not feel confident installing this product, CSF recommends taking it to a qualified installation facility.

Prop 65 WarningProp 65 Warning

Product Q&A

Lifetime Replacement

This product is not eligible for Lifetime Replacement
MAKE MODEL SUBMODEL ENGINE Special Fitment Notes
BMW All All All Use vehicle selector to confirm fitment
MINI All All All Use vehicle selector to confirm fitment
*The above product applications have been written by Turner Motorsport. All warranties, product application, fitment, and performance are the responsibility of Turner Motorsport. For additional information see the terms of use.
