E30SUSRF3KT - Complete Front & Rear Suspension Rebuild Kit

Complete Front & Rear Suspension Rebuild Kit

Packaged by Turner

T#: 5498501 | Part#: E30SUSRF3KT

10X Entries Into Our F80 M3 Sweepstakes

1 of

2 of

3 of

4 of

5 of

6 of

7 of

8 of

9 of

10 of

11 of

12 of

13 of

14 of

15 of

16 of

17 of

18 of

Checking Vehicle Fitment...

SALE: $705.14 (8% OFF)

WAS: $768.98 on 05-03-2026

This product was last offered at the strikethrough price on
05-03-2026

Partial Replacement

Availability:

Back Ordered

Est. Ship Date:

No ETA

Qty

Add to Wish List

Product Details

No more clunks, squeaks, or wandering from the front or tail end of your E30. Complete suspension refresh - front and rear. Select upgraded OE and aftermarket components will make it better than new! Address problems all in one service - don't replace another component every few weeks, make it better than new! Level 3 includes:

Front:

Front lower control arms
Solid rubber E36 M3 front control arm bushings for improved handling and steering feel

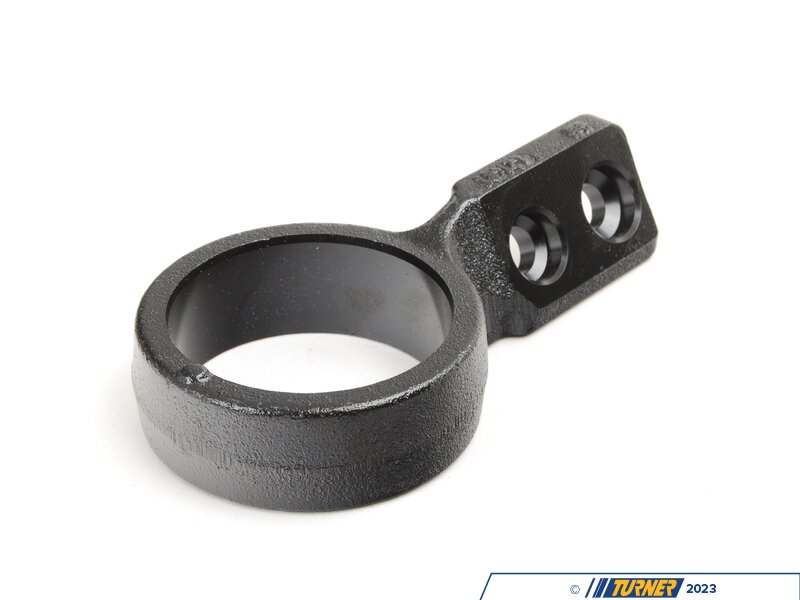

Control arm brackets (commonly referred to as 'lollipops') - no more wrestling old bushings out of brackets!
Front sway bar end links

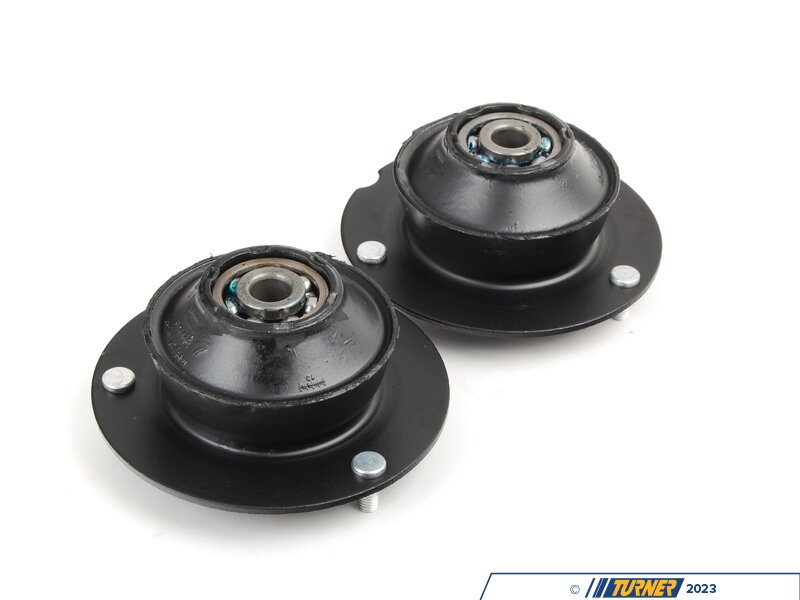

Front strut mounts
Inner and outer tie rod assemblies
All required retaining hardware

Rear:

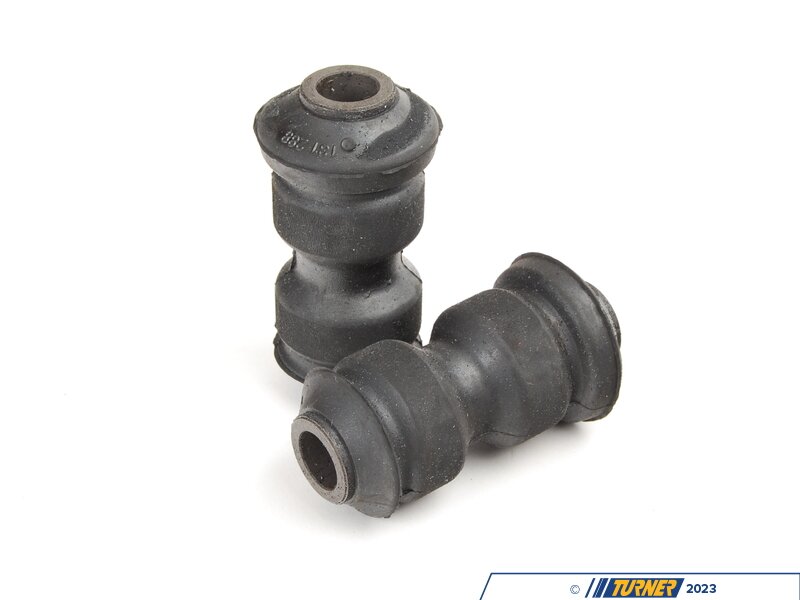

Rear trailing arm bushings

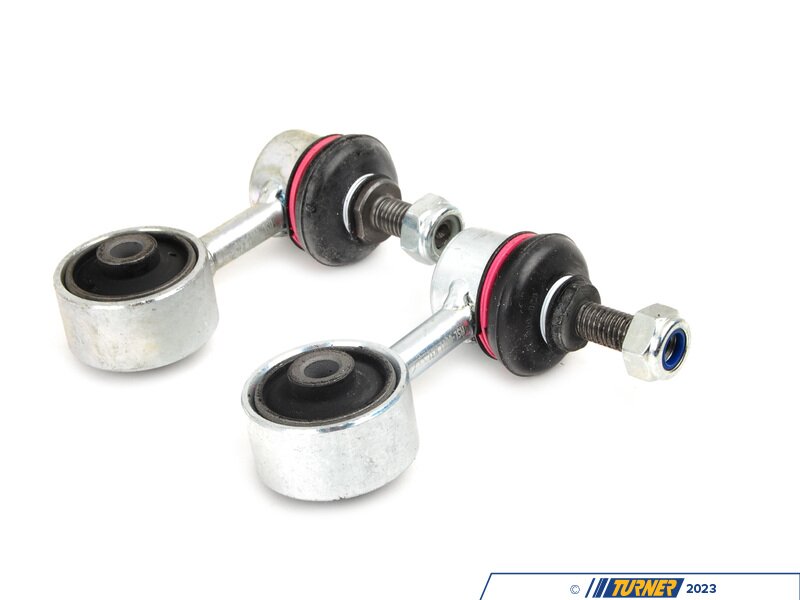

Rear stabilizer links
Rear shock mounts - upgraded units from the E46 M3
ECS rear shock mount reinforcement plates for improved mount life and protection from shock mount deformation
Rear shock mount hardware and gasket
Rear subframe mounts
Differential bushing

Prop 65 Warning

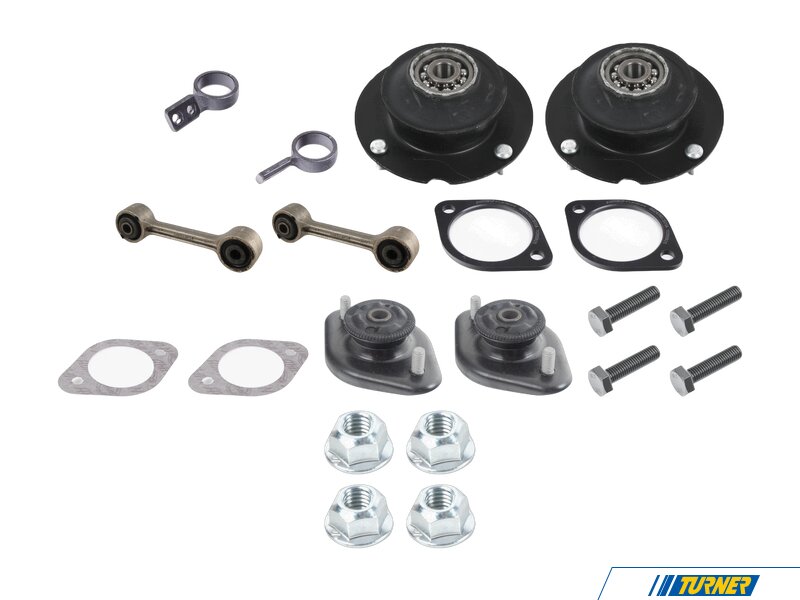

Kit Contents

Qty	Description	T#	Part#	Lifetime
2	Meyle HD Front Sway Bar End Link - E30 E36 Z3 non-M	T#304218	31351091764~my	YES
1	Genuine BMW Differential Mount Bushing	T#368209	33171135242	YES
2	Subframe Mount Bushing - Priced Each	T#372985	33311129144~URO	YES
1	M3 Control Arm Bushing Set	T#373158	31129069035~URO	YES
2	Rear Reinforcement Plate	T#362353	002478ECS01A	YES
2	Elring Shock Mount Gasket - E36, E46, Z3	T#12582	33521128734~OEB	YES
1	Febi Control Arm Bracket - Right - E30, E36, Z3	T#376585	31121139790~FEB	YES
1	Febi Control Arm Bracket - Left - E30, E36, Z3	T#376586	31121139789~FEB	YES
2	OEM Lemforder Rear Axle Shock Mount - E30 E36 E46 Z3	T#12527	33521092362~OEB	YES
1	Meyle Steel Front Control Arm - Left - E30	T#378630	31121127725~MEY	YES
1	Meyle Steel Front Control Arm - Right - E30	T#378631	31121127726~MEY	YES
2	Febi Trailing Arm Bushings - Pair - E10, E12, E21, E23, E24, E28, E3, E30, E36, E9, Z3	T#363273	33329061945~FEB	YES
2	Steering Rack Lock Plate - secures tie rod to steering rack	T#579064	1927~MTC	YES
2	Meyle Rear Sway Bar Link - E30 E36 E24 E28	T#579250	3003355102~MEY	YES
4	High-Strength Class 10.9 Steel Hex Head Screw - M10x1.5x40mm	T#17538713	94863A211~ECS	NO
4	Collar Nut \| Self-Locking	T#26938507	07119905374~BRP	YES
2	Upper Strut Mount - Priced Each	T#44495389	31331139452~BRP	YES
2	Tie Rod Assembly - Priced Each	T#371977	32111125186~URO	YES

Product Q&A

Lifetime Replacement

Some kit components are covered by our Lifetime Replacement Program

Products protected by our Lifetime Replacement Program are covered for as long as you own the product, no need to worry about an expiration date. Purchase your products and enjoy some worry-free motoring, knowing we've got you covered.

If you have any questions, would like to learn more or are ready to place a replacement claim, click here!

Fits These Cars

MAKE	MODEL	SUBMODEL	ENGINE	Special Fitment Notes
BMW	E30	318i	M10 1.8L	Use vehicle selector to confirm fitment
BMW	E30	318i	M42 1.8L	Use vehicle selector to confirm fitment
BMW	E30	318is	M42 1.8L	Use vehicle selector to confirm fitment
BMW	E30	325	M20 2.7L	Use vehicle selector to confirm fitment
BMW	E30	325e	M20 2.7L	Use vehicle selector to confirm fitment
BMW	E30	325es	M20 2.7L	Use vehicle selector to confirm fitment
BMW	E30	325i	M20 2.5L	Use vehicle selector to confirm fitment
BMW	E30	325is	M20 2.5L	Use vehicle selector to confirm fitment

*The above product applications have been written by Turner Motorsport. All warranties, product application, fitment, and performance are the responsibility of Turner Motorsport. For additional information see the terms of use.
