CANchecked MFD28 Multi Function Display - 2.8" Gen2 (LHD) - F8X F3X F2X
Please ensure your correct model is selected
Does NOT fit your Change Vehicle
Fits your Change Vehicle
Product Details

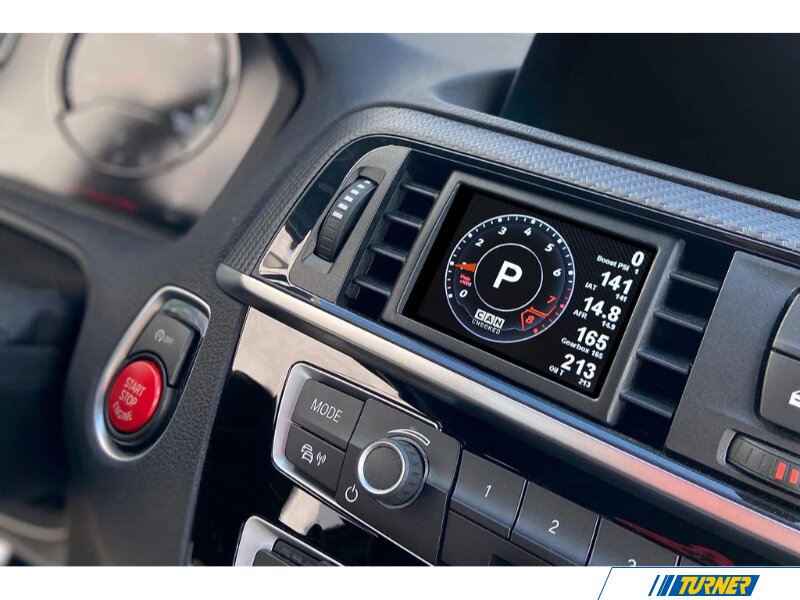

Total data visibility is crucial for extracting the maximum performance from your F-Series chassis, and the CANchecked 2.8-inch Gen2 Multi-Function Display delivers motorsport-level monitoring directly to your cabin. Engineered for left-hand drive F87 M2, F80 M3, and F82/F83 M4 models, this system provides real-time, highly accurate engine and vehicle data without compromising your interior layout. The vehicle-specific trim panel ensures a clean, factory-like installation that completely preserves your original dashboard ventilation.
By tapping directly into the vehicle's CAN Bus network, the proven MFD28 platform bypasses sluggish alternatives to pull telemetry straight from the ECU. This grants you access to up to 128 critical parameters, allowing you to closely monitor the temperatures, pressures, fueling, ignition timing, and performance metrics essential for serious tuning and track use.
The high-resolution display features pre-configured layouts and supports full customization via CANchecked’s Display Setup Software (DSS) to suit your exact needs. To maintain absolute driver focus, the system ingeniously utilizes your factory cruise control buttons (when inactive) to navigate through views, keeping your hands on the wheel and your eyes firmly on the road ahead.
Product Details
- 2.8-inch high-resolution multi-function display (MFD28 Gen2 platform)
- Vehicle-specific integration with OEM-style trim panel

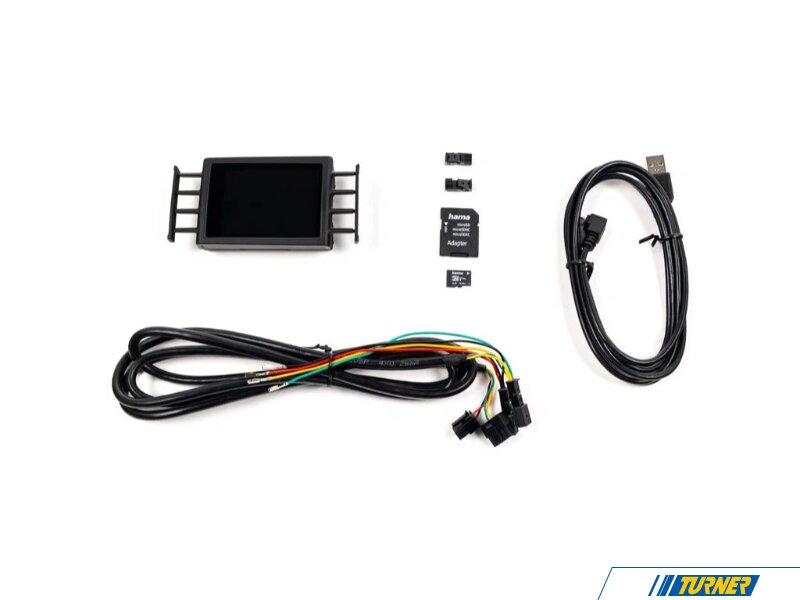

- Plug and play installation using included wiring harness
- CAN Bus communication for direct ECU data access
- Supports up to 128 sensor values depending on ECU compatibility
- 10 fully configurable display views via DSS software
- Pre-configured layouts for quick setup
- 4 additional analog inputs for external sensors
- Cruise control button integration for display navigation
- Internal data logging capability for performance analysis
- Optional anti-reflective film for improved visibility
- LHD version
- SKU: CC34064
Technical Overview
- Direct ECU data access via CAN Bus communication
- Supports a wide range of parameters including temperature, pressure, fueling, ignition, and performance data
- Displays both ECU broadcast data and analog sensor inputs
- High-speed data query optimized for BMW protocols
- Compatible with DSS (Display Setup Software) for full customization
- Internal logging allows post-drive data analysis and video synchronization
- TRI configuration file included for pre-defined sensor mapping
Display Functions
- Multiple configurable layouts including multi-value, bar graph, and gauge-style views
- Performance monitoring including G-forces, speed, and steering angle
- Real-time boost, oil pressure, fuel pressure, and temperature monitoring
- Gear display and throttle input tracking
- Custom startup screen capability
- Integrated warning alerts and threshold monitoring
- Navigation via factory cruise control buttons
Driver Performance Features
- G-force tracking (lateral and longitudinal acceleration)
- Brake pressure and throttle position monitoring
- Steering angle data for cornering analysis
- Track-focused data views for performance driving improvement
- Downloadable logs for post-session review and analysis
Supported Engine Data (Varies by Model)
- Engine oil temperature, coolant temperature, intake air temperature, exhaust gas temperature
- Boost pressure, fuel pressure, oil pressure, brake pressure
- Lambda values, ignition timing, injection correction
- Engine speed, torque, power output, air mass, throttle angle
- Vehicle speed, battery voltage, gear position
Supported Engines
- B37, B48, B57, B58
- M54, M57
- N13, N20, N47, N52, N54, N55, N57
- S55, S58, S63
