Home
Categories
Specials Gifts & Clothing
  1. Genuine BMW Accessories
  2. Genuine BMW Clothing
  3. Turner Shirts Hats and Gear
  4. Gifts under $25
  5. Gifts under $50
  6. Gifts under $100
  7. Gifts over $100
  8. Gift Certificates
  9. Stocking Stuffers
  10. Gift Packages
Brakes
  1. Brake Overhaul Packages
  2. Brake Pads
  3. Brake Pad Sensors
  4. Brake Rotors
  5. StopTech Big Brake Kits
  6. Brembo Big Brake Kits
  7. Stainless Steel Brake Lines
  8. Brake Fluid
  9. Brake Calipers
  10. Caliper Rebuild Kits
  11. Parking Brake Parts
  12. Brake Master Cylinders
  13. ABS/DSC System Parts
  14. Brake Cooling Ducts & Backing Plates
  15. Brake Pads - Brembo GT BBK Calipers
  16. Brake Pads - StopTech BBK Calipers
  17. CATuned Big Brake Kits
  18. Hydraulic Hand Brakes
Car Care & Accessories
  1. Car Covers
  2. Wheel & Tire Cleaning
  3. Wax, Polish and Cleaning Supplies
  4. Detailing Gear
  5. Leather & Plastic Care
  6. Car Cleaning Supplies
  7. Chassis Paint, Coatings, Sealants, and Rust Conversion
Drivetrain
  1. Differential and Gearing Upgrades
  2. Differential Mounts and Upgrades
  3. OEM Clutch Kits & Clutch Parts
  4. Performance Clutch Kits & Parts
  5. Lightweight Aluminum Flywheel Upgrades
  6. Stock OEM Dual Mass Flywheels
  7. Stainless Steel Clutch Lines
  8. Clutch Parts
  9. UUC Short Shift Kits
  10. Axle Shafts
  11. Driveshafts
  12. B&M Short Shifters
  13. Performance Short Shift Kits
  14. UUC DSSR - Double Sheer Selector Rod
  15. Drivershaft Center Support Bearings
  16. Flex Discs & Guibos
  17. Shifter Bushings
  18. Transmission Mounts
  19. Transmission Parts
Engine Chips
  1. Performance Chips, 1986-1995 Models
  2. Shark Injector Performance Software, 1996-2005 Models
  3. Performance Flash Software, 2005+ Models
  4. Sprint Booster Drive-by-Wire Module
  5. Stand-Alone Engine Management
  6. Burger Motorsports Tuning
Engine Parts
  1. Engine Performance Packages
  2. Cam Sprockets & Gears
  3. Water Pumps
  4. Thermostats
  5. Radiators & Cooling System Overhaul Kits
  6. Oil Pan Baffles
  7. Radiator Hoses, Cooling Hoses, & Hose Sets
  8. Engine Fans & Fan Clutches
  9. Underdrive Power Pulleys
  10. Camshafts
  11. Schrick Performance Camshafts
  12. E30 M3 S14 Engine Parts
  13. External Engine Parts
  14. Drive Belts & V-Belts
  15. Gaskets, Gasket Sets, Seals, & O-Rings
  16. Factory-Spec Replacement Turbos and Kits
  17. Crankcase Vent, PCV, and Oil Separator Systems
  18. Turbo Upgrades and Kits
  19. Motor Mounts
  20. Electrical Sensors, Switches, & Relays
  21. Ignition Parts
  22. Alternator & Alternator Parts
  23. Starter Motors & Starter Parts
  24. Fuel System Parts
  25. Internal Engine Parts
  26. Cylinder Head Parts & Head Bolts
  27. VANOS Units & Parts
  28. Rod Bearing Kits
  29. Oil Coolers & Oil Cooler Parts
Exhaust
  1. Supersprint Performance Exhaust Systems
  2. Performance Headers & Downpipes
  3. Turner Motorsport Performance Exhaust
  4. Akrapovic Performance Exhaust Systems
  5. Borla Performance Exhaust Systems
  6. Corsa Performance Exhaust Systems
  7. Dinan Free Flow Exhaust Systems
  8. Performance Exhaust Systems
  9. OEM Replacement Mufflers and Exhaust Systems
  10. Exhaust System Upgrades
  11. Exhaust Muffler Tips
  12. Catalytic Converters
  13. Oxygen Sensor - O2 Sensors
  14. Exhaust Gaskets Hangers and Parts
  15. Remus Performance Exhaust Systems
Exterior / Body
  1. Black Grills
  2. Chrome Grills & Trim
  3. Emblems & Decals for Hood, Trunk, and Wheels
  4. Painted Reflectors
  5. Front Spoilers, Bumper Covers, & Air Dams
  6. Rear Spoilers, Rear Wings, & Aprons
  7. Body Trim Parts & Accessories
  8. Carbon Fiber Trunk Lids
  9. Hood & Trunk Shocks, Struts
  10. License Plate Brackets & License Plate Frames
  11. Mirror Kits & Mirror Parts
  12. Window Regulators & Motors
  13. Wiper Blades, Wiper Pumps, & Wiper Motor Parts
  14. Hood Pins and AeroCatch Latches
  15. Racing Tow Hooks and Tow Straps
  16. Aero & Body Kits
Intake
  1. aFe Cold-Air Intake Kits
  2. Turbos & Active Autowerke Superchargers
  3. Dinan Cold Air Intake Kits
  4. Gruppe M Cold-Air Intake Kits
  5. Performance Intake Kits
  6. aFe Performance Air Filters
  7. K&N Performance Air Filters
  8. Replacement Cone Air Filters (for Cold Air Intakes)
  9. Intake Cleaning & Recharging Kits
  10. Intake Manifold Upgrades
  11. Intake Manifold Components (DISA, Vacuum, CCV, Etc)
  12. BOV, Chargepipe, and Intercooler Upgrade Kits
  13. Mass Air Sensor & Air Flow Meters
  14. Intake Boots & Hoses
  15. Throttle Body Parts
  16. Other Intake Kits
Interior
  1. Floor Mats
  2. Gauge Kits and Data Acquisition
  3. Auxiliary Input Adaptors for BMW
  4. Pedal Sets
  5. Escort Radar Detectors
  6. Factory Steering Wheels
  7. Racing Steering Wheels
  8. Shift Knobs, Shift Boots, & Shift Handles
  9. Seats & Seat Accessories
  10. Seat Belts and Racing Harnesses
  11. Cup Holders and Storage
  12. Carbon Fiber Interior Parts
  13. Door Sill Strips
  14. Heating & Air Conditioning
  15. Interior Switches and Switchgear
  16. Sunshades & Windscreens
  17. Interior Trim & Accessories
  18. Fire Extinguishers and Mounts
  19. Helmets
Lighting
  1. Euro Clear Turn Signals, Parking Lights, & Tail Lights
  2. Turn Signals / Parking Lights
  3. Angel Eye Headlight Conversions
  4. Bulbs for Headlights, Turn Signals and Tail Lights
  5. Headlights, Headlight Lenses, & Headlight Parts
  6. Fog Lights, Fog Light Lenses, & Fog Light Parts
  7. Tail Lights
  8. Stealth Bulbs
  9. Universal
Maintenance
  1. Routine Maintenance & Tune-Up Packages
  2. Oil Filters & Oil Filter Kits
  3. Air Filters
  4. Fuel Filters
  5. Cabin Air Filters, Heppa Filters, & Microfilters
  6. Transmission Filter Kits & Transmission Service Parts
  7. Distributor Caps & Rotors
  8. Ignition Coils
  9. Ignition Wires / Spark Plug Wires
  10. Spark Plugs
  11. Bentley Repair / Service Manuals
  12. Service Reset Tools & Fault Code Readers
  13. Anti-Freeze and Coolant
  14. Engine Oils - Genuine BMW and OEM
  15. Power Steering and Hydraulic Fluids
  16. Transmission and Gear Oil - Genuine BMW and OEM
  17. MOTUL Engine Oil and Gear Lubricants
  18. Red Line Oil & Fluids
  19. Liqui-Moly Oil and Additives
Suspension
  1. Shocks & Struts
  2. H&R Performance Springs
  3. Dinan Performance Springs
  4. H&R Cup Kit Shock & Spring Packages
  5. Spring & Shock Packages
  6. Fortune Auto Coilover Kits
  7. Dinan Coilover Spring Kits
  8. Turner / H&R Height Adjustable Spring Sets
  9. Bilstein PSS PSS9 PSS10 Coil Over Suspensions
  10. H&R Coil Over Suspensions
  11. KW Coil Over Suspensions
  12. Moton Coil Overs & Race Shocks
  13. ST Suspension Coilover Kits
  14. Turner Motorsport TrackSport Coil-Over Suspension Kits
  15. Turner Motorsport Racing Suspension Kits
  16. TC Kline Racing Coil Overs
  17. Chassis Reinforcement Kits & Parts
  18. Sway Bar Kits
  19. Sway Bar Links & Sway Bar Parts
  20. Camber / Caster Kits
  21. Strut Braces & Stress Bars
  22. Control Arm Replacements & Upgrades
  23. Suspension Bushings & Mounts
  24. Wheel Bearings & Hub Assemblies
  25. Steering Racks & Power Steering Pumps
  26. Tie Rods & Steering Parts
  27. Coil Over Spring Hardware
  28. CATuned Coilover Kits
  29. AC Schnitzer Suspension Kits
  30. Sachs Performance Coil Over Suspension
  31. AST Suspension
  32. Ohlins Coilover Kits
Wheels
  1. Apex Flow Formed Alloy Wheels
  2. Forgeline Custom Forged Alloy Wheels
  3. HRE FlowForm Performance Alloy Wheels
  4. Vorsteiner Wheels
  5. Rohana Wheels
  6. D Force Flow Formed Alloy Wheels
  7. Dinan Performance Wheels
  8. Alpina Alloy Wheels
  9. Original BMW Wheels and Wheel Upgrades
  10. Turner Motorsport Wheel Spacers
  11. ECS Tuning Wheel Spacers
  12. H&R Wheel Spacers
  13. Wheel Bolts, Wheel Studs and Nuts
  14. Wheel Emblems, Caps, and Accessories
  15. High Performance Wheels
  16. BBS Wheels
Tools
  1. Alignment Tools
  2. Battery Chargers and Tenders
  3. Brake Tools
  4. Clutch Alignment Tools
  5. Coil Over Wrenches
  6. Cooling System Tools
  7. Cylinder Head and VANOS Tools
  8. Exhaust Tools
  9. Fan and Fan Clutch Tools
  10. Fault Code Readers and OBD Scan Tools
  11. Fuel System Tools
  12. Genuine BMW Tool Kits
  13. Oil Service Tools
  14. Schwaben Lighting
  15. Sockets
  16. Spark Plug Sockets
  17. Transmission and Differential Tools
  18. Wheel Pin Tools
  19. Workshop Chemicals
  20. Race Ramps
  21. Fender Rollers
  22. Vehicle Lifts
Clearance
Choose BMW
BMW 1 Series
  1. (E82) 1-series Coupe 2008+
  2. (E88) 1-series Convertible 2008+
BMW 2 Series
  1. (F22) 2-Series Coupe 2014+
  2. (F23) 2-Series Convertible 2014+
  3. (F87) M2 2016+
BMW 3 Series
  1. (E21) 3-Series 1977-1983
  2. (E30) 3-series 1984-1991
  3. (E30) M3 1988-1991
  4. (E36) 3-series 1992-1999
  5. (E36) M3 1995-1999
  6. (E46) 3-Series 1999-2005
  7. (E46) M3 2001-2006
  8. (E90) 3-Series Sedan 2006-2011
  9. (E90) M3 Sedan 2008-2013
  10. (E91) 3-Series Touring 2006-2013
  11. (E92) 3-Series Coupe 2007-2013
  12. (E92) M3 Coupe 2008-2013
  13. (E93) 3-Series Convertible 2007-2013
  14. (E93) M3 Convertible 2008-2013
  15. (F30) 3-Series Sedan 2012+
  16. (F31) 3-Series Touring 2014+
  17. (F80) M3 2015+
BMW 4 Series
  1. (F32) 4-Series Coupe 2014+
  2. (F33) 4-Series Convertible 2015+
  3. (F34) 3-Series Gran Turismo 2014+
  4. (F82) M4 Coupe 2015+
  5. (F83) M4 Convertible 2015+
  6. (F36) 4-Series Gran Coupe 2015+
BMW 5 Series
  1. (E34) M5 1991-1993
  2. (E39) M5 2000-2003
  3. (E60) M5 2006-2010
  4. (E28) 5-Series 1982-1988
  5. (E34) 5-Series 1989-1995
  6. (E39) 5-Series 1996-2003
  7. (E60) 5-Series Sedan 2004-2010
  8. (E61) 5-Series Touring 2006-2010
  9. (F10) 5-Series 2011+
  10. (G30) 5-Series 2017+
BMW 6 Series
  1. (E24) 6-Series 1977-1989
  2. (E63) 6-Series Coupe 2004-2010
  3. (E64) 6-Series Convertible 2004-2010
  4. (F06) 6-Series Gran Coupe 2013+
  5. (F12) 6-Series Convertible 2012+
  6. (F13) 6-Series Coupe 2012+
BMW 7 Series
  1. (E32) 7-Series 1988-1994
  2. (E38) 7-Series 1995-2001
  3. (E65) 7-Series SWB 2002-2007
  4. (E66) 7-Series LWB 2002-2007
  5. (F01) 7-Series SWB 2009+
  6. (F02) 7-Series LWB 2009+
BMW 8 Series BMW Classics (E9, Bavaria, Isetta, etc)
  1. 2500
  2. 2800
  3. 3.0Si
  4. Bavaria
  5. 2800CS
  6. 3.0CS
  7. 2002
  8. 2002tii
  9. (E12) 528i 1977-1981
  10. (E12) 530i 1975-1978
BMW X Series (SAV)
  1. (E84) X1 Series 2013+
  2. (E83) X3 2004-2010
  3. (F25) X3 2011+
  4. (F26) X4 2015+
  5. (E53) X5 2000-2006
  6. (E70) X5 2007-2013
  7. (F15) X5 2014+
  8. (F85) X5 M 2015+
  9. (E71) X6 2008+
  10. (F16) X6 2015+
  11. (F86) X6 M 2015+
  12. (F48) X1 2016+
  13. (F48) X1 (2016+)
BMW Z Series
  1. (E36/7) Z3 1997-2002
  2. (E85) Z4 M Roadster
  3. (E85/E86/E89) Z4 2003+
  4. (E86) Z4 M Coupe
  5. (E52) Z8 2000-2003
BMW 1600-2002 / tii BMW i Series
  1. (I01) BMW i3 2014+
  2. (I12) BMW i8 2014+
MINI Cooper and Cooper S
Racing
Racing Home Racing News Racing Schedule Racing Photo Gallery
Gallery
Photo Gallery Wallpaper Project Cars
  1. Project i8
  2. Project F80 M3
  3. Turner F82 M4
  4. Turner X5 M
  5. Turner F22 2 Series
  6. Turner F13 M6
  7. Turner F10 M5
  8. Turner F30 335i
  9. Turner E9X M3
  10. Turner E92 335i
  11. Turner E82 1 Series
  12. Turner ActiveE (100% Electric)
  13. Turner E46 M3
  14. Turner E46 330i ZHP
  15. Turner E36 M3
  16. Turner E30 M3
  17. Turner MINI Cooper S
  18. McLaren F1
  19. Turner E92 M3 Lime Rock
  20. Turner F80 M3 Silverstone
Video Gallery
Projects
Turner BMW i8 Turner BMW F80 M3 Turner BMW F82 M4 Turner BMW X5 M Turner BMW F22 2 Series Turner BMW F13 M6 Turner BMW F10 M5 Turner BMW F30 335i Turner BMW E9X M3 Turner BMW E92 335i Turner BMW E82 1 Series Turner BMW ActiveE (100% Electric) Turner BMW E46 M3 Turner BMW E46 330i ZHP Turner BMW E36 M3 Turner BMW E30 M3 Turner MINI Cooper S McLaren F1 Turner BMW E92 M3 Lime Rock Turner BMW F80 M3 Silverstone
About Us
About Turner Motorsport Customer Feedback The Turner Team
  1. Open Positions
Returns Policy Shipping Info Contact Us Privacy Policy Security Policy FAQs


BMW Camber Plates & Geometry Explained

Dialing in your BMW suspension for more than spirited driving sounds fairly simple, however, as we discussed in our previous article, BMW Coilover Buyer's Guide, suspension geometry is an involved process. The suspension components themselves can easily be interchanged for performance variants, but without knowing how everything works together and affects your handling, you will find it is not an easy task. This comprehensive analysis will help you understand tuning your BMW suspension for street or track performance driving.

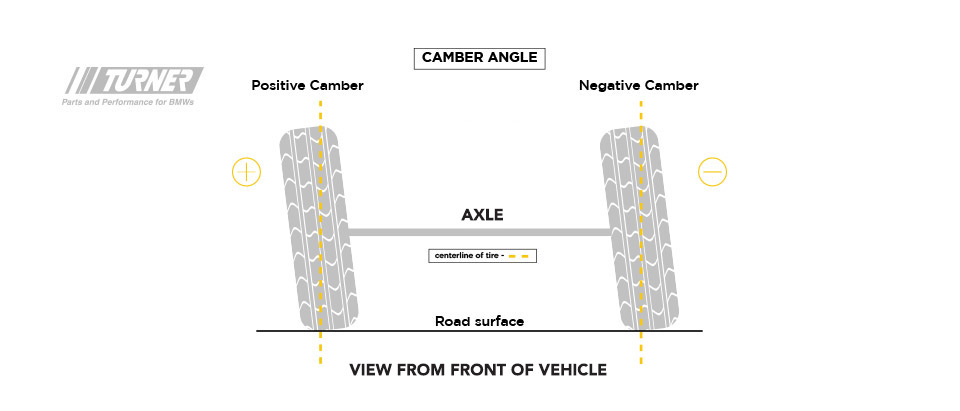

Camber Angle

How your wheels rest when viewed from head-on is known as your Camber Angle. Anyone remotely familiar with suspension is likely aware of what camber angle is, but probably less familiar with how it affects your handling. The idea itself is simple: negative camber is when the bottom of the wheel is out farther than the top of the wheel, and positive when the bottom of the wheel is further in than the top of the wheel. Camber neutral is when the wheel is completely vertical and unbiased towards either positive or negative camber. The angles themselves are incredibly important for maximizing your grip and handling under different driving conditions.




Negative Camber

Negative Camber is more popular with drift cars, track cars, and has become a style for show cars in the last decade. The severe negative camber angles you may have seen allow for increased steering angle and for the fitment of more aggressive wheels. With proper negative camber, you are actually able to increase the contact patch of the outer tires when cornering, as the vehicle weight transfer will cause the camber angle to straighten to almost camber neutral under the load shift. Ideally, you will want to set your track or street performance BMW up with negative camber that allows for a good contact patch when the vehicle is loaded but has an almost square contact patch on the outer tires under hard cornering.


Positive Camber

Positive camber is used in drag vehicles, as the massive power and torque cause the vehicle weight to shift to the driven wheels and 'squat' the rear end. With the additional weight, the wheels are cambered back out to camber neutral under load, and the car is given the maximum contact patch and grip for the best launch possible. In track cars, positive camber makes steering very light on the front wheels and reduces the rear wheels traction in the corners. You will want to adjust your car’s suspension settings if you are seeing wear on the outside of the tires, as this will mean your camber angle is too positive for your driving. Note that you can have negative camber, but if your car is cornering and you are wearing the outer part of the tire, you may need more negative camber. This can also be caused by improper toe angles, which we will discuss later.




Camber Neutral

Neutral camber is when the wheel is square to the ground and would be completely vertical. This is how you want your wheel and tire for maximum grip. Why wouldn't you just set your car up with neutral camber for the best results? The weight shift from cornering, acceleration, and braking all change the load and angle of your wheels when you are driving. While you may have neutral camber sitting still, as you drive the contact patch will be reduced no matter where you are. The best use for your BMW to take advantage of neutral camber is to set your resting camber angle to account for load shifts to give your car a neutral camber angle where the most weight and power of your vehicle will shift under driving.


Adjustments

Camber angle can be adjusted with camber bolts, camber plates, and the orientation of your struts and shocks as they sit in the car. Your spring rates should be selected based on your camber angle and tires should be chosen that can handle the additional spring rates of your new setup. You can read more about the coilover suspension in our previous article BMW Coilover Buyer's Guide, and check out our Camber Plates for the widest range of adjustment settings to perfect your suspension setup.




Caster Angle

Caster angle is the position of the wheel in the wheel housing as you look directly at the face of the wheel, from the side of the car. This is how the car centers itself as you load a side by cornering. The caster angle plays a big part in how your steering behaves and can cause understeer or oversteer if it is not properly set.

You want to adjust your caster angle evenly on the front wheels to prevent any bias to one side. For your steering feel to be perfect, you will need to find a happy place between the positive and negative caster angle. Too positive and you will need excessive steering inputs and will experience understeer. Too negative and your car will oversteer and you will have reduced steering feel. Dialing in your caster angle will take a lot of trial and error as you perfect the angle for your lowered suspension and added negative camber.

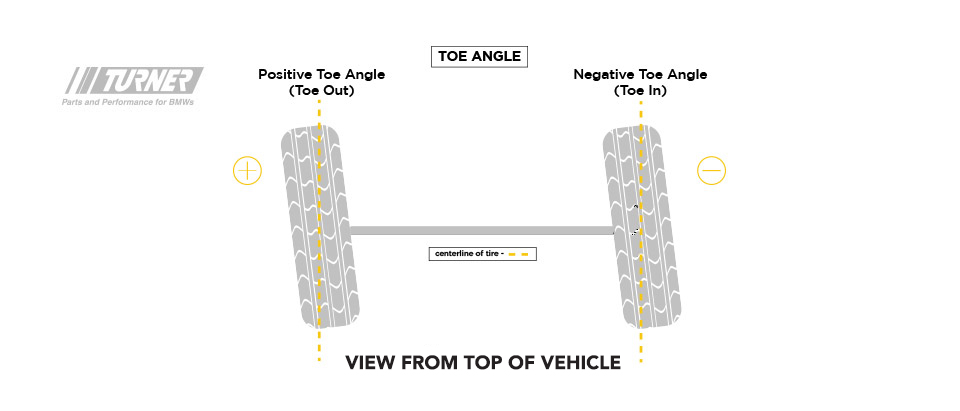

Toe Angle

The toe angles of your wheels are the angle of the wheel left and right when viewed head-on. Similar to camber angle, but on the opposite axis. Toe out points the wheels away from the wheel centerline of the vehicle, while toe-in points them towards the center line. Zero toe is where they are completely in line with the vehicle.

The toe angle is incredibly important to keep the vehicle driving in a straight line and not bias towards one side under braking. Minimal changes in your toe angle can have massive effects on your vehicle's performance. Excessive toe, either in or out, causes severe tire wear and poor handling.


Spring Rate

The spring rate is the ratio of resistance based on spring compression by one inch. This is the weight your springs require to compress. Spring rates and lengths are selected by the vehicle weight, height, and angle at which the struts/shocks are mounted in the car. The proper spring rate is selected based on a formula of how all those values relate to each other. The lower your vehicle, the stiffer your spring rate needs to be in order to prevent the vehicle from bottoming out, but you do not want to exceed the ability of your tires to maintain grip. Too stiff and you can actually decrease performance as we learned in the last article covering coilover functions.




Strut Housing Angle

The angle at which your struts and shocks are mounted is referred to as your strut housing angle. This angle can affect your camber angle, which will need to be adjusted properly if you change the orientation of your struts and shocks. This angle also affects your spring rate, and there is a specific formula to determine how stiff your springs need to be to maintain an identical rate to your previous housing angles. The change in angle shifts the way loads are distributed to the car through the suspension and can improve the effectiveness of your suspension, but will increase the overall harshness of the ride as you reduce the degree of the angle of your housings.




Roll Center

The roll centers of your BMW are the points around which your suspension pivot. These points change under acceleration, braking, and cornering. The further from the center of gravity the roll center is, the more weight is transferred there as the load shifts. You want to balance the front, rear, and corners of the car so that your roll centers are neither too high nor too low. This will allow your chassis to roll linearly and keep your car balanced through corners. This can be achieved with an evenly lower center of gravity, properly adjusted suspension geometry, and corner balancing.




Corner Balancing

Corner balancing adjusts the weight and load distributed to each wheel so that the range is optimal for your suspension function and load shifts during driving conditions. This is adjusted with the spring rate and height. You want your suspension to handle evenly across all corners in a street or track performance BMW, so corner balancing is important. Think of it like you would engine software tuning after you have added performance bolt-on modifications. In order to achieve the best results, you need to fine-tune the suspension so it all works together in harmony and equally across all four wheels.




Takeaways

While it is important to choose your suspension upgrades wisely, you also need to know how to effectively dial them in for proper function. The ratios at play are all determined by the constant of physics, so there are easy formulas to determine your proper suspension settings. Once you have your suspension installed, you can easily fine tune the camber, caster, toe, and housing angles to provide an optimal center of gravity, optimal roll centers, and can corner balance the vehicle for even load distribution. These settings will allow you to take full advantage of your upgraded suspension and perform to your fullest ability on the track with your BMW.
