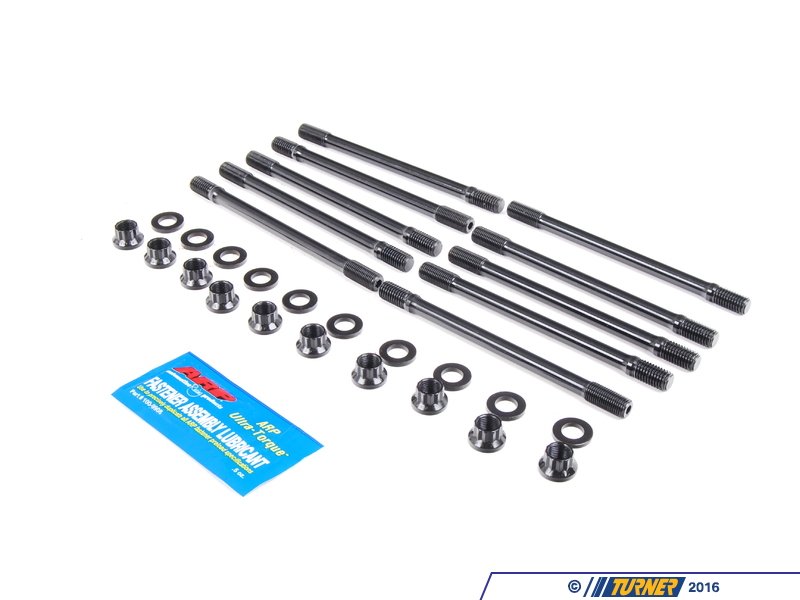

BMW M10 Engine ARP Head Stud Kit - 2002, E21 320i, E30 318i

Mfg Part #
201-4601
Turner Part #
T#189784
Brand
Price:
Qty
176.44
Ships on Jul 30, 2018
Free Shipping Free Shipping
Does this fit my vehicle?
For accurate results, specify your model below.

Product Details

Virtually every top professional BMW engine builder relies on ARP Pro Series head studs. ARP uses a premium grade 8740 alloy that is rated far superior to "aircraft" quality. Each stud is heat-treated to 200,000 psi, ensuring complete heat penetration. ARP studs are threaded after heat-treat, which gives them 1000% (that's ten times!) better fatigue strength than studs threaded prior to heat-treat. Threading the studs after heat-treating is more difficult and costly (as it's harder on tooling) but the results are well worth the effort. These simply are the best head studs we've found and we highly recommend them in both racing and forced induction applications. Due to the additional clamping force between the head and block, these are IDEAL for turbocharged engines.

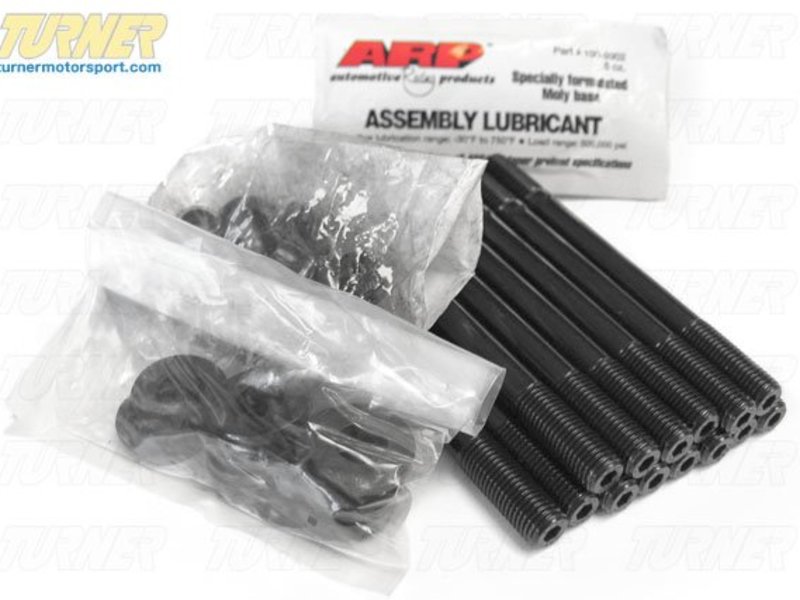

Converting from the factory BMW head bolts to head studs makes it much easier to assemble an engine, especially a racing powerplant which must be serviced frequently (and quickly!), and also ensures proper alignment of the head and gasket. Head studs also provide more accurate and consistent torque loading. Here's why: When you use bolts to secure the head, the fastener is actually being "twisted" while it's being torqued to the proper reading. Accordingly, the bolt is reacting to two different forces simultaneously. A head stud should be installed in a "relaxed" mode -- never crank it in tightly using a jammed nut. If everything is right, the stud should be installed finger tight. Then, when applying torque to the nut, the stud will stretch only on the vertical axis. An information sheet is provided with each set.

This item fits the following BMWs:
1970-1976 2002 BMW 1600 2002 2002tii
1977-1983 E21 BMW 320i
1984-1985 E30 BMW 318i

This Part Fits the Following BMWs

Make Model Submodel Engine
BMW E10 2002 M05 2.0L
BMW E10 2002tii M15 2.0L
BMW E30 318i M10 1.8L
*The above product applications have been written by Turner Motorsport. All warranties, product application, fitment, and performance are the responsibility of Turner Motorsport. For additional information see the terms of use.
