Fuel-It! Flex Fuel Kit - N54/N55 E Chassis

Product Details

If you are running E85 or ethanol mixes in your BMW, you need this kit!

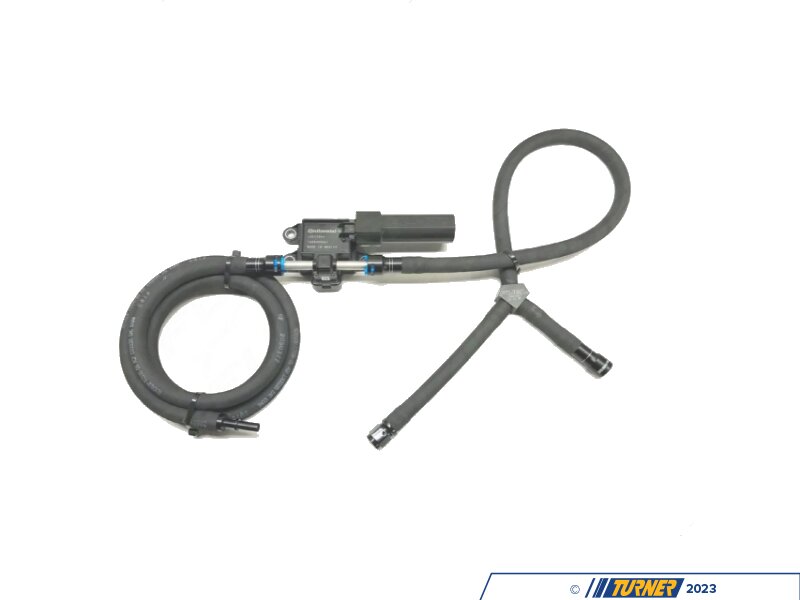

This is a complete plug and play kit to install a Bluetooth ethanol sensor in your E-Chassis BMW.

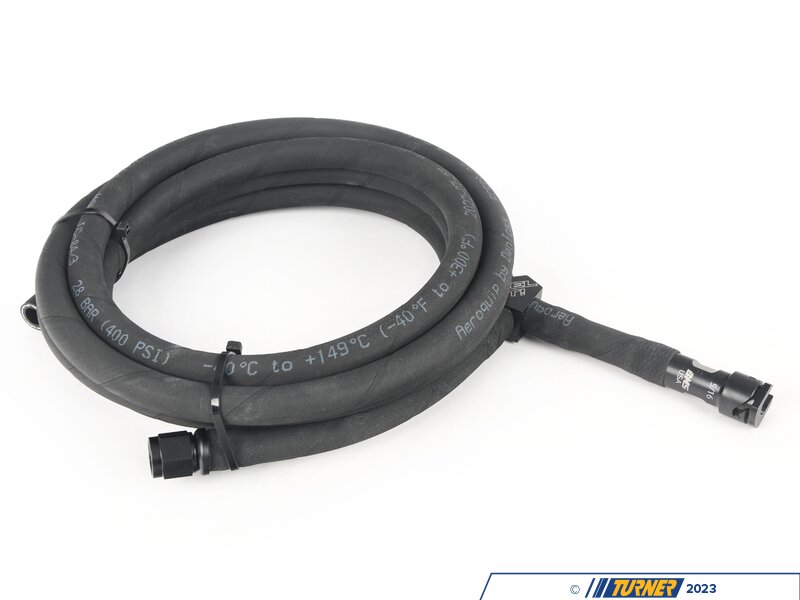

This kit replaces the stock fuel lines from the fuel tank to the engine bay with an upgraded -6an E85 compatible fuel line and adds an ethanol sensor and Bluetooth analyzer to monitor your ethanol content.

Includes both Bluetooth App & 5v analog output for JB4 or flash tuning.

For your fuel line upgrade, choose the option that supports your current configuration.

• HPFP to the fuel tank: (Stock)
  • This upgrade replaces both stock fuel lines with one upgraded continuous fuel line from the fuel tank to the HPFP and adds the ethanol sensor.

• Port Injection to the fuel tank:
  • If you are running our port injection kit, this upgrade replaces the stock fuel lines from the tank to the engine bay, integrates the ethanol sensor and then utilizes a Y adapter to supply the HPFP and PI with fuel.  Our custom fittings remove those tee's and extra fittings for a cleaner high flow setup.
• Non-Fuel-It! port injection to fuel tank:
  • Choose this option if you are running a port injection kit that we did not manufacture or sell.  This kit includes a longer 18" feedline from the Y to the port injection rail.  You then cut the feed line to the length you need and install the included -6an female fitting or -6an female elbow to make the connection to your port injection rail.

All of these kits utilize the BMS custom billet aluminum fittings to integrate with the stock fittings so no modifications are needed.

*For the BMW N54 E-series JB4 platform connect the white wire to position #15 on the JB4 25 pin harness. Select WMI Ethanol Setup option 1 to enable pin location 15/16 flex fuel input.

*For the BMW N55 E-series JB4 platform connect the white wire to position #16 on the JB4 25 pin harness. Select WMI Ethanol Setup option 1 to enable pin location 15/16 flex fuel input.

*Ethanol Sensors don't actually read the ethanol content, the readings are based on the absence of gasoline, so if your fuel is contaminated your ethanol readings may be artificially elevated.

Not for sale or use in the state of California on any pollution-controlled vehicle as per the California Air Resources Board.
