Exhaust Gaskets and Hanger Package for E46 M3

Product Details

A Do-It-Yourself exhaust install can be hard enough. But to stop in the middle of it to run to the dealer for gaskets, hangers, or special hardware is a major inconvenience. Don't be left taking the bus to the dealership on the hunt for parts. Get all of the parts you may need before the job begins! And with mileage we can almost gurantee that any section you remove will need to have new gaskets. Some of the gaskets are crushed to ensure a tight seal; other gaskets become stuck to their flanges. This set of hangers and gaskets for the 2001-2006 E46 M3 covers all of the sections of the exhaust, from the headers to the muffler.

The exhaust on the E46 M3 is broken up into sections -
headers - gaskets at the cylinder head and at the outlet to section 1, plus an air pump gasket
section 1 - crush gasket rings on the inlet and flange gaskets at the outlet to section 2
section 2 - flange gaskets at the inlet and steel exhaust rings at the outlet to the muffler
muffler - steel exhaust rings on the inlet with special square-shouldered nuts (included with hanger/gasket kit)

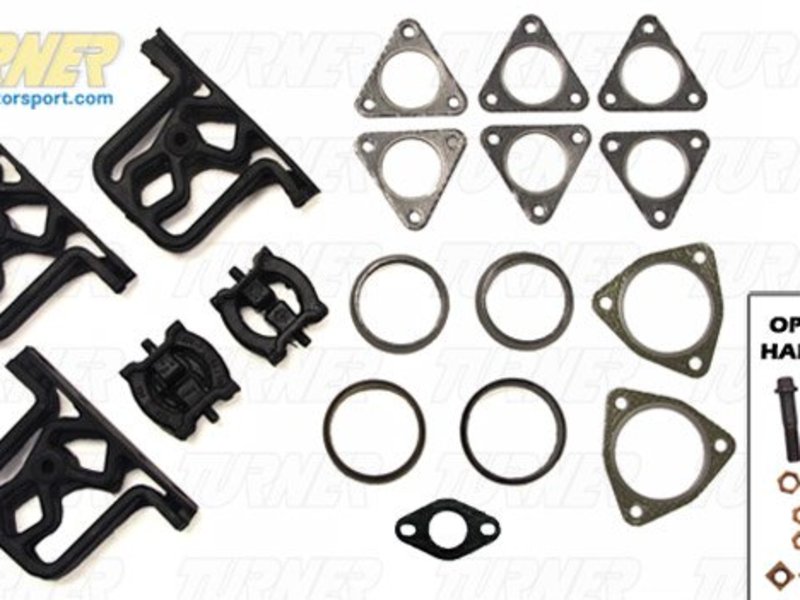

This package also includes 3 new muffler hangers and the 2 hangers in the center of the exhaust (mounted on section 1).

We also offer most of the exhaust hardware you may need -
Torx bolts and nuts for the header-section 1 connection
copper nuts for the section 1-section 2 connection (M8x30 bolts can be re-used)

Applications:
2001-2006 E46 M3 coupe, convertible
